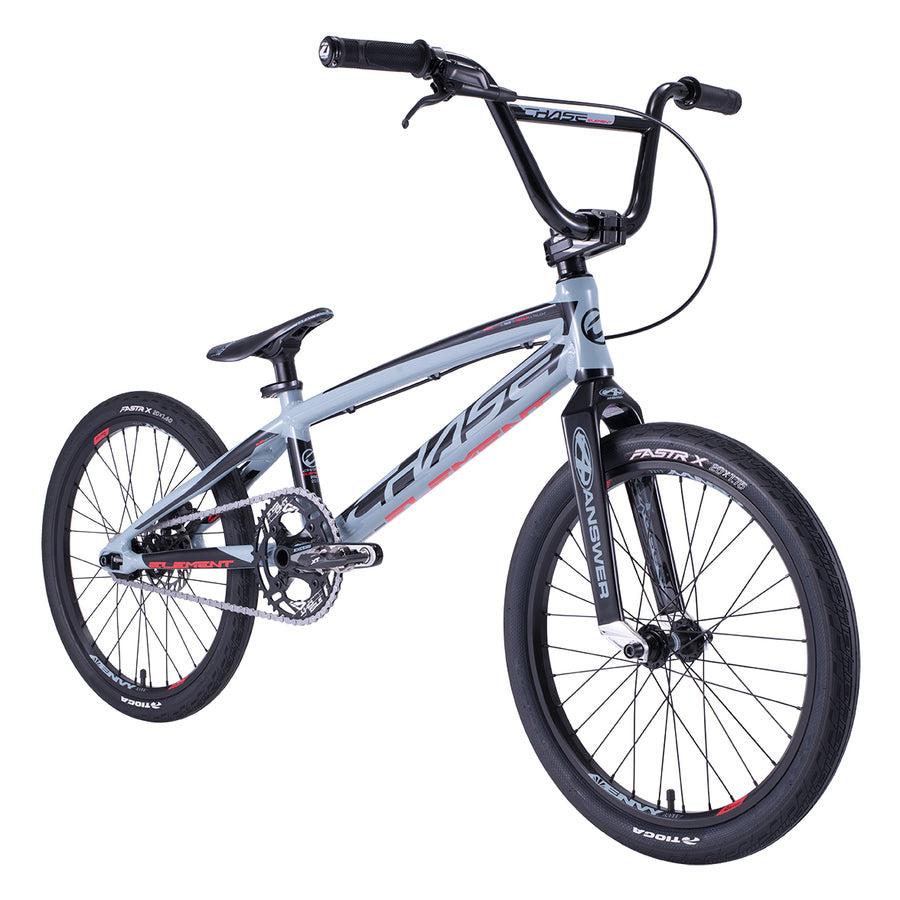

We expect the 2022 Chase Element Pro L bikes to sell as fast as the 2021 models, with the range really establishing itself as the best value for the racer looking to step up from an entry level race bike. With a part's suite that includes gear like race proven Answer carbon fibre Dagger forks, along with a disc brake system, the first step in the Element Pro range is the perfect race rig for riders coming up through the ranks. The part's list continues with brands like Elevn, Insight and Tioga used for key components
With design cues from the Chase RSP frame series, the Element's geometry has input from Chase's two pro riders, Olympic champion Connor Fields, and 4X USABMX title winner Joris Daudet. The Pro L Element with a 20.5"" top tube is suited to the rider jumping up from a expert sized bike who's grown enough to skip the expert XL level, particularly if they are really starting to hit bigger jumps. The 20 inch wheelset with a 20x1.75/1.60 combo will soak up cases that inevitably will happen. It's all part of development and with a little ""suspension"" built into the bigger tyres, the rider on this bike will progress further and faster than ever before. Especially with the DNA of the Chase brand in every Element.
Key Specs:
- TT Length: 20.50""
- BB Height: 11.5""
- Crank Length: 175mm
- Gearing: 43x16
- Gear Ratio: 52.27""
- Tyre Size: 20x1.75/20x1.60
Note: Bike is supplied with flat pedals. Shimano clips shown for display purposes only.
| Size | 20.50 TT |
| Frame | Chase Element Pro 20.5″ Top Tube, 7005 T6 Alloy, Integrated 1-1/8″ Head Tube , Enclosed rear dropouts and Chain tensioner system |
| Fork | Answer Dagger Carbon Pro, Alloy Drop Out 3/8″ Axle, 1-1/8″ Alloy Steer Tube, Alloy Top Cap |
| Headset | Chase Integrated Sealed Bearing |
| Stem | Chase Element 31.8mm, 50mm, 6061 T6 Alloy CNC Laser Etched Logo |
| Handlebar | Chase Element 31.8mm, 7.5″ Rise, 28″ Wide, 10° Back Sweep, 2° Up Sweep |
| Grips | Insight C.O.G.S 145mm, Alloy Clamps Laser Etched Logo, PVC End Plug |
| Brake | Hydraulic lever and caliper, 120mm disc rotor, Resin Pads, Lock Disc Adaptor |
| Disc Rotor | 120mm Alloy |
| Crank | Excess LSP 2 Piece Crank 175mm Alloy Arm, 4 Bolt Spider, Cr-mo Pedal Inserts, Alloy Chain Ring Bolts / Nuts |
| Chainring | Insight 43 Tooth 4 Bolts 104mm 1/2″x3/32″ 5mm Alloy Ring |
| Bottom Bracket | Press Fit 68/73mm Cartridge Bearings |
| Pedals | Nylon Platform Pedal 9/16″ |
| Chain | KMC Z1 narrow 1/2″x3/32″ |
| Front Hub | Chase Element, 3/8″ Axle, M6 bolts, 36H, Sealed Bearing |
| Rear Hub | Chase Element ISO, 3/8″ Axle, 36H, Sealed Bearing, Steel Cassette Body with 3 Pawls at Triple Angle Engagement for 24T Ratchets |
| Rear Cog | 16T |
| Front / Rear Rim | Sun Ringle Envy Lite 36H 20×1.50″ No Brake Surface Schrader Valve |
| Tyres | Tioga Fastr X 20×1.75″ (Front) Tioga Fastr X 20×1.60 |
| Seat / Post | Elevn PC Pivotal / Chase Aero Pivotal 27.2x260mm Alloy |
| Seat Clamp | Chase Aero QR Alloy 31.8mm |
| Gearing / Ratio | 43x16 / 52.27 |
| Weight | 9.25kg (with pedals) |
