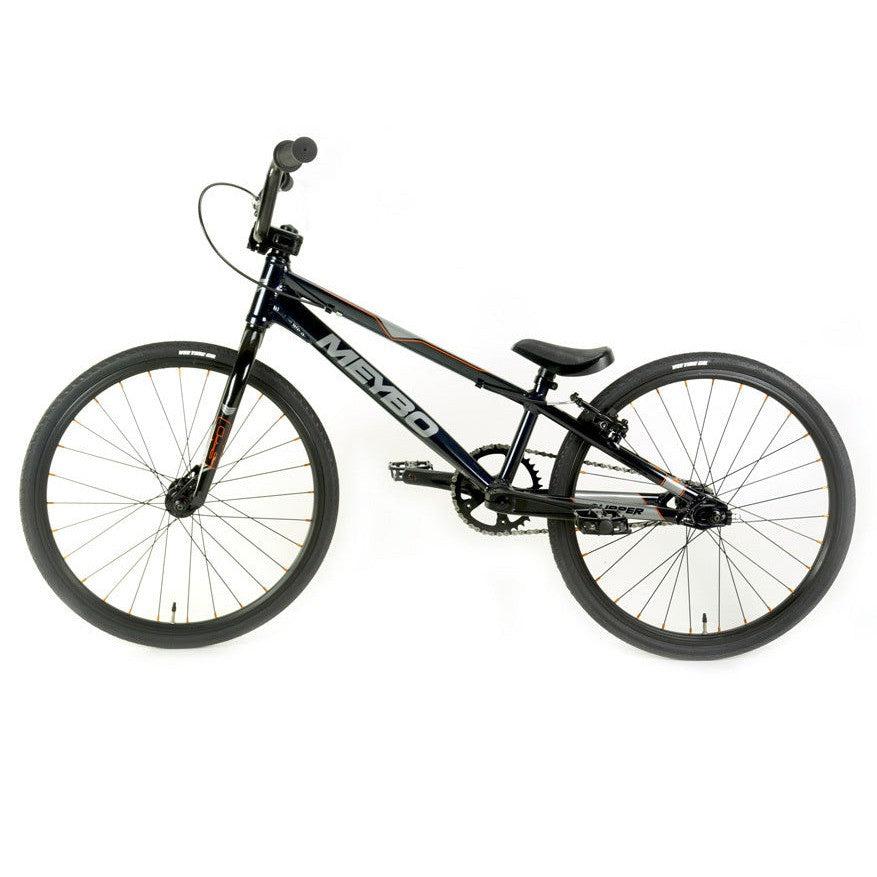

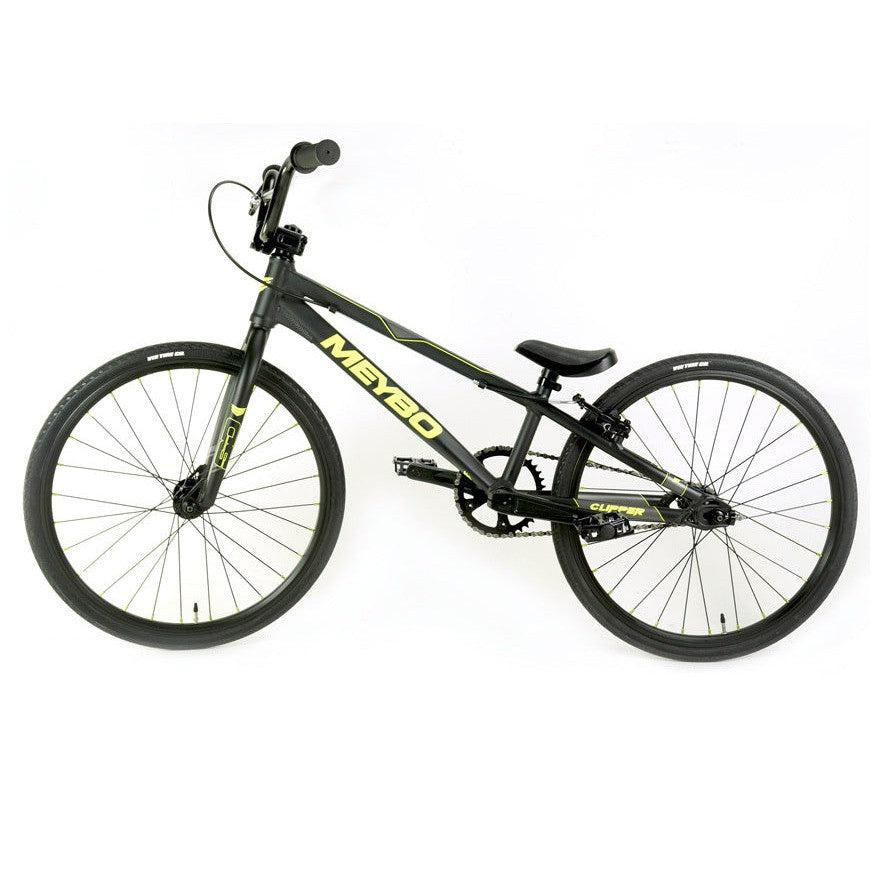

There is no doubt that Meybo know how to put together a race winning team, and race winning bikes. Known world wide for their Holeshot frame series, the Meybo Clipper complete race bikes take the geometry from that range and applies to the aluminium Clipper frame, then this Dutch company bolts a bunch of SD components to it to bring you one of the best value for money race bikes available in Australia.
Spec'ing a complete race bike is a challenge with sizing, but we reckon that Meybo have got the whole range of Clipper bikes just about spot on. This Junior comes with 20x1-1/8"" Tioga Powerblocks and a 145mm SD two-piece aluminium crankset. Your sprocket will be able to send this little rig to the moon without fear of bending these cranks. Additional strength comes in the form of double-walled alloy SD rims which have sealed-bearing hubs laced into them. Upfront is a chromoly fork meaning that this is one tough little race bike, yet still light enough for your young pilot to carve through the pack onto the way to the finish line and take the W.
Key Specs:
TT Length: 18.75""
Gearing: 37 x 16
Gear Ratio: 47.16""
Crank Length: 145mm
Weight: 7.0kg
| Size | 18.75"" |
| Frame | Meybo Clipper Junior - Aluminium |
| Fork | SD Mini 1” Fork |
| Headset | Sealed Full Integrated 1” |
| Stem | SD Stem 1” 40mm |
| Handlebar | SD Alloy Junior Handlebar |
| Grips | 115 mm lock-on grips |
| Brake | Lever - Tektro Mini 316 AG / Caliper Tektro 926AL |
| Disc Rotor | N/A |
| Crank | SD Expert outboard bearing 4 hole 140mm Black |
| Chainring | 4Hole 37T Black |
| Bottom Bracket | SD Expert outboard bearing BB |
| Pedals | Alloy Black |
| Chain | KMC 610HX 3/32 Silver |
| Front Hub | Sealed Hub 28H black |
| Rear Hub | Sealed Cassette Hub 28H 4 Pawls |
| Rear Cog | Cog 16T Silver |
| Front / Rear Rim | 20x 1 1/8 Double Wall - Eyelets |
| Tyres | Tioga Powerblock 20x1-1/8 |
| Seat / Post | SD Mini Seat Combo 22.2mm |
| Seat Clamp | Alloy Black 25.4mm |
| Gearing / Ratio | 37x16 / 47.16"" |
| Weight | 7.2kg |
| Top Tube Rider Area | 18.75"" |
| Down Tube | 19.06"" |
| Chaintstay | 13.39"" |
| Head tube Angle | 73.5° |
| Seat Post Angle | 70° |
| Head Tube Size Full Integrated | 1"" |
| Seat Post Size | 22.2 mm |
| Dropout | 10 mm |
| Bracket | EU |
