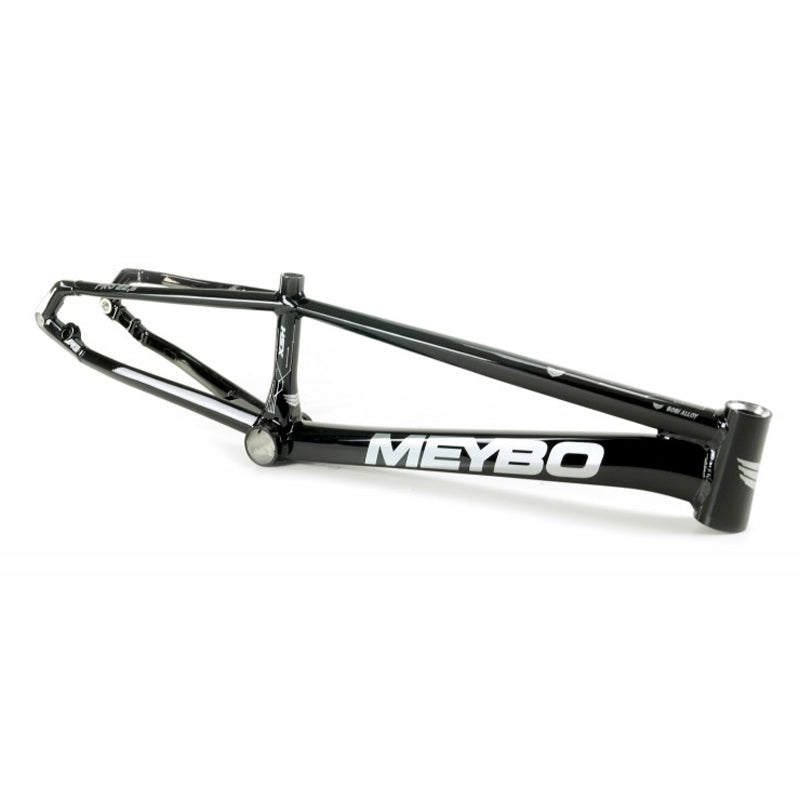

A black Meybo 2024 HSX Pro Cruiser Frame with internal cable routing and the word Meybo on it.
A black bike frame featuring Meybo 2024 HSX Pro Cruiser Frame on a white.

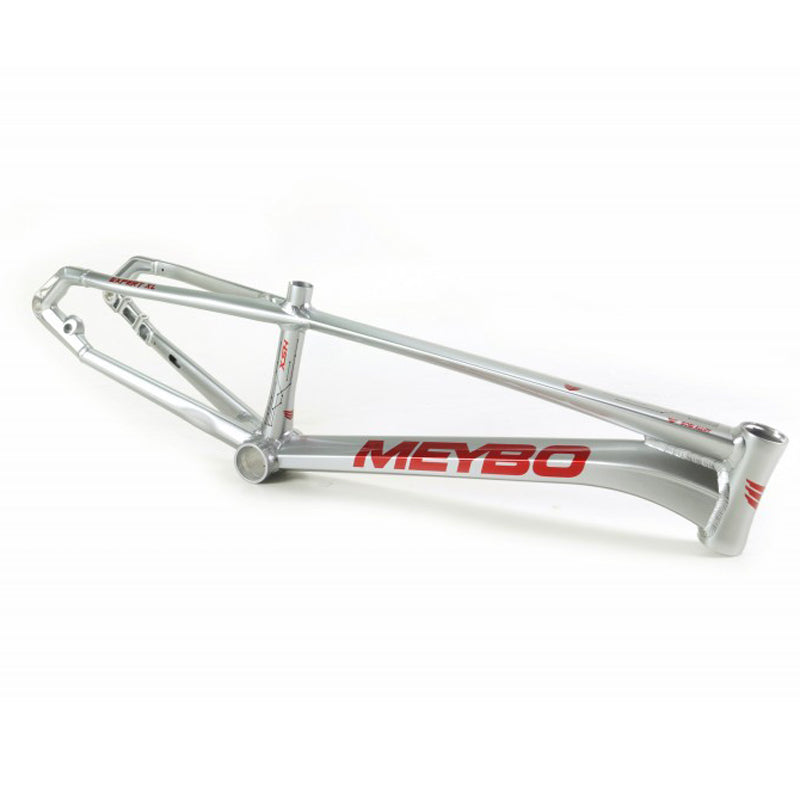

A Meybo 2024 HSX Pro Cruiser Frame with internal cable routing and the word met80 on it.
A silver bike frame with internal cable routing, Meybo 2024 HSX Pro Cruiser Frame alloy frame on a carbon frame.

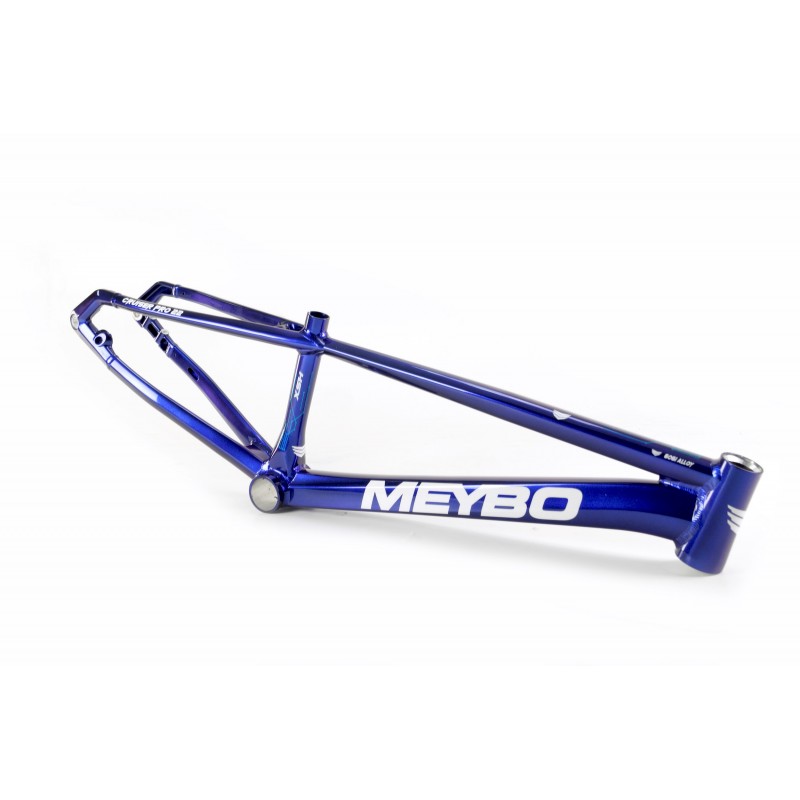

A blue Meybo 2024 HSX Pro Cruiser alloy frame with the word meybo on it.
An image of a blue Meybo 2024 HSX Pro Cruiser frame bicycle with internal cable routing.

Meybo 2024 HSX Pro Cruiser Frame

Sale price$1,299.99 AUD

Or 4 payments of $324.99 AUD with

Pay in 4 interest-free payments

Select Option

View All
A black Meybo 2024 HSX Pro Cruiser Frame with internal cable routing and the word Meybo on it.

Meybo 2024 HSX Pro Cruiser Frame / Black/Silver / 22.2TT

Sale price$1,299.99 AUD

kab8610

Sold Out

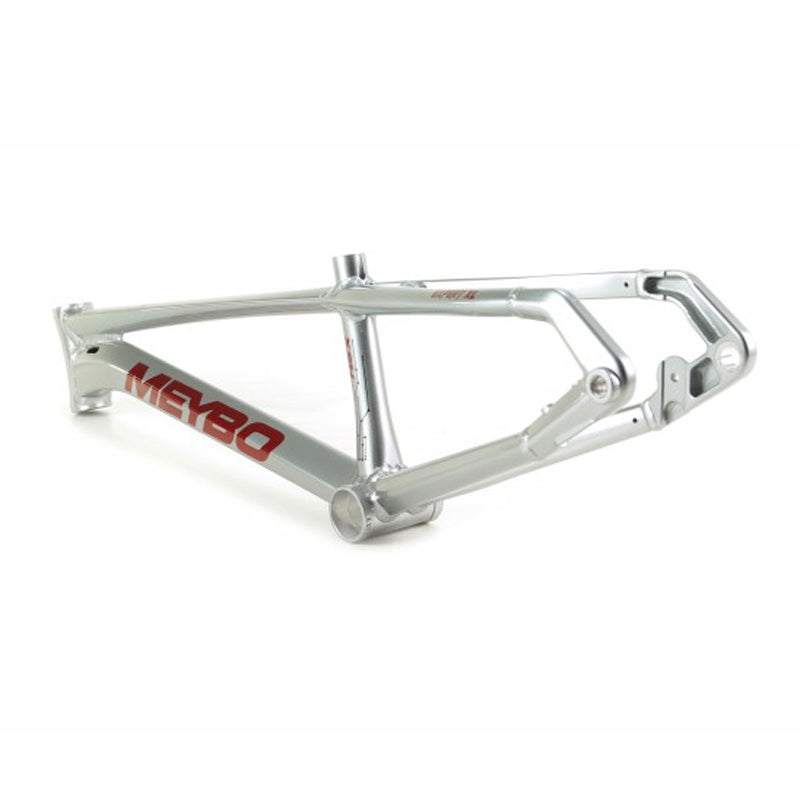

A Meybo 2024 HSX Pro Cruiser Frame with internal cable routing and the word met80 on it.

Meybo 2024 HSX Pro Cruiser Frame / Grey/Red/Black / 22.2TT

Sale price$1,299.99 AUD

kab8611

Sold Out

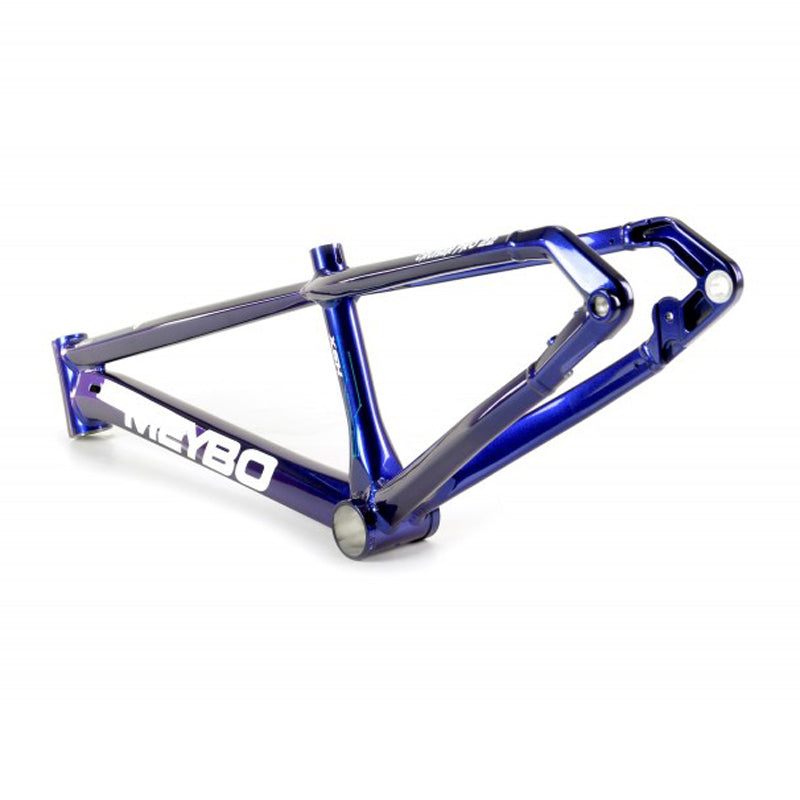

A blue Meybo 2024 HSX Pro Cruiser alloy frame with the word meybo on it.

Meybo 2024 HSX Pro Cruiser Frame / Navy/White/Cyan / 22.2TT

Sale price$1,299.99 AUD

kab8612

Sold Out

Description

his frame is the aluminium version of the extremely popular Meybo carbon HSX that mimics the geometry and specifications of its more expensive sibling, with only a very small weight penalty. So small that when built, the difference would be negligible.

Sitting around half the price of the carbon frame, the Meybo HSX alloy frame doesn't sacrifice in the way of features. Manufactured from 6061 T-6 multiple butted hydroformed tubing and utilising the same fixed dropout system and flat mount disc caliper set up, it brings to the gate the same simplistic design that has seen the HSX series become popular on the UCI circuit. And not just favoured buy the Dutch, riders all over the world appreciate the ease at which gearing changes can happen.

We love these Meybo frames for their simple clean graphics that state perfectly their no nonsense approach to winning. Touches like full internal cable (hose) routing makes building these frames up child's play. Plus it looks so clean! Make no mistake though, the HSX range has all the attributes of dialed geometry, stiffness and proven on the track performance.

This aluminium HSX frame isn't the poor cousin of the carbon frame, it's an astute choice for the racer that will likely put the savings towards other key performance components such as carbon fibre rims and Onyx hubs to build a top shelf BMX race bike capable of competing at the highest level of BMX.

Frame Specs

Model  Meybo HSX Pro 24 Cruiser
Frame Material  6061 T-6 multiple butted hydroformed tubing
Top Tube Length  22.2 Inch
Chainstay Length  15.47 inch
Bottom Bracket Height  Not specified by manufacturer
Head Angle  74 Degree
Seat Angle  71 Degree
Head Tube Type  Tapered 1-1/8th- 1.5 Inch
Wheel Type  406mm (24 x 1.6 to 20 x 1.85 tyres)
Bottom Bracket Type  BB386
Seat Tube Diameter  27.2mm
Seat Clamp Diameter  31.8mm
Brake Type  Disc - Flat Mount
Dropout type  Fixed - 15mm Thru-bolt
