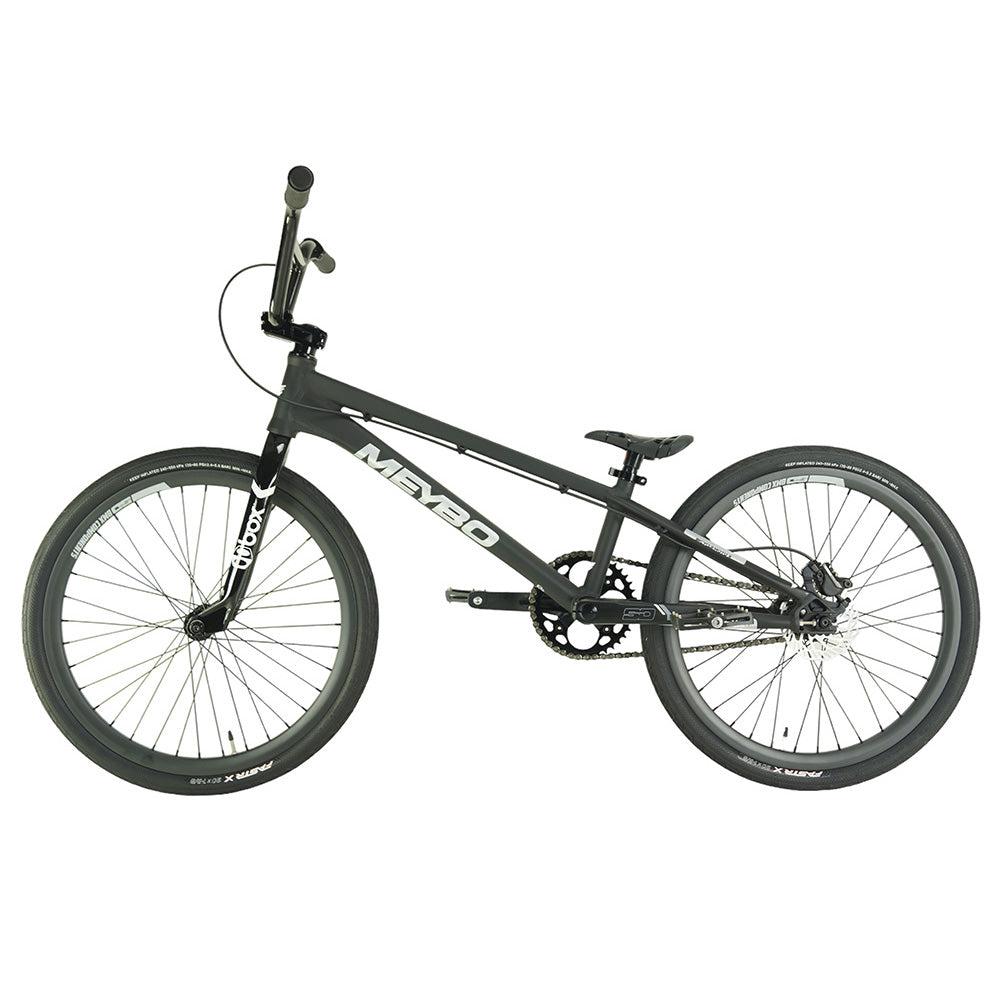

A Meybo 2024 Patron Expert XL Bike, a black BMX race bike with SD carbon fibre rims, showcased on a white background.

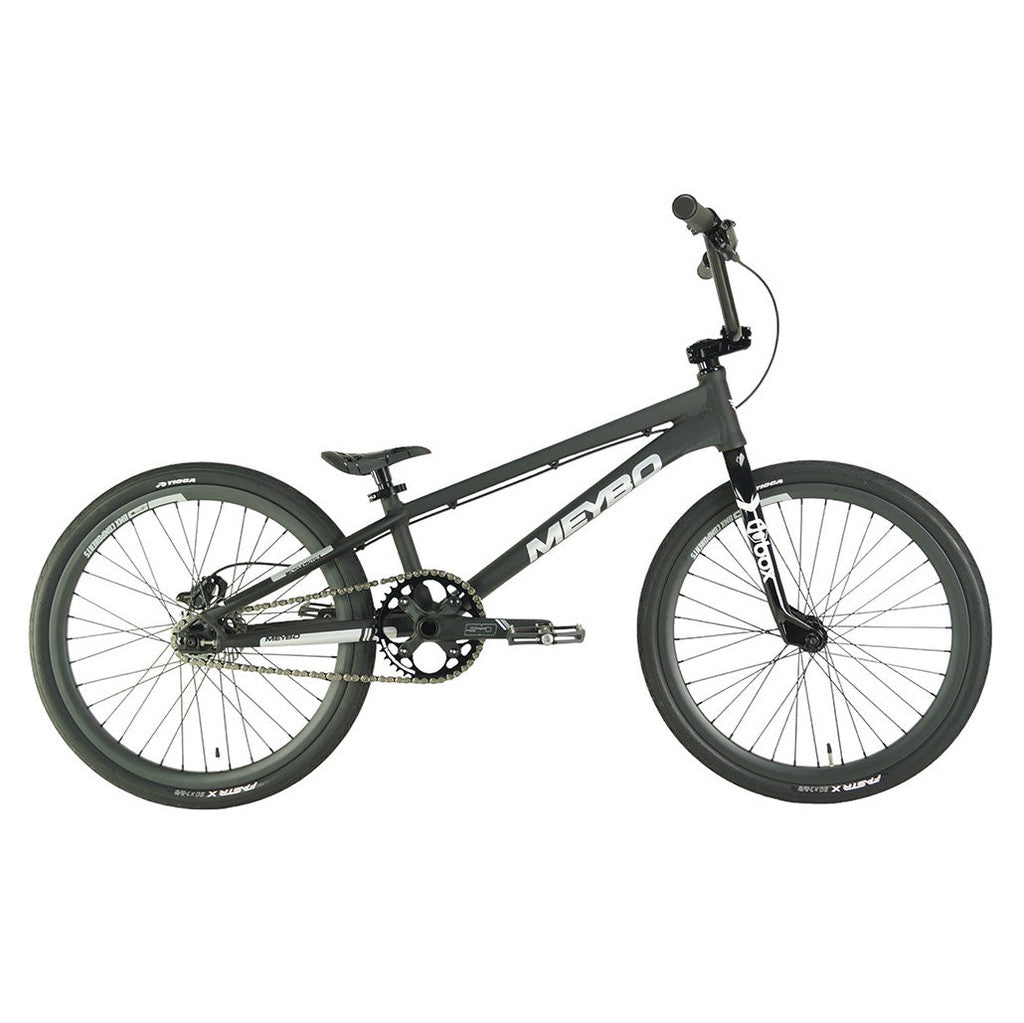

A Meybo 2024 Patron Expert XL Bike, a black BMX race bike with SD carbon fibre rims, showcased on a white background.

Meybo 2024 Patron Expert XL Bike

Sale price$3,038.00 USD
Or 4 payments of $759.50 AUD with

Pay in 4 interest-free payments


Top Tube Length

Select Option

View All

Meybo 2024 Patron Expert XL Bike / Black/Grey / 20.7TT

Sale price$3,038.00 USD


Sold Out


There are very few complete bikes that you could wheel out of the shop and take straight to a national level event and be competitive on, but we definitely believe that the 2024 Meybo Patron Expert XL is a BMX race bike that you could do this on.

Starting with a Meybo Holeshot frame as the base for the bike, this Dutch company has reached to the top shelf for the components to complement this first class aluminium frame.

Carbon fibre BOX XL forks, plus a swath of SD parts marks this as a semi custom build and mirrors how we would build a ground up race bike here at LUXBMX. Speaking of SD, the Patron rolls on SD carbon fibre rims making it as far as we know, the first complete race bike to be offered with such a set up. Another tasty touch is the inclusion of an SD 6061 CNC'd chainring. This is the type of gear that elite racers run on their bikes!

Continuing through the part's list and you'll find a BOX Two seat combo, Tioga Fastr tyres and Shimano hydraulic disc brakes. Honestly, this race bike is ready to win straight off the floor with Meybo having fully locked down this end of the race bike market.

 Size  20.7TT
 Frame  Meybo Holeshot Frame 2021 (Disc only) Expert
 Fork  BOX One XL carbon fork 11/8" 10mm
 Headset  FSA Sealed Full Integrated 11/8”
 Stem  SD CNC Stem 11/8” 50mm
 Handlebar  SD Alloy Expert XL Handlebar
 Grips  SD 130 mm lock on grips
 Brake  Shimano MT501 Hydraulic Lever and Caliper
 Crank  SD expert 4-lite 4 Hole, outboard bearings 165mm
 Chainring  SD CNC 6061 Chainring V2 4 Hole 40T Black
 Chainring Bolts  Black Steel
 Bottom Bracket  SD hollow 24mm Euro, outboard bearings
 Pedals  Wellgo B-219 Sealed Bearing CNC platform
 Chain  KMC K1 3/32 Silver/Black
 Front Hub  SD Ace Expert Hub 36H 8mm bolts
 Rear Hub  SD Ace Cassette Disc Hub 36H 6 Pawls 180 clicks 8mm  bolts
 Spokes  Black Steel Spokes / Nipples Alloy Black
 Rear Cog  Cog 16T
 Front / Rear Rim  SD M83 20x 1 3/8 Carbon Rim 25mm
 Tyres  Tioga Fastr-X 20x 1 3/8 Foldable
 Seat / Post  Box Two mini seat 25,4 black
 Seat Clamp  SD QR clamp 28.6 black
 Gearing / Ratio  39x16 / 52.17"
 Weight  TBC
