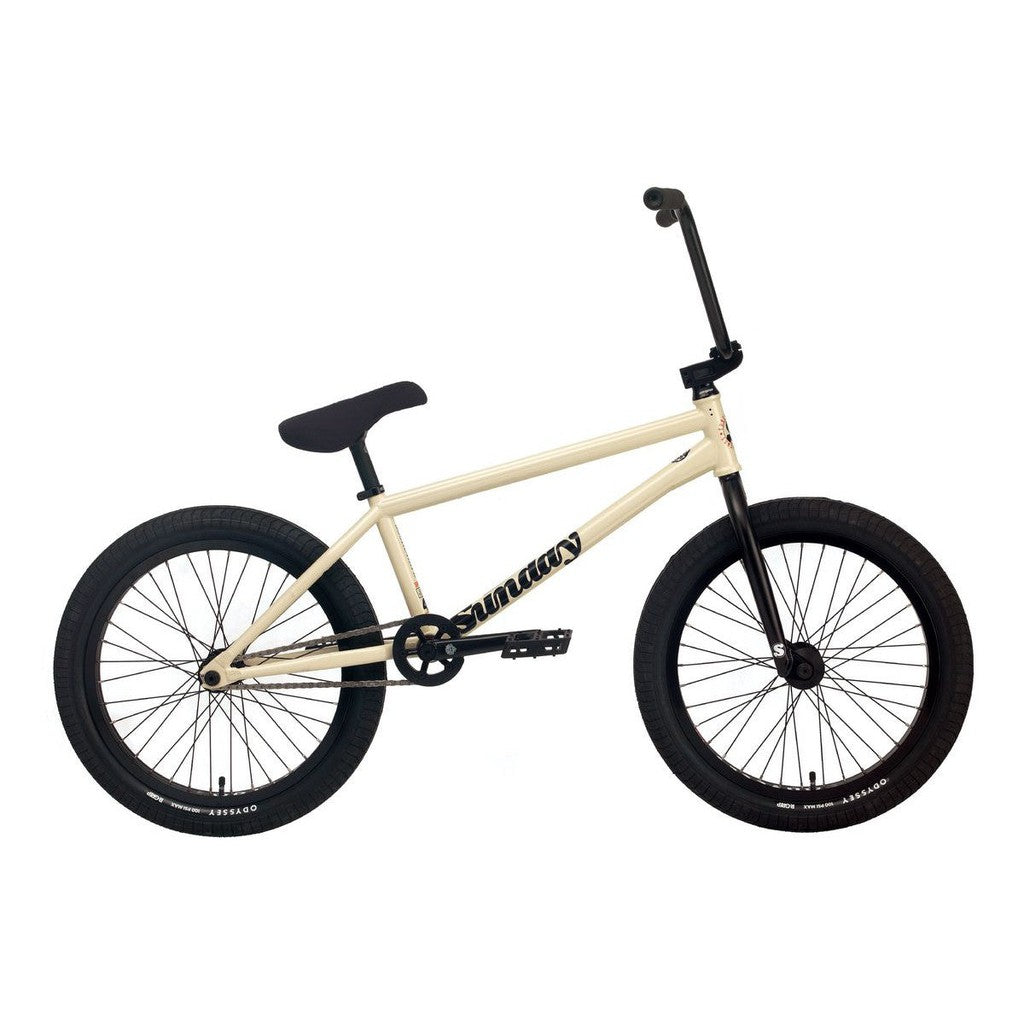

Sunday Soundwave Cassette 20 Bike (2022)
The 2022 Soundwave Special continues to offer the unmatched 41-Thermal® Lifetime Warranty on its Soundwave frame, Darkwave fork, Super Highway bars, and Thunderbolt cranks. Combine that with a long list of Odyssey parts, and you easily have a bike with no equals.
Gary Young rips on this bike daily for a reason.
Spec as shown is subject to changed based on component availability.
- 100% aftermarket
- 41-Thermal® Lifetime Warranty on Frame, Fork, Bars, and Cranks
- Sunday Soundwave v3 Frame
- Sunday Darkwave Forks
- Odyssey Super Highway Bars
- Odyssey Calibur v2 Cranks
- Odyssey Utility Pro Sprocket
- Odyssey Hazard Lite Rims
- Odyssey Antigram v2 Cassette
- Odyssey Path Pro Tires
- Right Hand or Left Hand Drive
| Size | 21TT |
| Frame | Sunday Soundwave v3, 100% chromoly aftermarket frame, 41-Thermal® lifetime warranty, removable brake hardware Top Tube Length: 21"" Head Tube Angle: 75° Seat Tube Angle: 71° Chainstay Length: 13.2"" - 13.5"" Bottom Bracket Height: 11.5"" Standover: 9” |
| Fork | Sunday Darkwave, 20"", 100% chromoly aftermarket fork, 41-Thermal® lifetime warranty, 28mm offset |
| Headset | FSA integrated conical, 1-1/8 |
| Stem | Sunday Freeze top load, 48mm |
| Handlebar | Odyssey Super Highway,100% chromoly aftermarket bar, 2-piece Rise: 9.5"" Width: 29"" Backsweep: 11° Upsweep: 1° |
| Grips/Bar Ends | Grips: Odyssey Warnin' |
| Brake | Brake Lever: Odyssey Monolever Brakes: Odyssey Springfield U-brake Brake Cable: Odyssey Quik Slic |
| BB | Sealed, Mid, 22mm |
| Cranks | Odyssey Calibur V2, 170mm, 100% chromoly, RHD/LHD Compatible |
| Sprocket | Odyssey Utility Pro, 25T w/ plastic guard |
| Chain | KMC Z1 eHX-W |
| Pedals | Odyssey Twisted PC Pro |
| Front Hub | Odyssey Vandero Pro, 36H, sealed, 3/8"" female axle, 2 plastic guards |
| Rear Hub | Odyssey Antigram V2 cassette, 36H, 14mm female axle w/ 9T driver, RHD/LHD Switchable, non-drive side plastic guard |
| Rims | Odyssey Hazard Lite, 20"", 36H |
| Tyres | Odyssey Path Pro, aftermarket, 20 x 2.4 |
| Seat/Post/Clamp | Seat: Odyssey Slugger Stitch, Pivotal Seat Post: Odyssey Pivotal Seat Clamp: Sunday aftermarket |
| Weight | 23.41lbs (brakeless) |
| Extras |
|
