Highlights

Freecoaster clutch driver
14mm male axle
Sealed driver bearings
ACD bearing on the drive side

Description

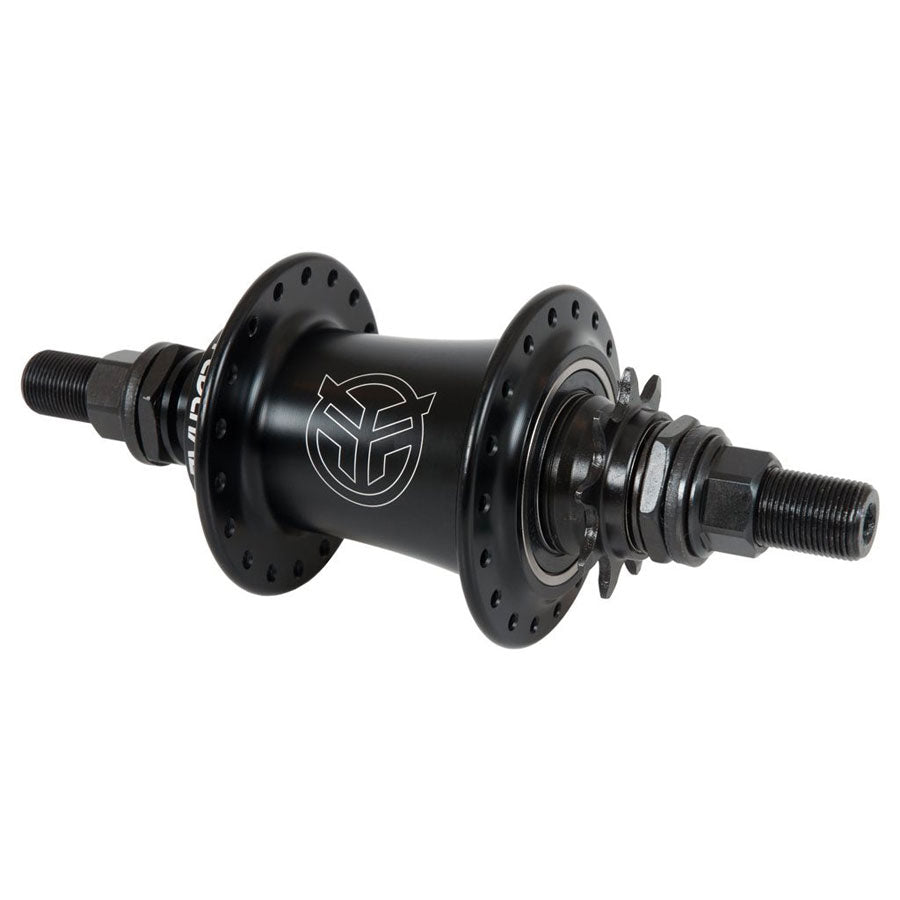

The Federal V4 is a BMX freecoaster rear hub, so the clutch driver lets the wheel roll backwards without dragging the cranks around with it.

It runs a 14mm male axle, two 7802-14 driver bearings, a 7905 ACD bearing on the drive side and a 6202 on the non drive side. It weighs 669g and comes in black.

Features

Freecoaster clutch driver. The clutch lets the wheel roll backwards without the cranks moving, which is what makes riding fakie easier.
14mm male axle. A 14mm male axle bolts straight into frames with 14mm dropouts, no adaptors needed.
Sealed driver bearings. Two 7802-14 bearings support the driver, so the clutch keeps working smoothly under load.
ACD bearing on the drive side. A 7905 ACD bearing sits drive side with a 6202 on the other, spreading the load across the shell.
669g, finished in black. The hub weighs 669g, or 23.6oz, and comes in black.

Specifications

Bearings: Driver 2 x 7802-14, hub 1 x 7905 ACD drive side and 1 x 6202 non drive side
Driver: Freecoaster clutch
Axle: 14mm male
Weight: 669g / 23.6oz
Colour: Black
