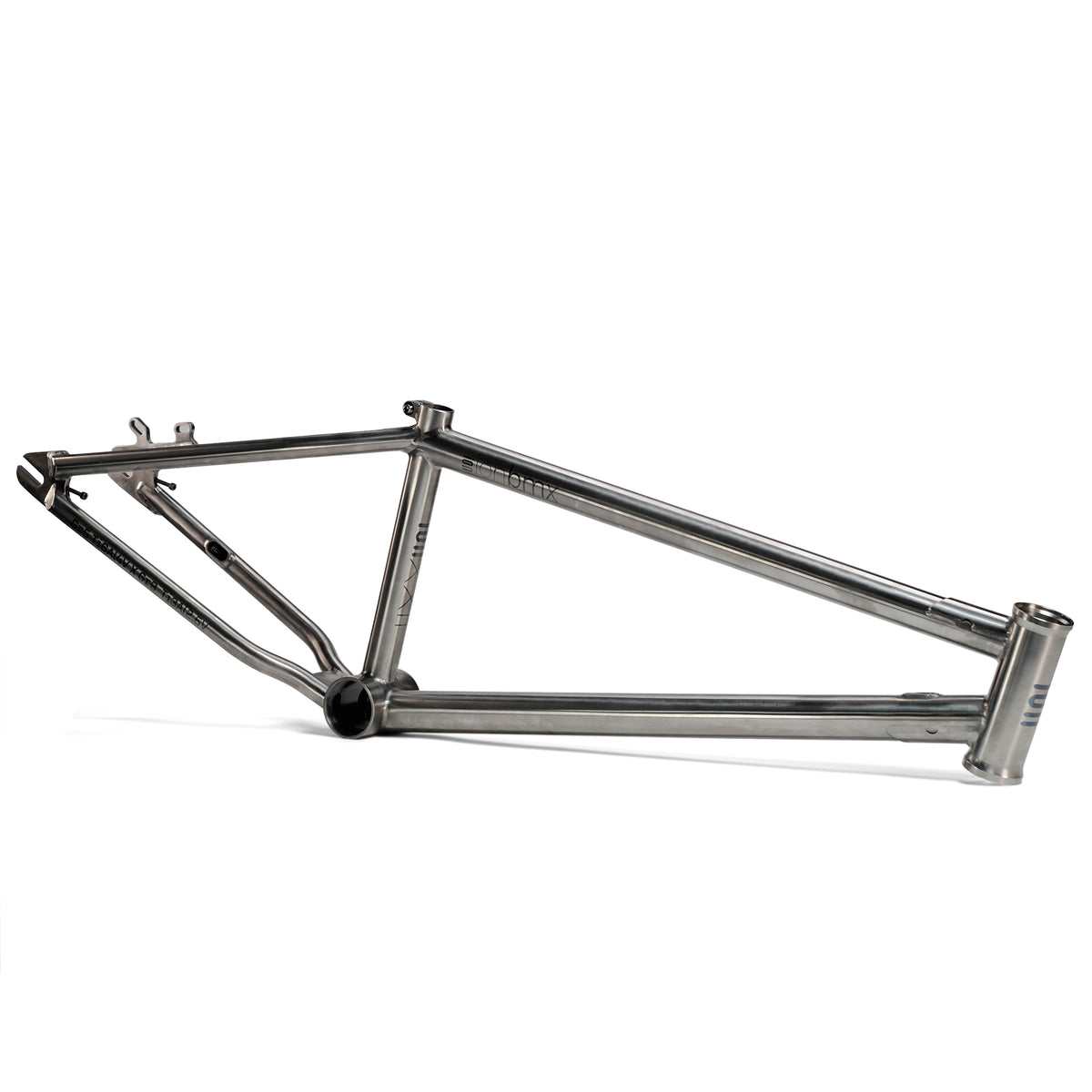

The ION BMX Ti22 Titanium 22 Inch Frame is shown in silver metal on a white background, presented side-on to highlight its TT-22 top tube length and 74° headtube angle for precise structural detail.

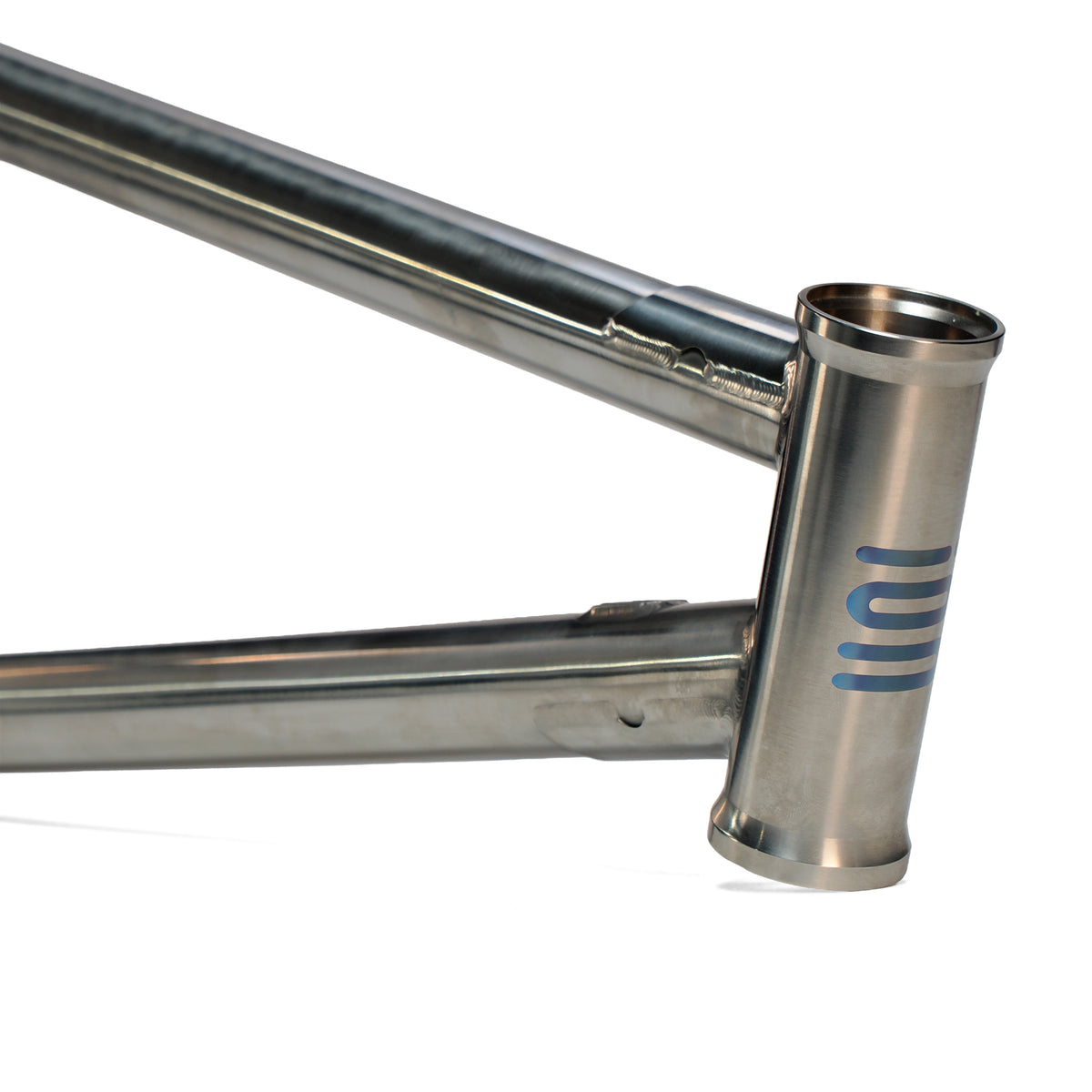

Close-up of the ION BMX Ti22 Titanium 22 Inch Frame with a cylindrical head tube at a 74-degree angle, featuring a simple blue geometric logo.

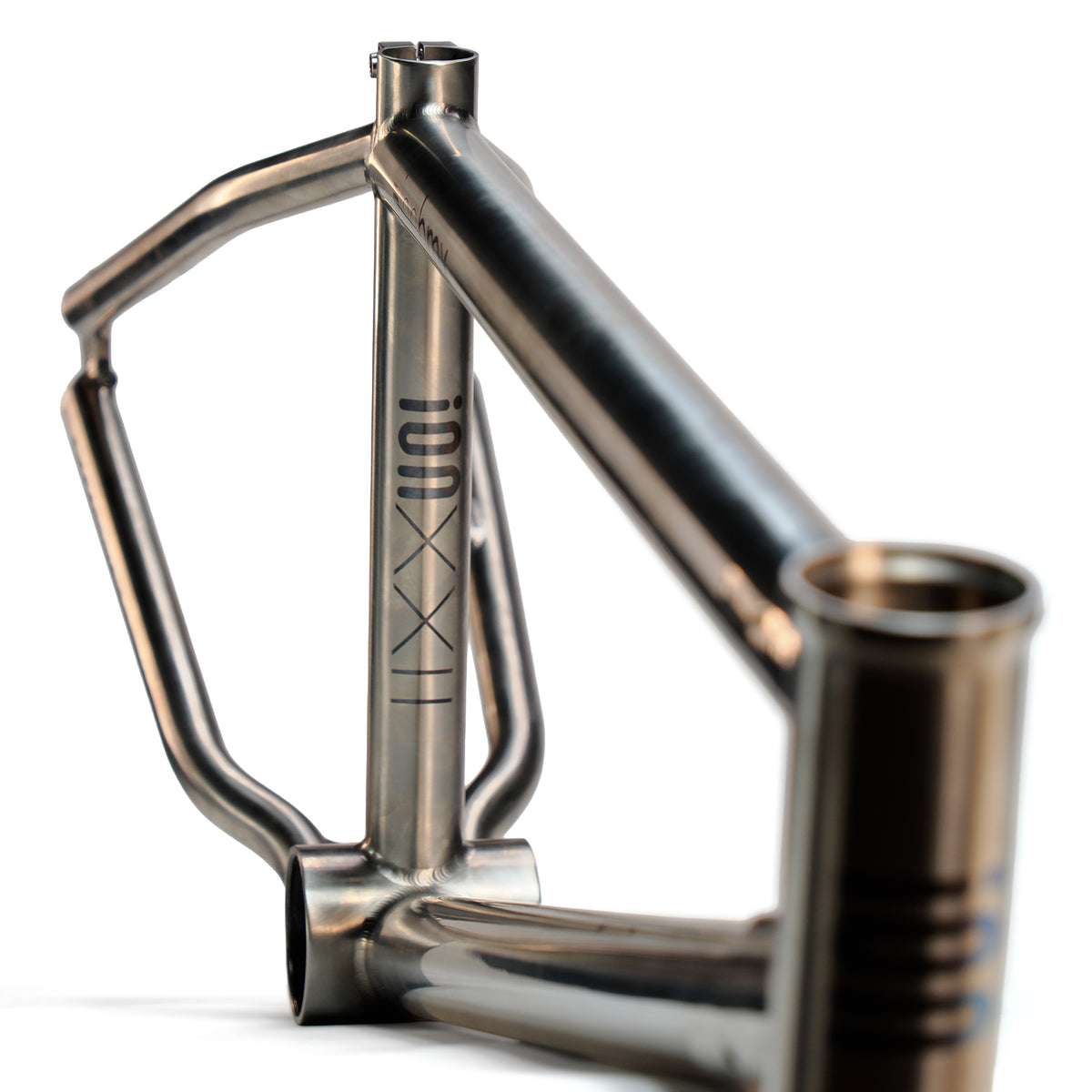

A close-up of the ION BMX Ti22 Titanium 22 Inch Frame highlights its minimalist metallic design, welded joints, TT-22 logo on the down tube, and precision-engineered 74° headtube angle.

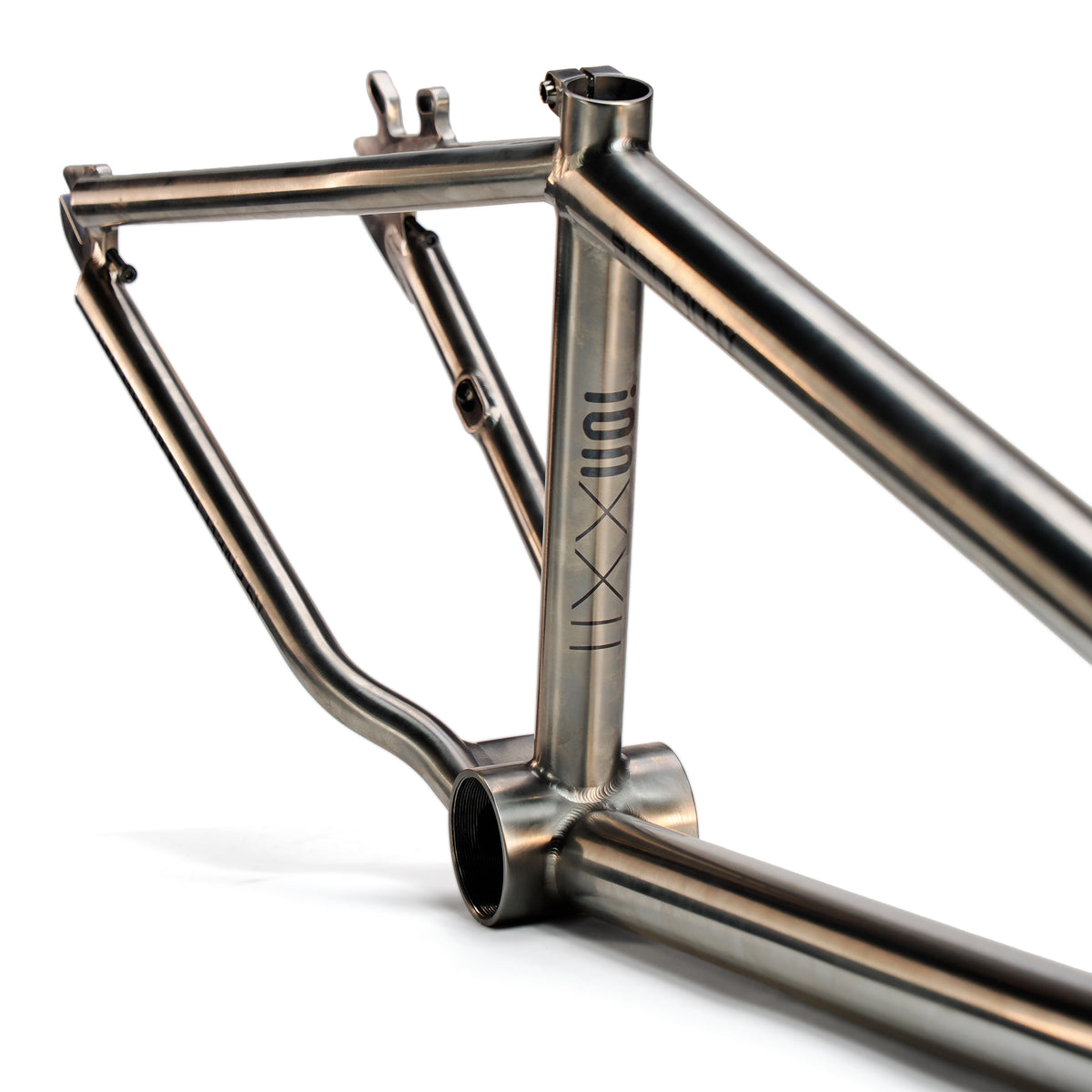

A close-up of the ION BMX Ti22 Titanium 22 Inch Frame showcases welded joints, a brushed finish, and the Ti22 logo on the seat tube. The sleek tubing subtly displays the precise 74-degree headtube angle in its design.

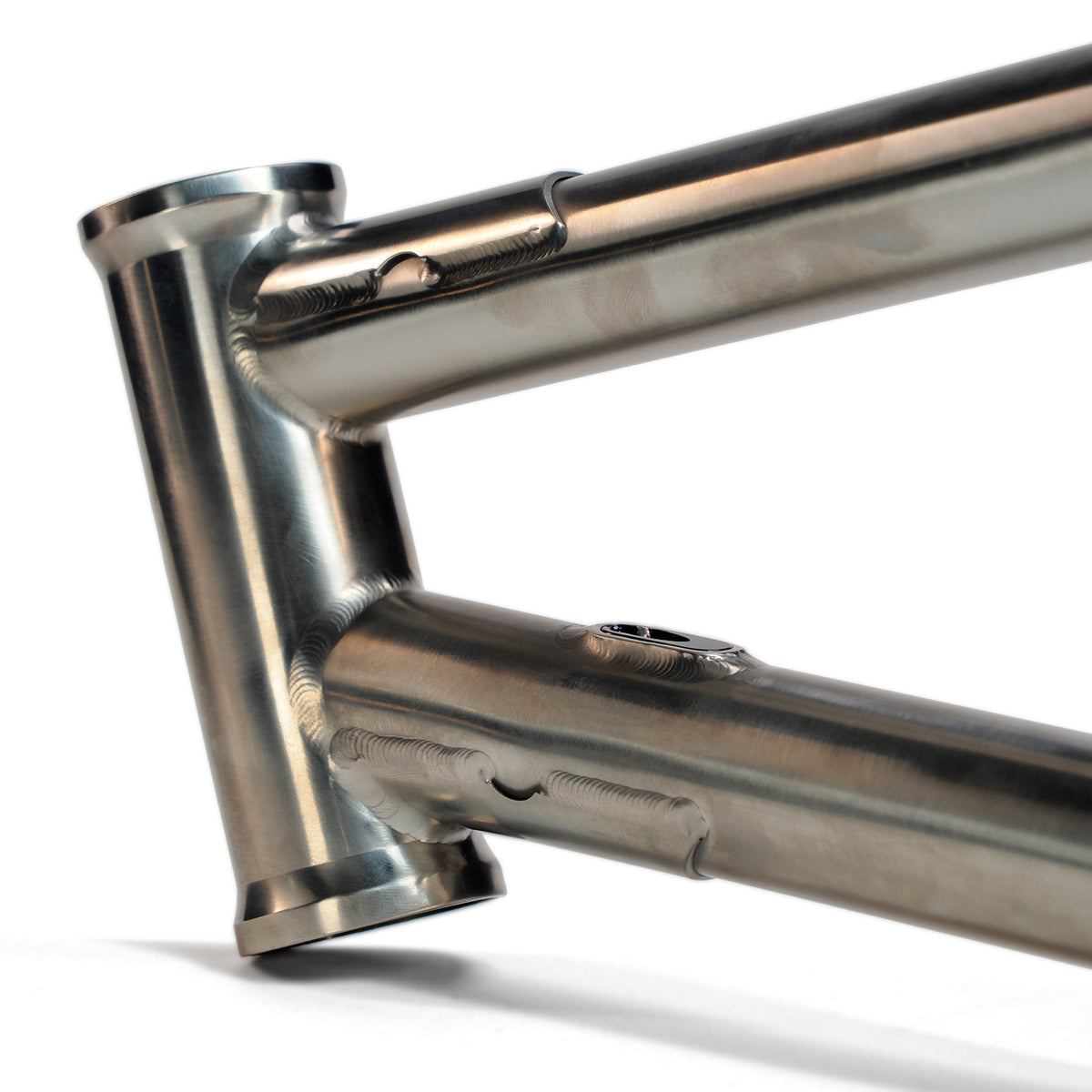

Close-up of the ION BMX Ti22 Titanium 22 Inch Frame, showcasing visible welds, a smooth polished finish, and a precise 74° headtube angle.

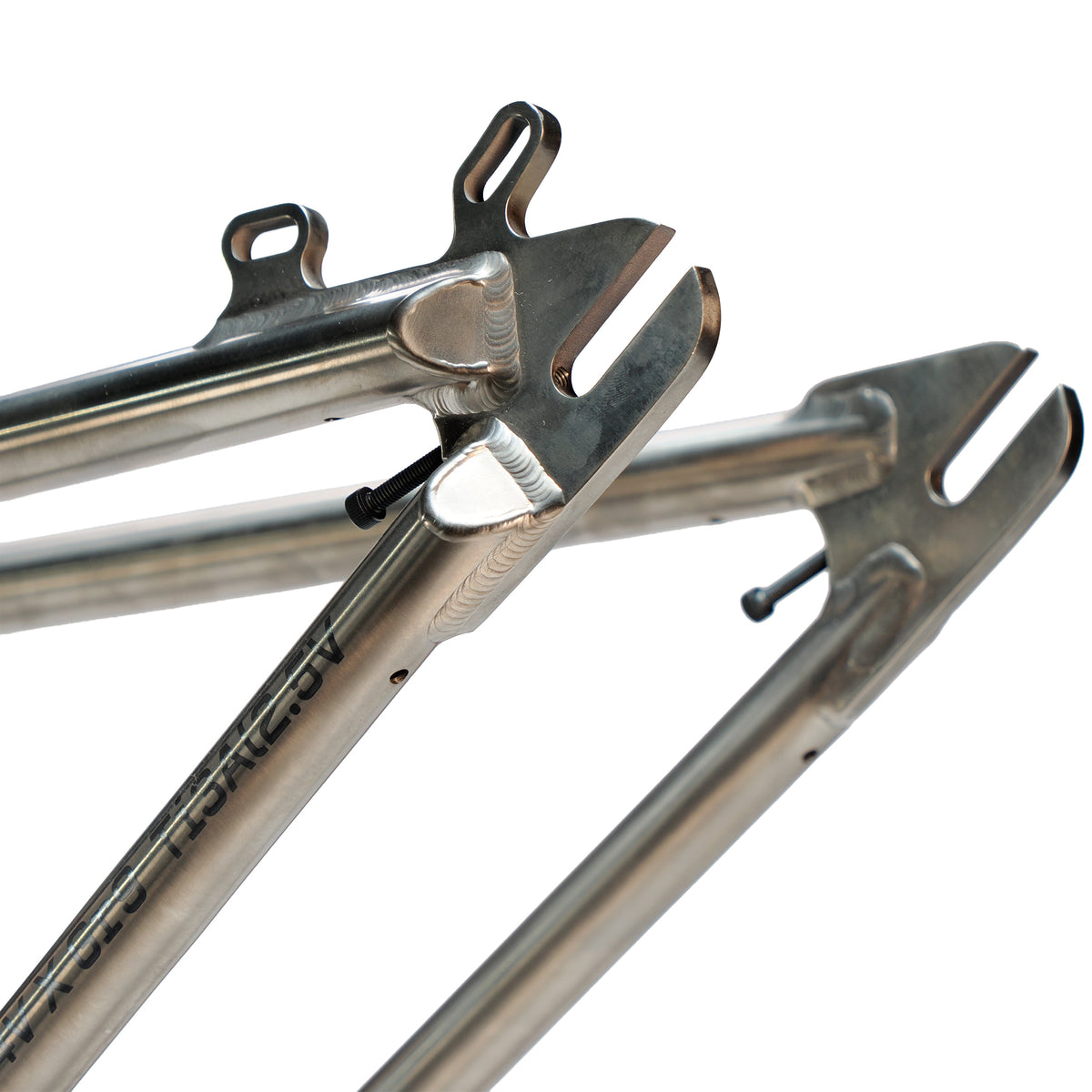

Close-up of the ION BMX Ti22 Titanium 22 Inch Frame’s metal dropouts with slots and mounts, featuring precise welding and a brushed finish—designed to complement its geometry and headtube angle of 74°.

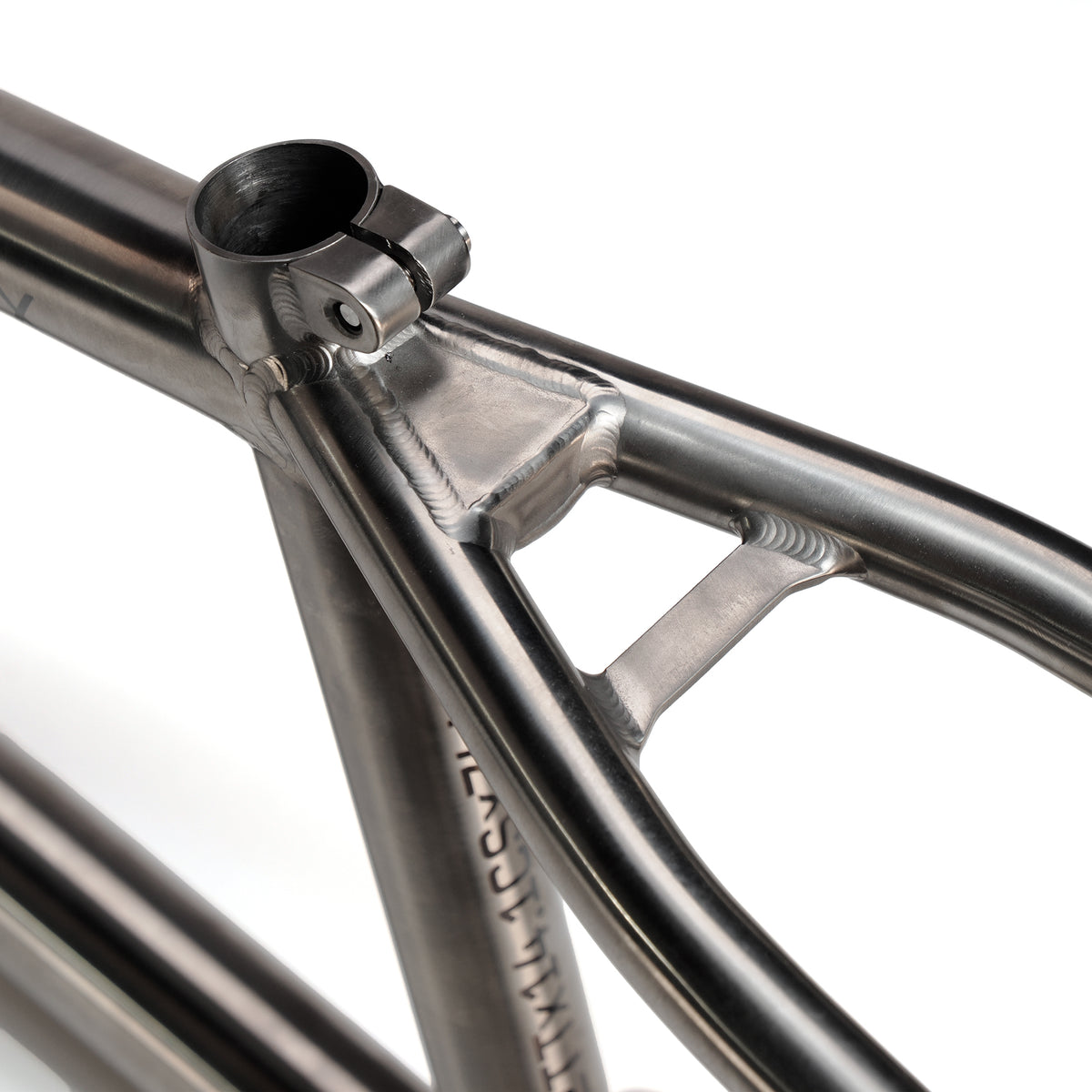

Close-up of the ION BMX Ti22 Titanium 22 Inch Frame showing the seat tube junction, precise welds, and seat post clamp against a white background. Features CS-14.1 geometry for advanced performance.

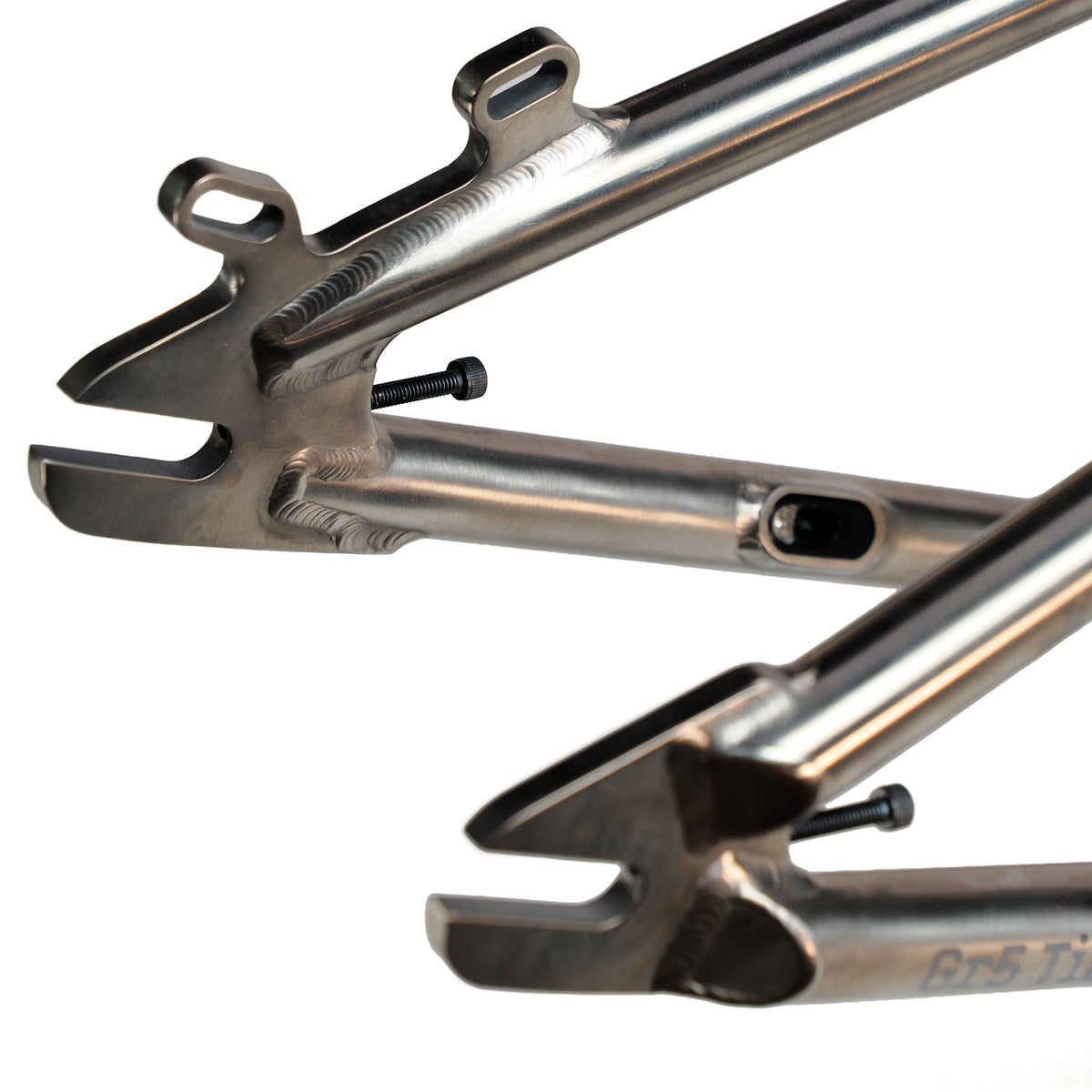

Close-up of the ION BMX Ti22 Titanium 22 Inch Frame's rear dropout area, showcasing welds, mounting points, bolts, and its polished titanium surface.

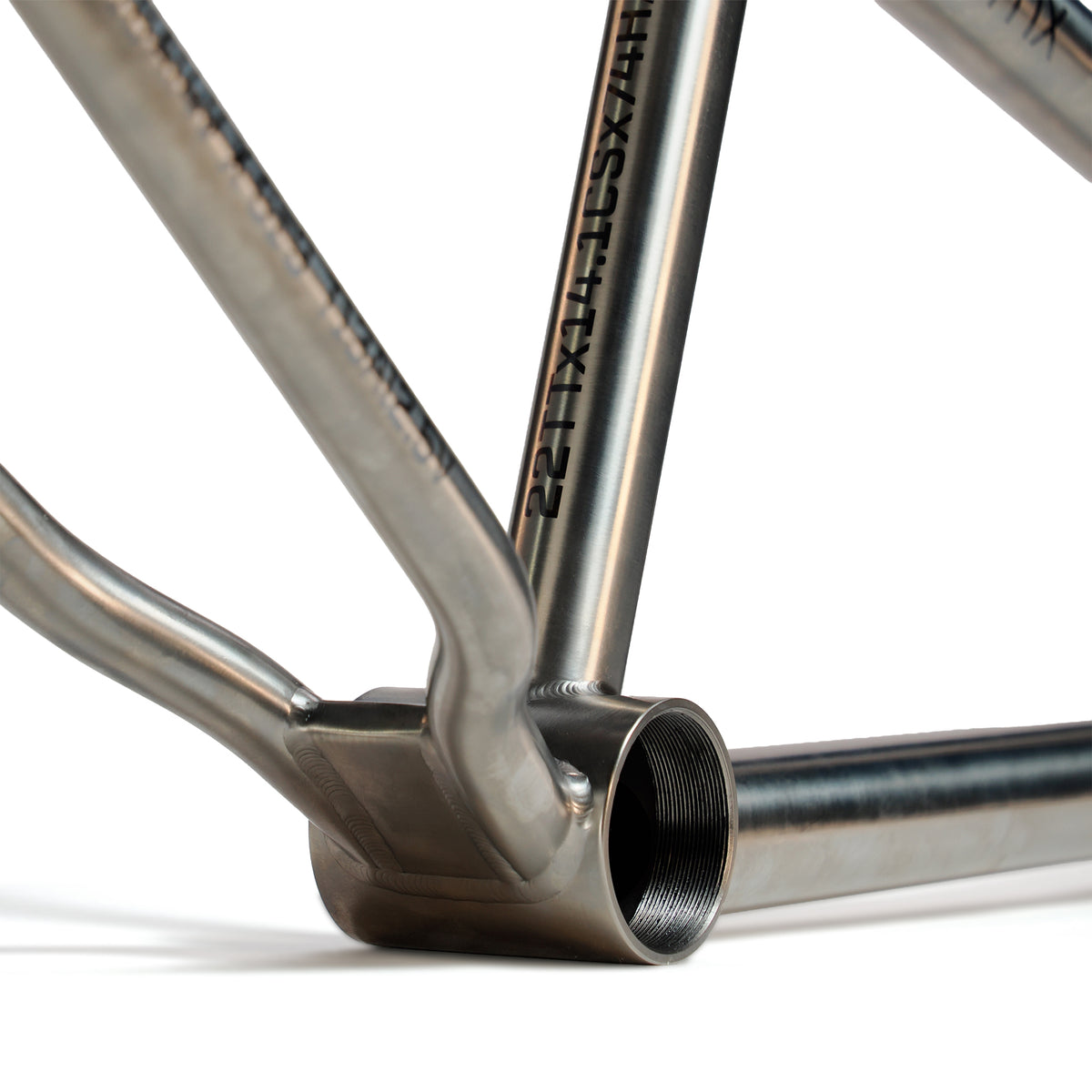

Close-up view of the ION BMX Ti22 Titanium 22 Inch Frame, focusing on the bottom bracket area with visible welds and "CS-14.1" engraved on the tube, showcasing its enhanced geometry details.

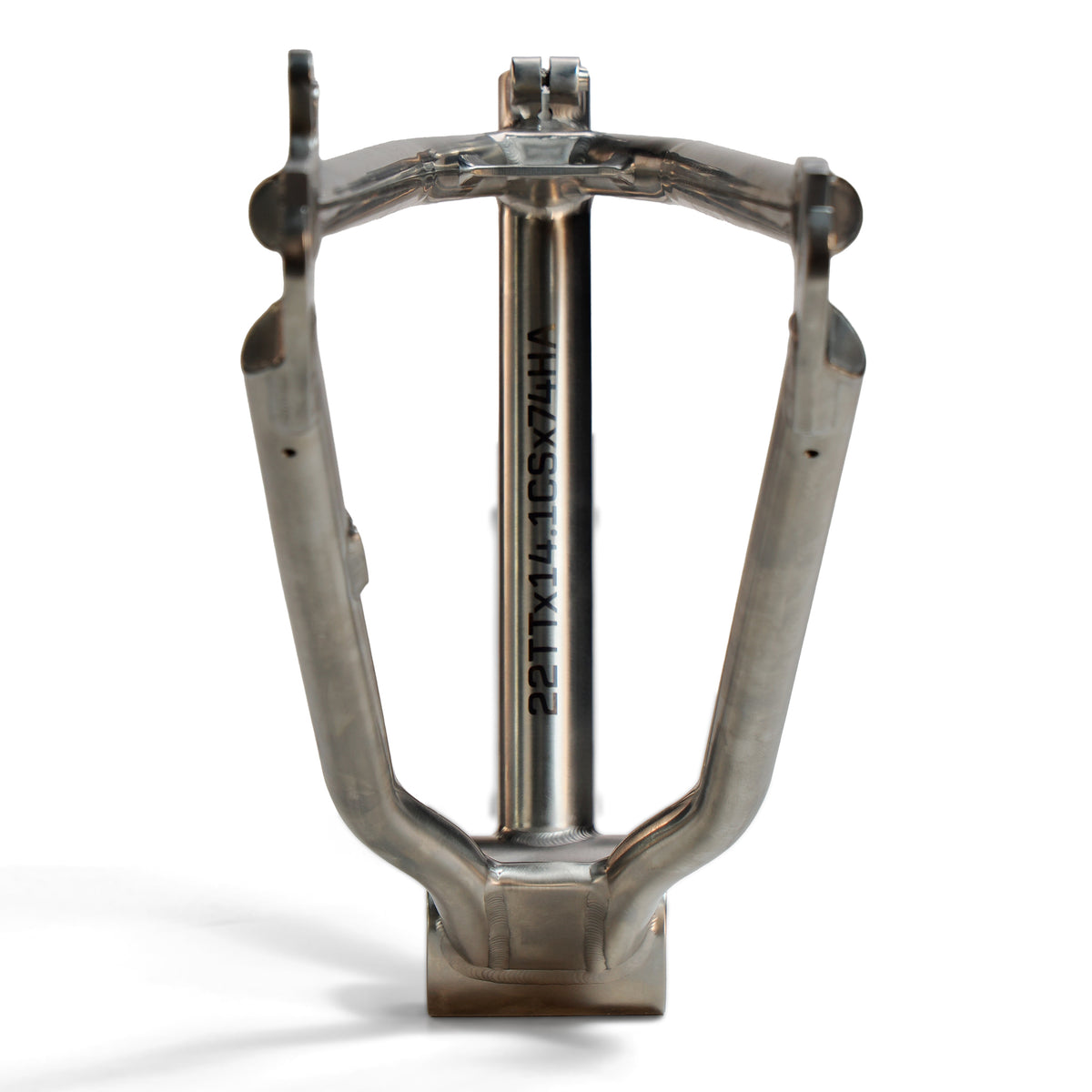

The ION BMX Ti22 Titanium 22 Inch Frame, shown from the front, features welded joints, "TT-22" stamped on the vertical tube, and a Headtube Angle of 74° for superior handling.

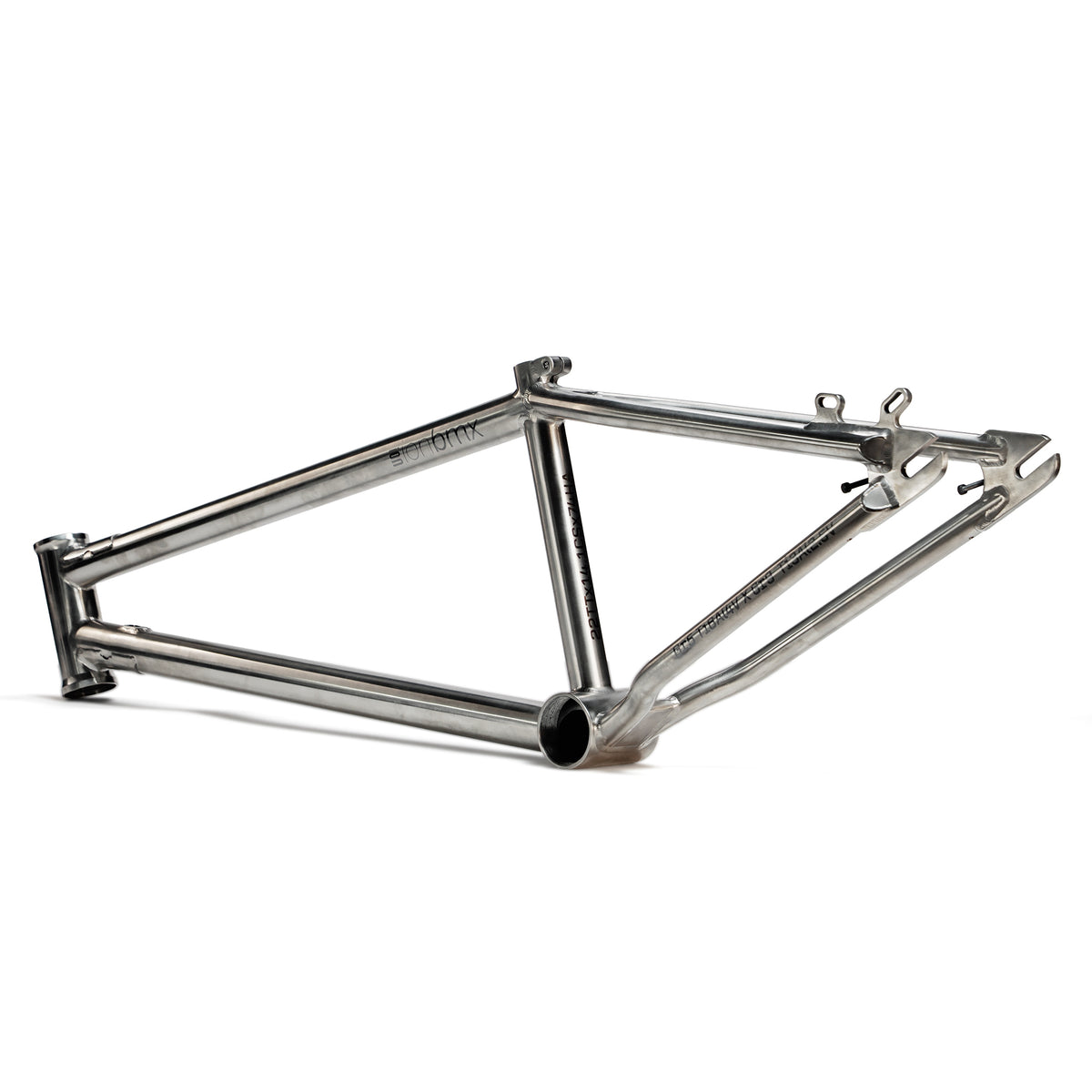

The ION BMX Ti22 Titanium 22 Inch Frame features an unpainted metal finish, visible welds, rear dropouts, horizontal top tube (TT-22), mounting points, and a 74° headtube angle. Shown on a white background.

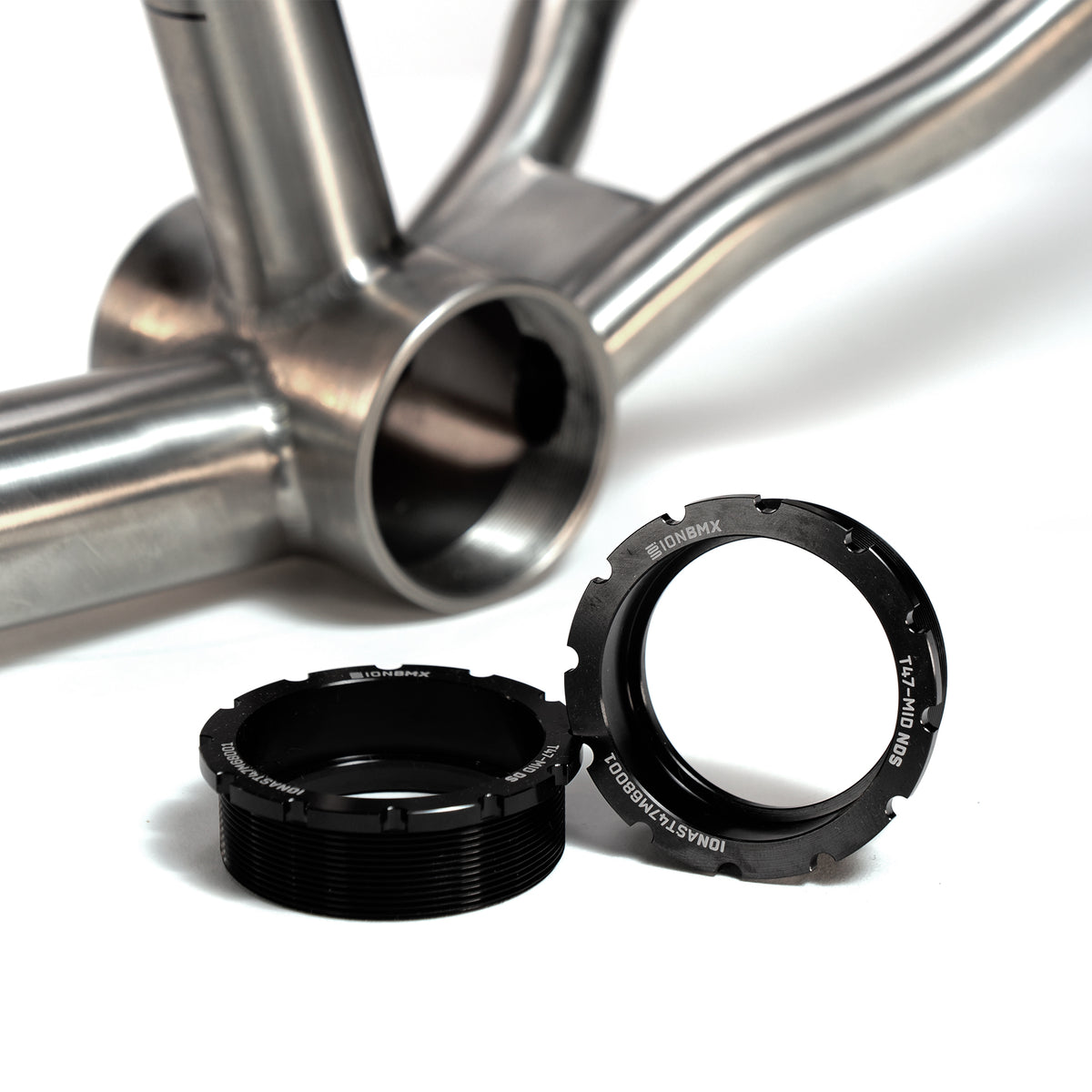

A close-up of the ION BMX Ti22 Titanium 22 Inch Frame's bottom bracket shell with two black threaded cups nearby, designed for this model and featuring a precise headtube angle of 74 degrees.

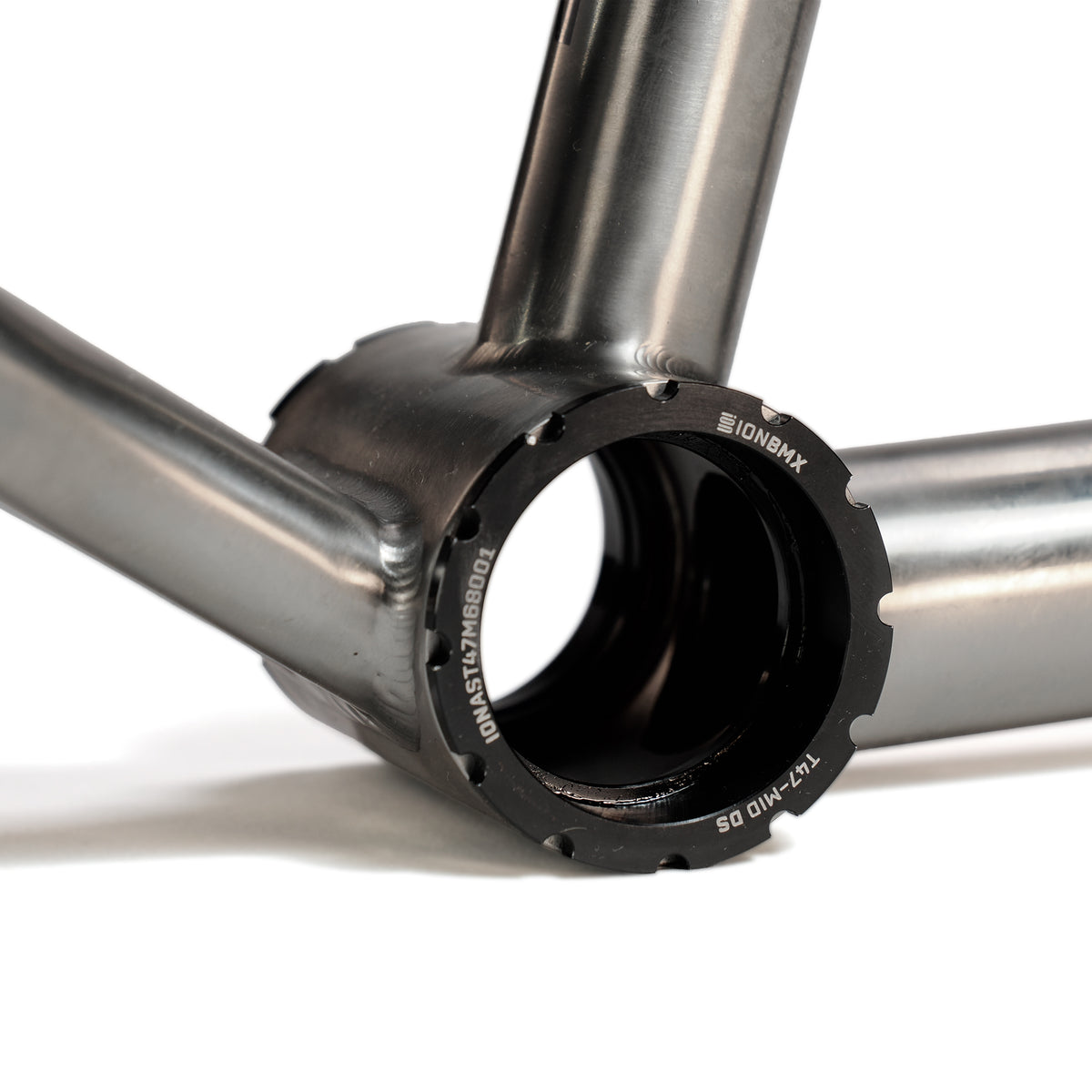

Close-up of the ION BMX Ti22 Titanium 22 Inch Frame’s metallic bottom bracket shell, showcasing visible threads and smooth welds for precise fit and enhanced durability.

Highlights

  • Titanium 22 inch frame
  • Long, stable 22" geometry
  • Disc brake ready
  • Room for big tyres

Description

ION Ti22 Titanium 22" Frame — engineered for precision and durability.

Built from premium titanium—Gr5 Ti-6Al-4V at the head tube, bottom bracket, and dropouts, paired with lightweight Gr9 Ti-3Al-2.5V tubing. Total frame weight: 1.56 kg of pure performance.

Geometry dialled in for control and flow: 22" top tube, 74° head tube angle, 71° seat tube angle, 14.1" chainstay (slammed), 12" BB height, and 9" standover. Clears 22 x 2.2" tyres slammed in the dropouts.

Tech specs that matter: IS 140mm disc mount with internal cable routing through the BB shell. T47 68mm bottom bracket with included Mid BB adapter—unlock a full range of freestyle and street crank options. 25.4mm seat post on integrated clamp for solid, adjustable setup.

Designed in-house by Pat Johns. Currently in prototyping phase—limited run, refined engineering.

Features
  • Titanium 22 inch frame. Gr5 Ti-6Al-4V head tube, bottom bracket and dropouts with Gr9 Ti-3Al-2.5V tubing, all up 1.56 kg.
  • Long, stable 22" geometry. A 22" top tube, 74° head tube angle and 14.1" chainstay slammed, with a 12" bottom bracket height.
  • Disc brake ready. IS mount sized for a 140mm rotor, with provision for internal brake hose routing once you fit the bottom bracket sleeve.
  • Room for big tyres. Clears a 22 x 2.2" S&M Mainline V2 slammed, and 22 x 2.4" with the wheel further back.
  • Built in chain tensioners. 10mm dropouts at 110mm axle spacing with tensioners built in, so the wheel stays where you set it.

Specifications
  • Top tube: 22"
  • Chainstay: 14.1" slammed
  • Head tube angle: 74°
  • Seat tube angle: 71°
  • Standover: 9"
  • Bottom bracket height: 12"
  • Bottom bracket: T47 68mm shell, with Mid BB adapter
  • Material: Gr5 Ti-6Al-4V titanium head tube, bottom bracket and dropouts
  • Tubing: Gr9 Ti-3Al-2.5V titanium
  • Dropouts: 10mm, with built in chain tensioners
  • Brake mounts: IS disc mount to suit 140mm
  • Cable routing: Provision for internal brake cable and hose routing, requires BB sleeve
  • Head tube: 5", 1-1/8 IS42 integrated headset
  • Seat tube: Suits 25.4mm seat post
  • Seat clamp: Built in
  • Axle: 110mm spacing
  • Tyre clearance: 22 x 2.2" slammed (S&M Mainline V2), 22 x 2.4"
  • Wheel size: 22"
  • Weight: 1.56 kg
  • Note: 34T max chainring at 43mm
