Highlights

204 points of engagement
36h, right hand drive
ISO disc mount
Build your own hub

Description

Profile Racing designed the Elite Cassette BMX disc brake hub to be the best racing hub available. It is a 36 hole right hand drive rear hub in standard BMX 110mm width, with ISO disc mounting, an aluminium threaded axle and colour matched anodised Volcano cones with hardened chromoly knurls that bite into the dropouts.

This one is build your own hub: choose the hub colour, the axle bolts (any chromoly bolt option at no extra charge), the cassette driver and the cog. The 6 pawl driver gives 204 points of engagement, so the hub takes up the moment you apply pedal pressure. Disc rotor not included.

About the Brand

For over 35 years, Profile Racing parts have been the top choice for all types of BMX riding. Profile Racing is the single largest, most capable and most sophisticated manufacturer of high-end BMX bicycle components in the United States.

Features

204 points of engagement. A 6 pawl driver means instant forward motion at the first application of pedal pressure, which counts out of the gate.
36h, right hand drive. The Elite disc hub is 36 hole RHD only, in standard BMX 110mm hub width.
ISO disc mount. The shell takes an ISO disc rotor, so you can run a disc brake on the rear, rotor sold separately.
Build your own hub. Pick the hub colour, axle bolts, cassette driver and cog, with any chromoly bolt option at no extra charge.
Cones that bite the dropouts. Colour matched anodised Volcano cones and aluminium cone spacers use hardened chromoly knurls to hold position in the dropouts.

Specifications

Fits: Standard BMX 110mm hub width, right hand drive only
Material: Aluminium threaded axle; chromoly or titanium one piece drivers; aluminium or titanium splined drivers for Profile cogs
Engagement: 6 pawl driver, 204 points of engagement
Driver: Chromoly or titanium one piece, or aluminium or titanium splined for Profile cogs
Cog: Standard chromoly, Elite chromoly or aluminium, chosen when you order
Hole count: 36h, RHD only
Axle: 3/8" threaded aluminium axle
Mount: ISO disc brake, rotor not included
Included: Colour matched anodised Volcano cones and aluminium cone spacers with hardened chromoly knurls
Weight: With 3/8 chromoly bolts, alloy driver and 16t cog: 430g chromoly cog, 421g Elite chromoly cog, 396g aluminium cog. With 3/8 titanium bolts: 406g, 397g, 370g.

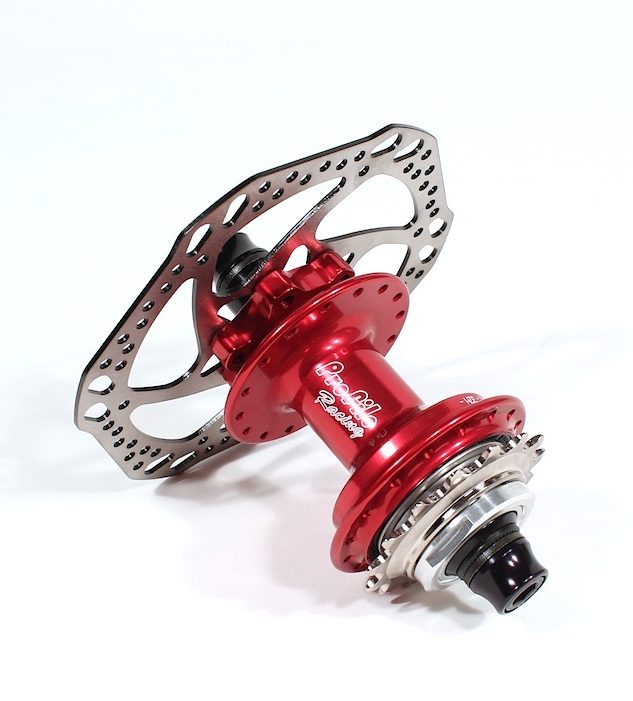

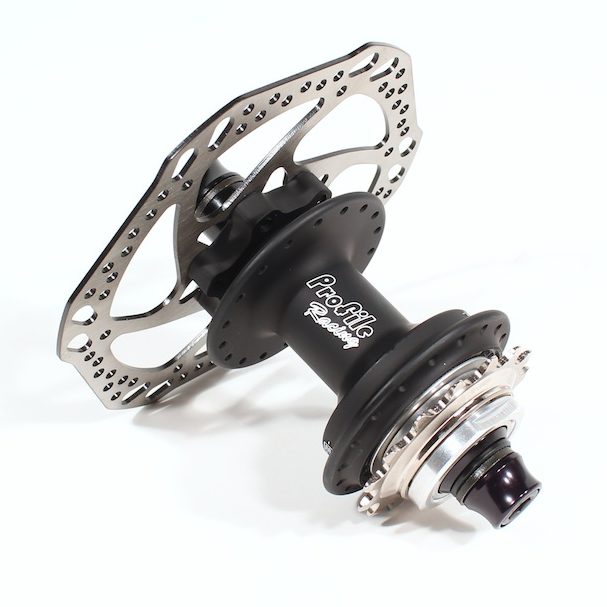

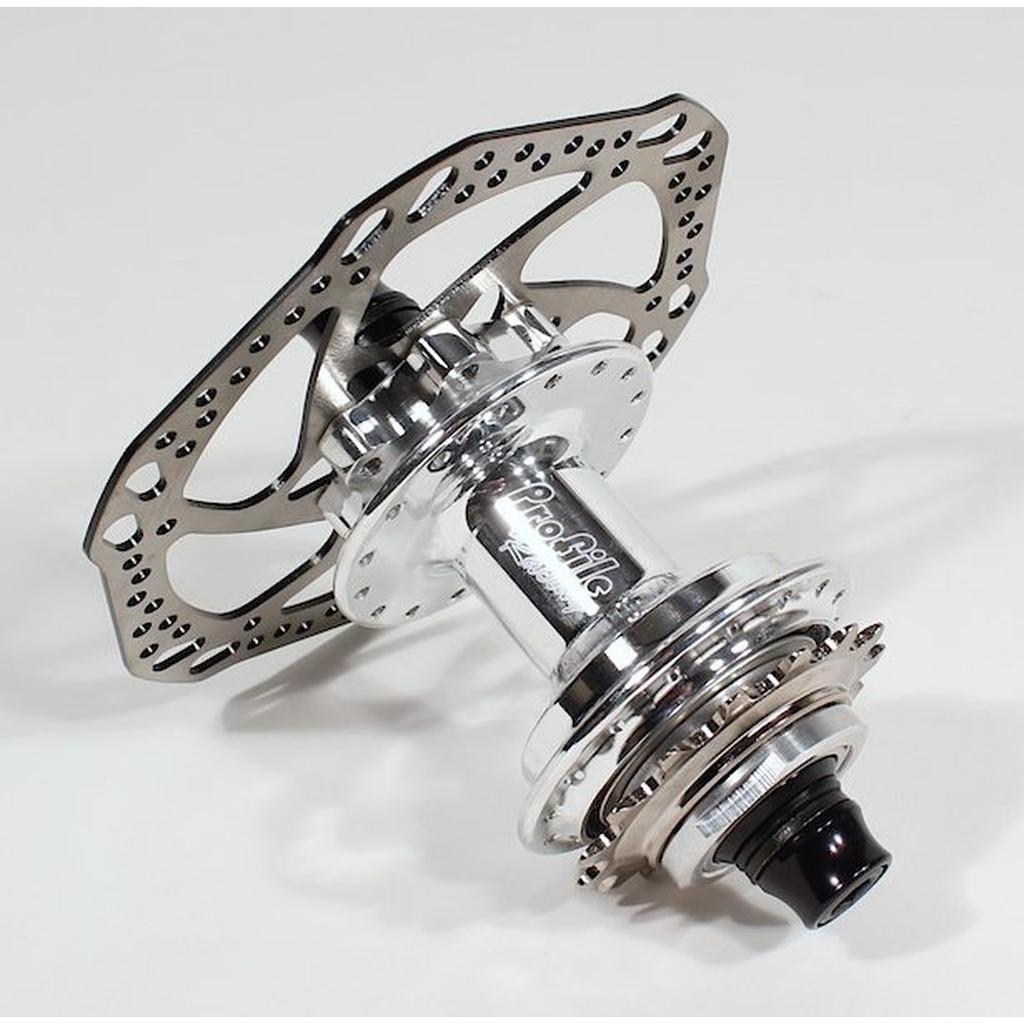

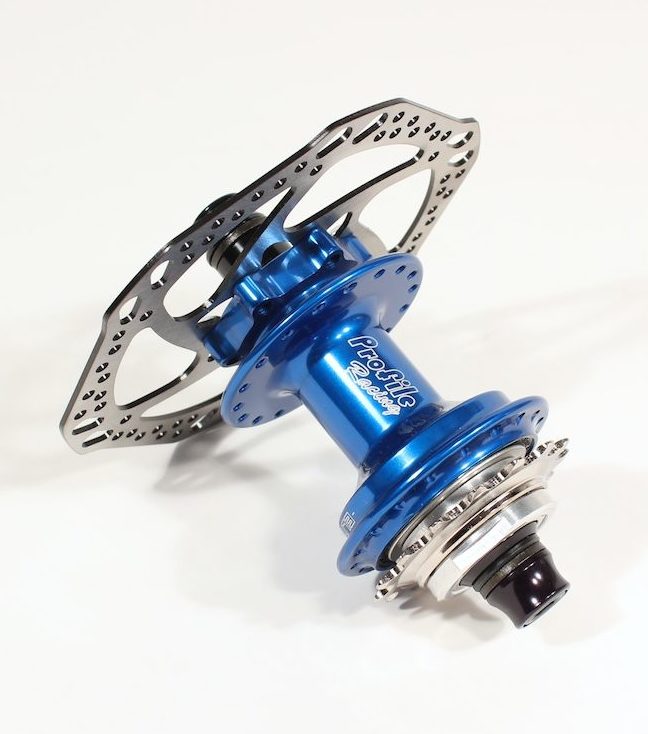

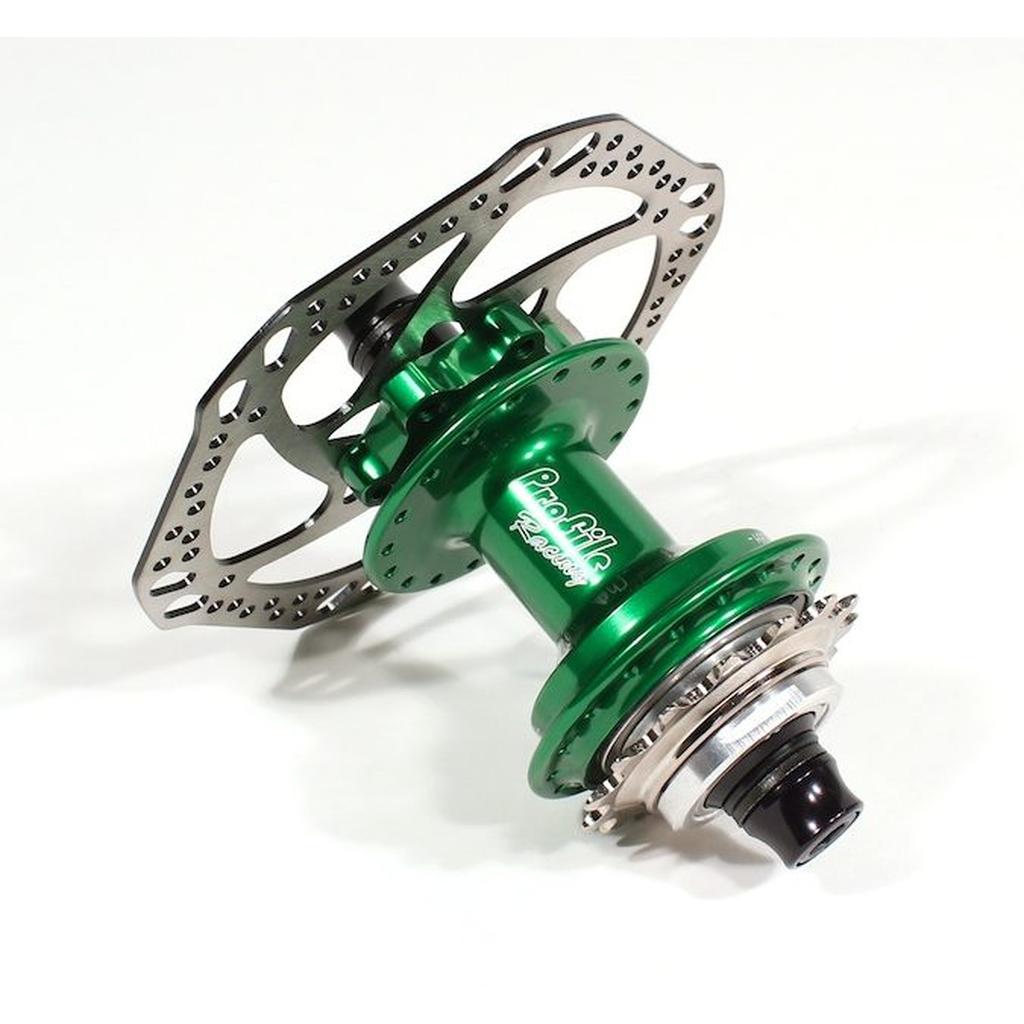

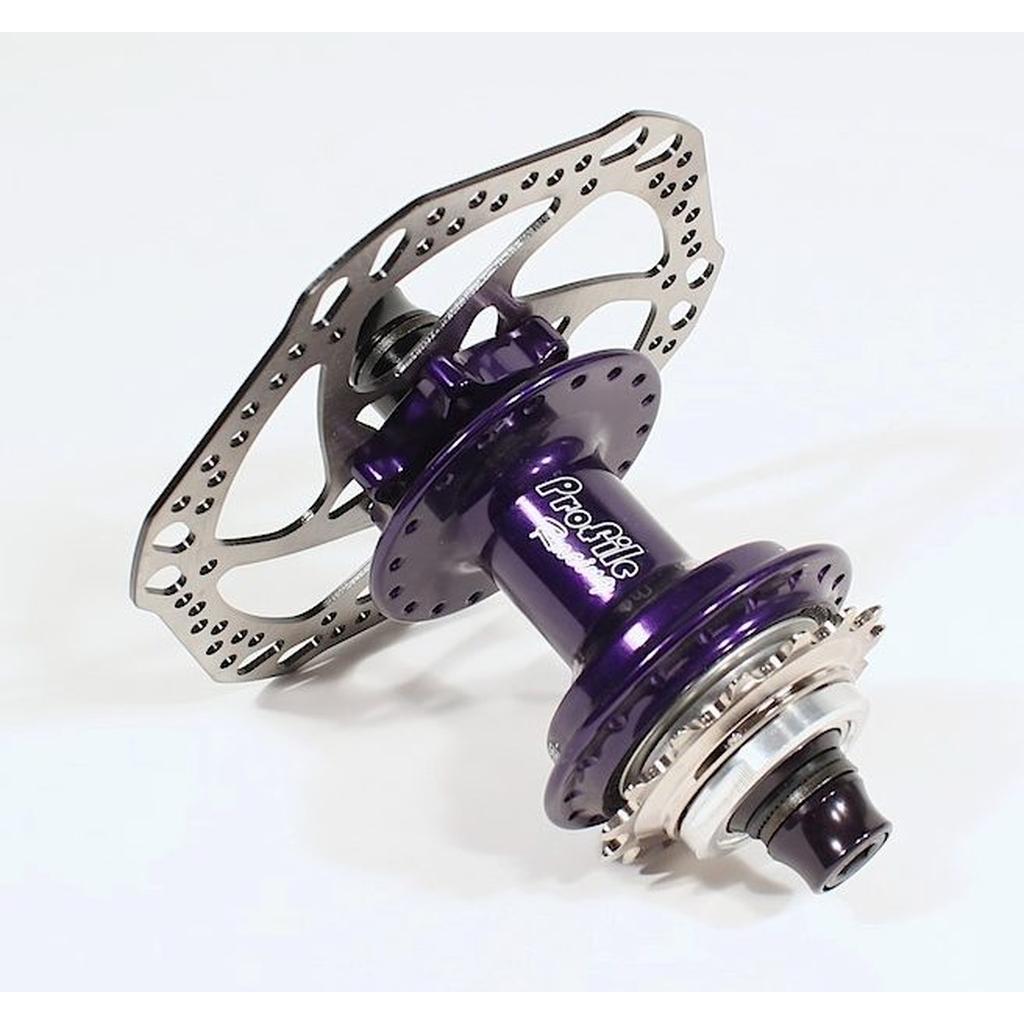

Colour: Red, Black, Blue, Polished, Gold, Green, Purple, Aqua, Matte Black
Note: Disc rotor not included. Bolt options: standard 3/8 socket head (8mm hex), 17mm hex head outer with 8mm internal hex, or button head with 8mm internal hex.
