Highlights

  • Carbon fork and carbon rims
  • Six-time world championship winning frame
  • Hydraulic flat mount disc brake
  • Cold forged Arise cranks

Description

There's very few options in the complete race bike segment that offer a brand's full suite of aftermarket parts, let alone offering carbon rims along with carbon forks. Radio's Quartz Carbonic has taken it right up to the custom bike market and disses the notion that you need to spend twice this amount to access a high end frame and components.

Arise is Radio's new component brand and comes out swinging with a solid track record of wins on the board. The Arise hubs have already already proven their reputation here at the shop, being the basis for several wheel builds since being released. The cold-forged Arise cranks will be up for any amount of horsepower to, with a 24mm cromo spindle a well proven component in high end cranks.

The bike is based upon Radio's aftermarket Quartz super-lightweight alloy frame, a x6-time world championship winning frame no less! It features a new sliding disc dropout with flat mount brakes and super stealthy cable routing.

Save yourself thousands on building a ground up custom bike by throwing one of these into your cart. No waiting, straight to your door, or from the showroom to the gate. They look cool as hell, and will no doubt be as fast as hell. Numbers are limited, so hit that add to cart button now.

Features

  • Carbon fork and carbon rims. An Arise carbon fibre fork and Arise Solar Pro carbon rims come fitted, so there is no ground up build and no waiting.
  • Six-time world championship winning frame. The aftermarket Quartz Disc frame is lightweight hydroformed 6061-T6 alloy with a tapered head tube, sliding forged dropouts and internal cable routing.
  • Hydraulic flat mount disc brake. The Arise Xenon disc runs a 120mm rotor, with a lever you can flip to either hand.
  • Cold forged Arise cranks. The Argon 2-piece crank turns on a 24mm chromoly spindle, a well proven setup that will take any amount of horsepower.
  • Fully sealed, high engagement hubs. Arise Echo hubs are CNC alloy and fully sealed, and the 6-pawl cassette picks up quickly when you drop in at the gate.

Specifications

  • Size: PRO XL

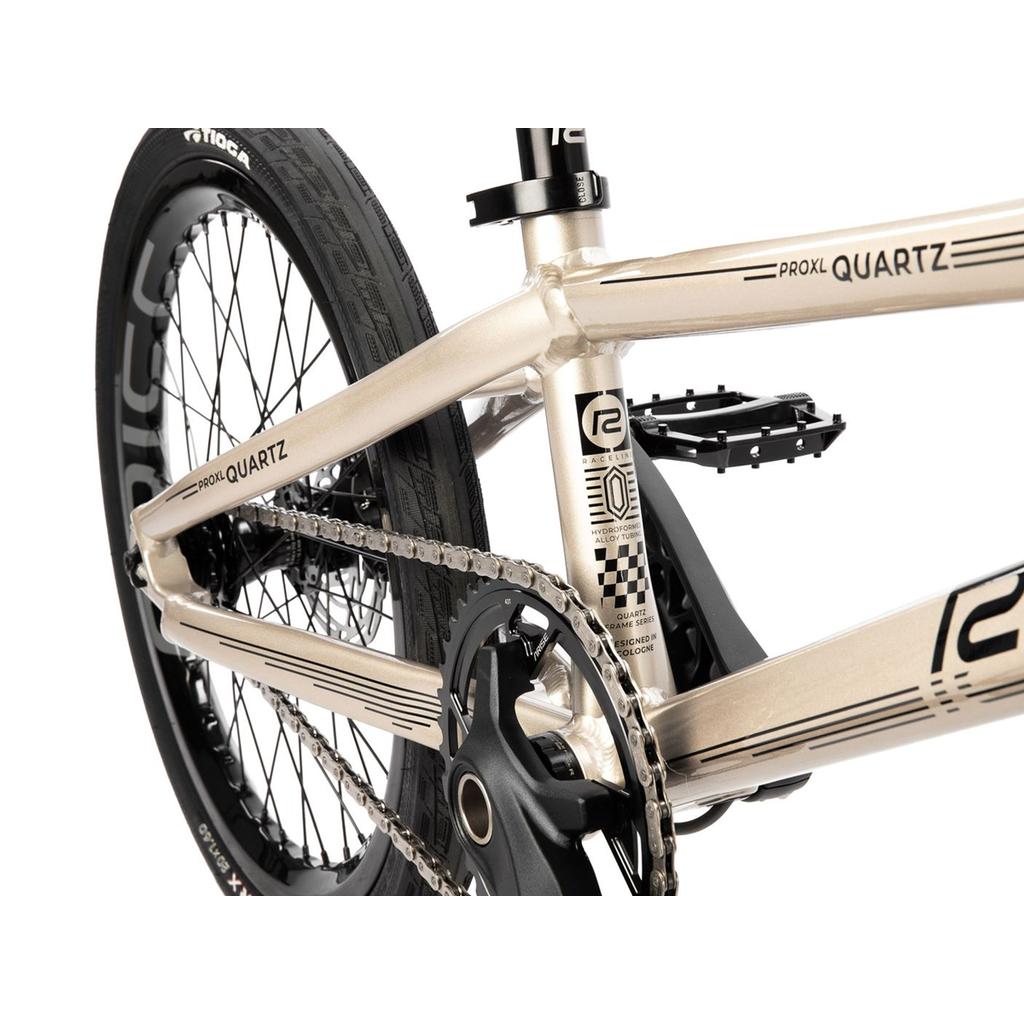

  • Frame: Radio Raceline Quartz Disc, lightweight hydroformed 6061-T6 alloy, tapered head tube, sliding forged dropouts with internal chain tensioners, flat mount disc brake
  • Top tube: 22.25"

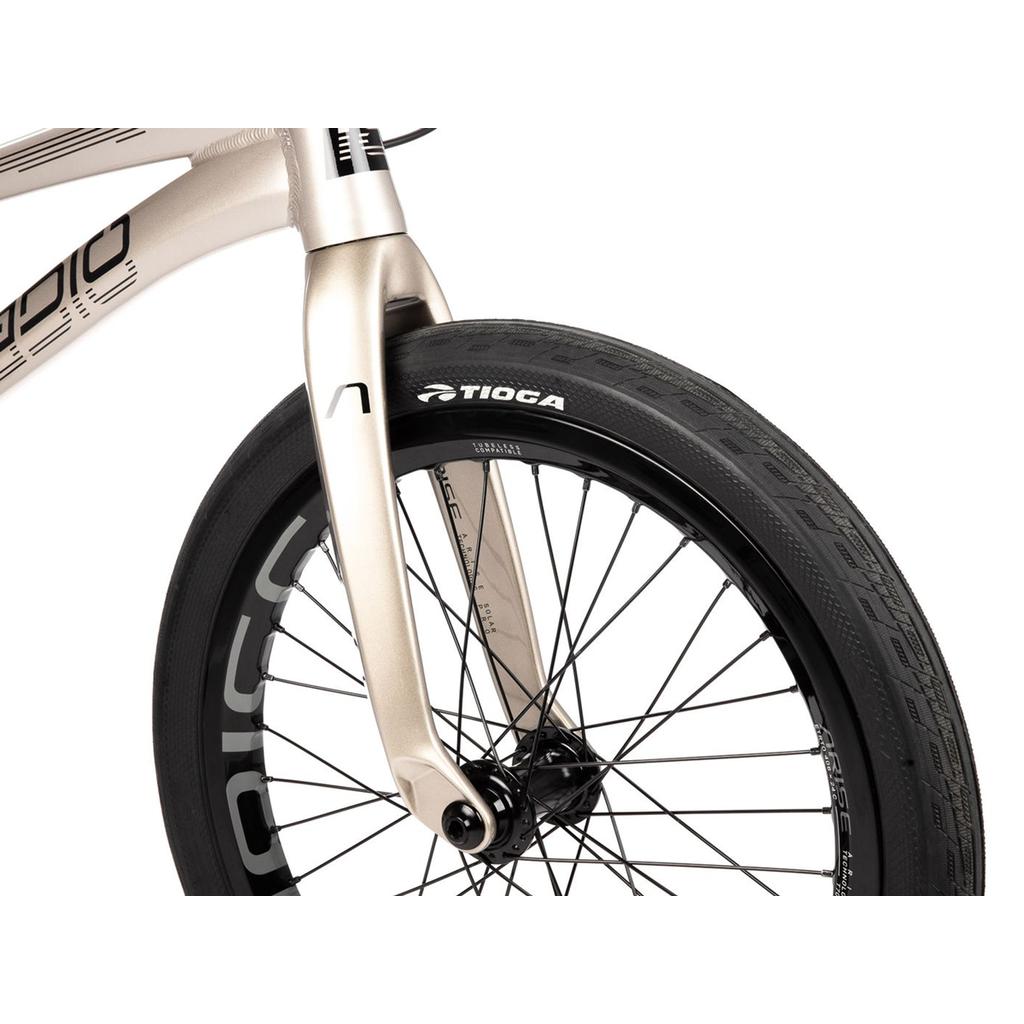

  • Fork: Arise carbon fork, 1-1/8" to 1.5" tapered steerer, 32mm offset

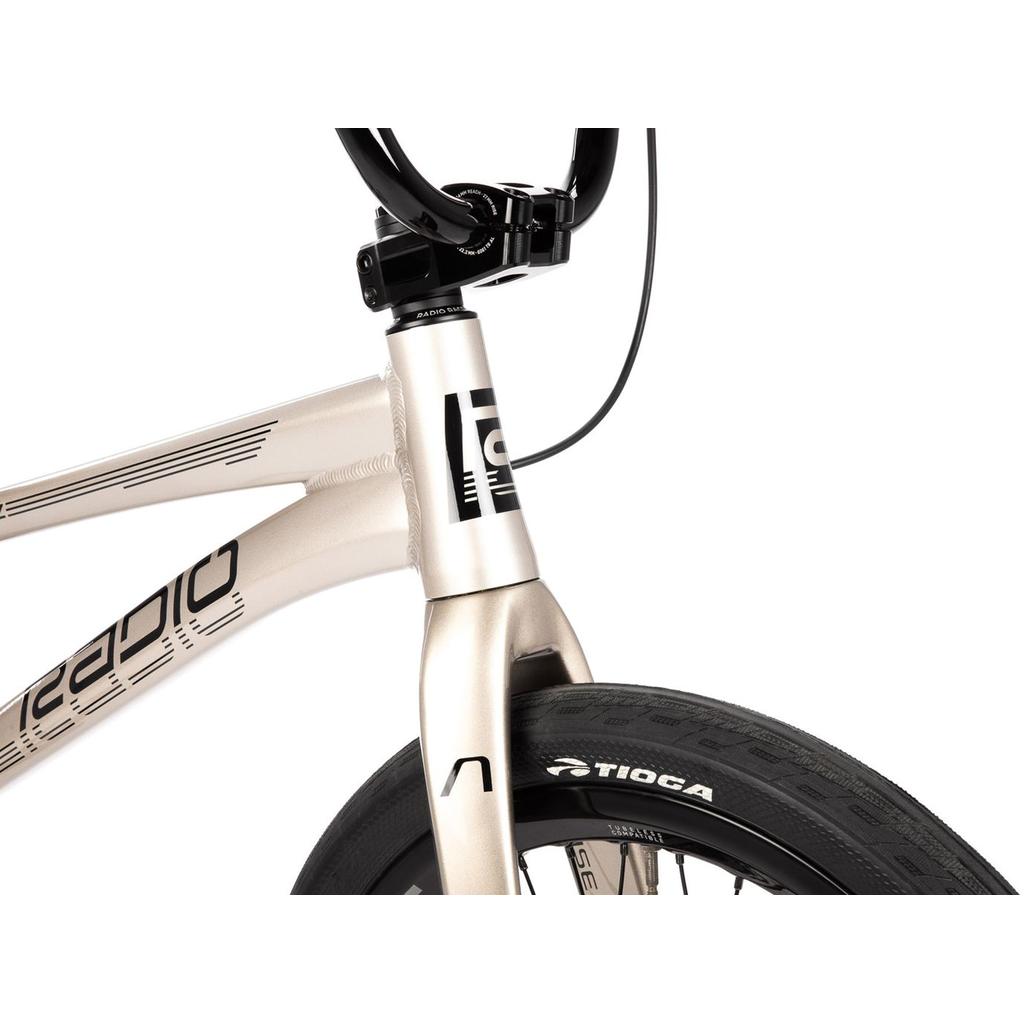

  • Headset: Radio Raceline Pro integrated, sealed, threadless, 1-1/8" to 1.5"

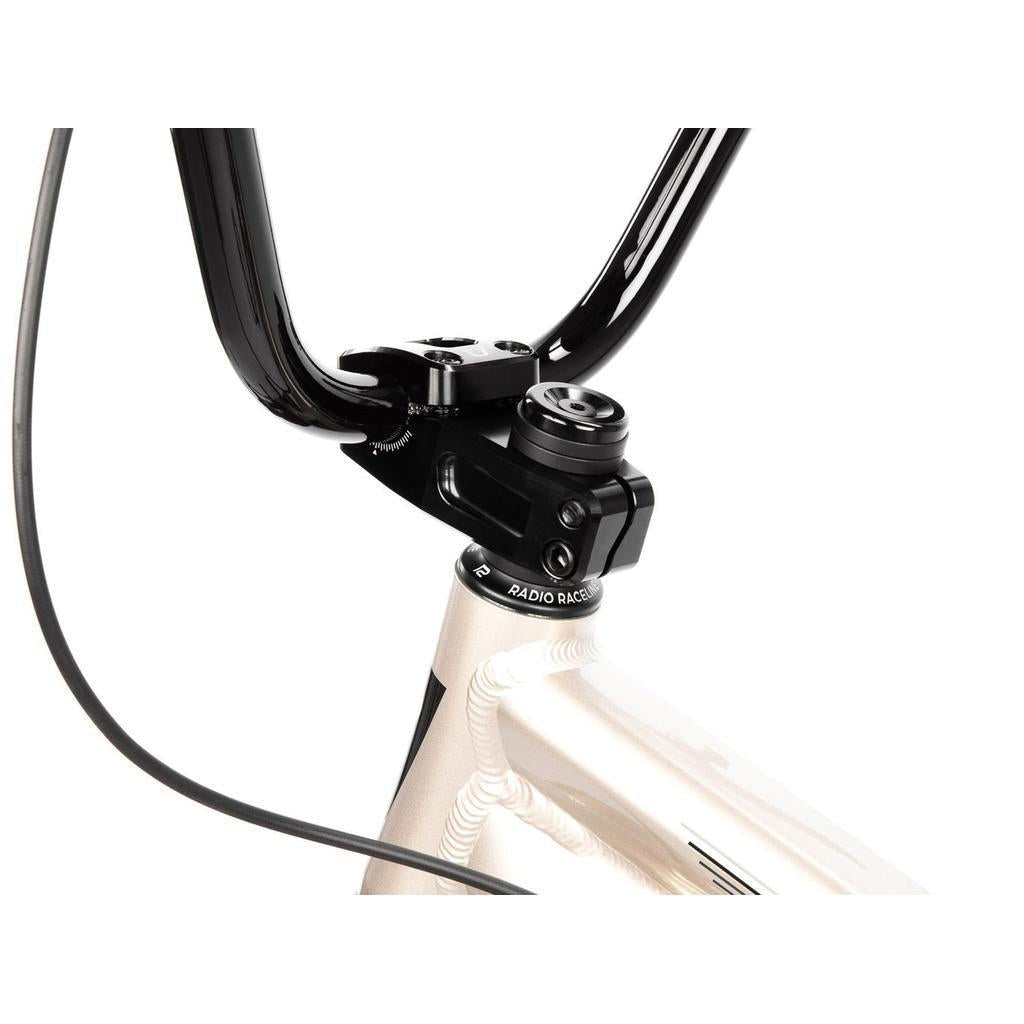

  • Stem: Arise Neon Pro toploader, 54mm extension, CNC machined alloy

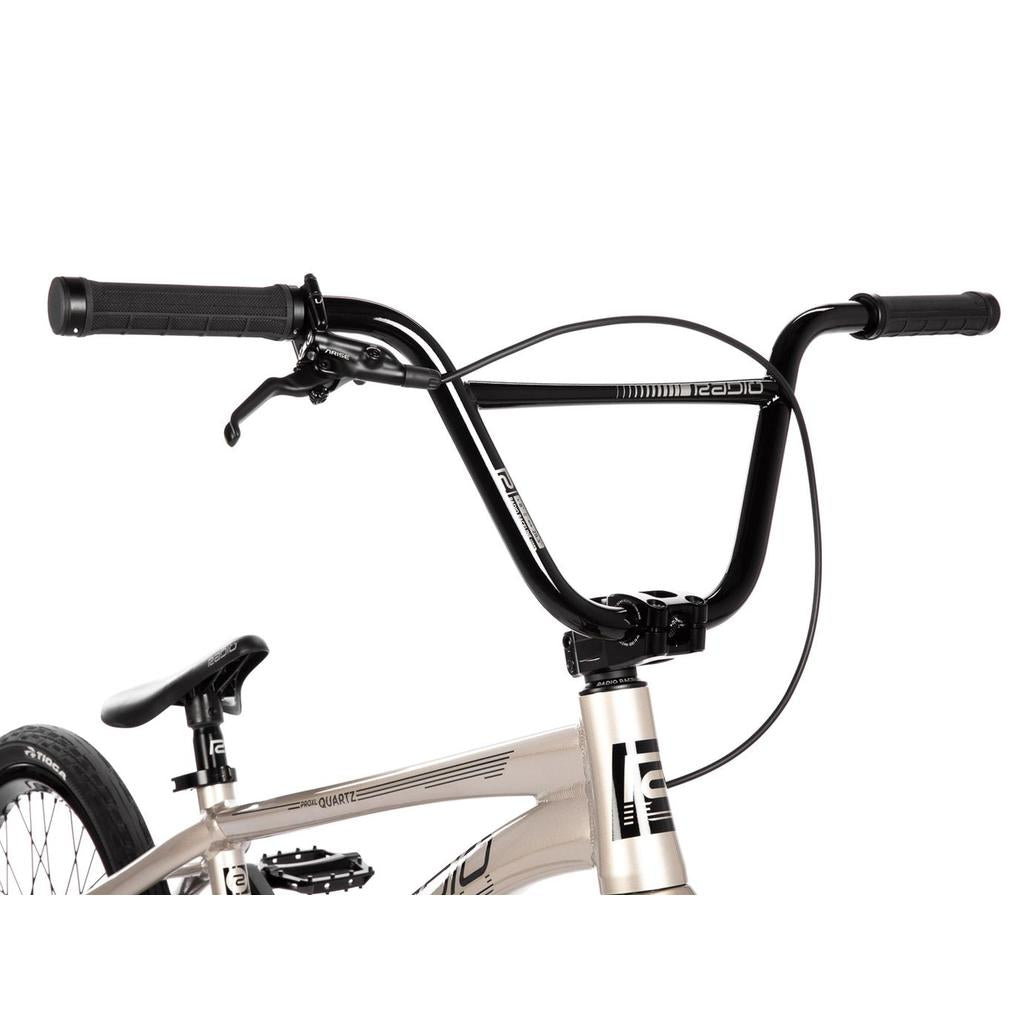

  • Bars: Radio Raceline Neon Pro 8" hydroformed bar, multiple butted and heat-treated chromoly

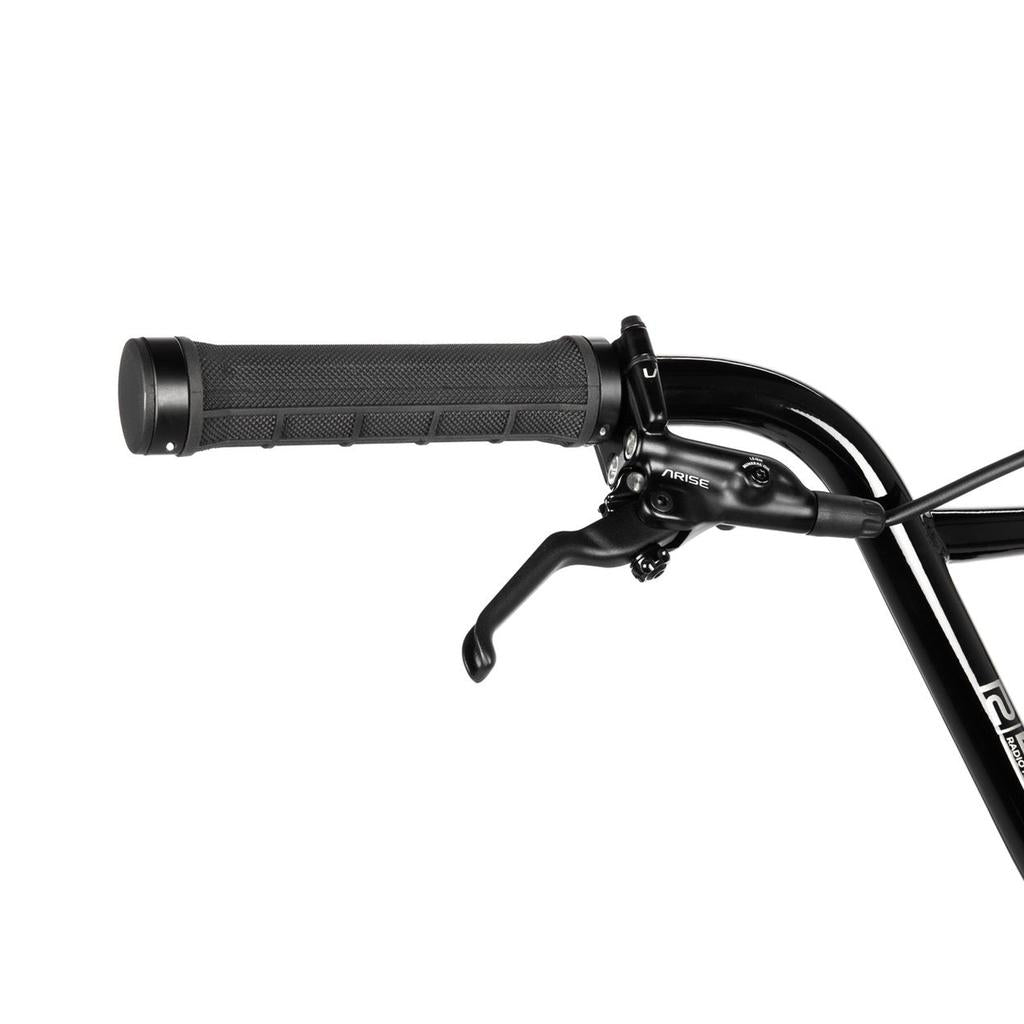

  • Grips: Radio Raceline Xenon, diamond knurling, clamp-on, 139mm
  • Brakes: Arise Xenon hydraulic flat mount disc brake, 120mm rotor
  • Brake lever: Arise Xenon disc lever, flippable for left or right hand

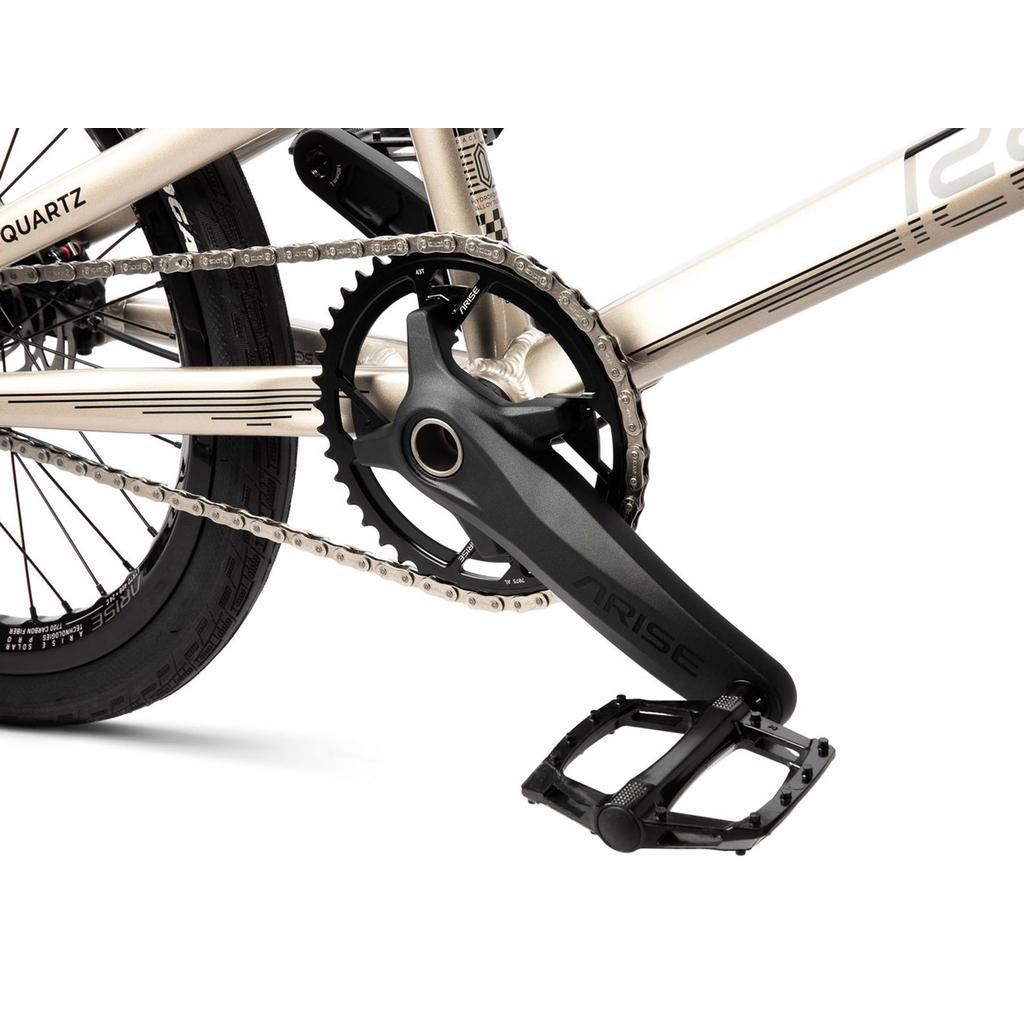

  • Cranks: Arise Argon 2-piece, cold forged and CNC alloy, 175mm, 24mm spindle
  • Bottom bracket: Radio Raceline BSA 24 set, external bearing cups, CNC machined, sealed
  • Chainring: Arise Pro sprocket, alloy, 43T, with alloy chainring bolts
  • Chain: KMC Z1eHX, 1/2" x 3/32"
  • Pedals: Radio Raceline Xenon Slim, alloy

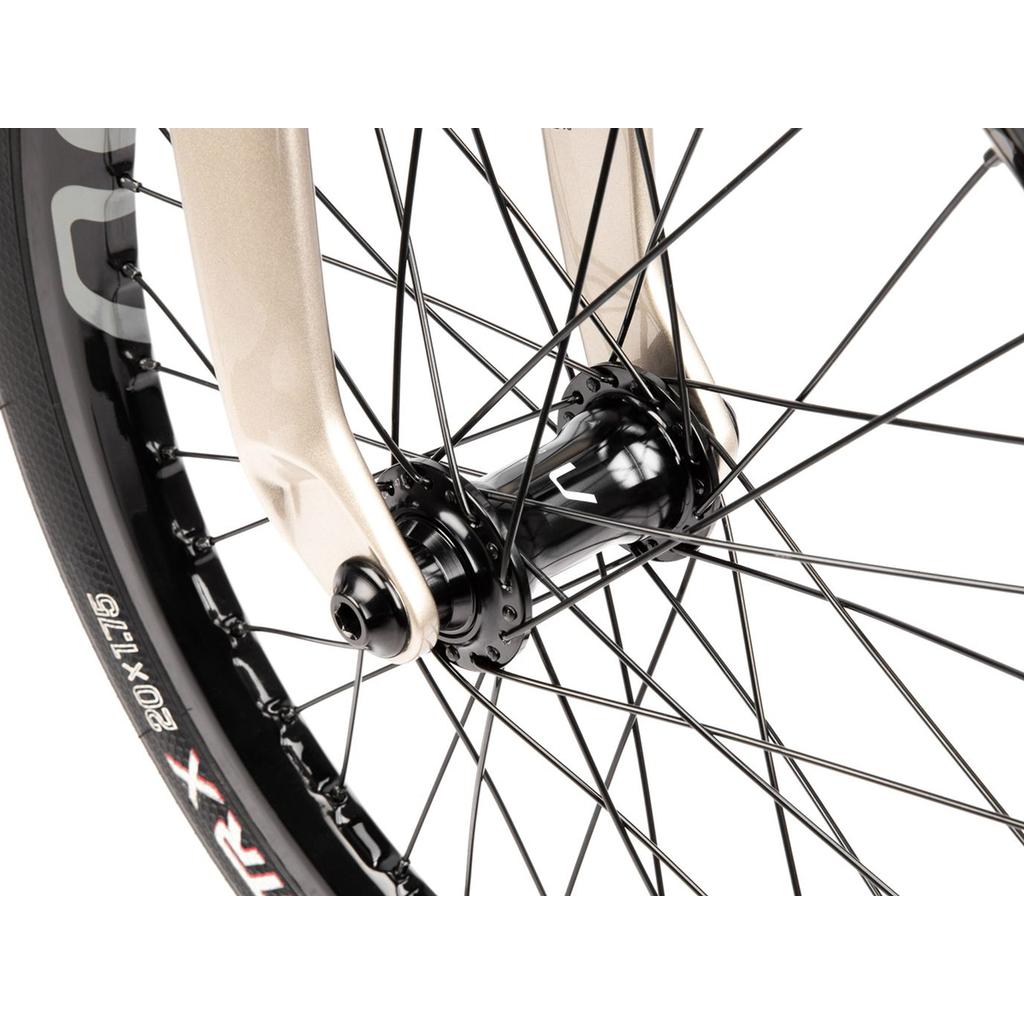

  • Front hub: Arise Echo, CNC alloy, fully sealed, 36h

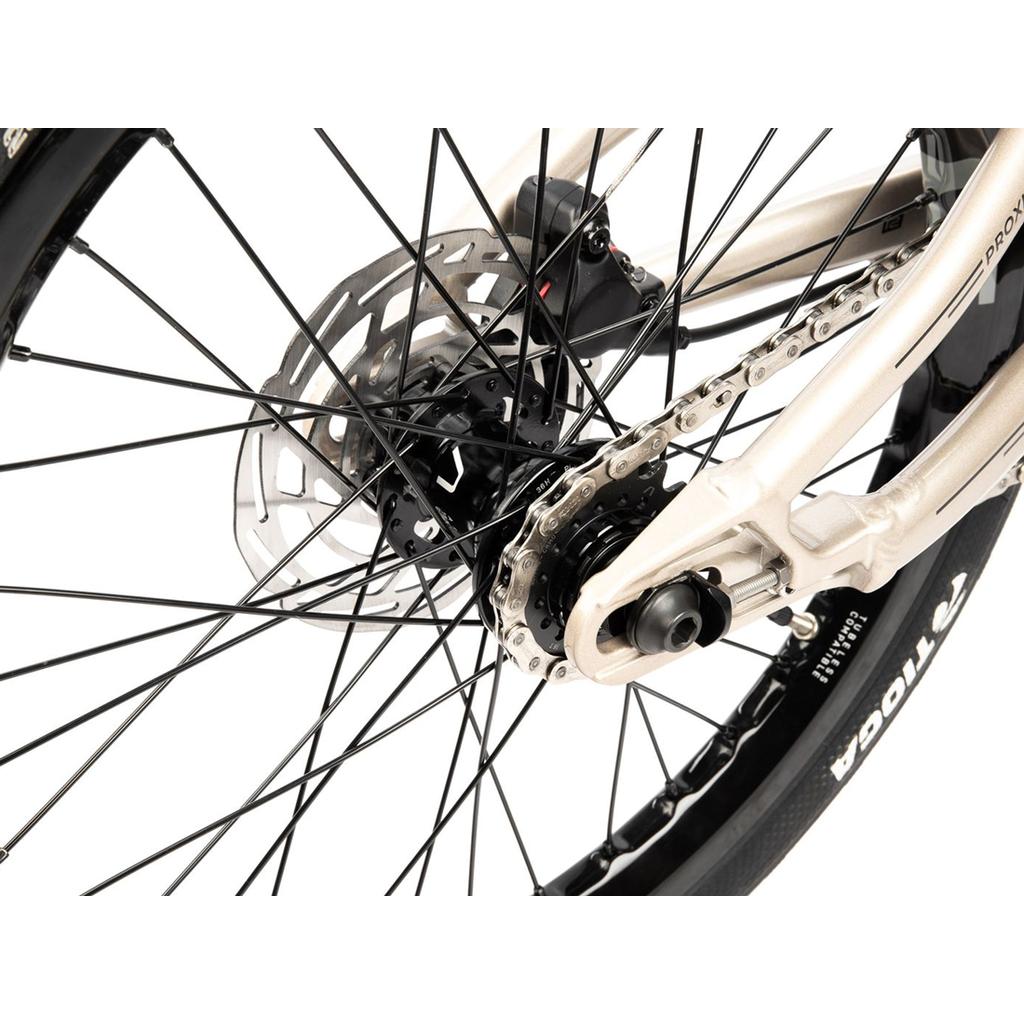

  • Rear hub: Arise Echo, CNC alloy, fully sealed, 36h, disc brake cassette, 6-pawl, 15mm thru axle
  • Rear cog: 16T, 1/2" x 3/32", sealed cassette
  • Spokes: Steel
  • Rims: Arise Solar Pro Carbon, 36h, front and rear
  • Tyres: Tioga Fastr-X, front 20" x 1.75", rear 20" x 1.6"

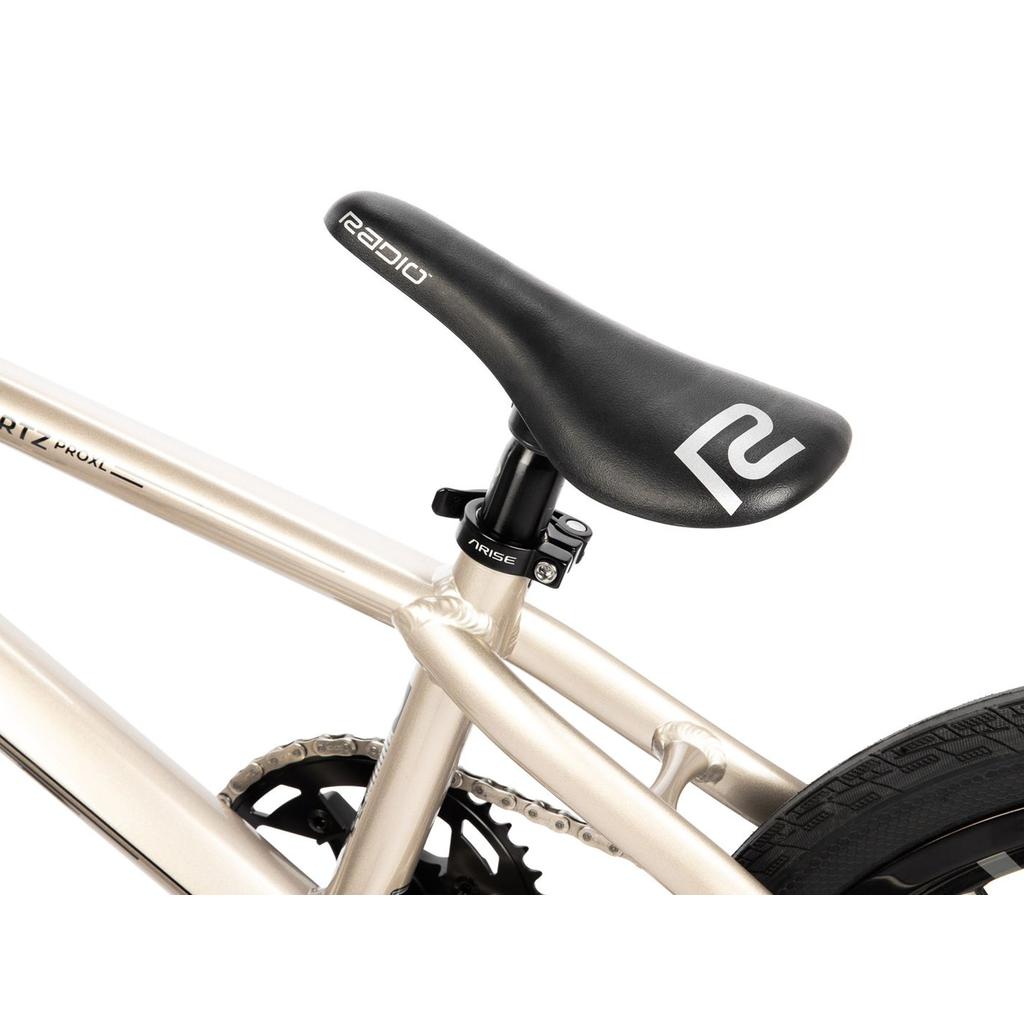

  • Seat: Radio Raceline seat and seatpost combo
  • Seat clamp: Arise
  • Note: Fully sealed bearings throughout the whole bike

Assembly information

Your race bike ships mostly assembled in the box. Finishing it takes most people 10 to 20 minutes with basic tools, and the video above walks through every step.

  • Fit the handlebars and line them up with the front wheel
  • Fit the front wheel, pedals and seat post
  • Spin the rear wheel and check the rotor runs clear of the calliper
  • Check the brake and tyre pressure before the first ride

Disc brakes: keep your fingers off the rotor and pads, because oil from your skin contaminates the braking surface and takes the bite away. If the rotor rubs, loosen the two calliper bolts, squeeze the lever, then tighten them again with the lever held on. Bed the brake in with a few firm stops before you race it.

Tools: Allen key set and a 15mm spanner for the pedals. Check your axle hardware, since race bikes vary between bolt-on nuts and a thru-axle.

Rather have it done? Ask us about extra assembly before you order, or any local bike shop can finish the build for a small fee.

Radio Quartz Carbonic Pro Bike XL (2026)

Brand: Radio Raceline SKU: Click to copy the SKU and show the pick location

Sale price$2,381.00 USD

Or 4 payments of $595.25 USD with

Recommended Rider Height: 165 to 180 cm

Colour - Champagne

Top Tube Length - 21.25

BMX race bike sizing

Race frames are sized by class, and the class you ride is set by rider height rather than age.

SizeRider heightTop tube
Micro (18" wheels)Under 110cm16.25"
Mini (20" wheels)110 to 125cm17 to 18"
Junior120 to 140cm18.25 to 18.75"
Expert135 to 155cm19.5 to 19.75"
Expert XL150 to 165cm20 to 20.75"
Pro160 to 170cm20.25 to 20.75"
Pro XL165 to 175cm21 to 21.25"
Pro XXL170 to 185cm and up21.5 to 21.85"
Pro XXXL175 to 185cm and up22"
Pro XXXXL185cm and up22.5"
Cruiser (24" wheels)175cm and up21.5" and up

Heights overlap between bike sizes on purpose. If you fall in two size categories, a growing rider new to racing is usually better suited to the larger bike, a experienced rider who wants the bike to more responsive should err on the smaller size. Some brands label the Pro size Pro L, with the same fit.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark. Just don't guess their height either, you know how fast they can grow!

Here are some tips

  • Between two sizes and still growing? Take the larger size, but make sure you check the top tube length of the bike. The length of top tube for a given size (Expert XL as an example) can vary up to a half inch or more across brands. Most Expert XL frames are 20", but we've seen them as long as 20.7"
  • Experienced racer and wanting the bike to be more responsive? Take the smaller size. You want the bike to be "under you", not a stretch to the bars and cranks.
  • Top tube is the number that actually changes the fit, so compare it against the bike they ride now.

Still not sure? We're the experts and size bikes for riders every day of the week. Our team has decades of experience between them and will help you decide which bike is the right fit based on rider height and racing experience.

BMX race bike sizing

Race frames are sized by class, and the class you ride is set by rider height rather than age.

SizeRider heightTop tube
Micro (18" wheels)Under 110cm16.25"
Mini (20" wheels)110 to 125cm17 to 18"
Junior120 to 140cm18.25 to 18.75"
Expert135 to 155cm19.5 to 19.75"
Expert XL150 to 165cm20 to 20.75"
Pro160 to 170cm20.25 to 20.75"
Pro XL165 to 175cm21 to 21.25"
Pro XXL170 to 185cm and up21.5 to 21.85"
Pro XXXL175 to 185cm and up22"
Pro XXXXL185cm and up22.5"
Cruiser (24" wheels)175cm and up21.5" and up

Heights overlap between bike sizes on purpose. If you fall in two size categories, a growing rider new to racing is usually better suited to the larger bike, a experienced rider who wants the bike to more responsive should err on the smaller size. Some brands label the Pro size Pro L, with the same fit.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark. Just don't guess their height either, you know how fast they can grow!

Here are some tips

  • Between two sizes and still growing? Take the larger size, but make sure you check the top tube length of the bike. The length of top tube for a given size (Expert XL as an example) can vary up to a half inch or more across brands. Most Expert XL frames are 20", but we've seen them as long as 20.7"
  • Experienced racer and wanting the bike to be more responsive? Take the smaller size. You want the bike to be "under you", not a stretch to the bars and cranks.
  • Top tube is the number that actually changes the fit, so compare it against the bike they ride now.

Still not sure? We're the experts and size bikes for riders every day of the week. Our team has decades of experience between them and will help you decide which bike is the right fit based on rider height and racing experience.
