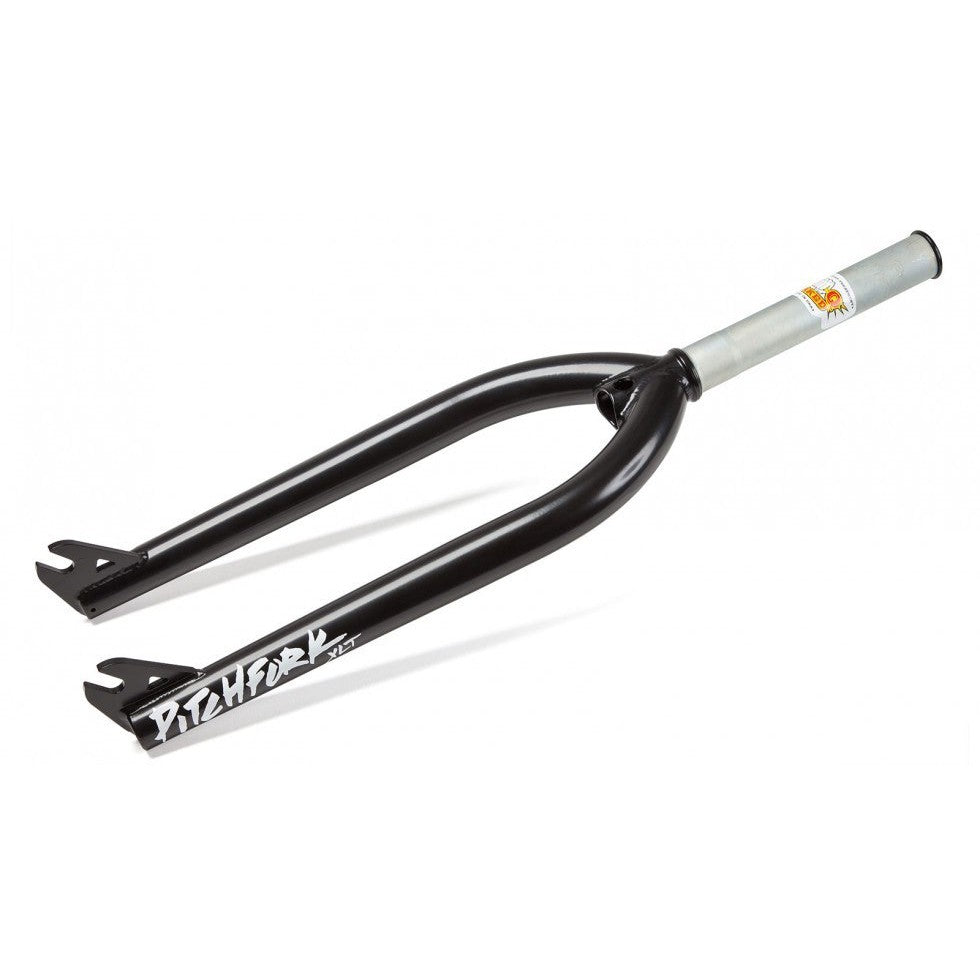

The S&M Pitchfork in 24 inch is built the way the Pitchfork always has been: double butted 4130 chromoly legs, laser cut 4130 chromoly dropouts and a one piece CNC-machined 4130 chromoly steerer tube with an extruded 6061 insert. Axle to crown is 366mm for the 24 inch and offset is the Pitchfork's usual 33mm.
The whole fork is 4Q baked after welding and weighs 2.52 lb (1.14 kg) in the 24 inch. Steerer tube length is 162mm, with a 203mm option for 26 inch, and compression is an M10 x 1.25 thread with a 6mm allen slot. Note that the 26 inch does not include a compression nut and bolt.
