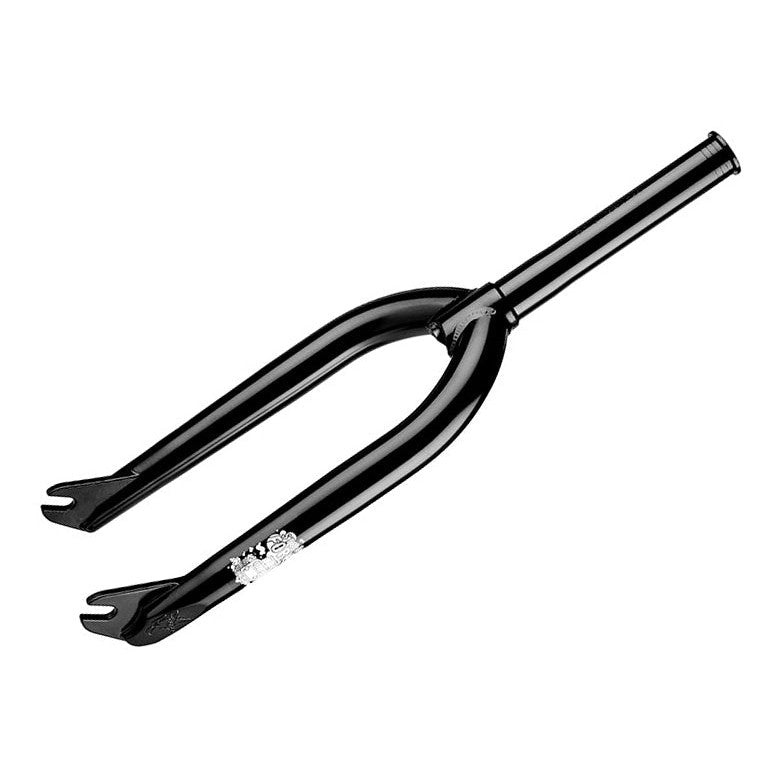

The Animal Street Fork features investment cast dropouts and a compression bolt, prominently displayed against a clean white background.

Highlights

Investment cast dropouts
170mm steerer tube
Integrated bearing race
Fixed 314mm height

Description

The Animal Street Fork is built with investment cast dropouts and runs an integrated bearing race, so the crown race is already part of the fork when it goes into the frame.

It stands 314mm tall with a 170mm steerer tube and weighs 1.1kg. The compression bolt is 24 x 1.5mm and turns with a 3/8" ratchet head or a 6mm allen key.

Features

Investment cast dropouts. The end of each leg is cast rather than folded, so the busiest part of the fork holds its shape.
170mm steerer tube. Enough length to set your stem height with spacers on a standard build.
Integrated bearing race. The crown race is part of the fork, so there is nothing to press on before you drop it into the frame.
Fixed 314mm height. A known figure to work with, so you can tell where the front end will sit before you build the bike.
24 x 1.5mm compression bolt. Set the preload with a 3/8" ratchet head or a 6mm allen key, both tools you likely already own.

Specifications

Dropouts: Investment cast
Steerer: 170mm length
Weight: 1.1kg
Note: Height 314mm. Integrated bearing race. Compression bolt 24 x 1.5mm, turned with a 3/8" ratchet head with 6mm allen key bore.
