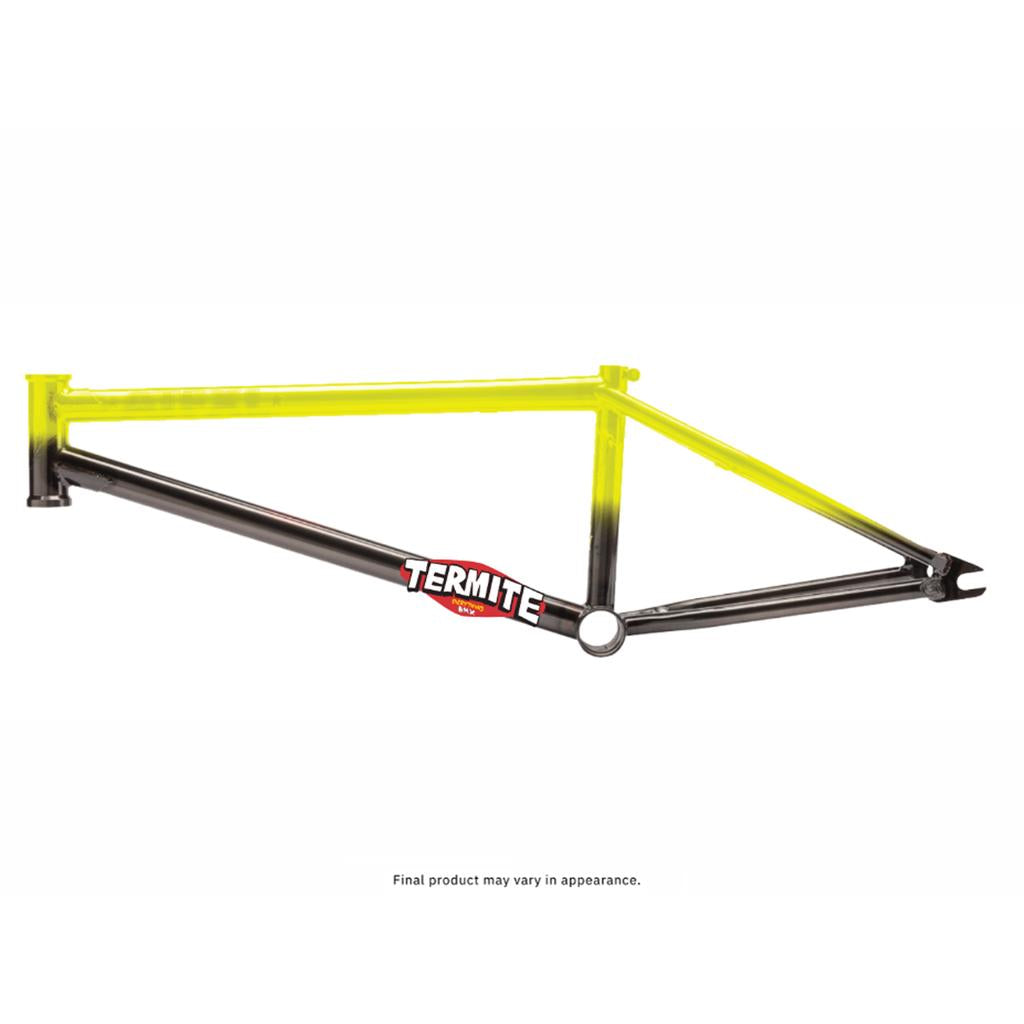

S&M Termite ATF XL frame under the LUXBMX Symbol sign in store

S&M Termite ATF XL decal and yellow to black fade close up

Description

He's in ya walls, he's in ya roof, he took out Deb's shed, the treehouse is dust. The Termite is here. Watch out!

Brisbane's own Jonny Mac has scored himself a colourway of the ever-so-popular ATF XL frame. Painted just like his iconic van, the Termite colourway will make you stand out from the crowd. Support a local shredder and grab one while they last!

The ATF XL takes the tried-and-true ATF frame to the next level. With a taller 5″ head tube, 9″ standover and extended top tube sizes up to 22″, it’s built for the tall team. The perfect blend of responsiveness and stability, ready for action on all terrains.

Top Tube Lengths - 21″, 21.25″, 21.5″, 22″
Rear End Length - 13.4″-13.875″
Head Tube Angle - 75°
Head Tube Style - Integrated (45°/45°, 41.8mm)
Seat Tube Angle - 71°
Seat Clamp - Integrated
Seat Post Size - 1″ (25.4mm)
BB Height - 11.7″
BB Style - Mid
Standover Height - 9″
Brake Mounts - Thread-On 990 (Mounts sold separately)
Dropouts - 14mm Slot, 4Q-Baked
Gyro Tabs - None
Weight - 4.75 lb (2.15 kg)
Tubeset - Butted Thermal-X Tubing

S&M Termite ATF XL (Jonny Mackellar) 20 Inch Frame

Name: S&M Termite ATF XL (Jonny Mackellar) 20 Inch Frame
Brand: S&M
SKU: SMFR002-25-TER
Price: 1000.0 USD
Availability: InStock

Brand: S&M SKU: Click to copy the SKU and show the pick location

New

$1,000.00 USD

Or 4 payments of $250.00 USD with

Top Tube Length - 21

Frames are sized by top tube length. Start with your height, then let riding style decide where in the range you land.

Rider height	Top tube
147 to 157cm	19.75 to 20.25"
157 to 168cm	20 to 20.5"
168 to 175cm	20.25 to 20.75"
175 to 183cm	20.5 to 21"
183 to 190cm and up	20.75 to 21.5"

The height bands overlap on purpose. If you land in two of them, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park. Plenty of riders, pros included, deliberately ride longer than a chart suggests.

How to measure

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the length of the tube you can see. Measure your current frame that way and compare.

Size up for stability through trails and transitions.
Size down if you want the bike quick and twitchy for spins and grinds.
Top tube is fixed once you buy, but chainstay length, stem length, fork offset and bar position all change how the built bike feels.

Not sure? Tell us your height and how you ride, and we will tell you what we would put you on.

Read the full buying guide

Frames are sized by top tube length. Start with your height, then let riding style decide where in the range you land.

Rider height	Top tube
147 to 157cm	19.75 to 20.25"
157 to 168cm	20 to 20.5"
168 to 175cm	20.25 to 20.75"
175 to 183cm	20.5 to 21"
183 to 190cm and up	20.75 to 21.5"

How to measure

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the length of the tube you can see. Measure your current frame that way and compare.

Size up for stability through trails and transitions.
Size down if you want the bike quick and twitchy for spins and grinds.
Top tube is fixed once you buy, but chainstay length, stem length, fork offset and bar position all change how the built bike feels.

Not sure? Tell us your height and how you ride, and we will tell you what we would put you on.

Read the full buying guide
