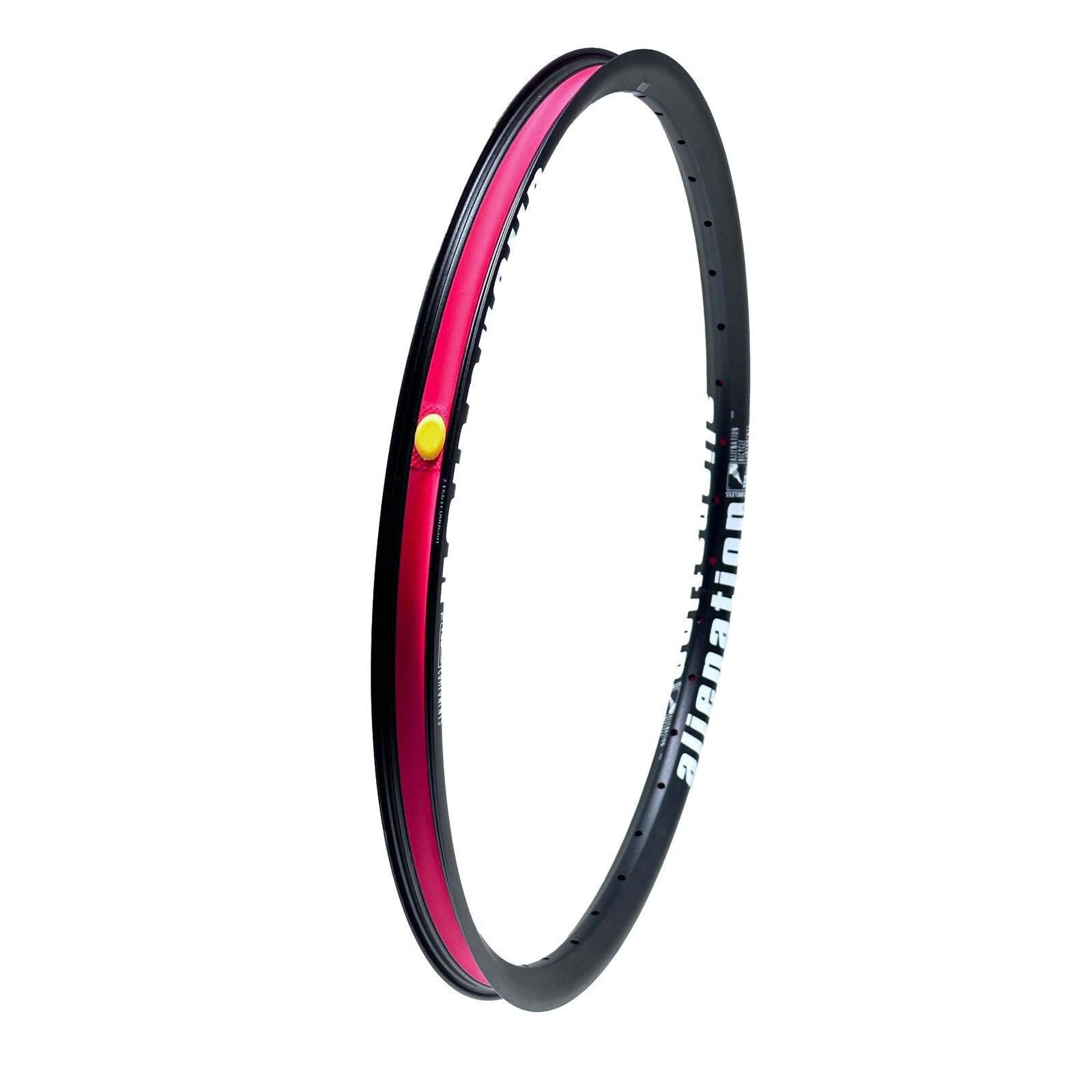

The Alienation Mischief G69 TCS 24 Inch Brakeless Rim features a black exterior adorned with "alienation" text and a vibrant red interior stripe, offering an angled view. Made from G69 material, this rim ensures durability and performance for dedicated cyclists.

Highlights

Tubeless compatible 24 inch rim
G69 alloy at 380 grams
4D drilling, no eyelets
Lace it three cross

Description

The Alienation Mischief TCS (Tubeless Compatible System) rim uses Alienation's new 4D drilling process less chamfering of which creates the optimal interface between spoke and rim. This exact angle reduces binding and the need for eyelets.

Alienation's new G69 material is super light with superior strength. NO RADIAL LACING. These rims are designed and drilled for 3 cross specifically. Each TCS Mischief rim comes with a valve plug for the unused valve hole (TCS rims are drilled for both TCS and Schrader).

If you're going to go an alloy rim for your cruiser, this is our recommendation.

Features

Tubeless compatible 24 inch rim. The TCS rim is drilled for both tubeless and Schrader valves, and a plug for the unused hole is included.
G69 alloy at 380 grams. Alienation's G69 is 6069 T6, about 30 percent stronger than 6061 T6, and the rim comes in at 380 grams.
4D drilling, no eyelets. Less chamfering sets the spoke to rim angle exactly, which reduces binding and removes the need for eyelets.
Lace it three cross. These rims are designed and drilled for 3 cross specifically, so no radial lacing.
Front use recommended. There is no braking wall on this rim, so it is recommended for the front of a race cruiser.

Specifications

Wheel size: 24 inch, 507 diameter
Material: 6069 T6, 30% stronger than 6061 T6
Hole count: 36H
Valve: TCS and SV
Included: Valve plug for the unused valve hole
Weight: 380g
Colour: Black
Note: Double wall, sleeved joint. ERD 487mm. Race use, front only recommended as there is no braking wall. Drilled for 3 cross, no radial lacing.

Spoke calculator

Display

Pick the part it is laced to and we will give you the lengths to buy.

This rim

Looking up its measurements.

Check or change its figures

ERD effective rim diameter, from the spec sheet mm

Laced to which hub?

Find your hub

Or type its figures

Hub spacing locknut to locknut, 100 front or 110 rear on most BMX mm Same both sides front hubs, or matching flanges

Flange diameter/PCD (pitch circle diameter) spoke hole centre to the opposite hole centre. The drive side is the driver side, left or right hand drive alike, and is usually the bigger flange

Drive side mm Non-drive side mm

Flange position

Flange to locknut Centre to flange

Drive side mm Non-drive side mm

Spoke count Cross pattern

Spoke lengths to buy

Drive side —mm

Non-drive side —mm

Pick the hub and your lengths will appear here.

Open the full spoke calculator for offset rims, other cross patterns and measuring help.

Alienation Mischief G69 TCS 24 Inch Brakeless Rim

Name: Alienation Mischief G69 TCS 24 Inch Brakeless Rim
Brand: Alienation BMX
SKU: 51RIMMISCTCS36BLK24
Price: 199.99 AUD
Availability: InStock
