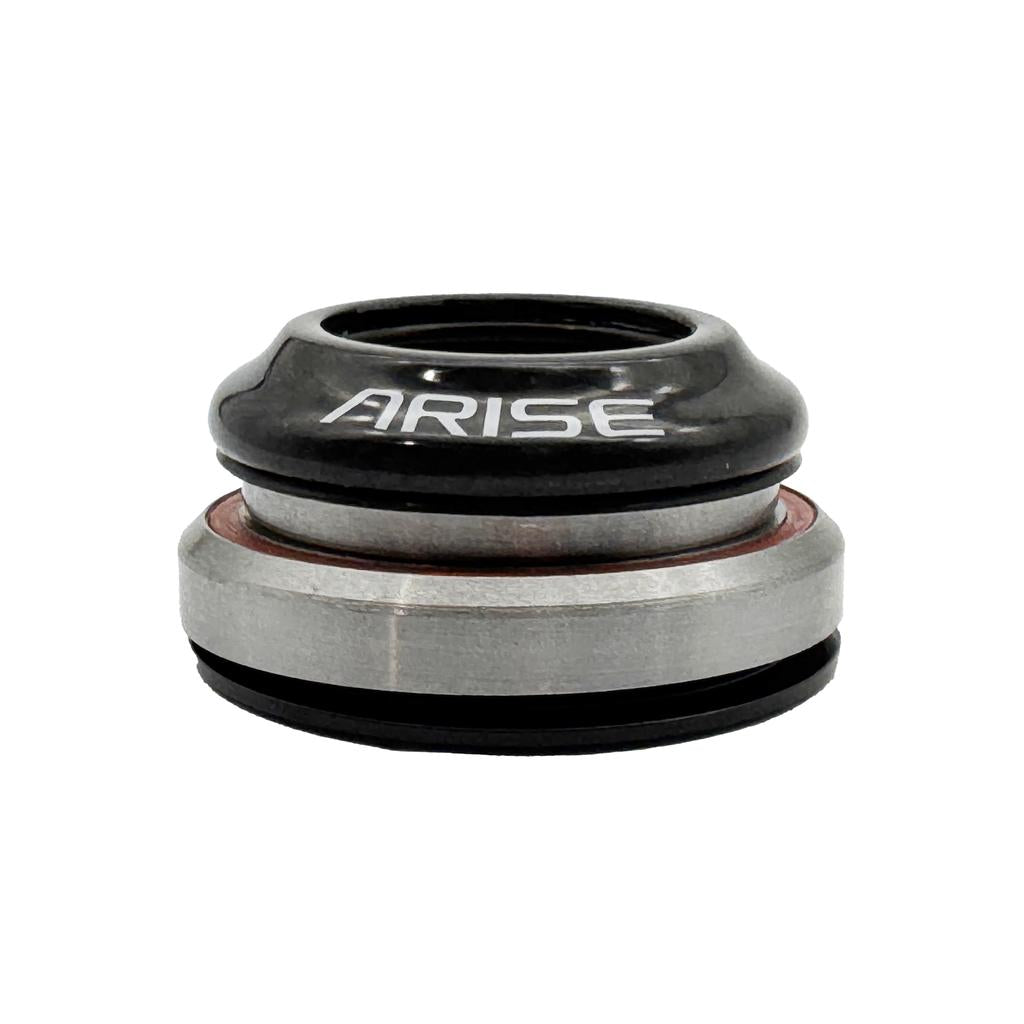

Arise Crystal 8 1-1/8 Integrated Tapered Headset featuring a black “ARISE” top cover and a silver stainless steel sealed bearings base for a tapered head tube.

Arise Crystal 8 1-1/8 Integrated Tapered Headset consisting of two stainless steel sealed bearings, a split compression ring, a thin washer, and a top cover.

Highlights

Fits tapered 1 1/8" to 1.5"
Both crown races included
Stainless steel sealed bearings
Carbon fibre top cap

Description

The Arise Crystal 8 is an integrated headset for tapered 1 1/8" to 1.5" head tubes, so it suits frames and forks built to that standard. The cups measure 41.8x30.5x8mm up top and 50.9x40x8mm down below, both running 45/45 degree stainless steel sealed bearings.

It comes with the Arise designed 8.5mm carbon fibre top cap, a star nut, one super slim spacer for cap to frame spacing, and both crown races: 30mm ID for 1 1/8" and 39.8mm ID for 1.5".

Features

Fits tapered 1 1/8" to 1.5". Built for tapered head tubes, 41.8x30.5x8mm up top and 50.9x40x8mm below, so check your frame and fork before ordering.
Both crown races included. A 30mm race for 1 1/8" steerers and a 39.8mm race for 1.5", so you can run either fork.
Stainless steel sealed bearings. High precision 45/45 degree sealed bearings keep the steering smooth and keep grit out of the head tube.
Carbon fibre top cap. The Arise 8.5mm cap saves weight up front and sits neatly thanks to the super slim spacer in the box.
Star nut in the box. Star nut, top cap and spacer are all supplied, so you have what you need to preload it at fitting.

Specifications

Fits: Tapered 1 1/8" to 1.5" frames and forks
Sizes: 41.8x30.5x8mm upper, 50.9x40x8mm lower, 45/45 degree bearings
Material: Carbon fibre top cap, stainless steel sealed bearings
Bearings: High-end stainless steel sealed, 45/45 degree
Headset type: Integrated, tapered
Included: 8.5mm top cap, star nut, one super slim spacer, 30mm and 39.8mm ID reducer crown races
Colour: Carbon
