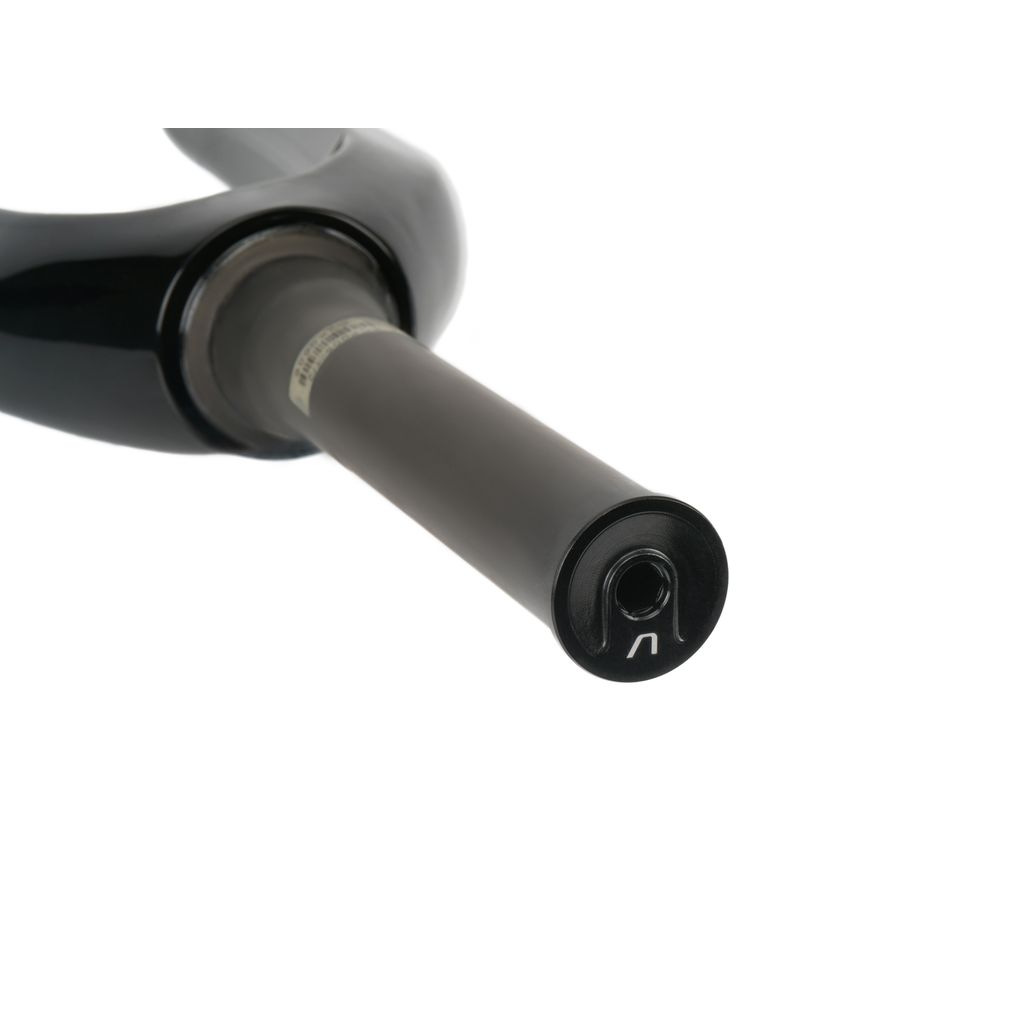

The Arise Terra Carbon Forks Pro, tapered and equipped with a carbon fibre steerer tube, features two dropout holes for precision and durability.

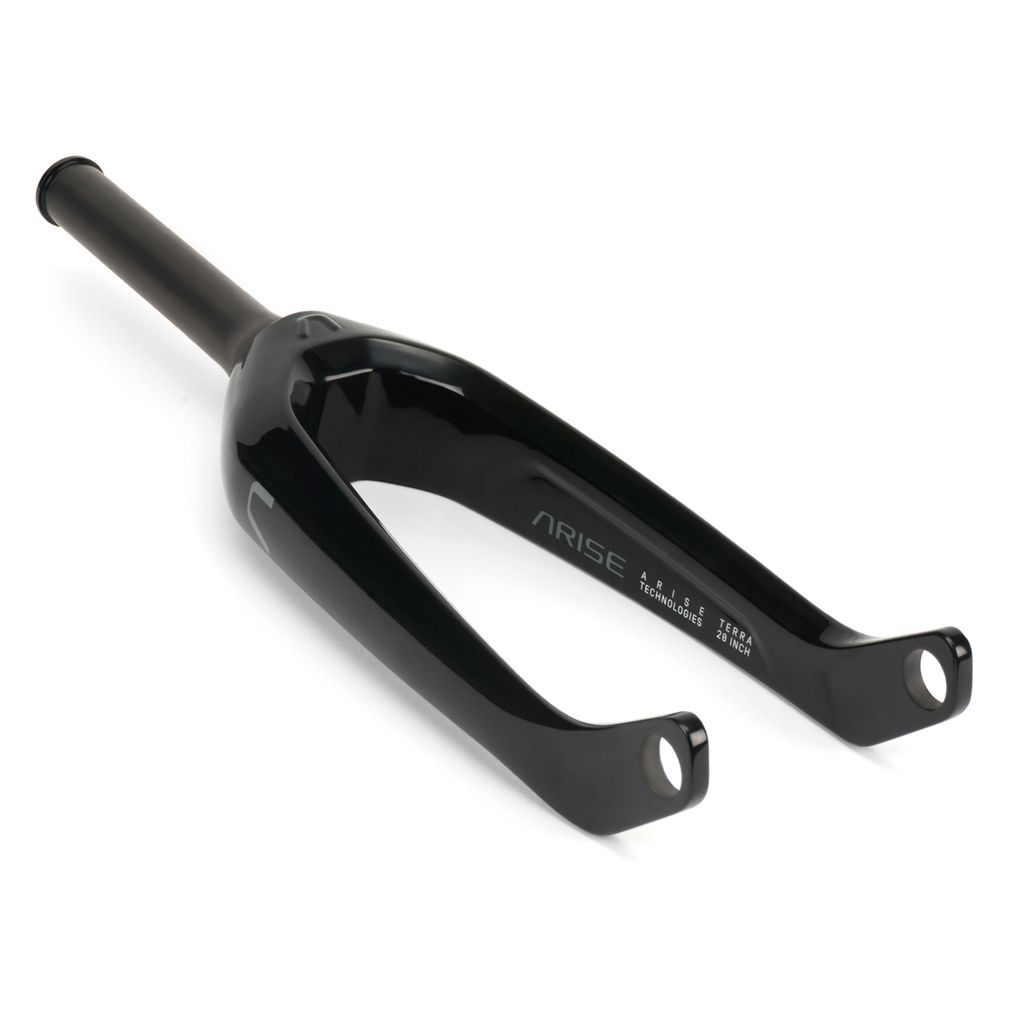

Close-up of a sleek black fork, featuring the "Arise Terra" name, crafted from lightweight carbon fiber.

Close-up of an Arise Terra Carbon Fork with a glossy black finish, showcasing the visible axle hole. The Pro series fork is tapered and crafted from carbon fiber, combining strength and style with a 20mm design.

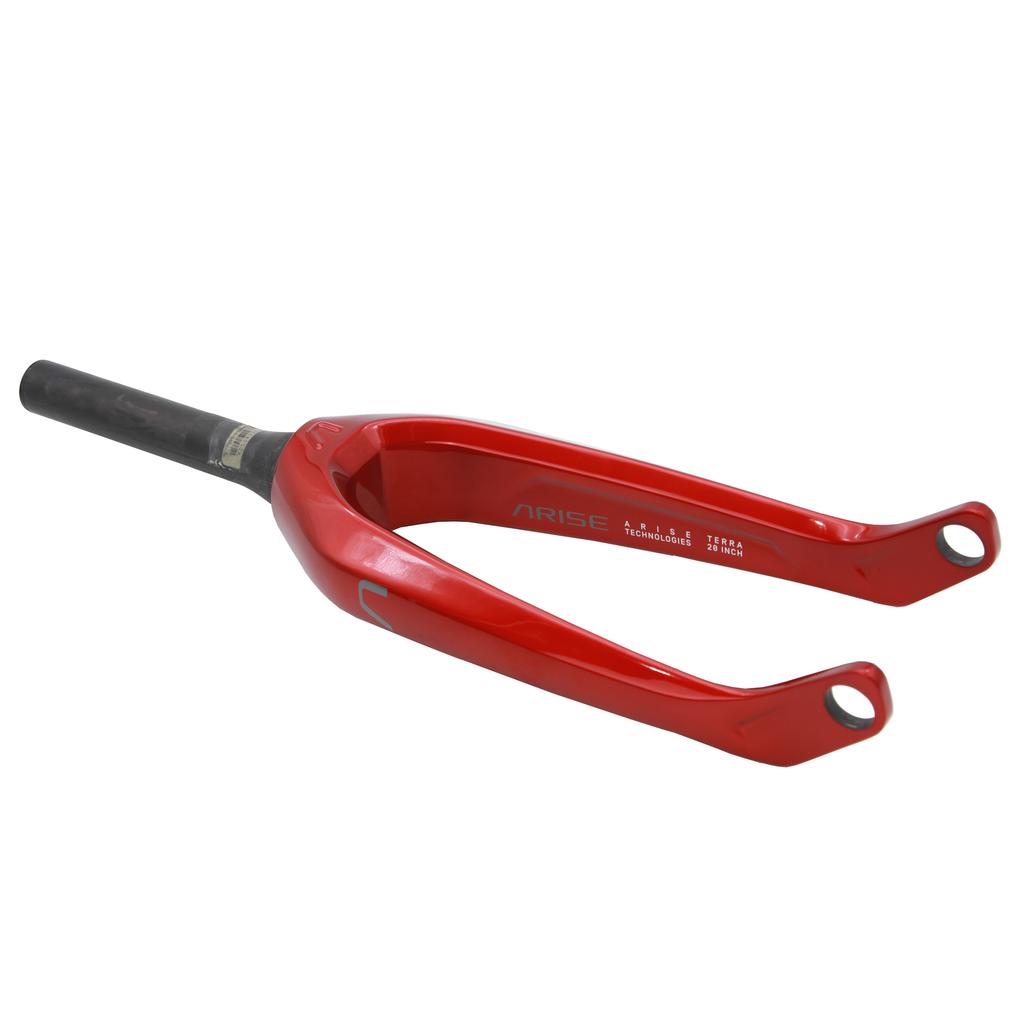

Arise Terra Carbon Forks Pro Tapered 20mm: red race fork with black steerer tube, monocoque construction, shown against a white background.

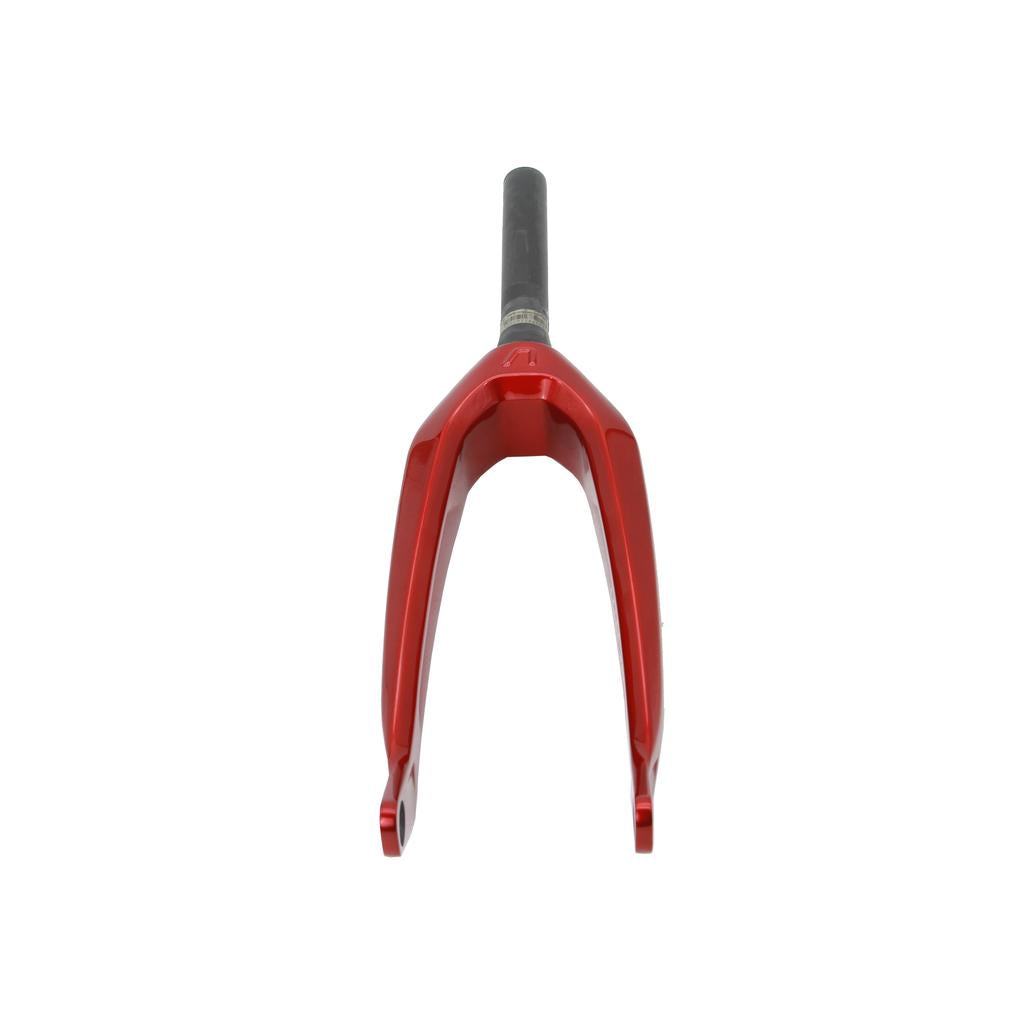

Arise Terra Carbon Forks Pro, tapered 20mm, shown from the front. Made with monocoque carbon fibre construction, finished in red, displayed against a white background.

The Arise Terra Carbon Forks Pro (Tapered, 20mm) are shown at an angle against a white background, featuring visible "ARISE" branding and technical details that emphasize their advanced monocoque carbon fiber construction.

Description

The future is now! The Arise Terra Fork is the first of a new generation of race forks. Featuring a 100% full monocoque Torayca carbon fibre construction, the Terra fork is the stiffest and fastest fork out there, designed for the modern-day rider who needs a fork without compromise. Tested in the lab and on the track by multiple championship winners, the Terra Fork is race-proven before it’s even left the gate.

Features

Tapered steerer for stiffness. A 1 1/8" to 1.5" tapered steerer 175mm long spreads the load through the head tube for the best possible power transfer.
Full monocoque carbon construction. One piece Torayca carbon legs and steerer hold the fork at 540g while adding rigidity.
Clearance for 57mm tyres. Increased tyre clearance takes a 57mm tyre with at least 3mm of room around it.
20mm thru axle dropouts. Adaptors for 3/8" / 10mm female bolt hubs are included, so the wheels you already race still fit.
Race proven to 110kg. Tested in the lab and on the track by multiple championship winners, exceeding Category 2 of EN 16054.2012 for BMX race forks.

Specifications

Material: High-performance TORAYCA carbon fibre, 1pc legs and steerer
Dropouts: 20mm thru axle, includes adaptors for 3/8" / 10mm female bolt hubs
Steerer: 1 1/8" to 1.5" tapered, 175mm long, integrated 45/45 crown race
Fork offset: 32mm
Fork legs: 1pc monocoque construction with unique fork leg inlay
Tyre clearance: 57mm maximum tyre, including minimum 3mm clearance
Weight: 540g (19oz / 1.1lbs)
Colour: Black
Note: Axle to crown 305mm. Includes M18 thread Terra compression bolt. Maximum rider weight 110kg
