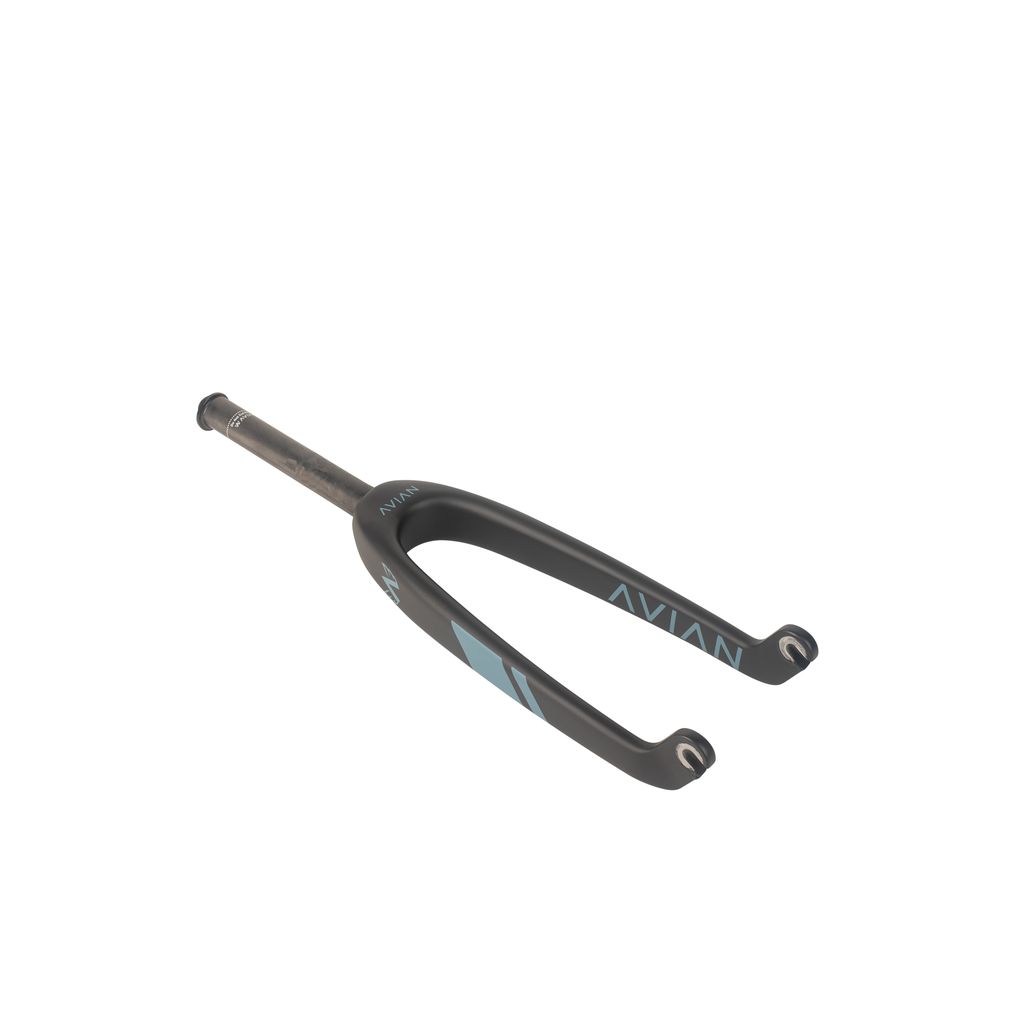

The Avian Youth Fork is the lightweight choice in the one inch fork market for those looking at saving as many grams as possible. With a carbon fibre steerer tube, these are some of the lightest BMX race forks that you can buy.
These forks have an internal thread for the top cap bolt to screw into, with the actual cap having the Avian logo etched into it. Both are included with the fork.
Fork Specs
- 1” Carbon fiber steerer tube
- Internal locking system
- 170mm steerer tube length
- 303mm axle-to-crown (20")
- 32mm drop-out offset
- 10mm dropouts
- Top-cap & internal locking screw included with forks
- Weight - 380g
Important Torque Spec Information
Please use a torque wrench when installing this fork onto the bike. If the stem’s side bolts are over-tightened, you run the risk of crushing/damaging the carbon steerer tube which can lead to the product failing. Further, the fork’s integrated locking system has an alloy bolt/head, so if it’s over-tightened then you will strip it. Tighten between 4-5Nm is fine, but do not exceed 5.5Nm.
Compatibility
The Versus Youth Fork is compatible with BMX frames that have both 1" and 1-1/8" head-tubes. Headset spec will be determined by your frame manufacturer, but you can always e-mail us for advice. Rider weight limit for this fork is 115lbs.
