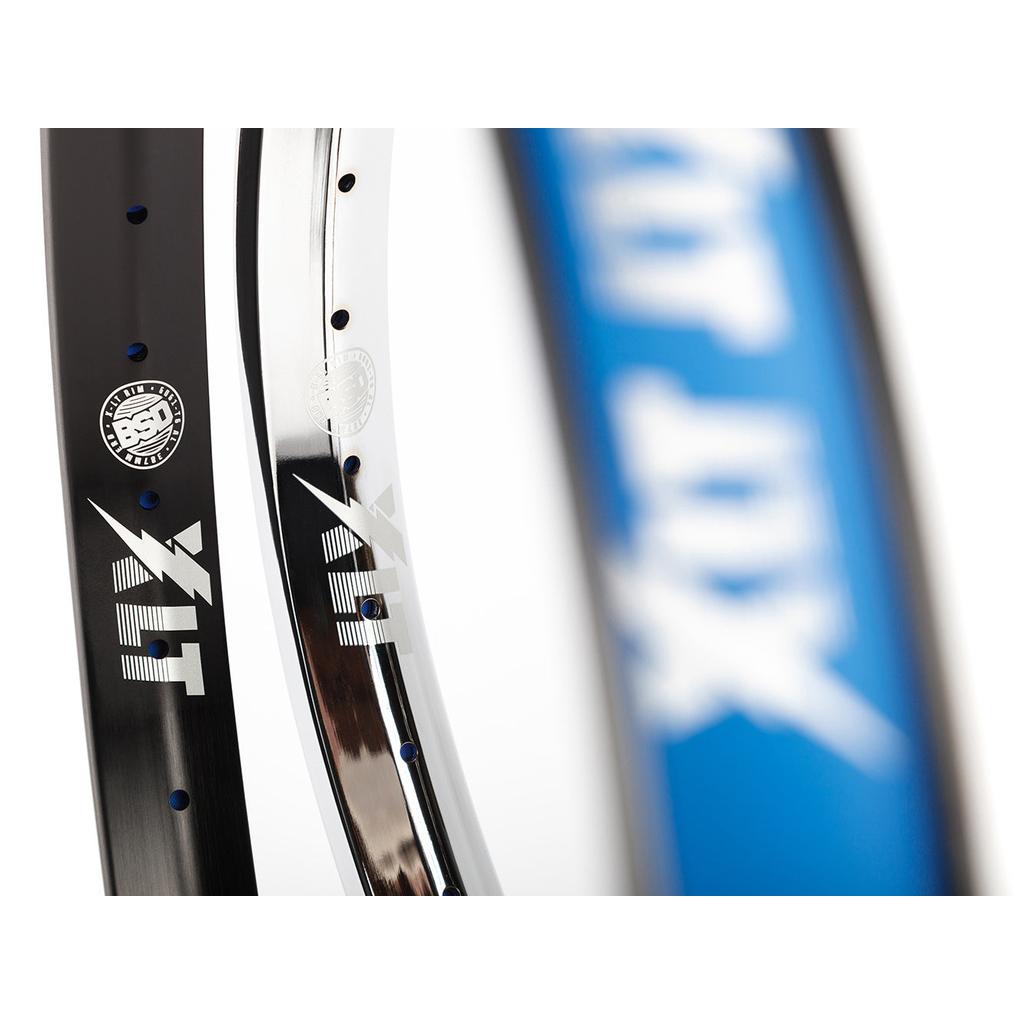

Two BSD XLT Rim (36H) rims shown at an angle, featuring a black inner channel and a silver metallic outer edge with blue branding graphics.

A black and a chrome BSD XLT Rim (36H), both standing upright as strong BMX rims.

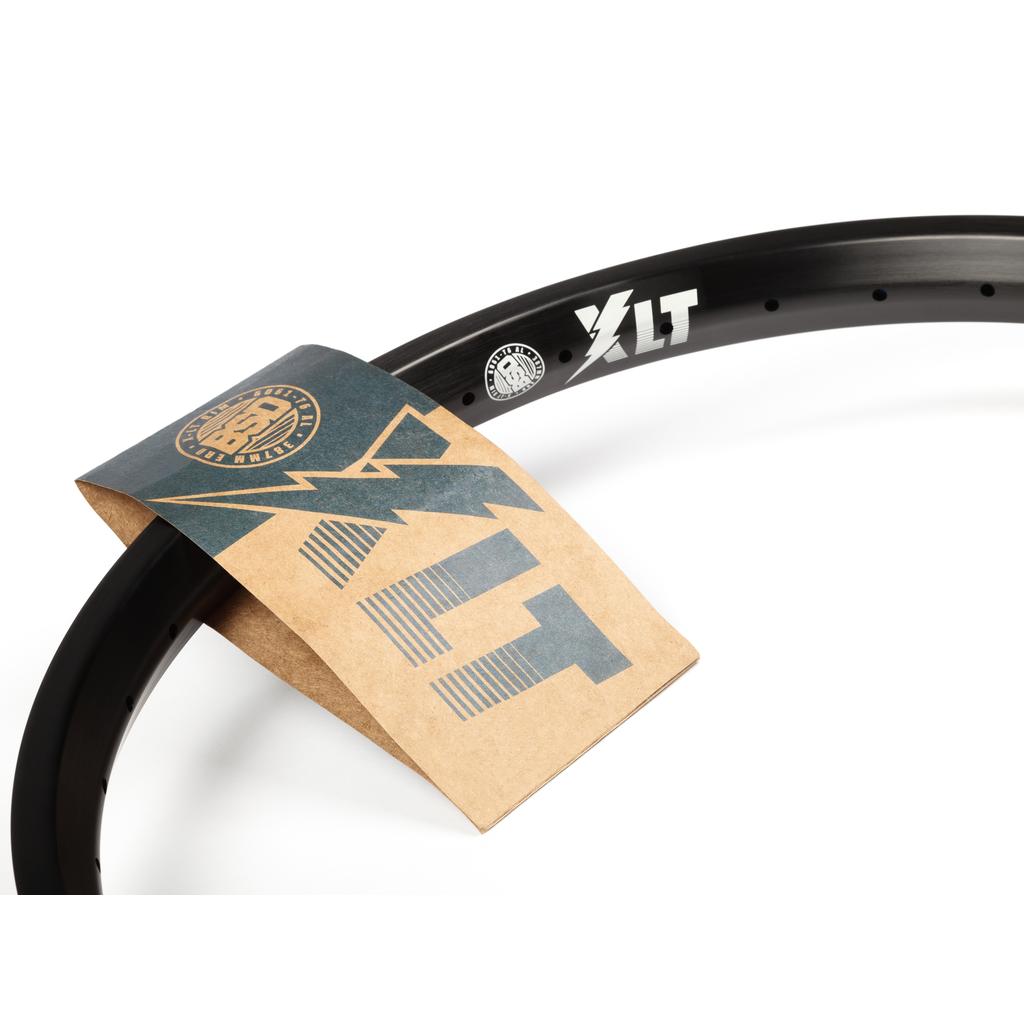

A black BSD XLT Rim (36H) with a paper sleeve wrapped around one section.

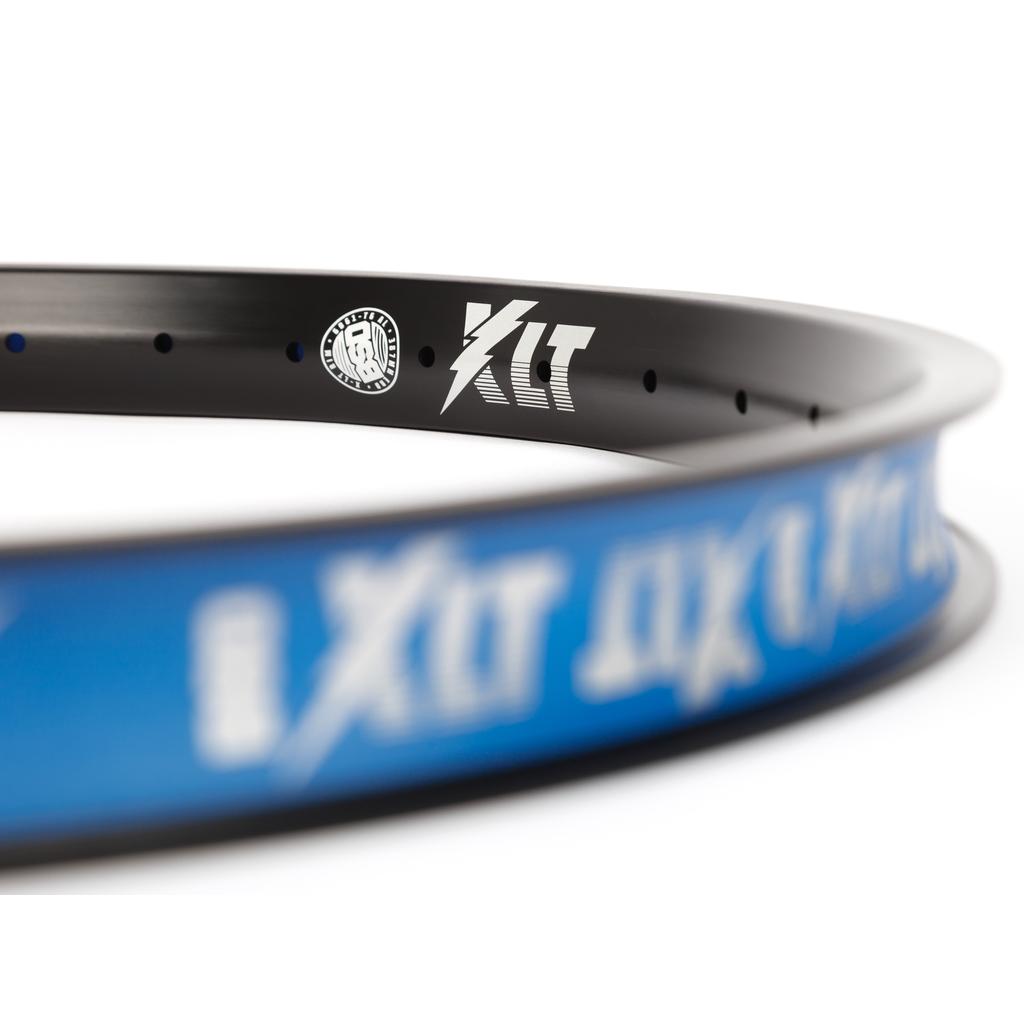

Black BSD XLT Rim (36H) BMX rim with a blue sidewall and white branding.

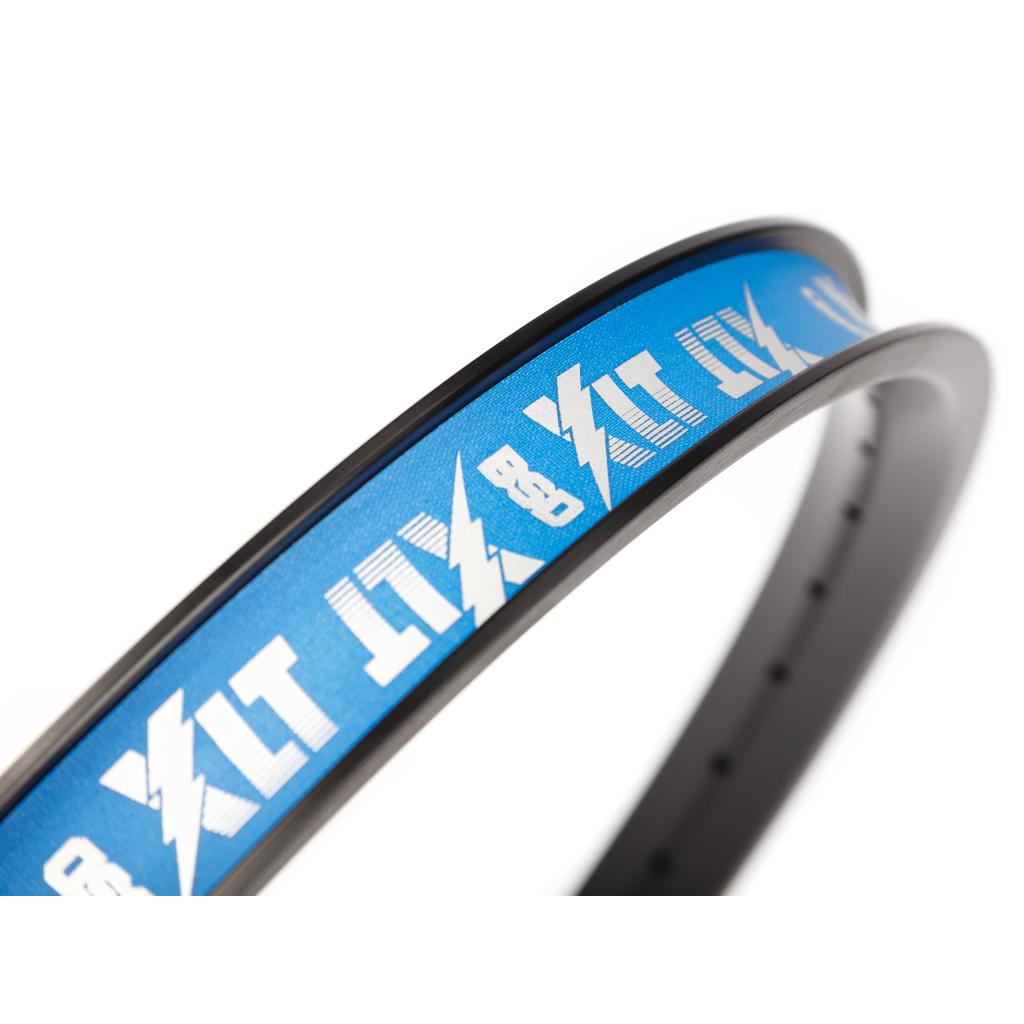

Black BSD XLT Rim (36H) BMX rim with a blue strip featuring white text and lightning bolt graphics.

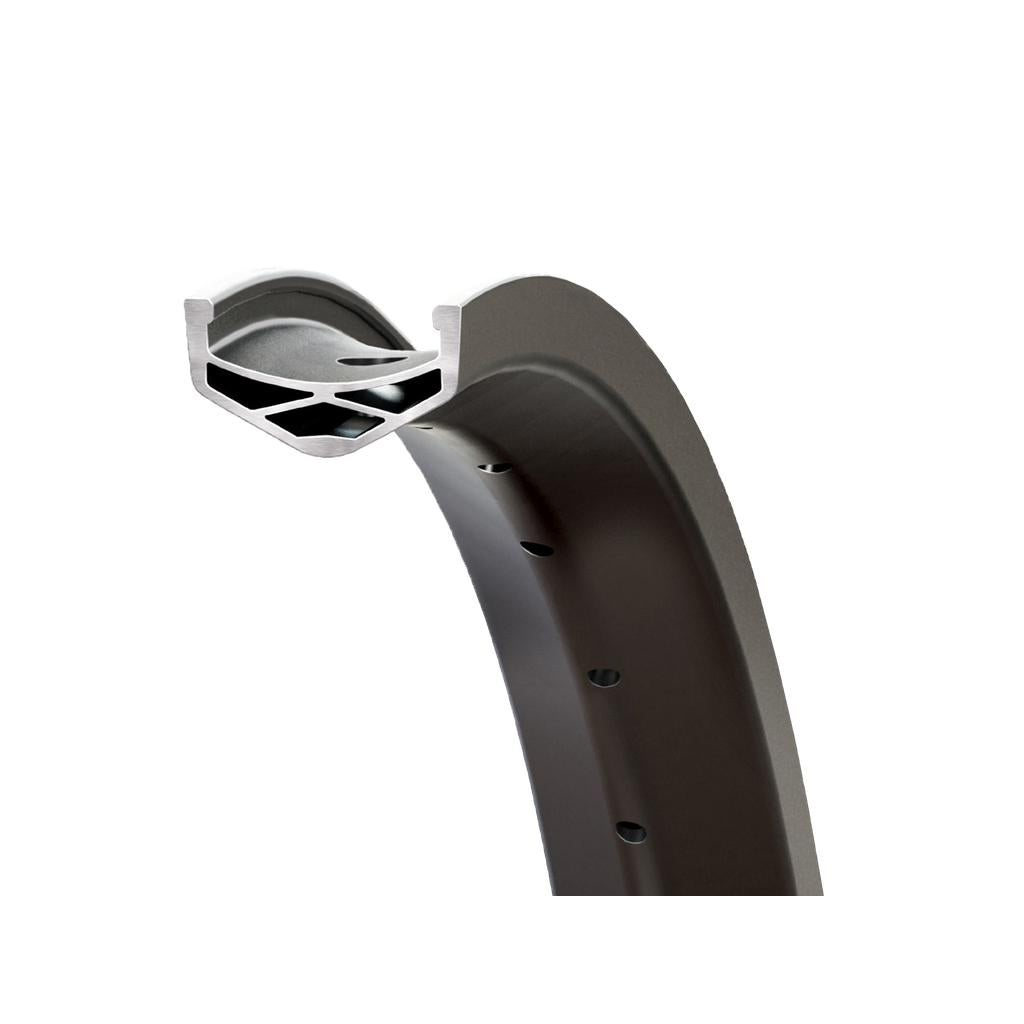

Cross-section of a BSD XLT Rim (36H) showing its inner structural shape and spoke holes.

A lightweight BSD XLT Rim (36H) chrome bicycle rim with a blue-and-white graphic pattern along the outer wall.

Black BSD XLT Rim (36H) BMX rim with blue decals featuring white text.

Description

BSD XLT Rim

Trust BSD to bring out the goods! This brand new rim is just shy of 500g making it light weight but still incredibly strong! These rims are also deigned to utilise a cross lacing pattern with the spokes that pulls everything super tight resulting in an even stronger design! An added bonus is that this rim has a braking surface which means that you can run it with front or rear brakes! Bring back the nosepicks!

If you’re trying to lighten your bike then rims and tires can make a big difference to how the bike handles due to the reduction of rotational mass. The XLT is BSD's new lightweight rim, designed around an X-section for increased stiffness, the rim has an aero style shape which further triangulates the design. With other proven features such as tapered sidewalls and patented cross over lacing this rim is light while remaining strong.

• Lightweight design

• Extra thick tapered sidewalls

• Extra thick tapered spoke seats

• Aligned cross over lacing

• X-section centre brace

• Can be used with brakes

• 34mm wide x 19mm tall

• 6061-T6 construction

Outer Diameter - 419mm ERD: 387mm

Weight - 495g

Features

Lightweight design

Extra thick tapered sidewalls

Extra thick tapered spoke seats

Aligned cross over lacing

X-section centre brace

Can be used with brakes

34mm wide x 19mm tall

6061-T6 construction

Specifications

Outer Diameter: 419mm ERD: 384mm
Weight: 495g
