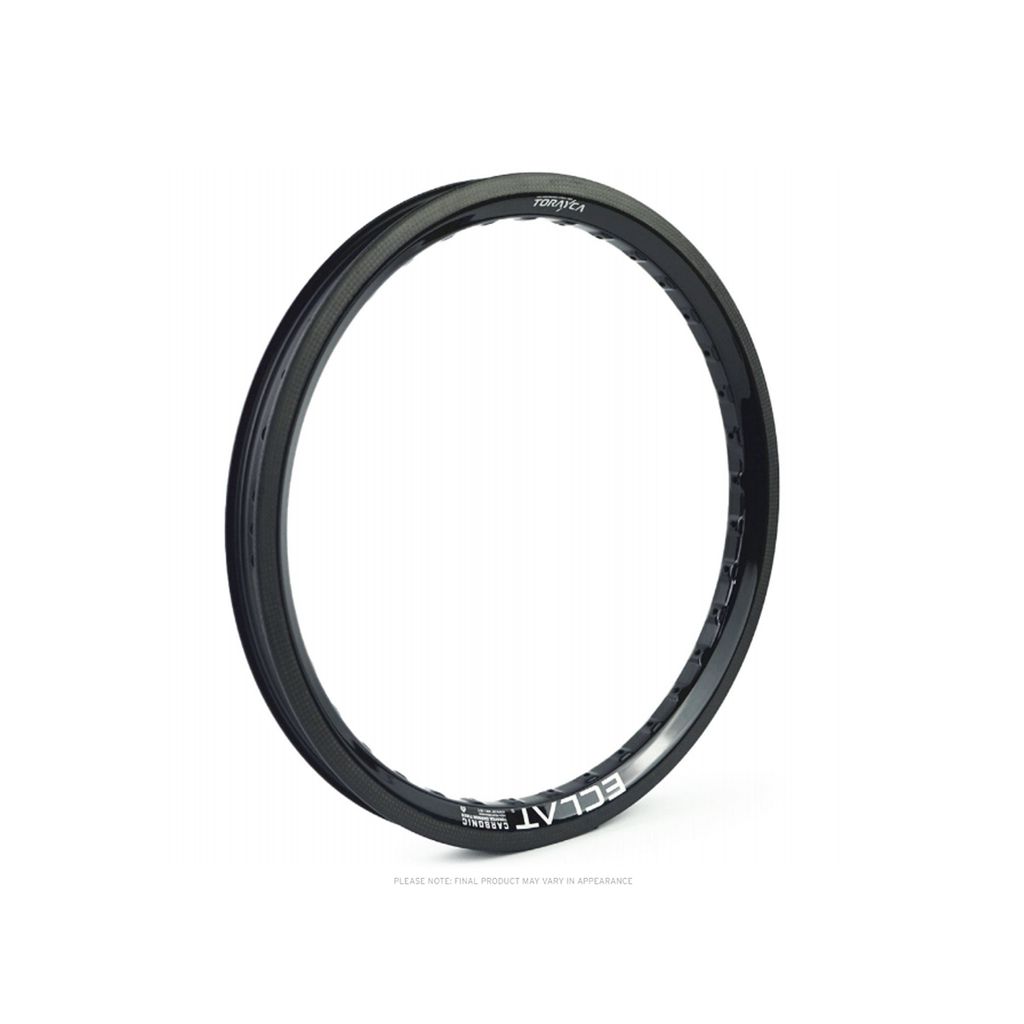

Eclat Carbonic V2 Rim (Non-Braking) (36H) in black carbon fibre with a white branded inner edge and a subtle carbon fibre pattern.

Highlights

First freestyle specific carbon rim
Revised shape for strength
Light and stiff
No braking surface

Description

The Carbonic V2 is the first freestyle BMX specific carbon fibre rim, now with a revised shape for increased strength. Compared to an alloy rim it is incredibly light and stiff, and it has been laboratory tested to withstand huge impacts as well as rider tested by the Eclat pro team.

This is the non braking version, with no braking surface on the sidewall. It is 37 x 26mm, 36 hole and tubeless ready, with offset spoke drilling for improved spoke alignment, in Torayca high performance carbon fibre and glossy black at 385g.

Features

First freestyle specific carbon rim. Built for freestyle BMX from the start rather than borrowed from another discipline.
Revised shape for strength. The V2 profile has been reworked for increased strength over the original Carbonic.
Light and stiff. Torayca carbon makes it incredibly lightweight and stiff compared to an alloy rim, so the wheel feels sharper underneath you.
No braking surface. This one is the non braking version, drilled 36 hole and tubeless ready if you want to run it that way.
Offset spoke drilling. The offset drilling improves spoke alignment, which helps the wheel stay true after lab tested and pro tested impacts.

Specifications

Material: Torayca high performance carbon fibre
Hole count: 36h
Rim width: 37mm
Rim depth: 26mm
Brake surface: None, non braking
Weight: 385g (13.5oz)
Colour: Glossy black
Note: Tubeless ready. Offset spoke drilling.

Spoke calculator

Display

Pick the part it is laced to and we will give you the lengths to buy.

This rim

Looking up its measurements.

Check or change its figures

ERD effective rim diameter, from the spec sheet mm

Laced to which hub?

Find your hub

Or type its figures

Hub spacing locknut to locknut, 100 front or 110 rear on most BMX mm Same both sides front hubs, or matching flanges

Flange diameter/PCD (pitch circle diameter) spoke hole centre to the opposite hole centre. The drive side is the driver side, left or right hand drive alike, and is usually the bigger flange

Drive side mm Non-drive side mm

Flange position

Flange to locknut Centre to flange

Drive side mm Non-drive side mm
