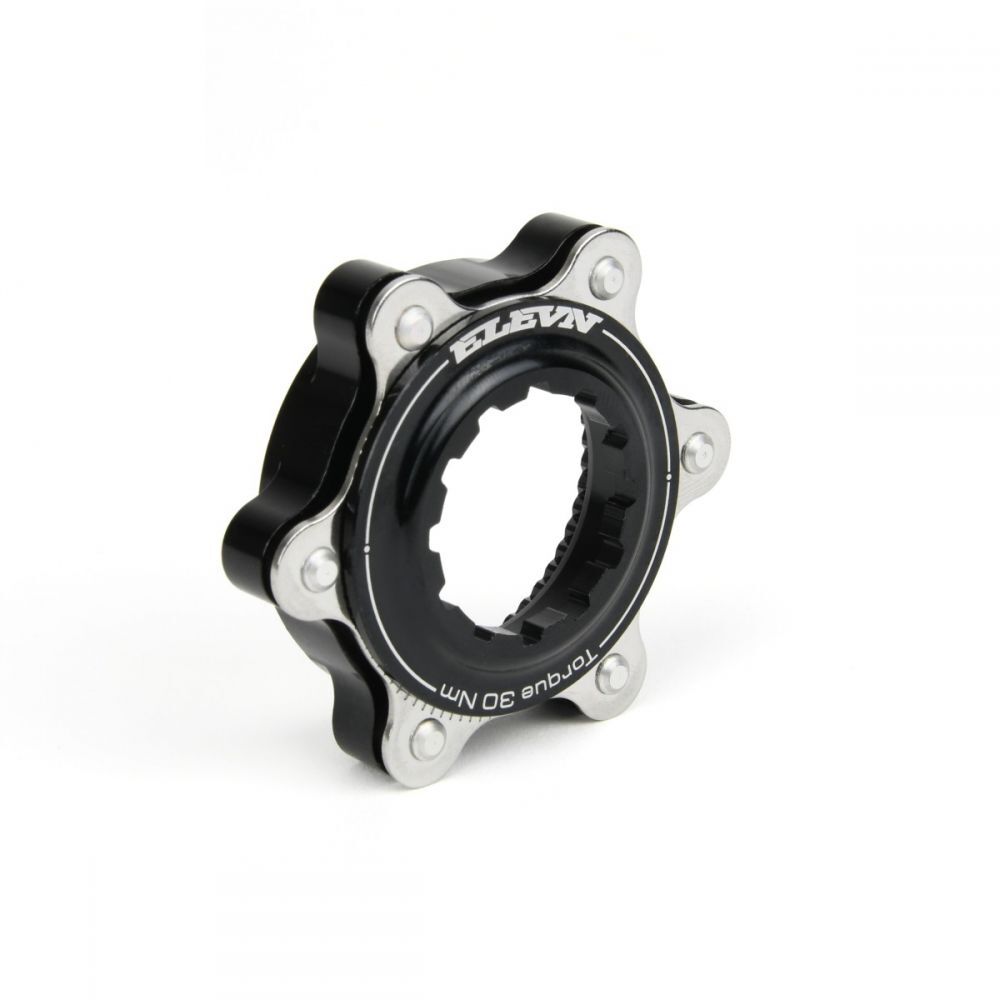

An Elevn Centerlock ISO Adapter Kit in black and silver, featuring the brand name "ELEVN" and "Torque 30 NM" inscribed on it.
The Elevn Centerlock ISO Adapter Kit is a comprehensive bicycle bottom bracket toolset featuring multiple components, including a wrench and a torque measuring ring.

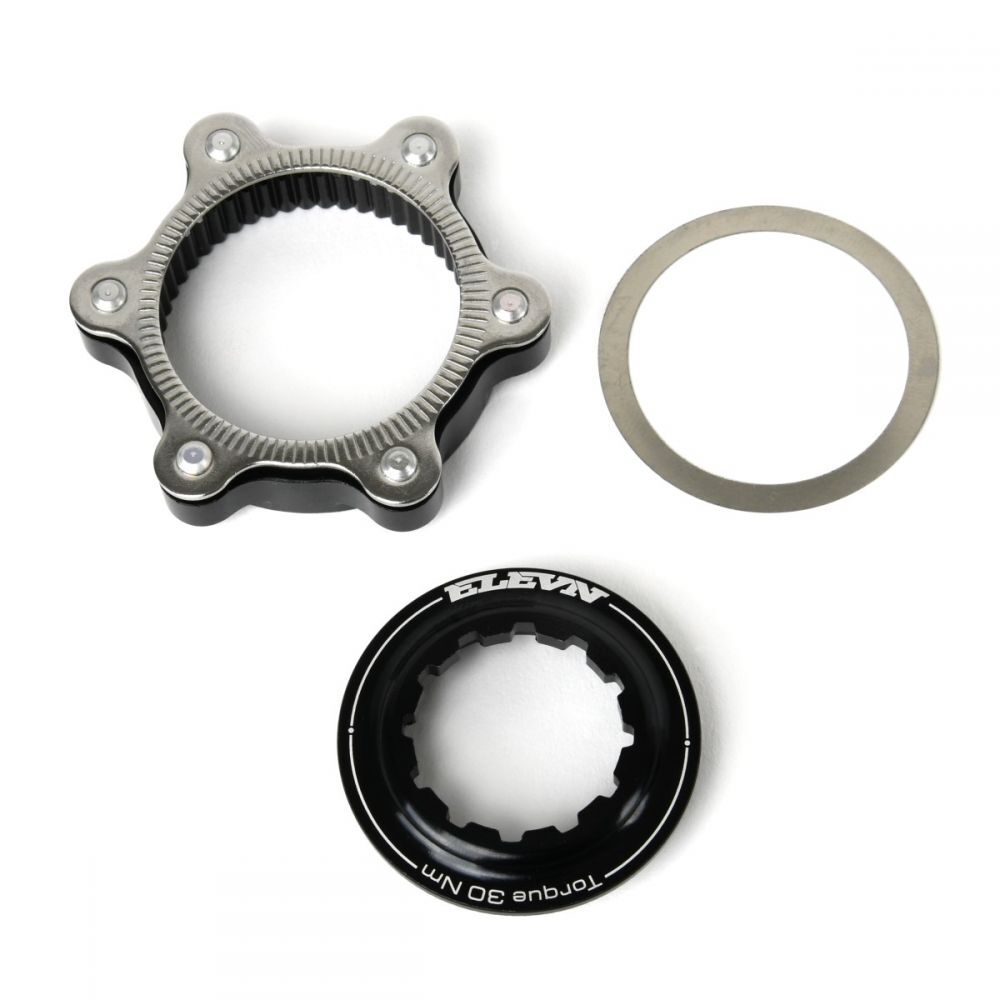

Three mechanical components are arranged on a white background: a star-shaped cog (gray and black), a flat circular metal ring (gray), and a cylindrical part labeled “ELEVEN Torque 30 NM” (black) from the Elevn Centerlock ISO Adapter Kit.

Description

The Elevn Centerlock ISO adapter lets you run a six bolt ISO disc rotor on a centerlock hub. It is the part you need to convert a centerlock rear hub, like the ones used on the Excess XLC complete wheel range, to a disc rotor and disc brake setup.

The body is aluminium alloy, roughly 52 x 52 x 9mm, and weighs about 27g. It suits six bolt discs with 44mm between hole centres. Fitting calls for a 12 spline Shimano type cassette tool of around 23.4mm outer diameter, and it is not compatible with axle or cone hardware 20mm or larger in diameter.

Features
  • Six bolt rotors on centerlock. Fits a centerlock hub so you can run a standard six bolt ISO disc rotor instead.
  • Suits Excess XLC wheels. The part needed to convert a centerlock rear hub, like those on the Excess XLC complete wheel range, to a disc brake setup.
  • Aluminium alloy, about 27g. Machined from aluminium alloy at roughly 52 x 52 x 9mm, so it adds very little weight to the wheel.
  • 44mm hole centres. Matches six bolt discs with 44mm between the centre of the disc and the hole.
  • Check your axle first. Not compatible with axle or cone hardware 20mm or larger, and fitting needs a 12 spline Shimano type cassette tool.

Specifications
  • Fits: Centerlock hubs, converts them to take a six bolt ISO rotor
  • Material: Aluminium alloy
  • Mount: Six bolt ISO, 44mm centre distance between disc and hole
  • Weight: About 27g
  • Note: Not compatible with axle or cone hardware 20mm or larger in diameter. Requires a 12 spline Shimano type cassette tool with an approximate outer diameter of 23.4mm

Elevn Centerlock ISO Adapter Kit

Brand: Elevn SKU:

$49.99 AUD

Or 4 payments of $12.49 AUD with

Colour - Black

$49.99 AUD

Price match request

Elevn Centerlock ISO Adapter Kit - Black

$12.99 flat-rate shipping Australia-wide

Express from $21.99

Free in-store pickup - Brisbane
