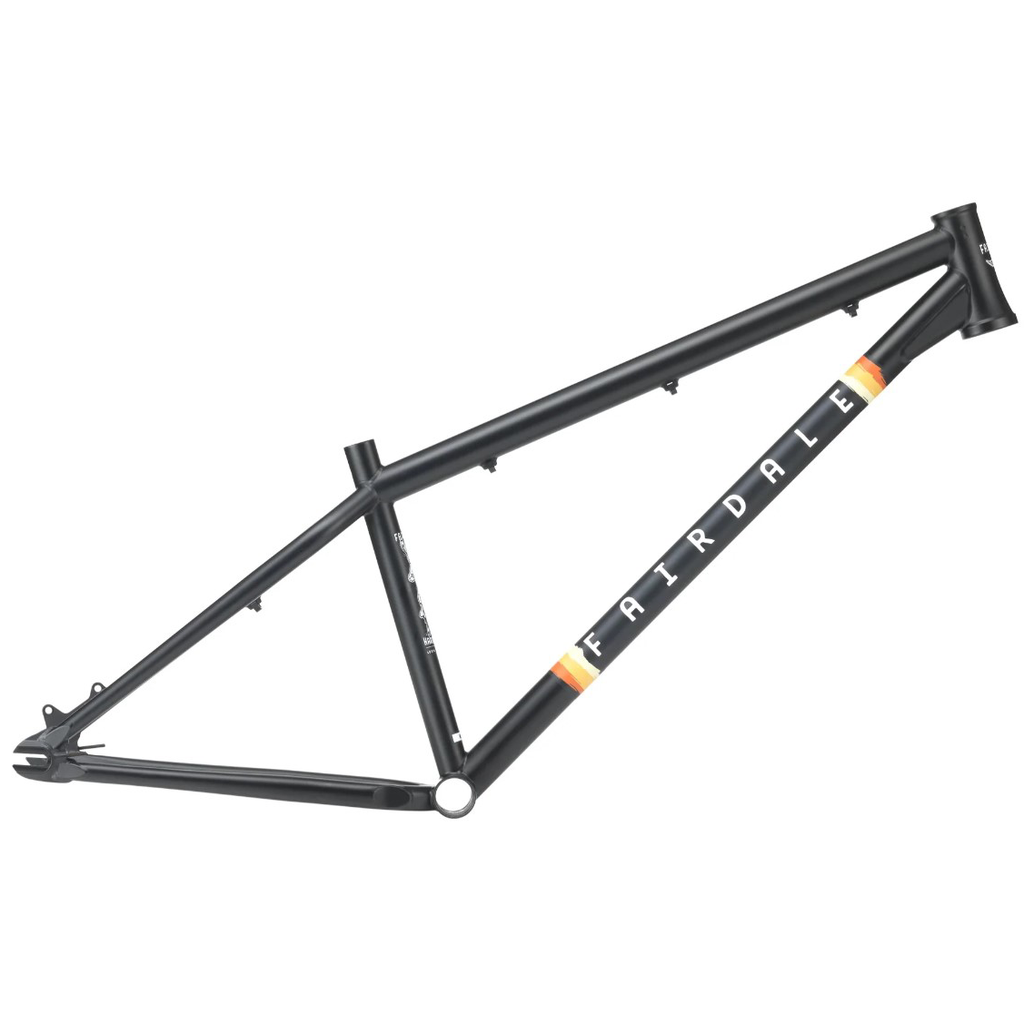

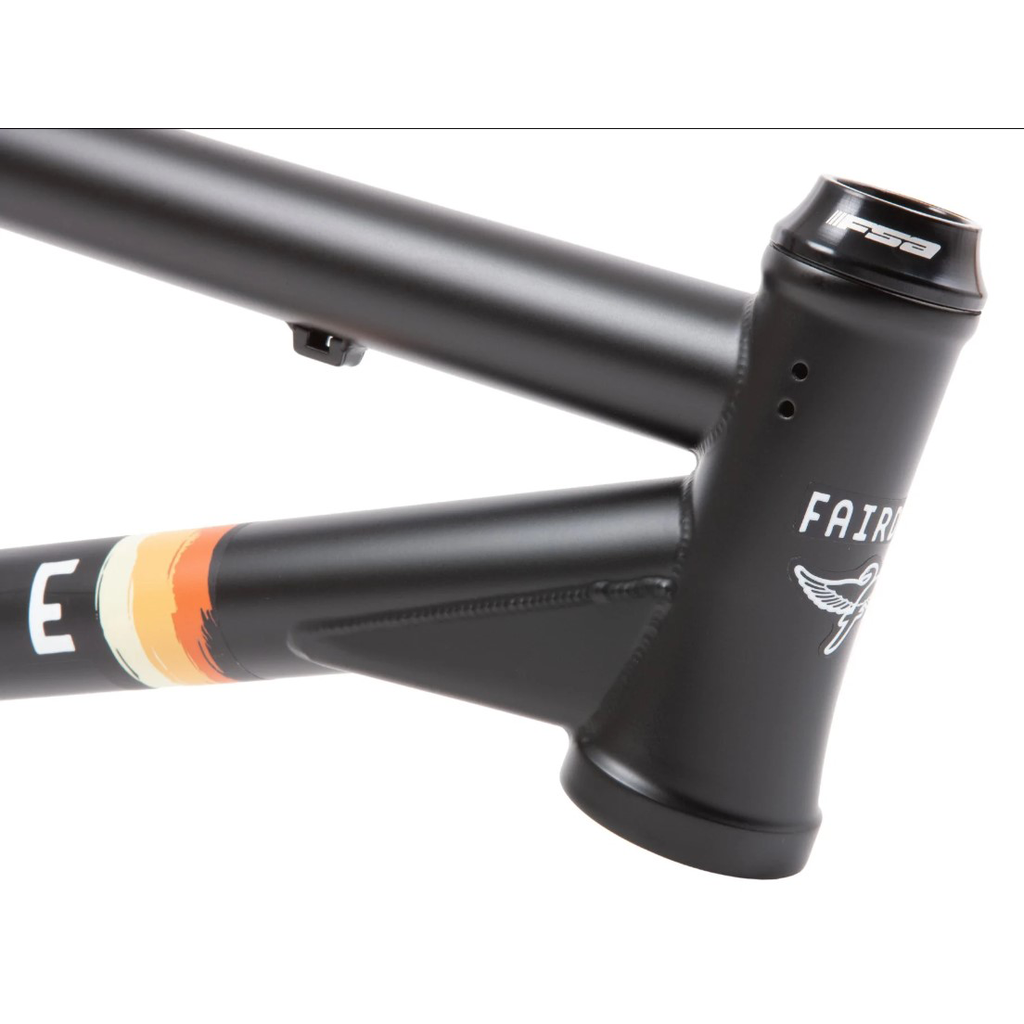

This fully capable 26" DJ frame is made of 100% 4130 chromoly with a 3/8" axle slot, integrated chain tensioners, BSA 73mm threaded bottom bracket, ultra-short chainstays and a tapered 1-1/8” to 1-1/2” head tube with removable tabs for a traditional BMX-style Gyro.
Designed from the ground up to make the transition between riding a MTB, DJ bike, and BMX as seamless as possible. FSA Orbit headset included with frame.
Features
- 100% 4130 chromoly DJ frame
- Frame includes sealed FSA Orbit headset
- Proven BMX tubeset construction

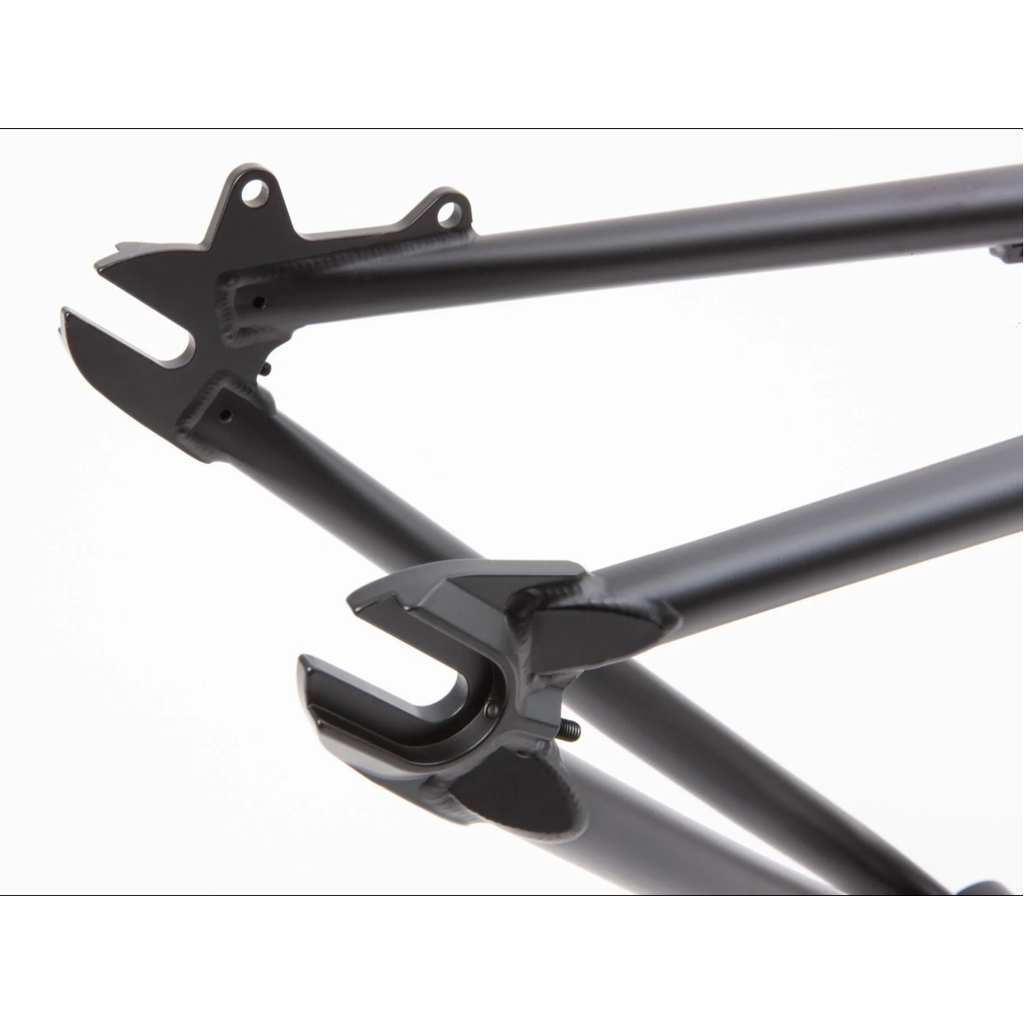

- Integrated chain tensioners
- Removable Gyro tabs (fits traditional BMX Gyros)
Specifications
Effective Top Tube Length - S/M 600mm, M/L 625mm
Seat Tube Length - 340mm
Chainstay Length - 379-389mm
Head Tube Length - 120mm
Rear Tyre Clearance - 2.3"
Max Sprocket Clearance - 30T
Braking - 160mm Disc, IS Mount

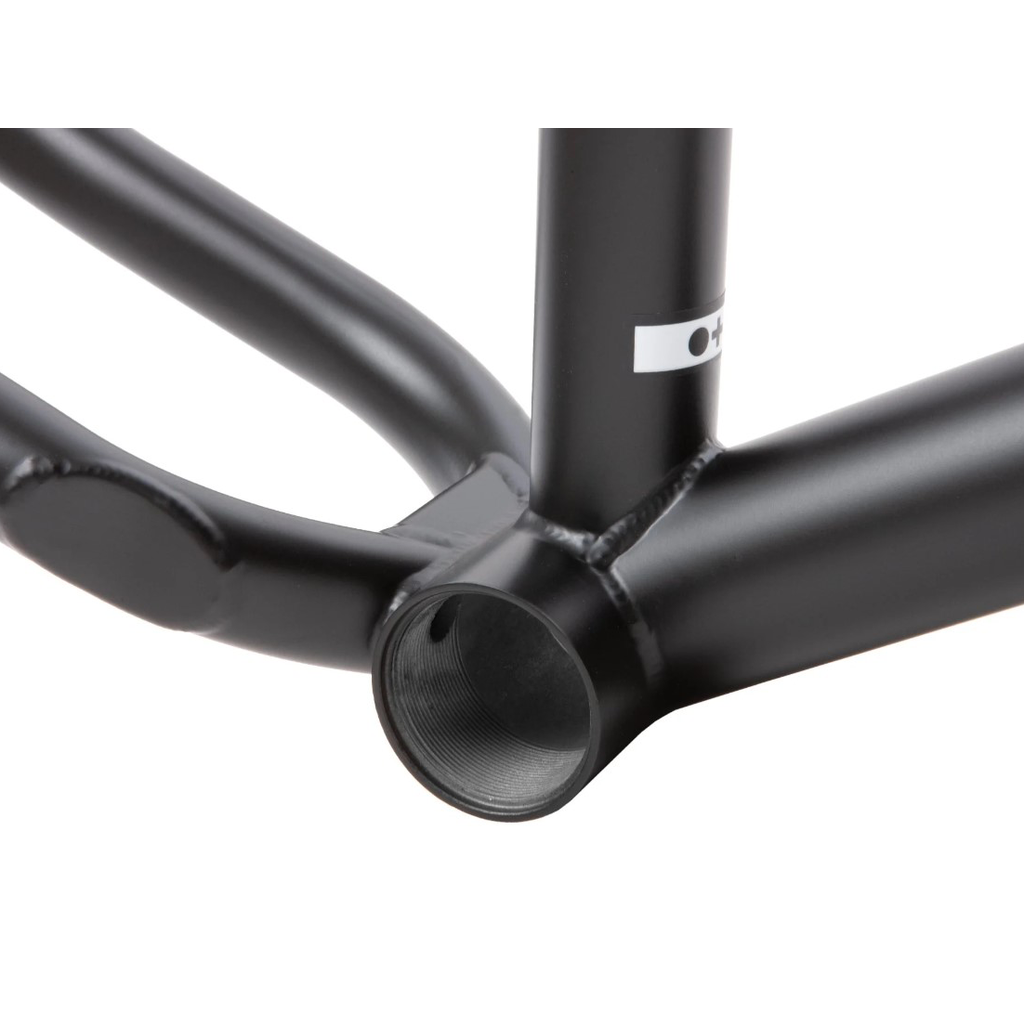

Bottom Bracket - 73mm threaded
Seat Post - 27.2mm
Seat Clamp - 30mm
Weight - 2.78kg
