Federal Command ICS Frame / ED Black / 20.75TT

Federal Command ICS Frame / ED Black / 21TT

Description

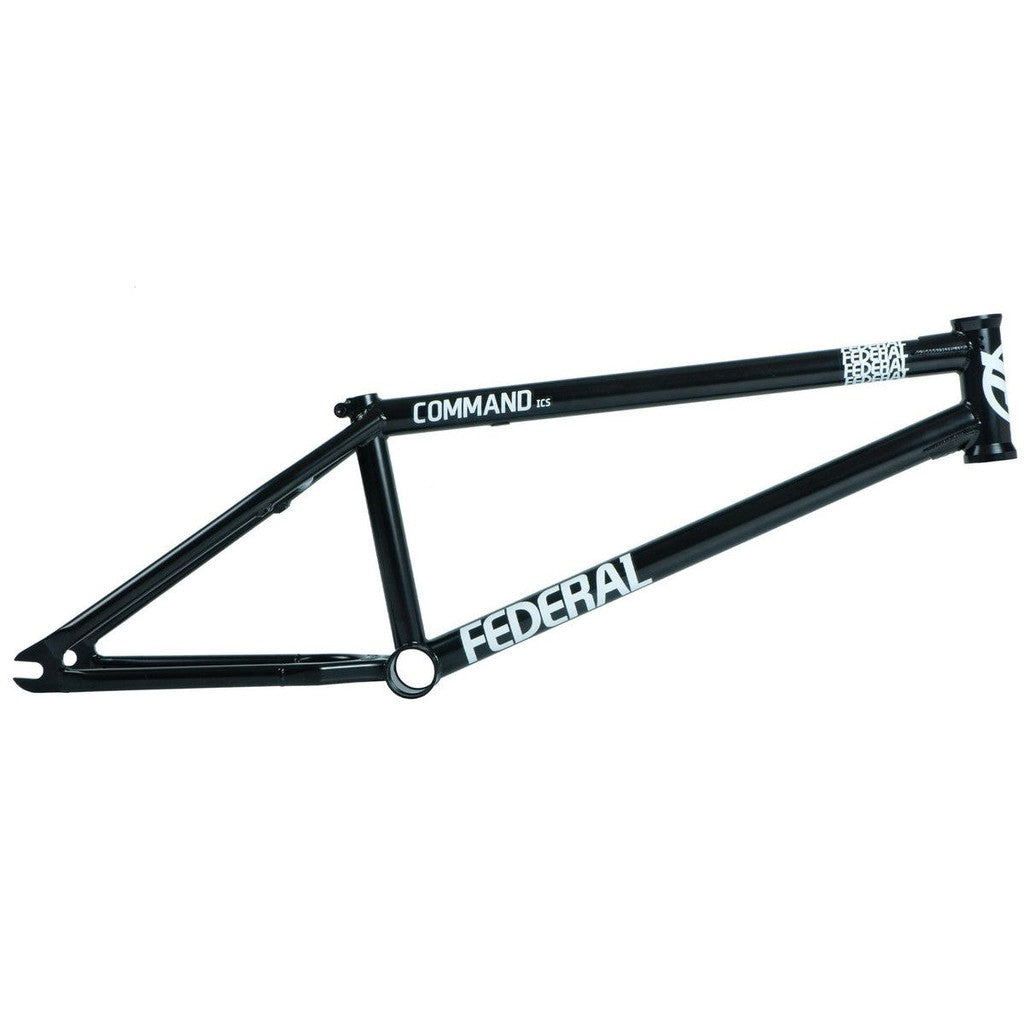

The new Federal Command ICS Frame is the latest and most cost effective frame from Federal Bikes, featuring that awesome ICS wishbone and smaller, more refined IC dropouts. Built using 100% 4130 CrMo, top tube and down tube gussets, butted tubes, tapered chainstays, integrated headseat, integrated seatclamp, removable brake hardware, Mid BB, investment cast (ICS) chain stay wishbone

*These frames come without removable brake bosses, gyro tabs and brake cable holder. The Federal Bikes Brake Mount Kit can be purchased seperately and is in stock right

Geometry:

Top Tube (TT): 20.75" or 21.0" (selectable as an option)
Seat Clamp: integrated investment cast
Seat Post Diameter: 25.4mm
Bottom Bracket: Mid BB, tappered
Dropouts: 4130 CrMo, 5mm thick, 14mm slots
Brake Type: U-Brake
Brakemounts: removable, M8, not included with delivery
Extras: wide rear end for fat 2.5" tires, new investment cast (ICS) chain stay wishbone

Specifications

Geometry:

Top Tube (TT): 20.75" or 21.0" (selectable as an option)
Seat Clamp: integrated investment cast
Seat Post Diameter: 25.4mm
Bottom Bracket: Mid BB, tappered
Dropouts: 4130 CrMo, 5mm thick, 14mm slots
Brake Type: U-Brake
Brakemounts: removable, M8, not included with delivery
Extras: wide rear end for fat 2.5" tires, new investment cast (ICS) chain stay wishbone

Federal Command ICS Frame

Name: Federal Command ICS Frame
Brand: Federal
SKU: FRFE031-BK2-2075
Price: 519.99 AUD
Availability: OutOfStock

Brand: Federal SKU: Click to copy the SKU and show the pick location

$519.99 AUD

Or 4 payments of $129.99 AUD with

Colour - Black

Top Tube Length - 20.75

Frames are sized by top tube length. Start with your height, then let riding style decide where in the range you land.

Rider height	Top tube
147 to 157cm	19.75 to 20.25"
157 to 168cm	20 to 20.5"
168 to 175cm	20.25 to 20.75"
175 to 183cm	20.5 to 21"
183 to 190cm and up	20.75 to 21.5"

The height bands overlap on purpose. If you land in two of them, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park. Plenty of riders, pros included, deliberately ride longer than a chart suggests.

How to measure

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the length of the tube you can see. Measure your current frame that way and compare.

Size up for stability through trails and transitions.
Size down if you want the bike quick and twitchy for spins and grinds.
Top tube is fixed once you buy, but chainstay length, stem length, fork offset and bar position all change how the built bike feels.

Not sure? Tell us your height and how you ride, and we will tell you what we would put you on.

Read the full buying guide

Frames are sized by top tube length. Start with your height, then let riding style decide where in the range you land.

Rider height	Top tube
147 to 157cm	19.75 to 20.25"
157 to 168cm	20 to 20.5"
168 to 175cm	20.25 to 20.75"
175 to 183cm	20.5 to 21"
183 to 190cm and up	20.75 to 21.5"

How to measure

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the length of the tube you can see. Measure your current frame that way and compare.

Size up for stability through trails and transitions.
Size down if you want the bike quick and twitchy for spins and grinds.
Top tube is fixed once you buy, but chainstay length, stem length, fork offset and bar position all change how the built bike feels.

Not sure? Tell us your height and how you ride, and we will tell you what we would put you on.

Read the full buying guide

Federal Command ICS Frame - Black / 20.75
