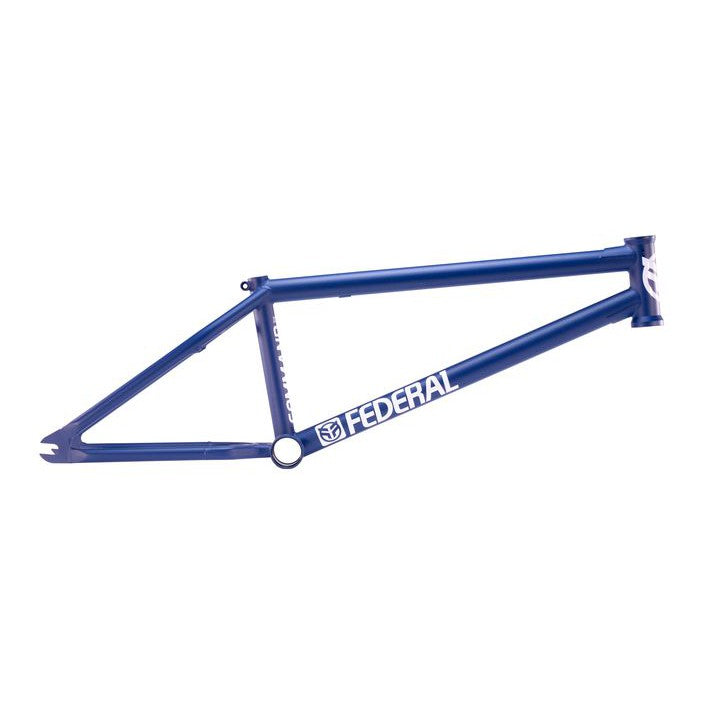

Federal Command ICS2 Frame / 21TT / Navy

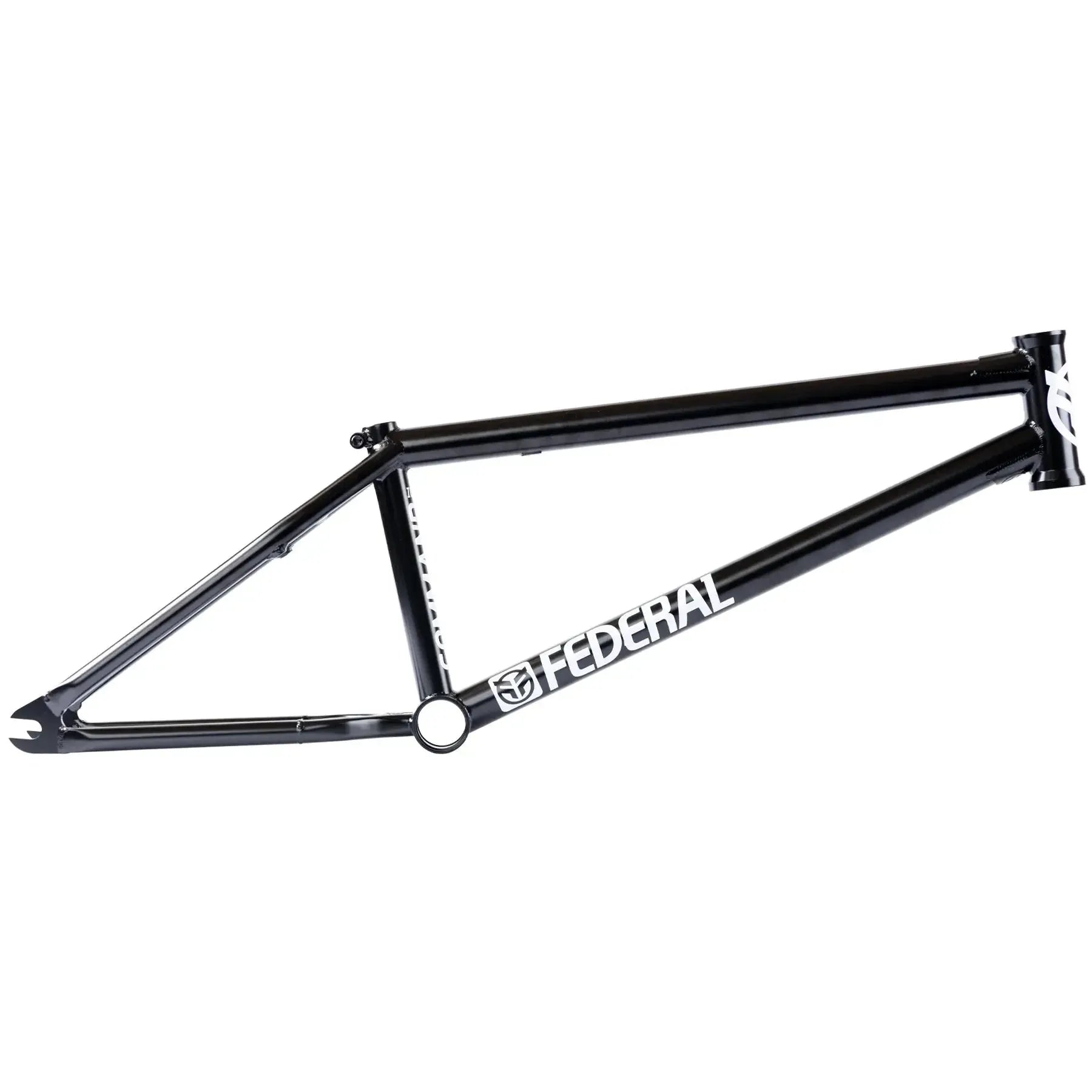

The Federal Command ICS2 Frame, a black BMX bike frame, showcases the "Federal" logo and is crafted from durable 4130 Chromoly, featuring an expertly designed ICS wishbone for enhanced performance.

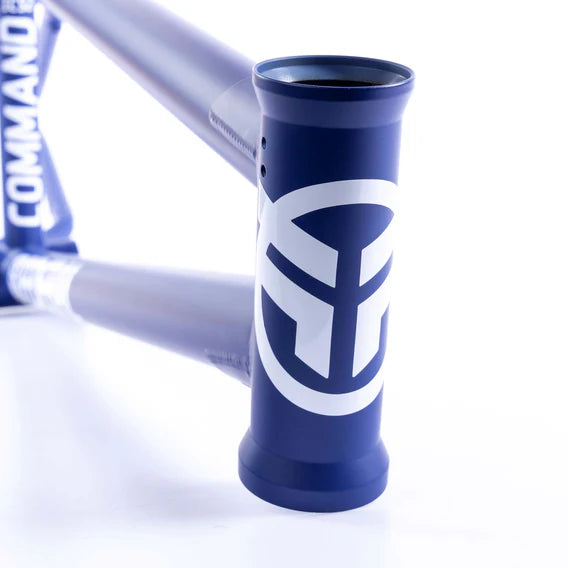

Close-up of a blue Federal Command ICS2 Frame made from 4130 Chromoly, featuring a white logo with "COMMAND," highlighting its sleek design.

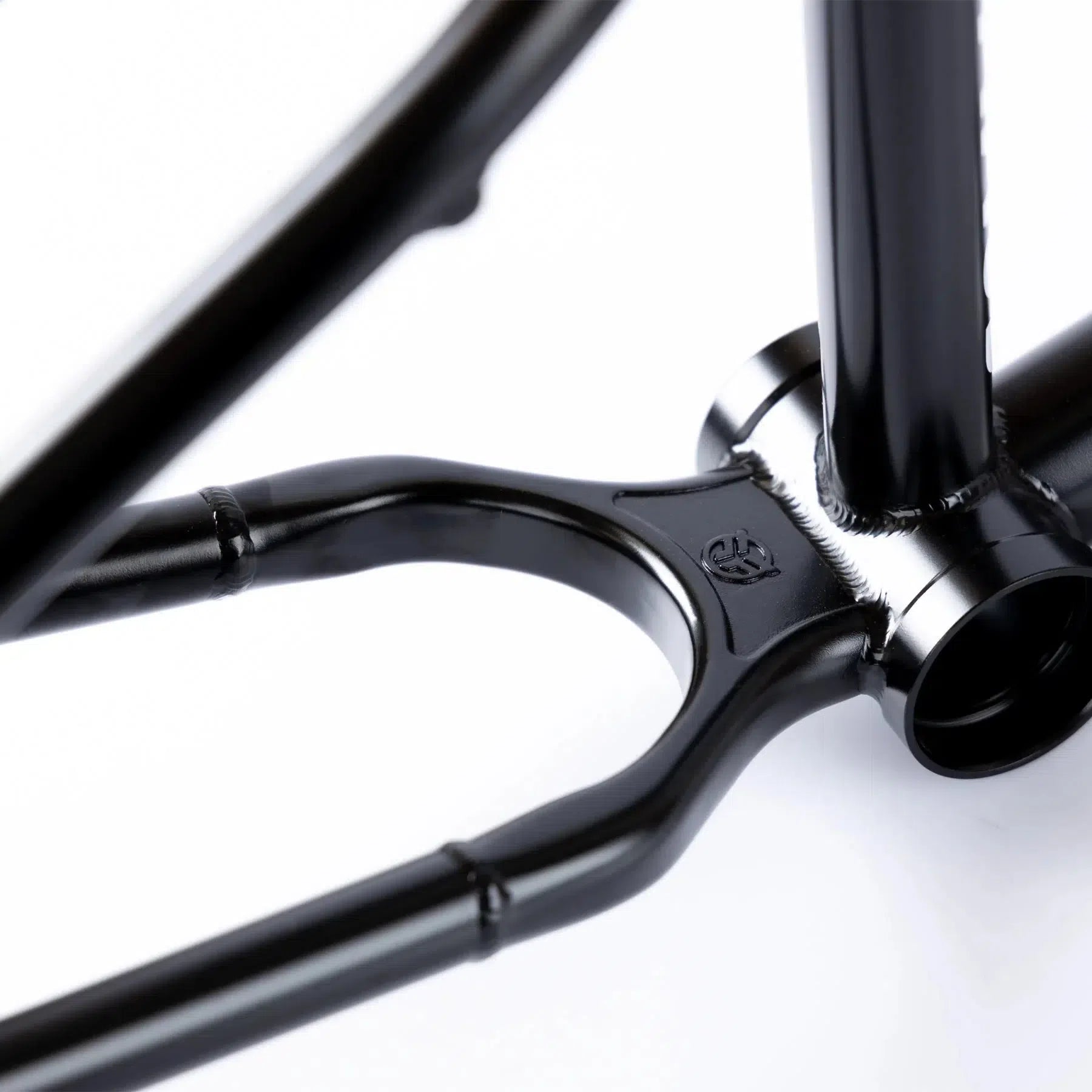

Close-up of a Federal Command ICS2 Frame crafted from 4130 Chromoly, showcasing the bottom bracket and chainstay area with smooth welds and a glossy finish.

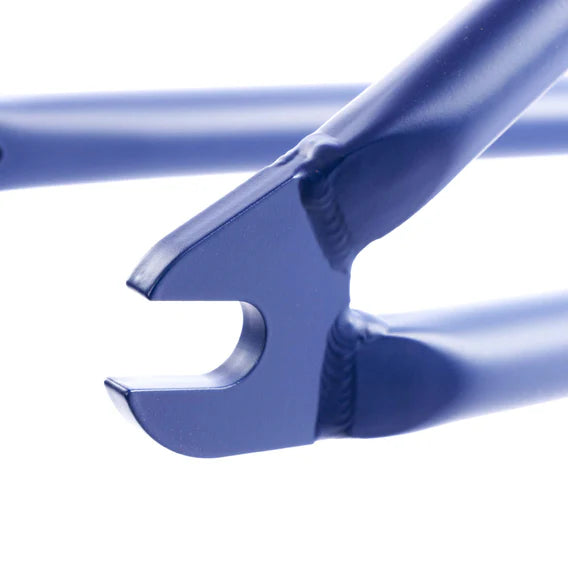

Close-up view of a blue metal bicycle fork from the Federal Command ICS2 Frame, made from 4130 Chromoly, with a visible drop-out against a white background.

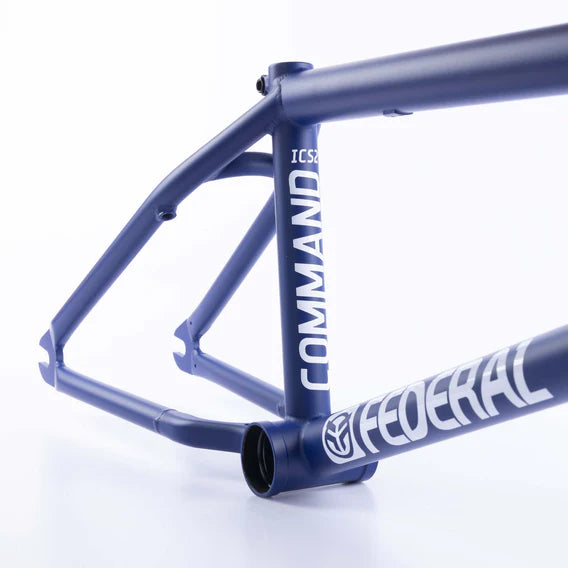

Blue Federal Command ICS2 Frame made from 4130 Chromoly, featuring "COMMAND" and "FEDERAL" printed in white, reminiscent of the famous Federal Command frame.

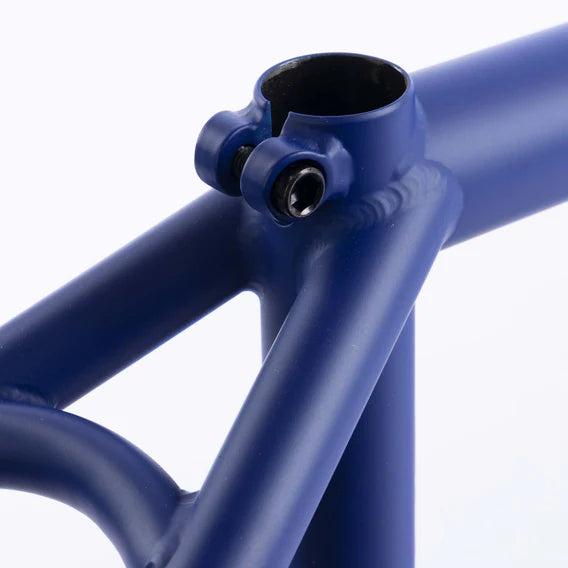

Close-up of the Federal Command ICS2 Frame made of 4130 Chromoly in blue, showcasing a seat tube collar with two screws.

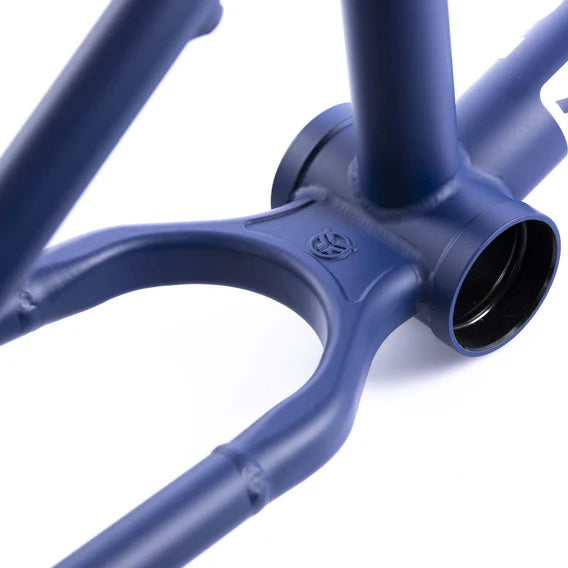

Close-up of the Federal Command ICS2 Frame, in blue, highlighting the bottom bracket and chainstay area. Expertly crafted from durable 4130 Chromoly steel.

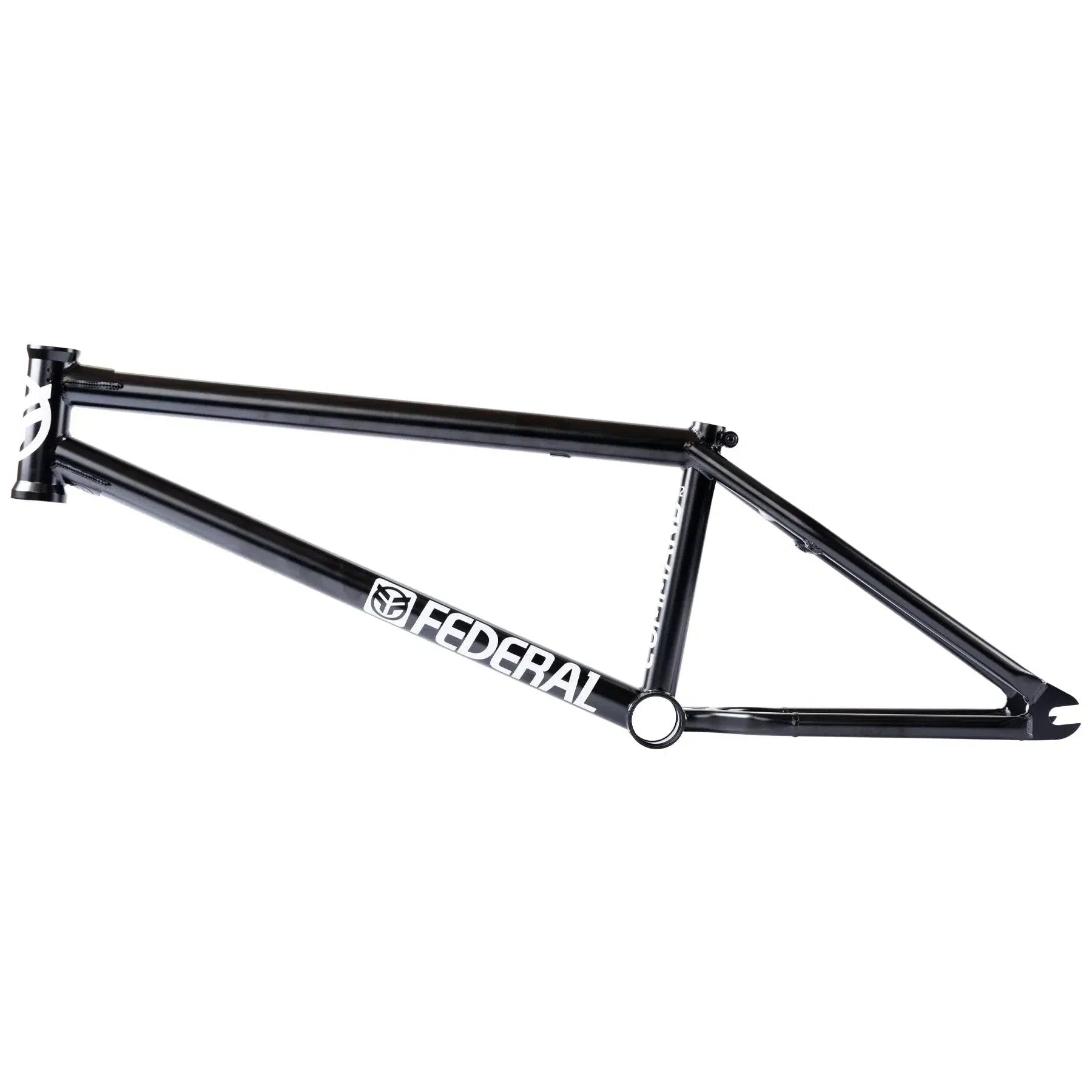

The black Federal Command ICS2 Frame, made of durable 4130 Chromoly, bears the "FEDERAL" logo in white. Its sleek design is displayed side-on against a crisp white background.

Highlights

  • Shortest chainstays Federal makes
  • V2 ICS wishbone
  • Heat treated where it counts
  • Three top tube lengths

Description

The Command frame is back and better then ever! The Federal Command frame has the shortest possible chainstays (12.5”) in the whole Federal range and now uses the V2 ICS wishbone to make it even lighter than the V1. This will still allow riders to use a 2.5” tyre. This frame has been designed to keep the cost down yet still affordable while still maintaining the strength and quality that Federal is known for. The frame is made using 4130 Chromoly with heat treated head tube, BB and dropouts.

Features
  • Shortest chainstays Federal makes. 12.5 inches slammed, the shortest in the whole Federal range, and still room for a 2.5 inch tyre.
  • V2 ICS wishbone. The updated wishbone makes the Command lighter than the V1 without losing the tyre clearance.
  • Heat treated where it counts. 4130 chromoly with a heat treated head tube, bottom bracket and dropouts.
  • Three top tube lengths. 20 inch, 20.5 inch or 21 inch, so you can match the frame to your height.
  • Street geometry, 75.5° head tube. Paired with a 71 degree seat tube, 8.75 inch standover and 11.7 inch bottom bracket height.

Specifications
  • Sizes: 20", 20.5" or 21" top tube
  • Chainstay: 12.5" slammed
  • Head tube angle: 75.5º
  • Seat tube angle: 71º
  • Standover: 8.75"
  • Bottom bracket height: 11.7"
  • Material: 4130 chromoly with heat treated head tube, bottom bracket and dropouts
  • Tyre clearance: 2.5"
  • Note: V2 ICS wishbone, lighter than the V1.

Federal Command ICS2 Frame

Brand: Federal SKU:

$579.99 AUD

Or 4 payments of $144.99 AUD with

Colour - Matte Navy Blue

Top Tube Length - 21

20 inch BMX frame sizing

Frames are sized by top tube length. Start with your height, then let riding style decide where in the range you land.

Rider heightTop tube
147 to 157cm19.75 to 20.25"
157 to 168cm20 to 20.5"
168 to 175cm20.25 to 20.75"
175 to 183cm20.5 to 21"
183 to 190cm and up20.75 to 21.5"

The height bands overlap on purpose. If you land in two of them, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park. Plenty of riders, pros included, deliberately ride longer than a chart suggests.

How to measure

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the length of the tube you can see. Measure your current frame that way and compare.

  • Size up for stability through trails and transitions.
  • Size down if you want the bike quick and twitchy for spins and grinds.
  • Top tube is fixed once you buy, but chainstay length, stem length, fork offset and bar position all change how the built bike feels.

Not sure? Tell us your height and how you ride, and we will tell you what we would put you on.

Read the full buying guide

20 inch BMX frame sizing

Frames are sized by top tube length. Start with your height, then let riding style decide where in the range you land.

Rider heightTop tube
147 to 157cm19.75 to 20.25"
157 to 168cm20 to 20.5"
168 to 175cm20.25 to 20.75"
175 to 183cm20.5 to 21"
183 to 190cm and up20.75 to 21.5"

The height bands overlap on purpose. If you land in two of them, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park. Plenty of riders, pros included, deliberately ride longer than a chart suggests.

How to measure

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the length of the tube you can see. Measure your current frame that way and compare.

  • Size up for stability through trails and transitions.
  • Size down if you want the bike quick and twitchy for spins and grinds.
  • Top tube is fixed once you buy, but chainstay length, stem length, fork offset and bar position all change how the built bike feels.

Not sure? Tell us your height and how you ride, and we will tell you what we would put you on.

Read the full buying guide
