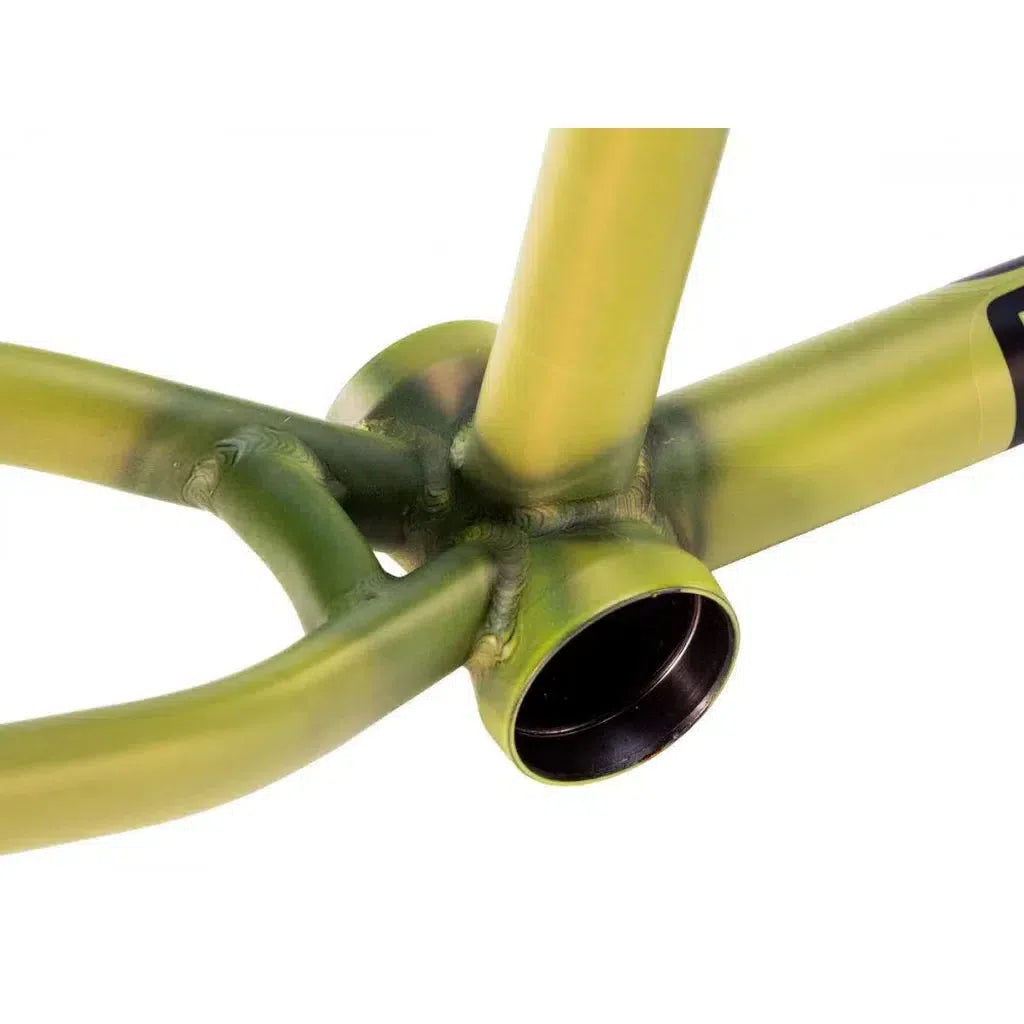

Close-up of the Fiend BMX Raekes Frame weld joint, highlighting smooth connections and a hollow tube opening.

Description

Designed by Johnny Raekes and constructed with 100% chromoly throughout. Johnny is a beast on a bike and has designed a frame to match!

Featuring a heat treated 5" head tube, heat treated MID BB, externally gusseted double butted top tube, externally gusseted ovalized down tube, ovalized and tapered chain stats, 8mm thick dropouts with integrated chain tensioners.

Brake Mounts: Available with the new flush mount removable brake tabs (sold separately) - available here: Fiend Brake Hardware Kit Flush

Available in ed black or trans green.

If you order a bottom bracket with the frame, just let us know if you'd like it installed for free before dispatch!

Dimensions:

75.5 Degree Head Tube Angle
71 Degree Seat Tube
9.5" Standover
13" Chain Stays
11.6" Bottom Bracket Height

Flush mount brake hardware sold separately

Features

75.5 degree head tube
71 degree seat tube
9.5" standover
13" chain stays
Flush mount brake hardware sold separately

Fiend BMX Raekes Frame

Name: Fiend BMX Raekes Frame
Brand: Fiend
SKU: kab7907
Price: 649.99 AUD
Availability: OutOfStock

Brand: Fiend SKU: Click to copy the SKU and show the pick location

$649.99 AUD

Or 4 payments of $162.49 AUD with

Colour - Black

Top Tube Length - 20.6

Frames are sized by top tube length. Start with your height, then let riding style decide where in the range you land.

Rider height	Top tube
147 to 157cm	19.75 to 20.25"
157 to 168cm	20 to 20.5"
168 to 175cm	20.25 to 20.75"
175 to 183cm	20.5 to 21"
183 to 190cm and up	20.75 to 21.5"

The height bands overlap on purpose. If you land in two of them, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park. Plenty of riders, pros included, deliberately ride longer than a chart suggests.

How to measure

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the length of the tube you can see. Measure your current frame that way and compare.

Size up for stability through trails and transitions.
Size down if you want the bike quick and twitchy for spins and grinds.
Top tube is fixed once you buy, but chainstay length, stem length, fork offset and bar position all change how the built bike feels.

Not sure? Tell us your height and how you ride, and we will tell you what we would put you on.

Read the full buying guide
