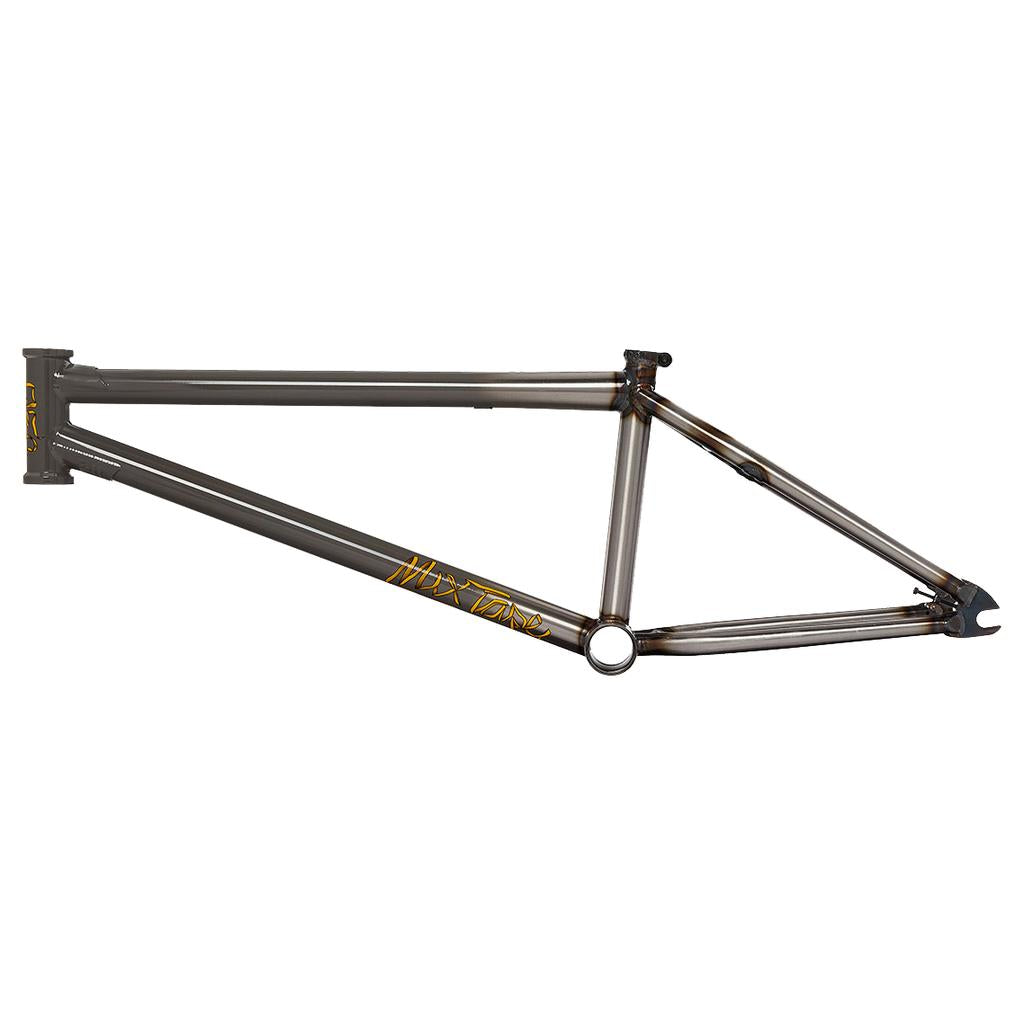

The Fit Bike Co Mixtape V2 Frame, a metal BMX frame with yellow graphics and a Thermal X tubeset, is displayed horizontally against a white background.

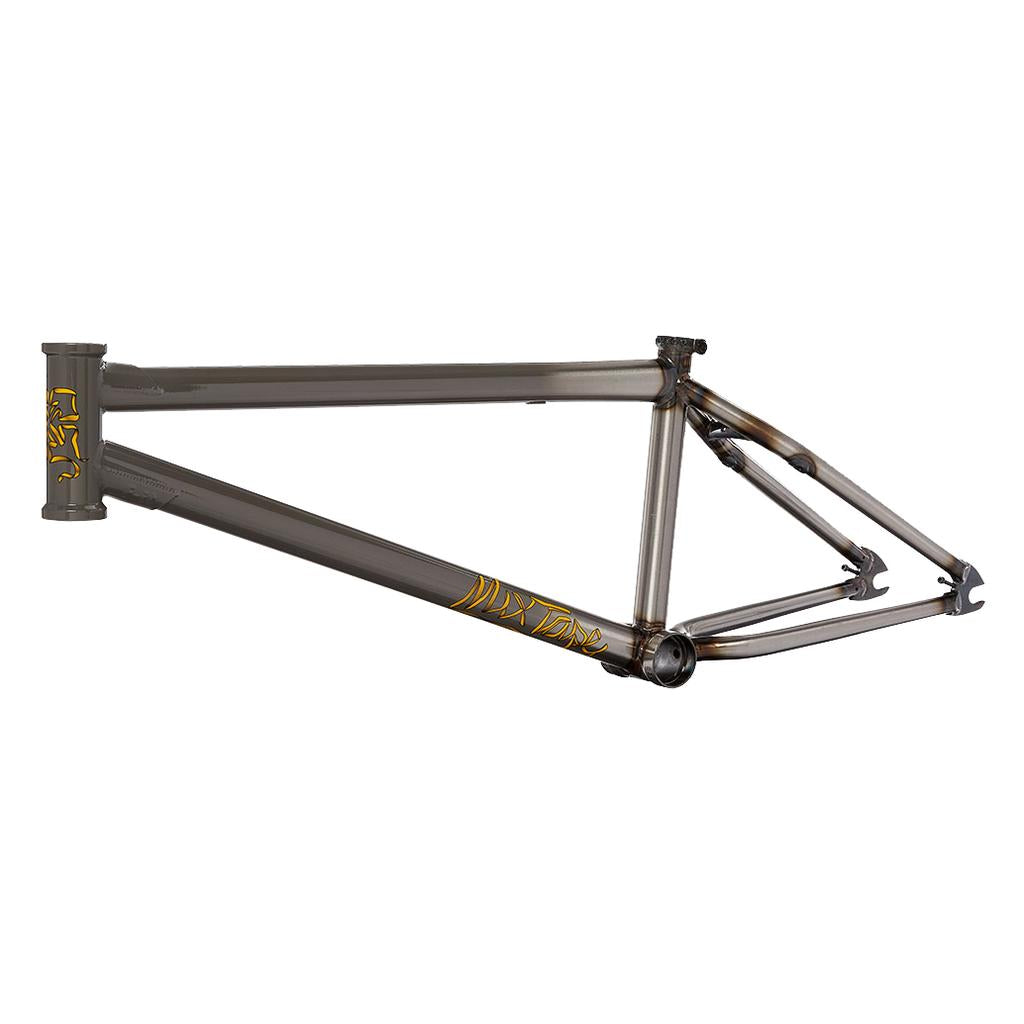

The Fit Bike Co Mixtape V2 Frame is a matte gray BMX frame with yellow graphics, built from the Thermal X tubeset, displayed side-on against a white background.

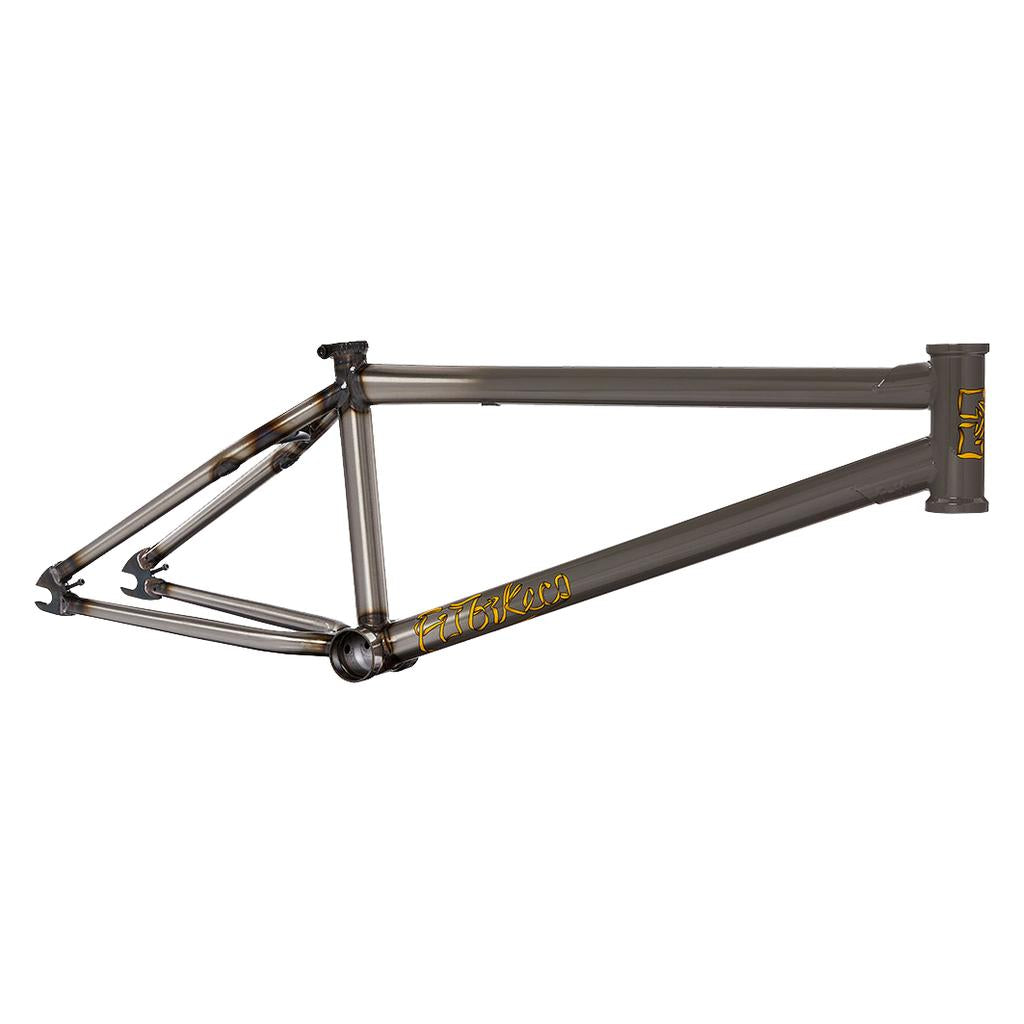

The Fit Bike Co Mixtape V2 Frame is a matte gray BMX frame featuring yellow "FIEND" branding on the down tube and head tube, built with a Thermal X tubeset and shown isolated on a white background.

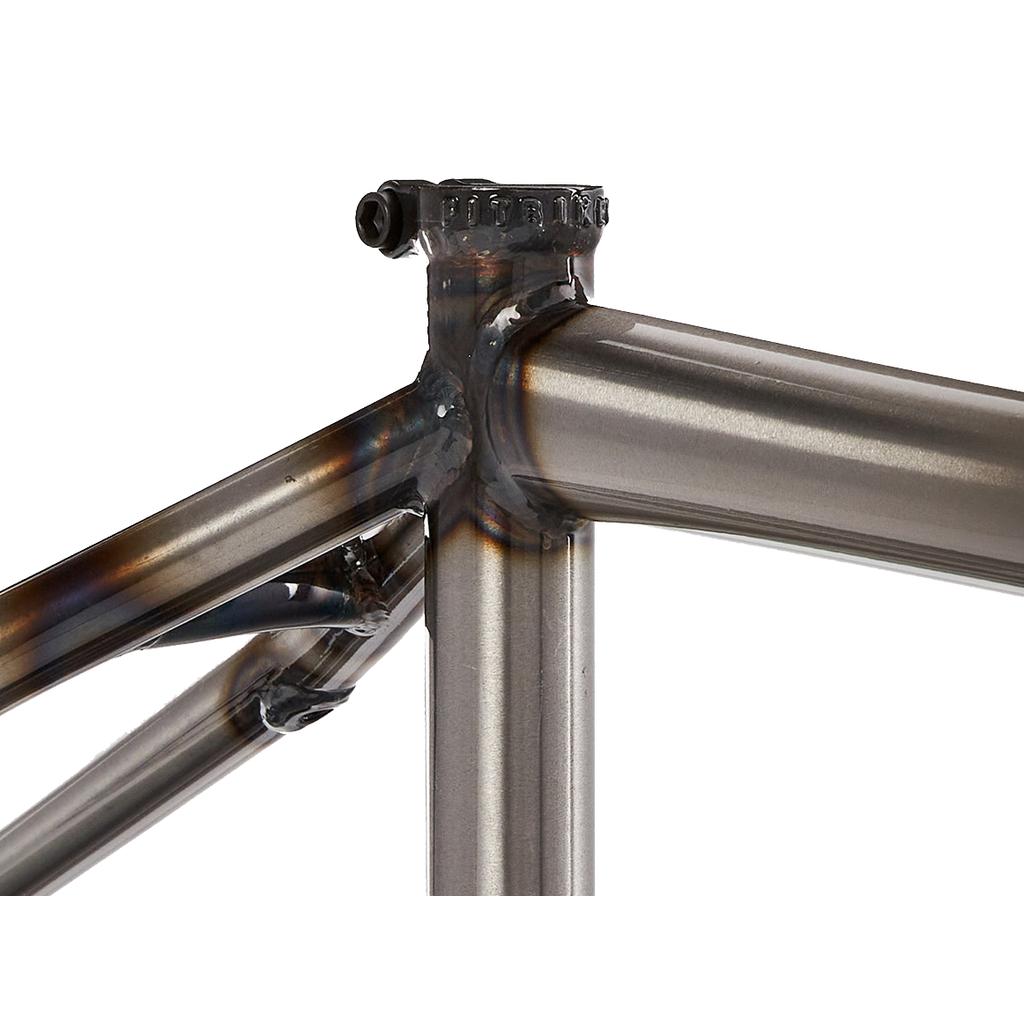

Close-up of a Fit Bike Co Mixtape V2 Frame featuring a 21" top tube, robust welds on the seat tube, and part of the rear triangle crafted from a high-quality Thermal X tubeset.

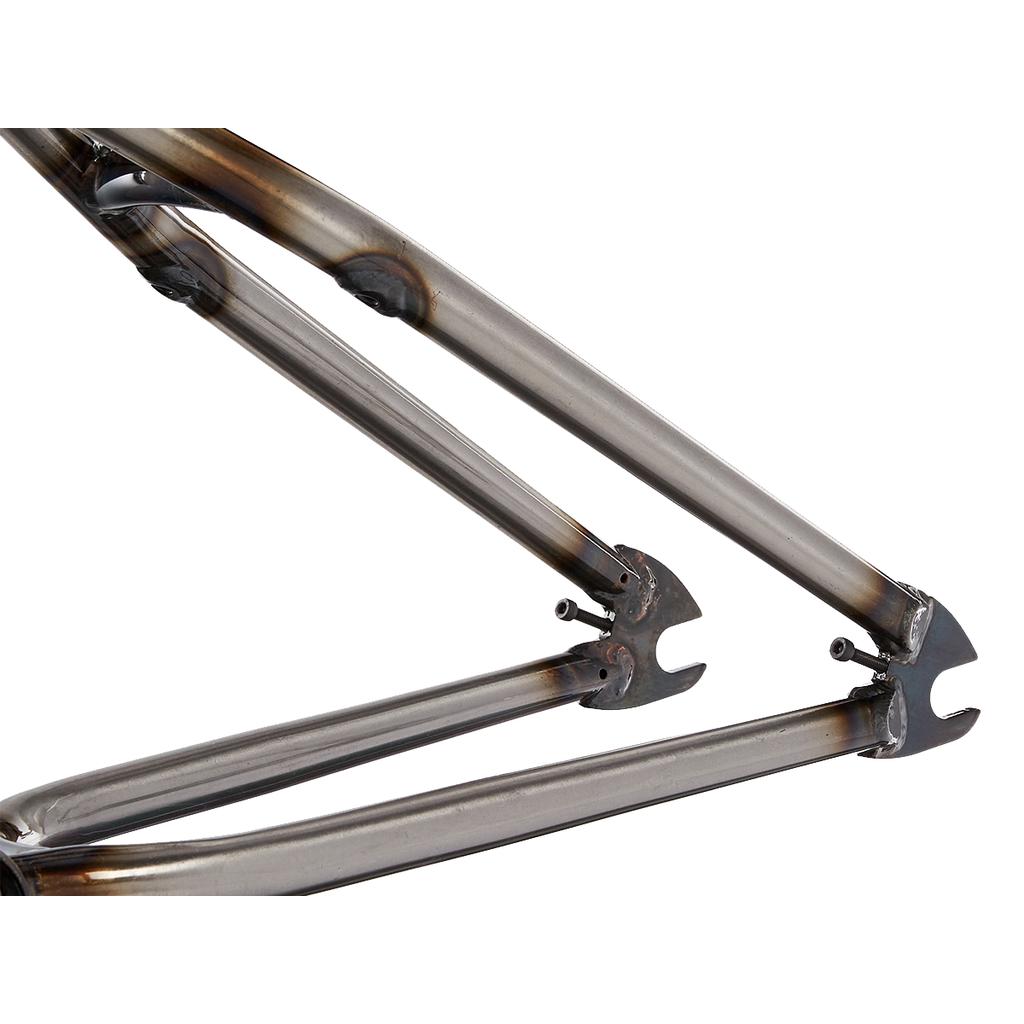

Close-up of the Fit Bike Co Mixtape V2 Frame’s rear dropout, welds, and tubing with a raw, unfinished finish, built using a Thermal X tubeset.

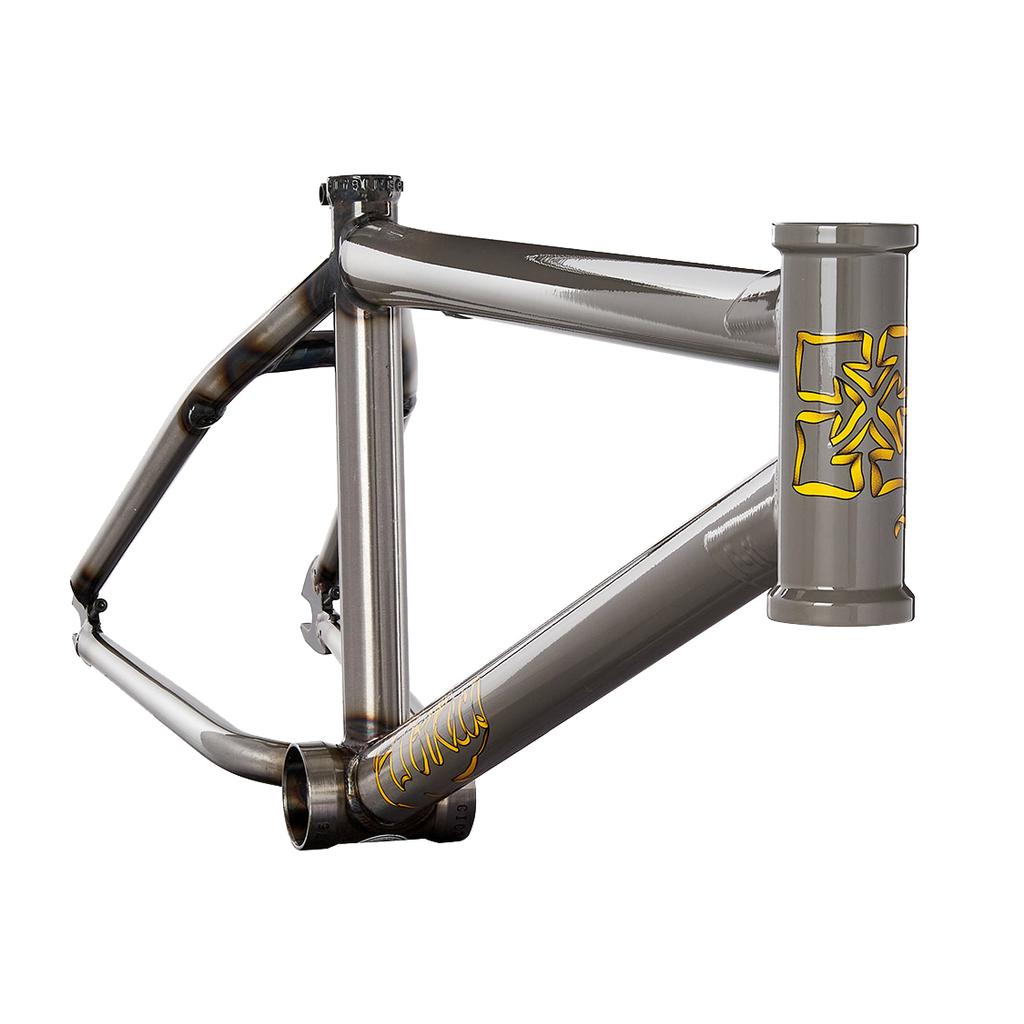

The Fit Bike Co Mixtape V2 Frame is shown in gray with yellow graphics, featuring a 21" top tube and crafted from a Thermal X tubeset, displayed without wheels, seat, or handlebars against a white background.

Highlights

Butted Thermal X tubeset
Quick 75.5° head angle
4Q-Baked 14mm dropouts
Integrated head tube and seat clamp

Description

The Mixtape V2 is light, strong and dialled, with a fade paint job that looks good under anyone. A 21" top tube, 12.65" rear end and 75.5° head angle give it quick, responsive handling.

The butted Thermal X tubeset and 4Q-Baked 14mm dropouts keep it tough, and the integrated head tube and seat clamp keep the lines clean. Mid bottom bracket, thread-on brake mounts, no gyro tabs, 2.14kg.

Features

Butted Thermal X tubeset. Butted tubes drop weight without giving up strength, which is how the frame lands at 2.14kg and still takes a beating.
Quick 75.5° head angle. With a short 12.65" rear end it turns in fast and spins up easily, ideal for tight street and park lines.
4Q-Baked 14mm dropouts. Heat treated after welding and cut for 14mm axles, so the back end holds up to hard landings and grinds.
Integrated head tube and seat clamp. A 45°/45° 41.8mm integrated head tube and built in seat clamp keep the build simple and the frame looking tidy.
Thread-on brakes, no gyro tabs. Run a rear brake straight onto the seat stays, with a mid bottom bracket, 25.4mm post and 9" standover.

Specifications

Top tube: 21"
Chainstay: 12.65" rear end
Head tube angle: 75.5°
Seat tube angle: 71°
Standover: 9"
Bottom bracket height: 11.7"
Bottom bracket: Mid
Tubing: Butted Thermal X
Butting: Butted
Dropouts: 14mm, 4Q-Baked
Brake mounts: Thread-on, no gyro tabs
Head tube: Integrated (45°/45°, 41.8mm)
Seat tube: 25.4mm seat post
Seat clamp: Integrated
Weight: 2.14kg

Fit Bike Co Mixtape V2 Frame

Name: Fit Bike Co Mixtape V2 Frame
Brand: Fit Bike Co
SKU: FTFR011-04-RAW
Price: 499.99 AUD
Availability: OutOfStock

Brand: Fit Bike Co SKU: Click to copy the SKU and show the pick location

$499.99 AUD

Or 4 payments of $124.99 AUD with

Colour - Grey Raw Fade

Top Tube Length - 21

Frames are sized by top tube length. Start with your height, then let riding style decide where in the range you land.

Rider height	Top tube
147 to 157cm	19.75 to 20.25"
157 to 168cm	20 to 20.5"
168 to 175cm	20.25 to 20.75"
175 to 183cm	20.5 to 21"
183 to 190cm and up	20.75 to 21.5"

The height bands overlap on purpose. If you land in two of them, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park. Plenty of riders, pros included, deliberately ride longer than a chart suggests.

How to measure

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the length of the tube you can see. Measure your current frame that way and compare.

Size up for stability through trails and transitions.
Size down if you want the bike quick and twitchy for spins and grinds.
Top tube is fixed once you buy, but chainstay length, stem length, fork offset and bar position all change how the built bike feels.

Not sure? Tell us your height and how you ride, and we will tell you what we would put you on.

Read the full buying guide

Frames are sized by top tube length. Start with your height, then let riding style decide where in the range you land.

Rider height	Top tube
147 to 157cm	19.75 to 20.25"
157 to 168cm	20 to 20.5"
168 to 175cm	20.25 to 20.75"
175 to 183cm	20.5 to 21"
183 to 190cm and up	20.75 to 21.5"

How to measure

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the length of the tube you can see. Measure your current frame that way and compare.

Size up for stability through trails and transitions.
Size down if you want the bike quick and twitchy for spins and grinds.
Top tube is fixed once you buy, but chainstay length, stem length, fork offset and bar position all change how the built bike feels.

Not sure? Tell us your height and how you ride, and we will tell you what we would put you on.

Read the full buying guide
