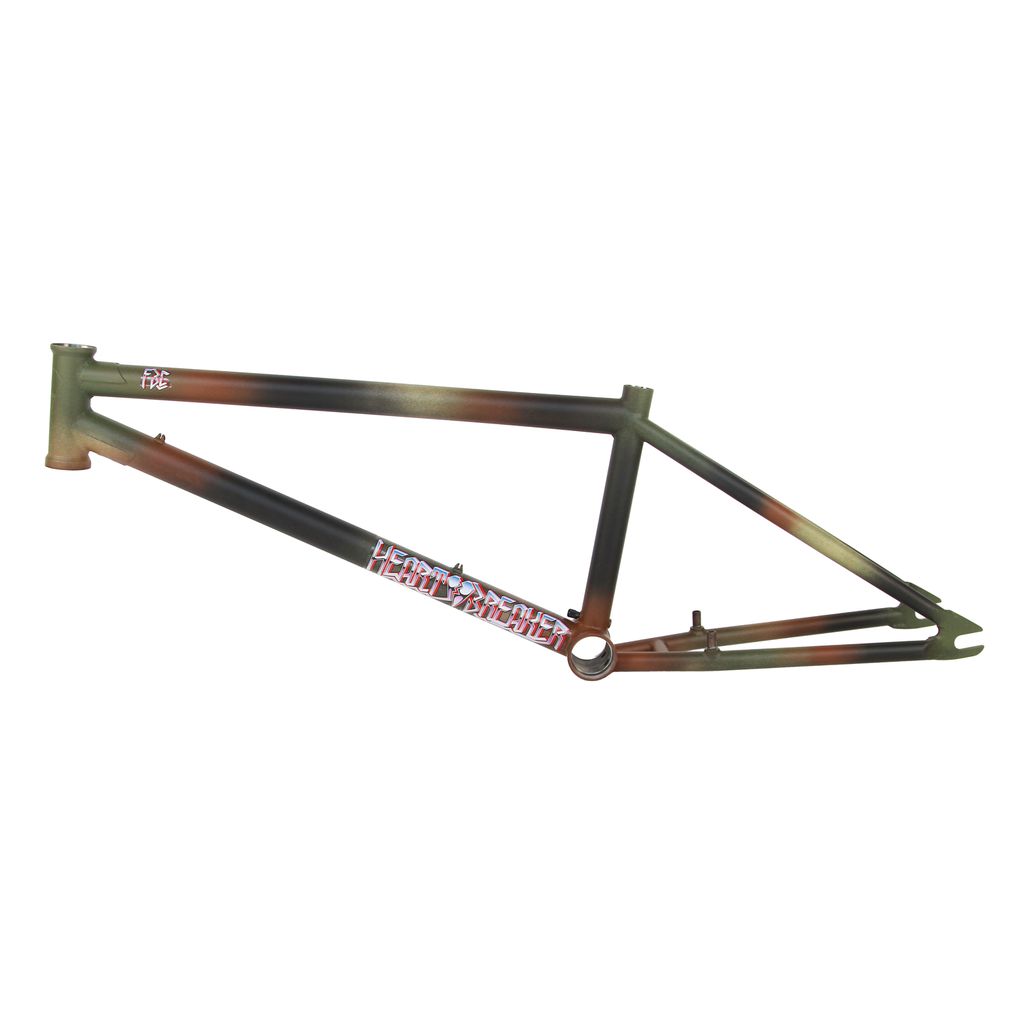

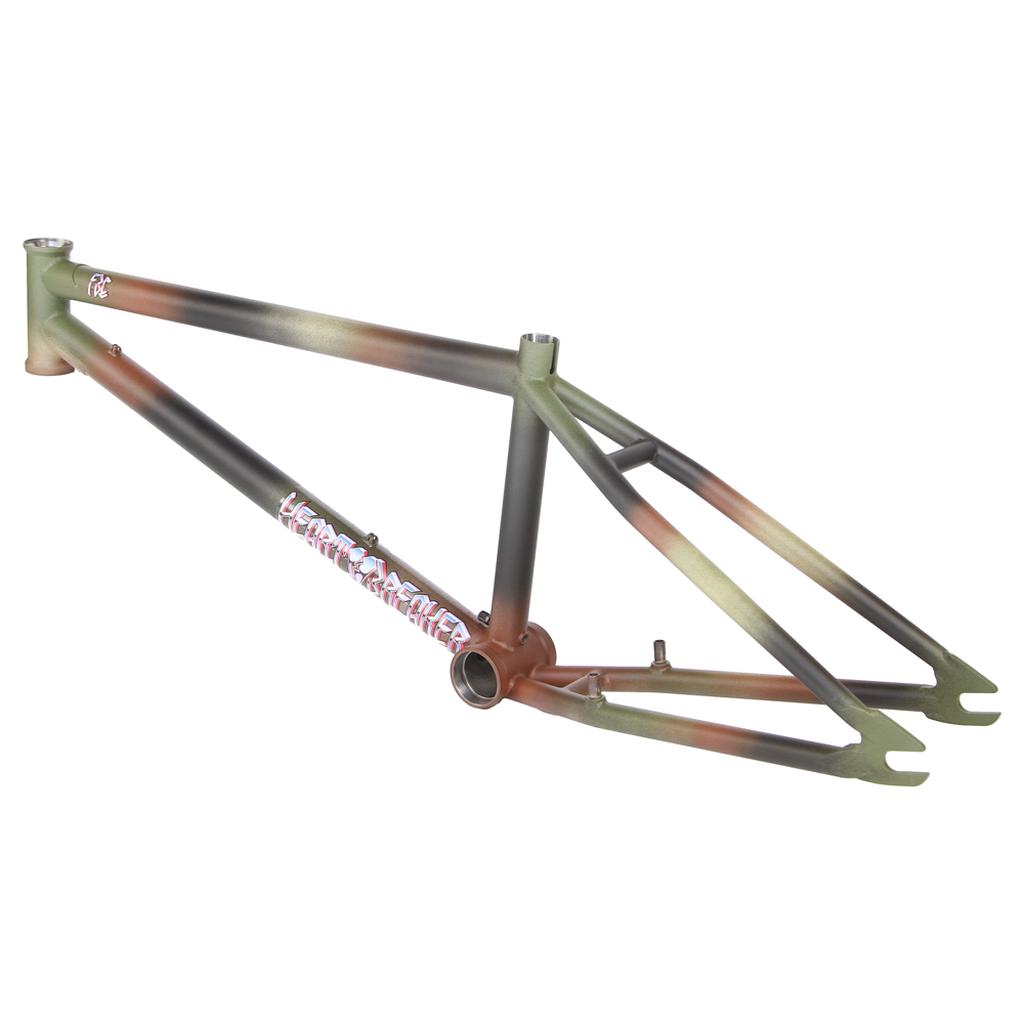

Introducing the Fit Heartbreaker Frame (Chris Harti), a signature ride that's as rugged and ready as the Australian outback. This limited edition camo frame isn't just a looker; it's designed by Chris Harti himself with a focus on stability and speed for those who love to ride fast and go big on the trails.
Every aspect of the Heartbreaker is crafted for performance. Thanks to the cleverly routed cables through the seat tube, you'll never have to worry about a noisy straddle hanger. The long chain stays paired with the 14mm drop-out slot expand your options for rear hubs, making this frame both versatile and economical. The single bend chain stays, straight stay bridges, and the traditional absence of a welded-on seat clamp all add up to a frame that’s both functional and classically styled for BMX aficionados who appreciate a nod to the past with every pedal.
Here are some standout features that make the Heartbreaker a top pick:
- Crafted with Butted Supertherm Top Tube and Straight Gauge Supertherm Down Tube for durability.
- Double gussets for added frame strength.
- Designed for up to 2.4″ tire clearance to handle even the roughest terrain.
- Innovative thru-the-seat tube cable routing for a cleaner setup.
- Proudly American Made with an engraved Heartbreaker logo on the head tube for a custom touch.
Specifications to note:
- Adaptable rear end length from 13.8″ to 14.5″.
- A laid-back head tube angle of 74.5° and a seat tube angle of 71°.
- A comfortably low BB height of 11.35″ and a standover height of 9.15″.
- Features Integrated head tube, Mid bottom bracket, and 14mm dropouts.
Whether you're tearing up the trails or just cruising around, the Fit Hartbreaker Frame (Chris Harti) is sure to keep the adventure going with a blend of modern performance and classic BMX style.
FEATURES
• Butted Supertherm Top Tube
• Straight Gauge Supertherm Down Tube
• Double Gussets
• Slightly Tapered Seat Stays
• Slightly tapered Single Bend Chain Stays
• 2.4″ Tyre Clearance (even when slammed)
• Double Butted Seat Tube
• Longer Drop Out Slots
• Welded on Chain Stay Brake Mounts
• Thru the Seat Tube Cable Routing
• Double Down Tube Cable Guides

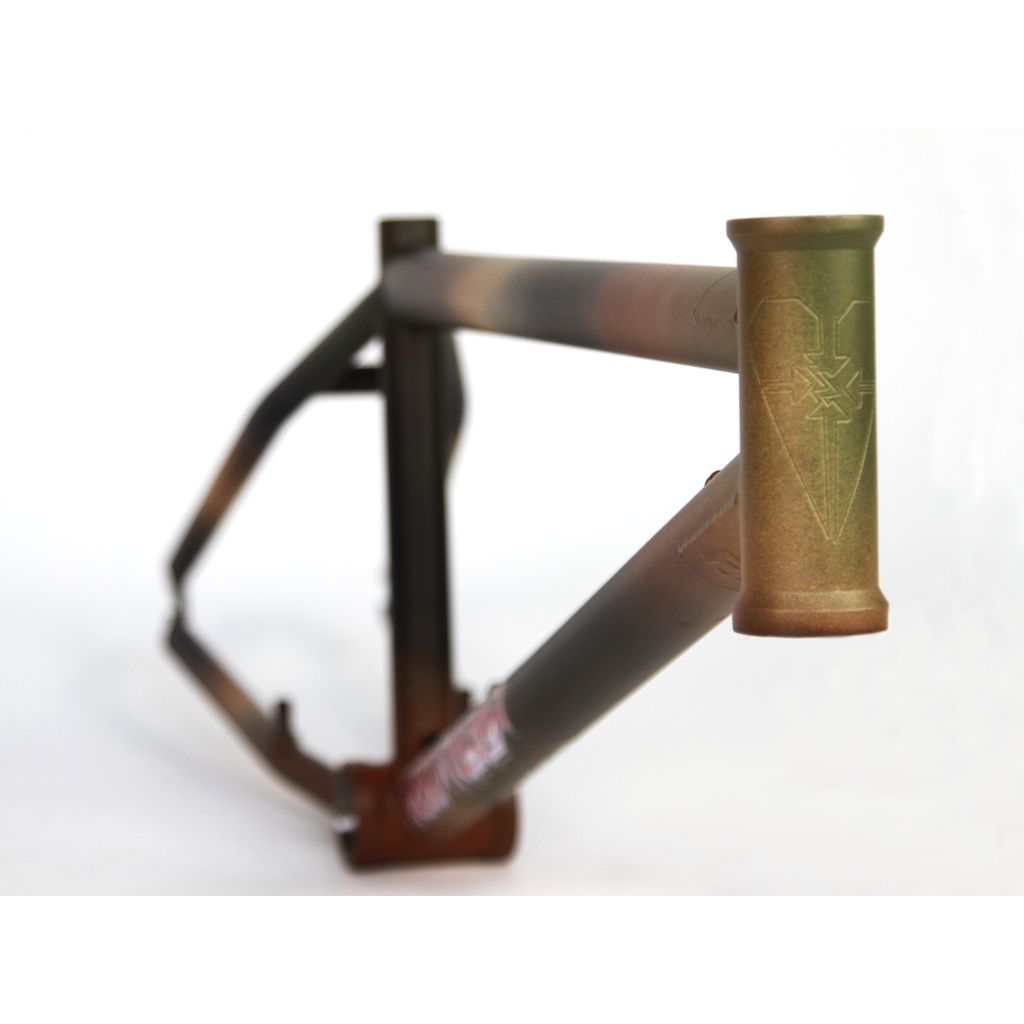

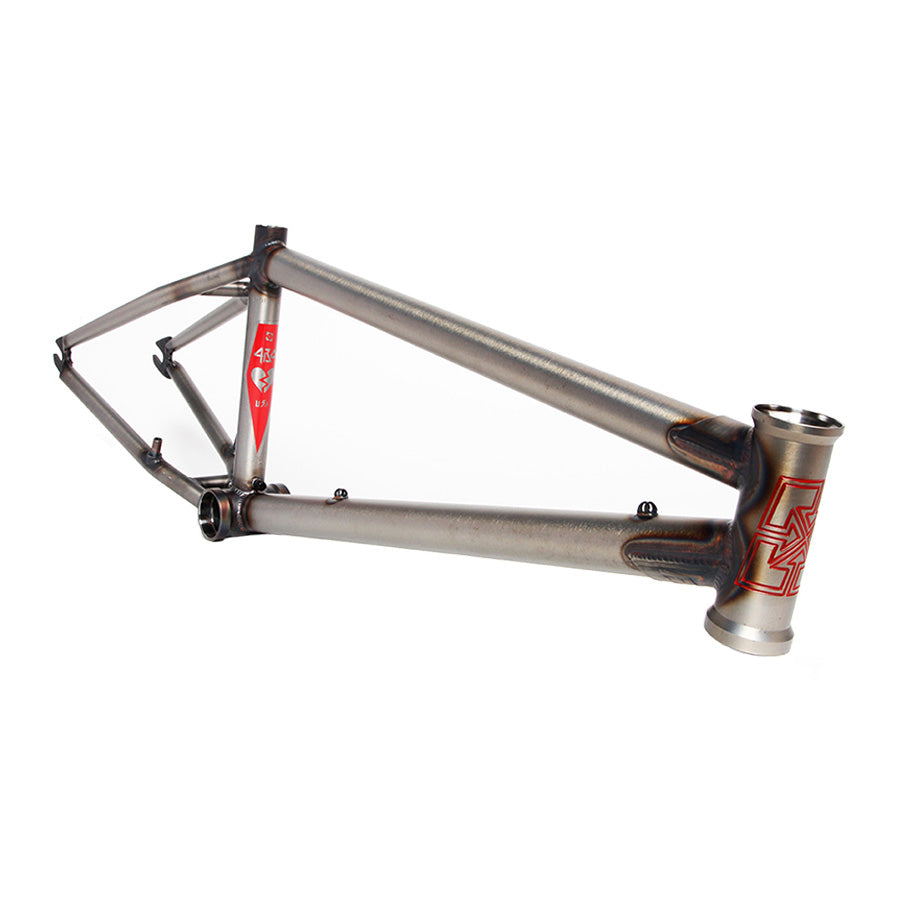

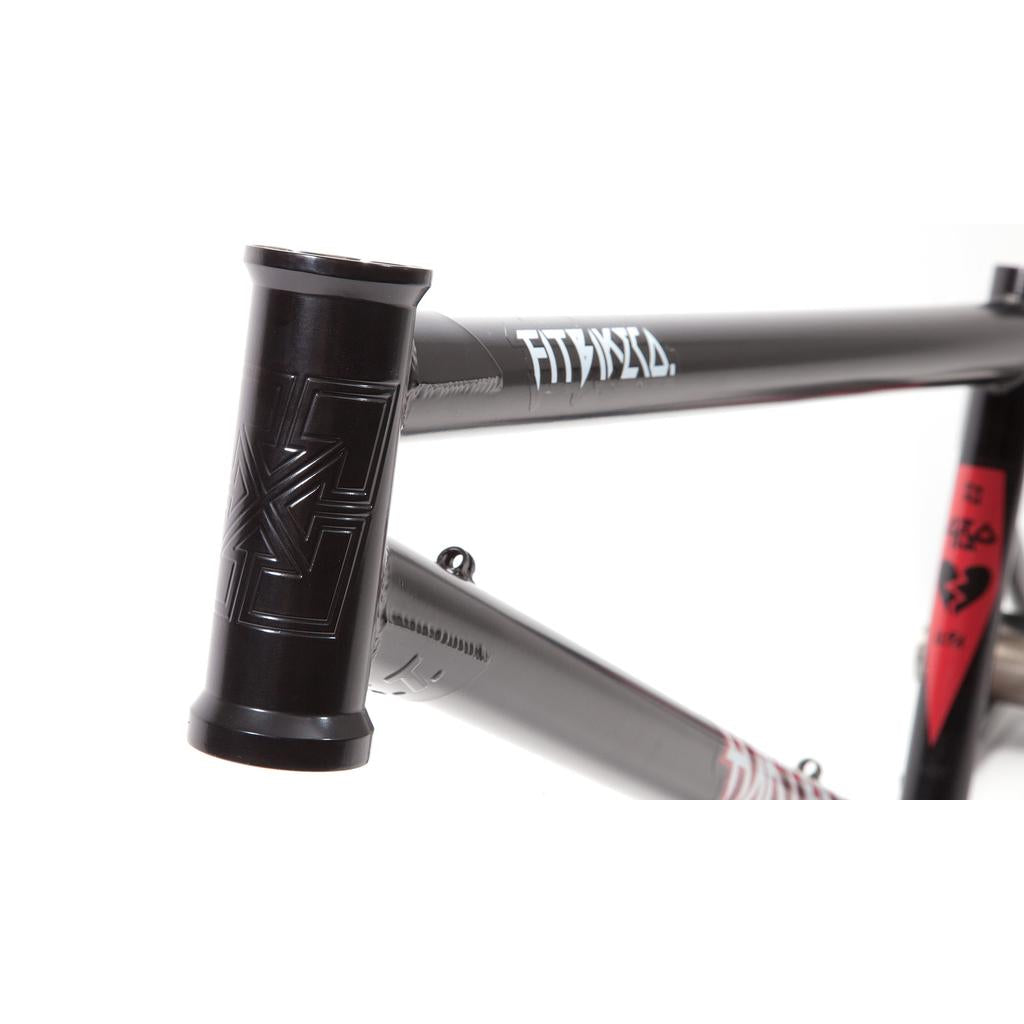

• Engraved Heartbreaker Logo Head Tube
• American Made
SPECS
• Rear end length - 13.8″-14.5″
• Head tube angle - 74.5°
• Seat tube angle - 71°
• BB height - 11.35″
• Standover - 9.15″
• Head tube - Integrated
• Bottom Bracket - Mid
• Dropouts - 14mm, 3/16″ Thick, 4Q Baked
• Brake mounts - Chainstay Welded 990s
• Seat clamp - Traditional Slot
• Seat post size- 25.4mm
• Weight - 21” -2.35 kg, 21.25” –2.39 kg, 21.5” –2.4 kg
