The Ikon Pro 24 Inch 20mm Carbon Fork is made from Toray UD carbon fibre, features a black finish, tapered steerer tube, dual dropouts for cruiser bikes, and is shown on a plain white background.
The Ikon Pro 24 Inch 20mm Carbon Fork, made from Toray UD carbon fibre with a tapered steerer and disc brake mounts, is displayed in black and white against a plain white background.

Highlights

  • Toray UD carbon fibre
  • 7075-T6 aluminium steerer
  • 20mm thru-bolt front end
  • Integrated fork race built in

Description

From the company that knows how to win! With riders like Izaac Kennedy and Joris Daudet slinging a set of Ikon Carbon Forks on their Olympic bikes, you know these forks are the made of the right stuff! In fact they are manufactured from Toray UD carbon fibre and aluminium. With 7076 T6 aluminium used in the steerer tube and a wall thickness of 7mm, these forks have the kind of strength required for the demands of today's supercross tracks.

Catch the product title? These are the 24 inch version, meaning that your RSP Cruiser can look as sharp as your Chase 20 inch race bike.

Or maybe you can drop a set on you Chase Edge Cruiser's front end to sharpen up the handling and looks.

These forks are designed for a 20mm thru-bolt, another design feature that adds stiffness to this set up. Recommended thru-bolt length is 112mm.

Features
  • Toray UD carbon fibre. Hand-laid matte natural carbon, the same forks Izaac Kennedy and Joris Daudet run on their Olympic bikes.
  • 7075-T6 aluminium steerer. A 7mm wall thickness gives the strength required for the demands of today's supercross tracks.
  • 20mm thru-bolt front end. Designed around a 20mm thru-bolt for stiffness, with 112mm the recommended bolt length.
  • Integrated fork race built in. Set up for a 45° bottom bearing, so there is no separate fork race to buy or fit.
  • Cruiser fit at 574g. 353.5mm axle to crown and 31mm offset to sharpen up the front end of a 24 inch bike.

Specifications
  • Material: Toray UD carbon fibre, matte natural hand-laid finish
  • Dropouts: CNC machined 6061-T6 aluminium
  • Steerer: 7075-T6 aluminium, 7mm thickness, 172mm length, threadless, integrated fork race for 45° bottom bearing
  • Steerer diameter: 1-1/8"
  • Fork offset: 31mm

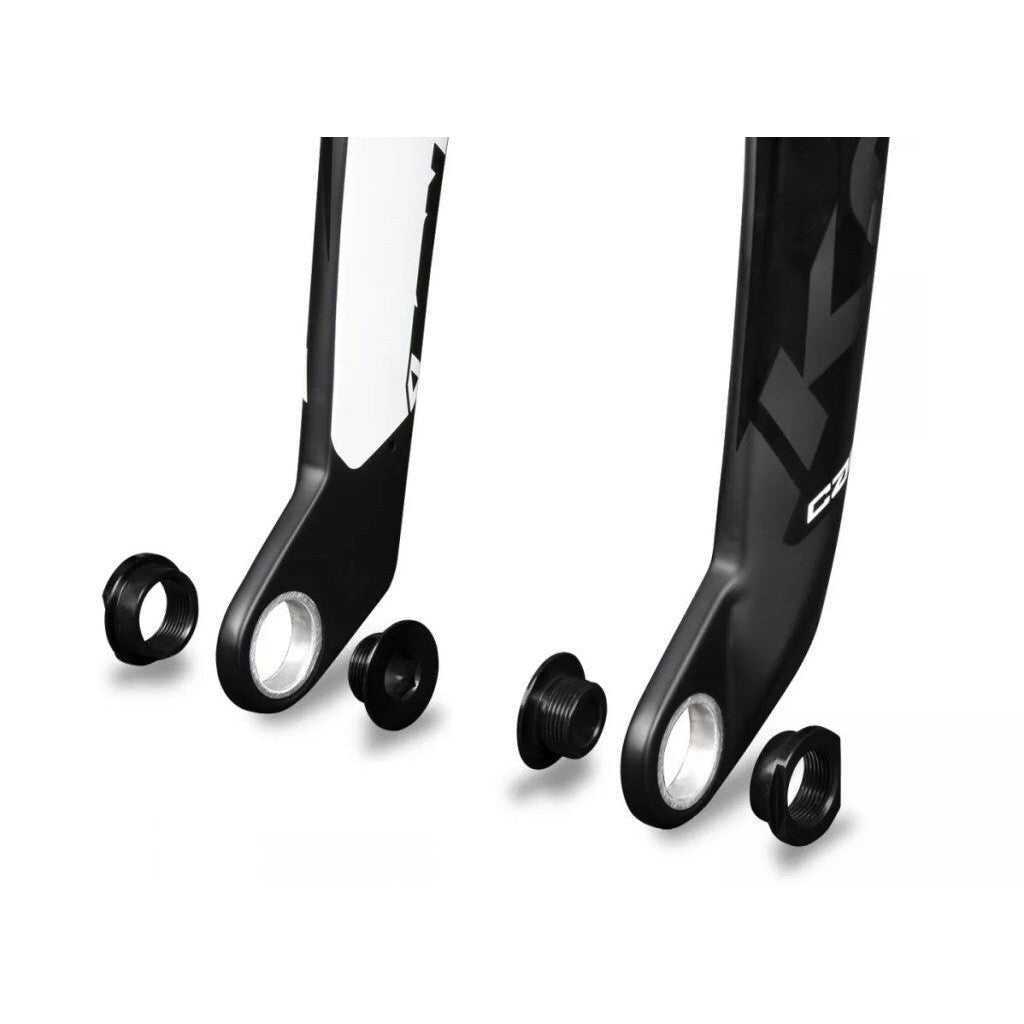

  • Axle: 20mm thru, 112mm length suggested. Optional 20mm to 10mm / 3/8 adapters available
  • Wheel size: 24"
  • Weight: 574g
  • Note: Axle to crown 353.5mm

Ikon Pro 24 Inch 20mm Carbon Fork

Brand: Ikon SKU:

From

$899.99 AUD

 $998.99 AUD

Or 4 payments of $224.99 AUD with

Colour - Black/White

Offset - 31mm

Ikon Pro 24 Inch 20mm Carbon Fork - Black/White / 31mm

Discount 10%

Instead of $998.99

$899.99 AUD
