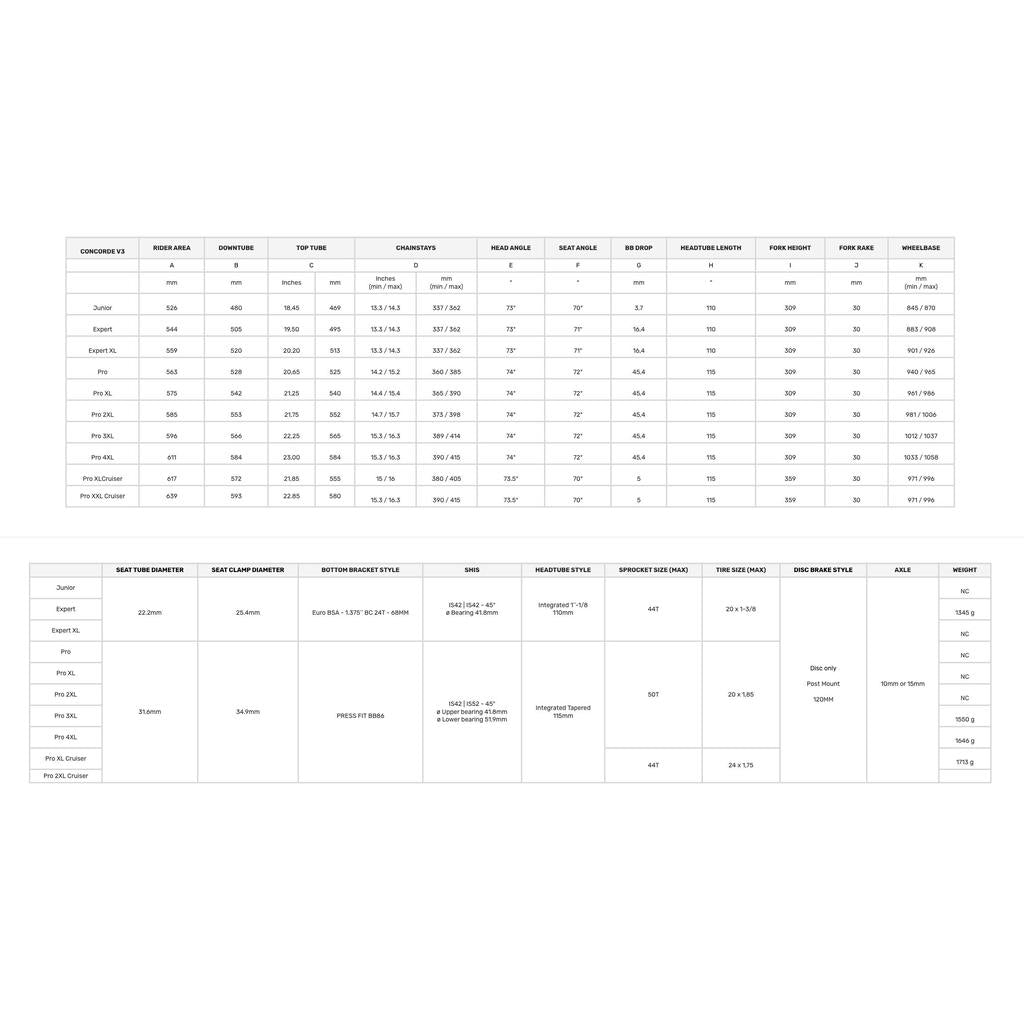

A detailed table compares specs of various bicycle models—size, head angle, seat tube, fork offset—for BMX racing enthusiasts. Key features include the Inspyre 2025 Concorde V3 Pro Cruiser XXL frame and hydroformed tubes for optimal performance.

Description

The French revolution in BMX racing started long ago when they travelled to the USA in the early to mid 90s and soo established a reputation for being some of the smoothest, and fastest riders on the planet. This reputation is as valid today with the French taking all 3 medals at the past Olympics.

The French build their tracks deep and steep which demands a frame with geometry that can handle the speed, and be responsive, the 2025 Inspyre V3 frame series fulfils this design criteria, with some of the fastest riders in the world slinging these around on the World Cup circuit.

Variable wall thickness of the hydroformed tubes means that these frames are stiff right where they need to be, while retaining near lightness of a carbon frame, but at a substantial lower price point.

Additional frame stiffness in the Pro sizes is created by using a larger seat tube, and a CNC'd head tube adds a aerodynamic flavour to the overall design of the V3 frame. The youngsters get their own design tweaks with the Junior, Expert and Expert XL frames running thinner tubing allowing these frames to be exceptionally light and not quite as stiff. After all, the young crew aren't quite pumping our 2000 watts, yet!

At the rear end, according to Inspyre
"The SWELL rear dropout system has been completely redesigned for a better user experience. The SWELL V2 dropouts provide a real 25 mm adjustment range. The internal aluminum 7075-T6 plates in the dropouts stay in place even when the wheel is removed, ensuring optimal ease of use during maintenance. The chain tensioning system uses two CNC-machined adjusters mounted on a stainless-steel axle. The disc brake mount follows the postmount standard for a 120 mm disc, but it is possible to use a 140 mm disc with a +20 mm spacer. The dropout comes standard with a 15 mm thru-axle (sold separately). 15mm to 10mm adapters are included with the frame."

Of course for a new model year, there's new colours.

In this frame and fork kit you get a set of colour matching Pride Apex forks to complete the look.

Features

Built for deep, steep tracks. French tracks are dug deep and steep, and the V3 geometry is aimed at holding that speed while staying responsive.
Hydroformed tubes, variable wall thickness. Stiff right where it needs to be, close to the weight of a carbon frame, at a much lower price.
Thinner tubing for the young crew. Junior, Expert and Expert XL frames run thinner tubing, so they come out exceptionally light and not quite as stiff.
SWELL V2 rear dropouts. A real 25 mm adjustment range, with internal 7075-T6 aluminium plates that stay in place when the wheel comes out.
Colour matching Pride Apex forks. Toray T700S and T800S carbon legs on a 7075-T6 aluminium tube, 308 mm tall with a 30 mm offset.

Specifications

Sizes: Expert
Tubing: Hydroformed, variable wall thickness. Thinner tubing on the Junior, Expert and Expert XL frames
Dropouts: SWELL V2, 25 mm adjustment range, internal 7075-T6 aluminium plates that stay in place with the wheel out, two CNC machined chain adjusters on a stainless steel axle
Brake mounts: Rear postmount for a 120 mm disc, 140 mm disc with a +20 mm spacer
Head tube: CNC machined
Steerer: Integrated fork cone, non-cutting pivot
Steerer diameter: SHIS 28.6 mm top, 30 mm bottom
Fork offset: 30 mm
Fork legs: Pride Apex: Toray T700S x Toray T800S carbon fibre legs, 7075-T6 aluminium tube
Axle: Rear 15 mm thru axle (sold separately), 15 mm to 10 mm adapters included
Axle size: Fork hub width 100 mm, 10 mm dropouts
Tyre clearance: Max tyre diameter 542 mm. 50 mm wide at 534 mm (451), 55 mm wide at 515 mm (406)
Weight: Fork 475 (without top cap)
Note: Fork height 308 mm. These frames come with a 10 mm dropout fork; the fork pictured is the Pride Pro fork

Inspyre Concorde V3 Expert Frame/Fork Kit (2025)

Name: Inspyre Concorde V3 Expert Frame/Fork Kit (2025)
Brand: Inspyre
SKU: 205302_205308
Price: 1499.99 AUD
Availability: OutOfStock
