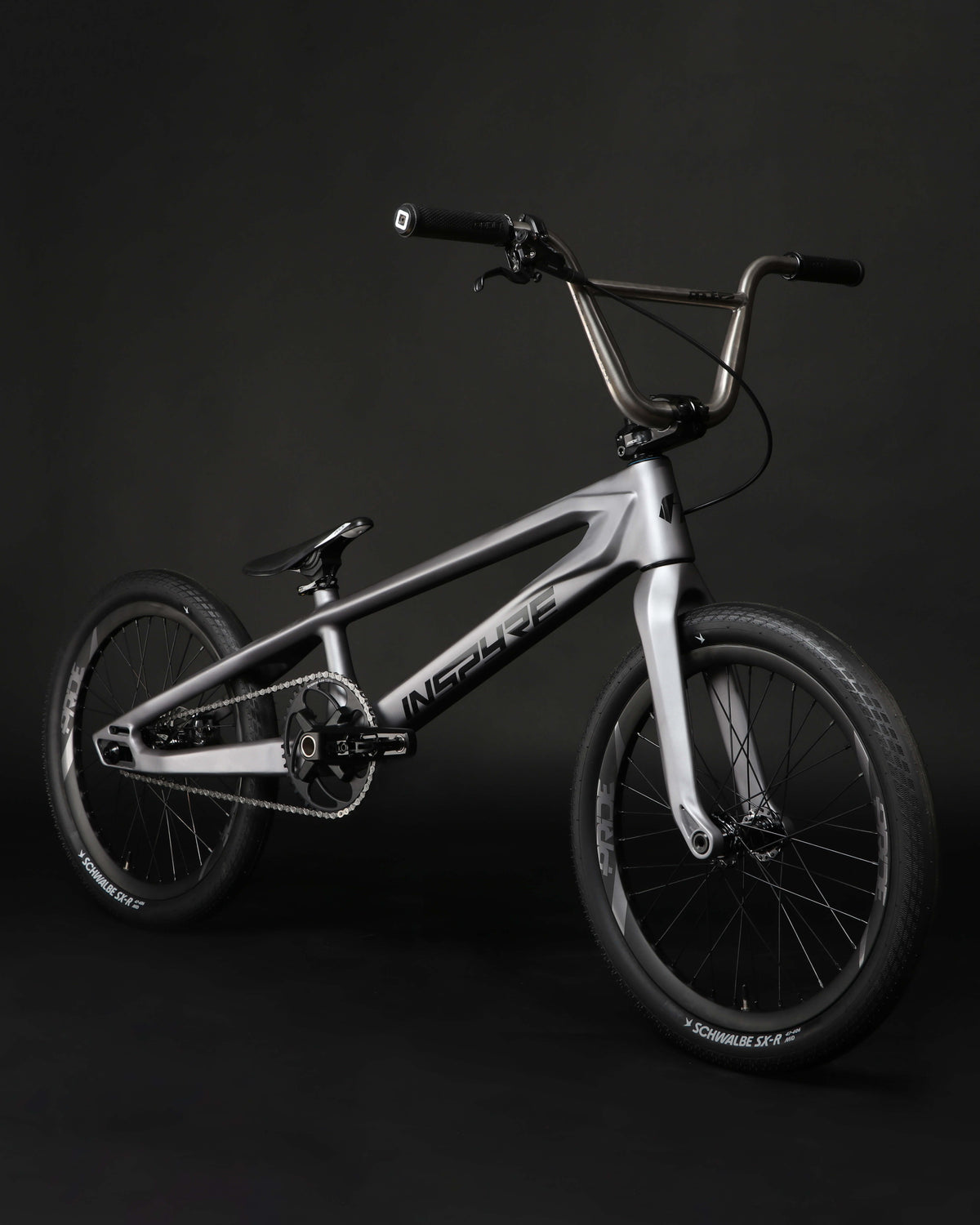

Gray carbon fiber Inspyre ERA Carbon Pro XXL Frameset on a dark background.

Glossy black carbon fiber Inspyre ERA Carbon Pro XXL Frameset BMX race frame.

Black Inspyre ERA Carbon Pro XXXXL BMX race frameset with fork.

Black carbon fiber Inspyre ERA Carbon Pro XXXXL BMX race frame and fork.

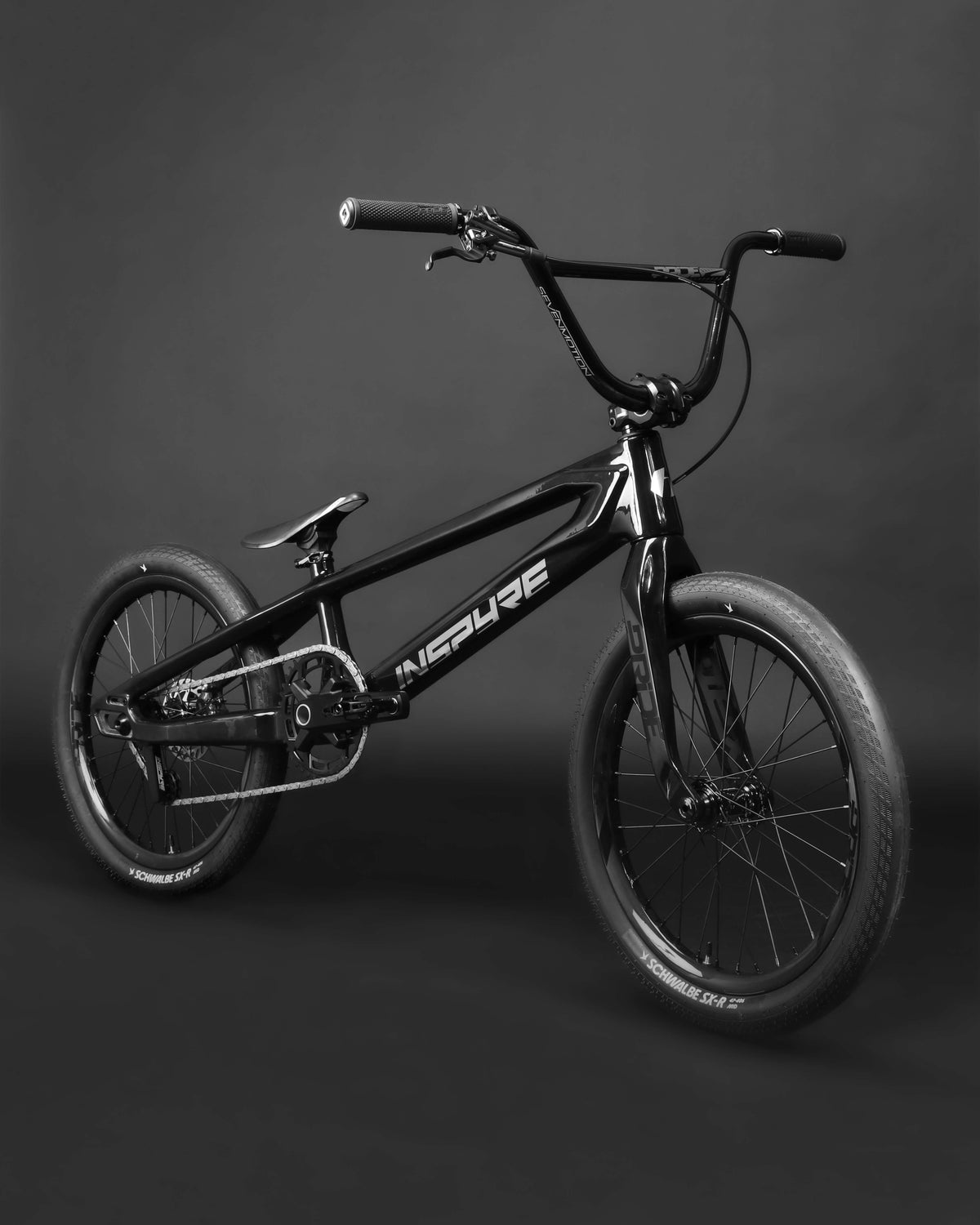

A black Inspyre ERA Carbon Pro XXL Frameset against a solid gray background.

Iridescent Inspyre ERA Carbon Pro XXL Frameset for BMX racing.

Inspyre ERA Carbon Pro XXXXL frameset with an iridescent purple and teal BMX race frame finish.

Iridescent purple and blue Inspyre ERA Carbon Pro XXXXL BMX race frameset.

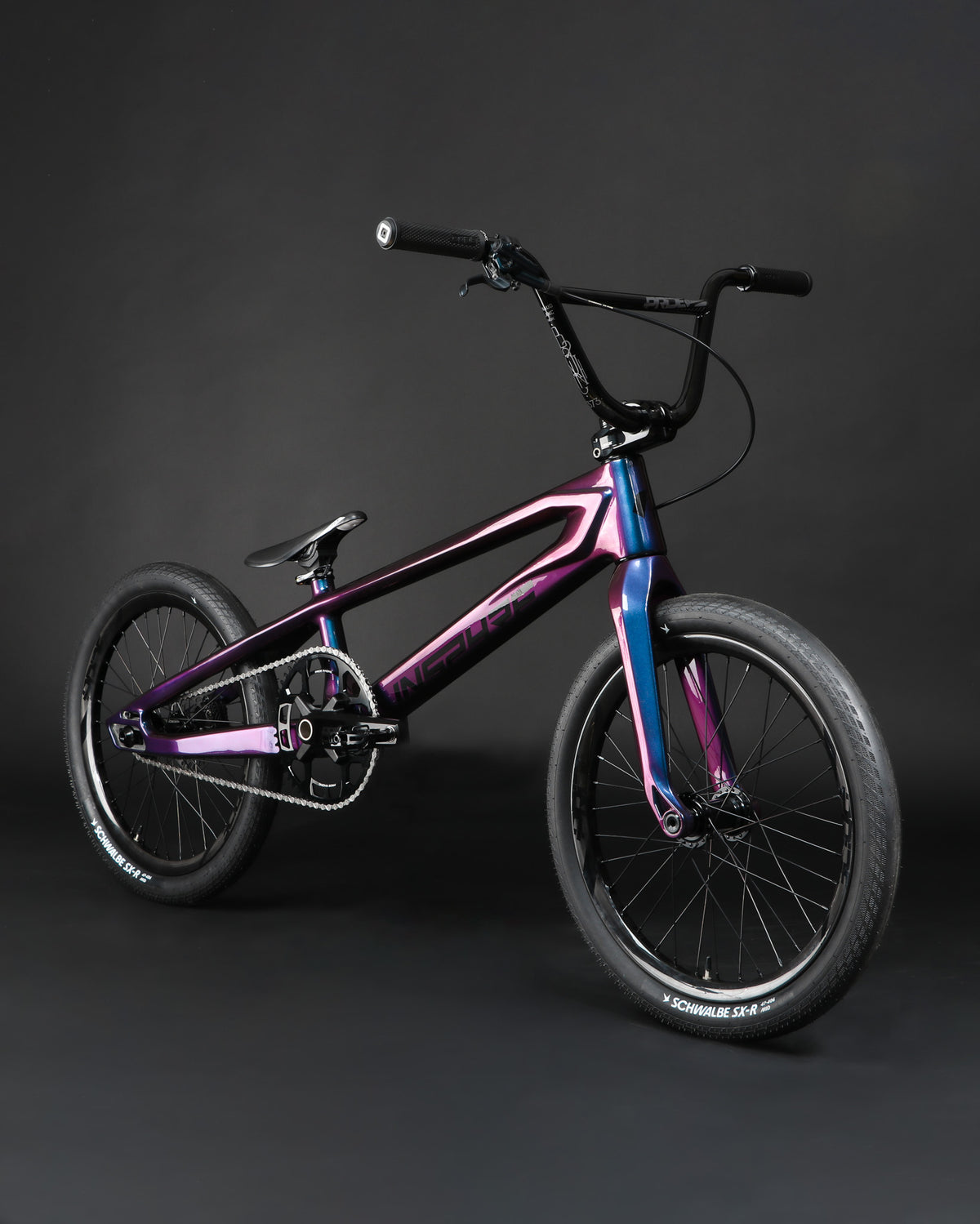

Inspyre ERA Carbon Pro XXL frameset in iridescent purple and blue, set against a black background.

Highlights

Race focused geometry
Pro XXL sizing
Two colour choices

Description

The Inspyre ERA Pro XXL Frameset is built for BMX racing, sized up for taller riders who need the extra room at the gate and through the first straight. It comes as a frameset, so you can carry across the parts you already trust or build it up fresh.

The ERA CF is Inspyre's flagship carbon race frame, built around precision, stiffness and dynamic comfort rather than chasing the lightest number on the scales. The result is a natural, smooth and precise ride, a frame that works with you rather than one you have to adapt to.

Developed in collaboration with the Inspyre pro team, this frame wasn't just drawn up and put into production. Inspyre commissioned several prototypes which the riders rode, and raced, providing feedback and suggestions to the frame's designer which resulted in this, the finished product.

Key Features

High-modulus Japanese carbon fibre, selected for consistency and an excellent stiffness-to-weight ratio
AXC (Advanced Composite Carbon) layup: layer structure tuned for front triangle response, with fibre orientations that keep control without excess stiffness, so power goes straight to the track
DualYoke architecture: the BBYoke stabilises the power base while the TopYoke stiffens and aligns the rear triangle, for controlled, predictable handling front to rear
Axial dropouts with 35mm of adjustment to fine-tune your wheelbase, plus an integrated chain tensioner adjusted with a hex key
ADS (Adaptive Drive System) ready: keeps your wheelbase consistent regardless of gear ratio (optional, sold separately)
Fully guided internal cable routing for a clean brake hose run
Flat mount disc brake for a 120mm rotor
Available in Black Gloss with Brushed Chrome, or Stealth Grey with Black

Frameset Includes

Inspyre ERA CF carbon frame
Pride Racing APEX tapered carbon fork (20mm axle)
10mm adapter kit and 15mm axle plate
Note: 15mm rear axle not included

Pro XXL Geometry

Top tube: 21.75" (552mm)
Chainstay: 15.16-16.54" (385-420mm) (adjustable)
Wheelbase: 39.09-40.47" (993-1028mm)
Rider area: 585mm
Head angle: 74°
Head tube: 115mm (4.53")
Fork height: 307mm (12.09")

Features

Race focused geometry The ERA is made for BMX racing, from gate starts through to the finish.
Pro XXL sizing Extra length for taller riders who find standard race frames a bit cramped.
Two colour choices Pick from Black Gloss - Brushed Chrome or Stealth Grey - Black.
