The ION BMX C20 Carbon Fiber 20 Inch Brakeless Rim is black, made from Toray T800 carbon fiber, and features partially visible "IONBANK" in white along the upper edge.

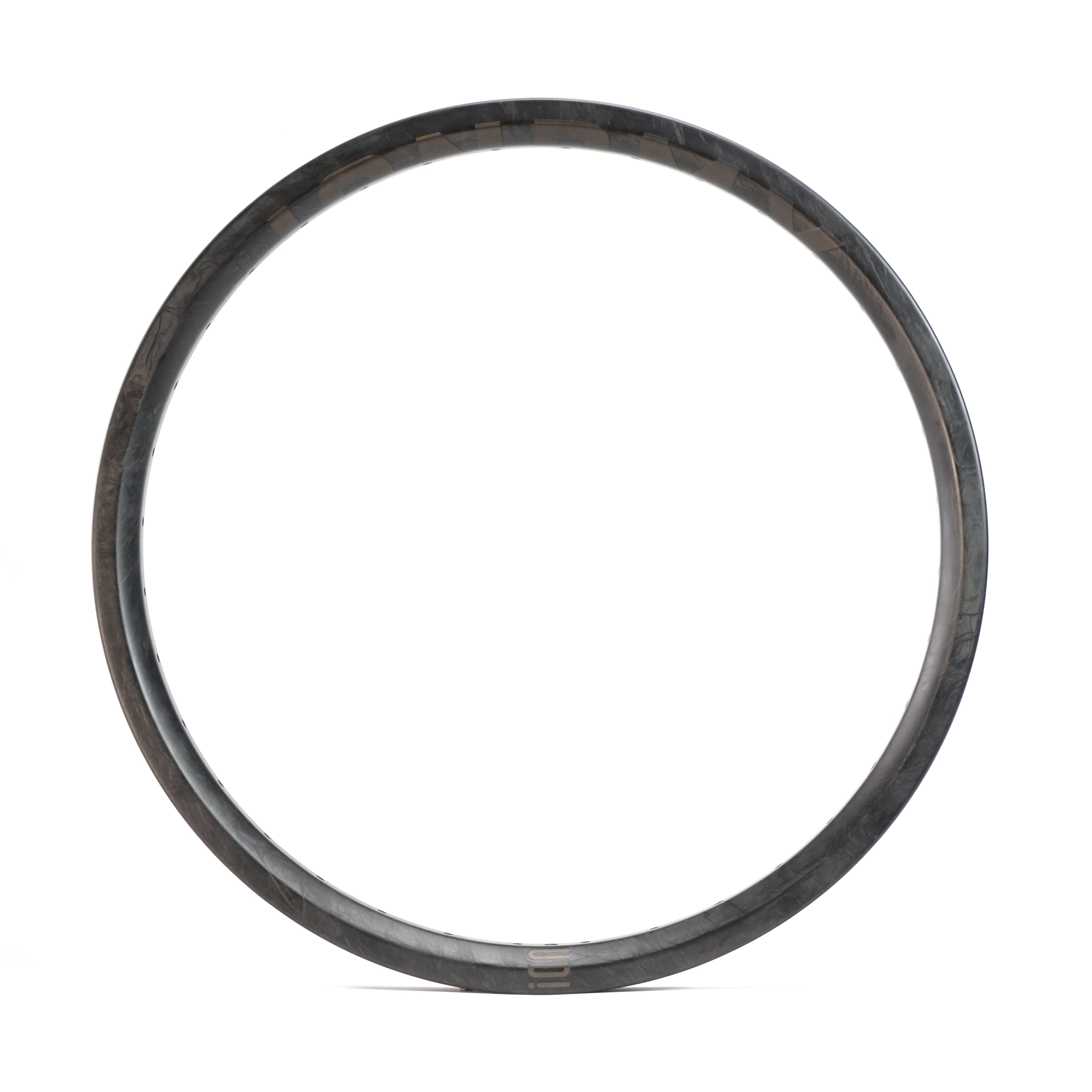

The ION BMX C20 Carbon Fiber 20 Inch Brakeless Rim is displayed upright against a white background.

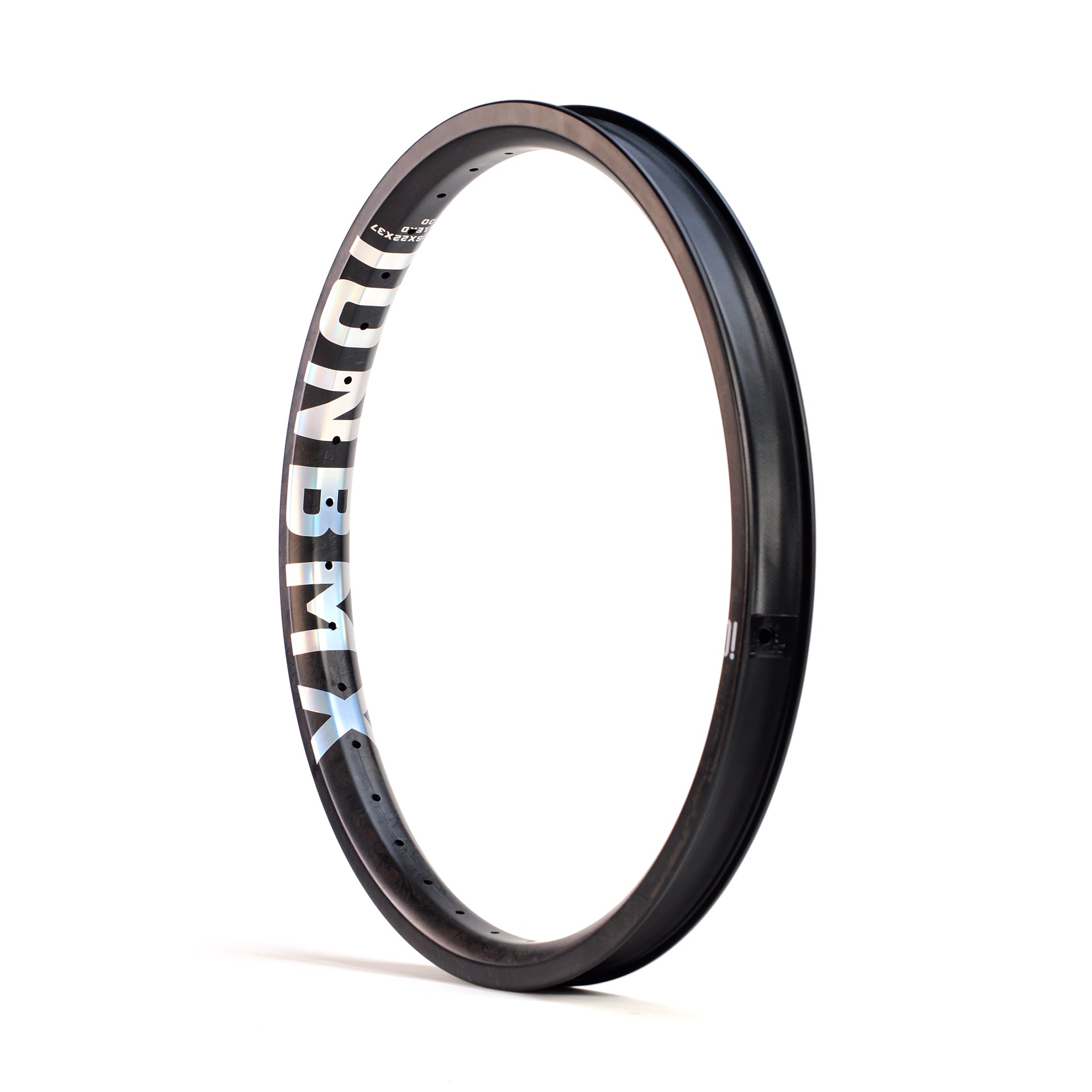

A black ION BMX C20 Carbon Fiber 20 Inch Brakeless Rim, featuring white "DN BMX" lettering and crafted from premium Toray T800 carbon fiber, stands upright against a plain white background.

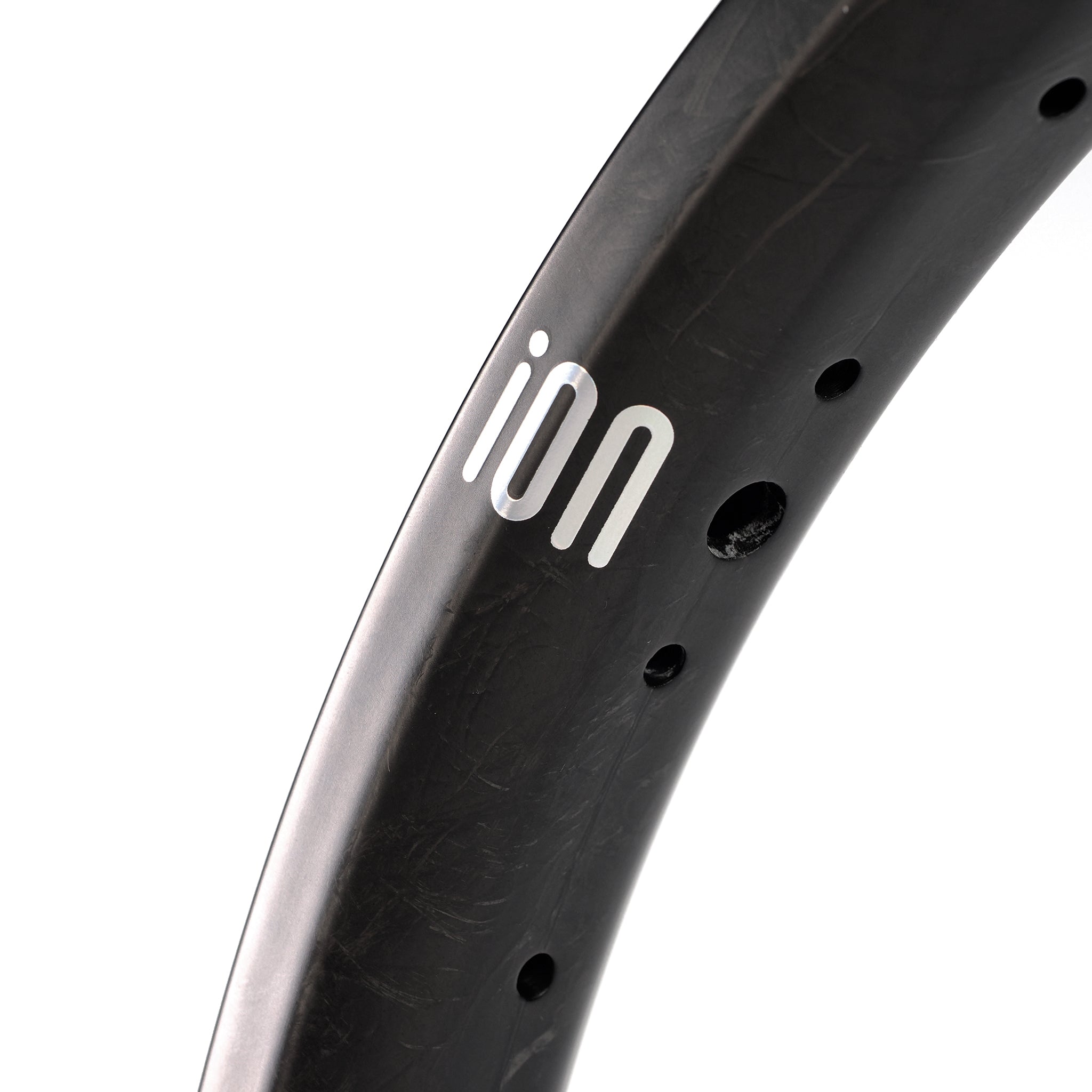

Close-up of the ION BMX C20 Carbon Fiber 20 Inch Brakeless Rim in black, featuring multiple spoke holes and a visible white "ion" logo on the surface.

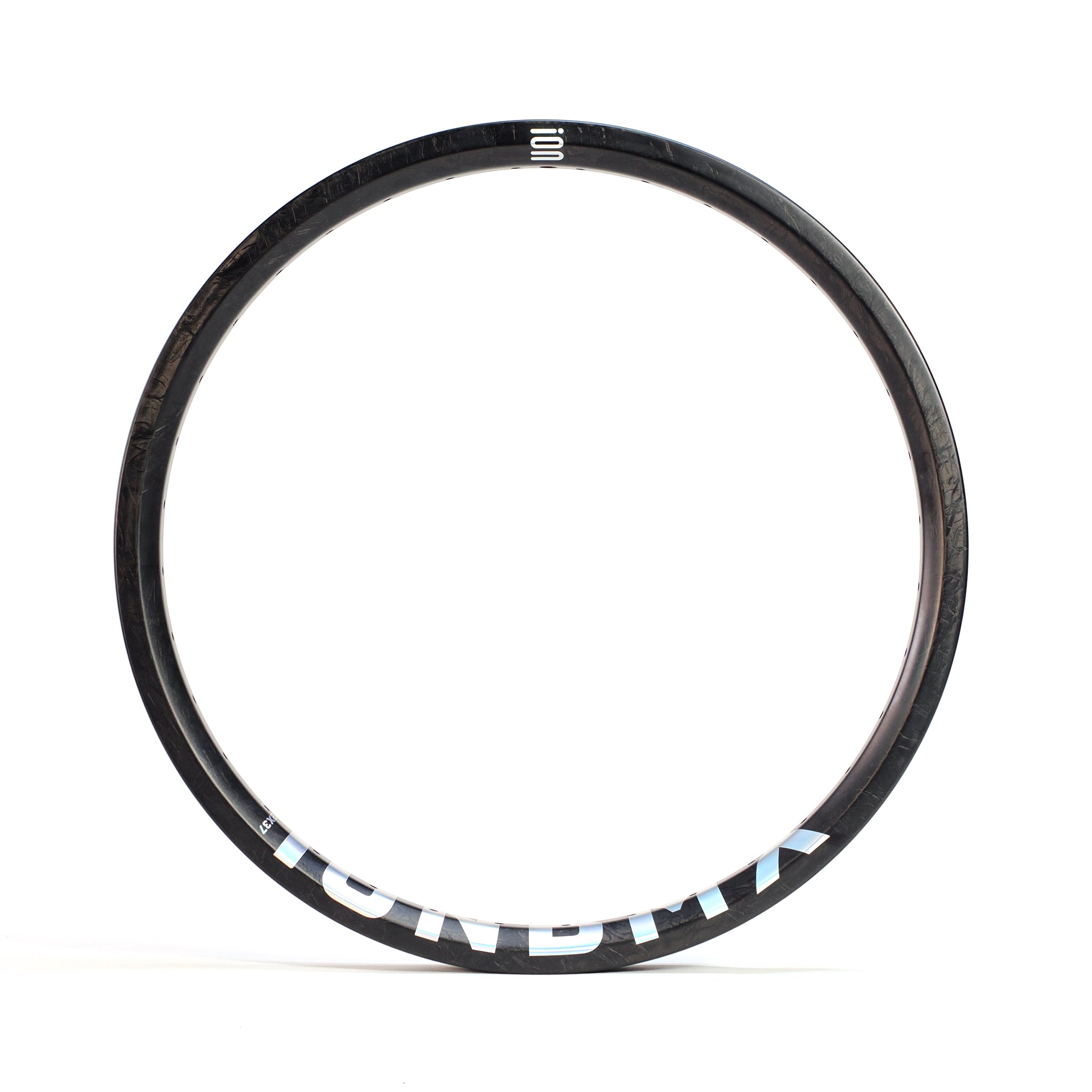

The ION BMX C20 Carbon Fiber 20 Inch Brakeless Rim in black stands upright against a white background, with "ION BMX" partially visible at the bottom.

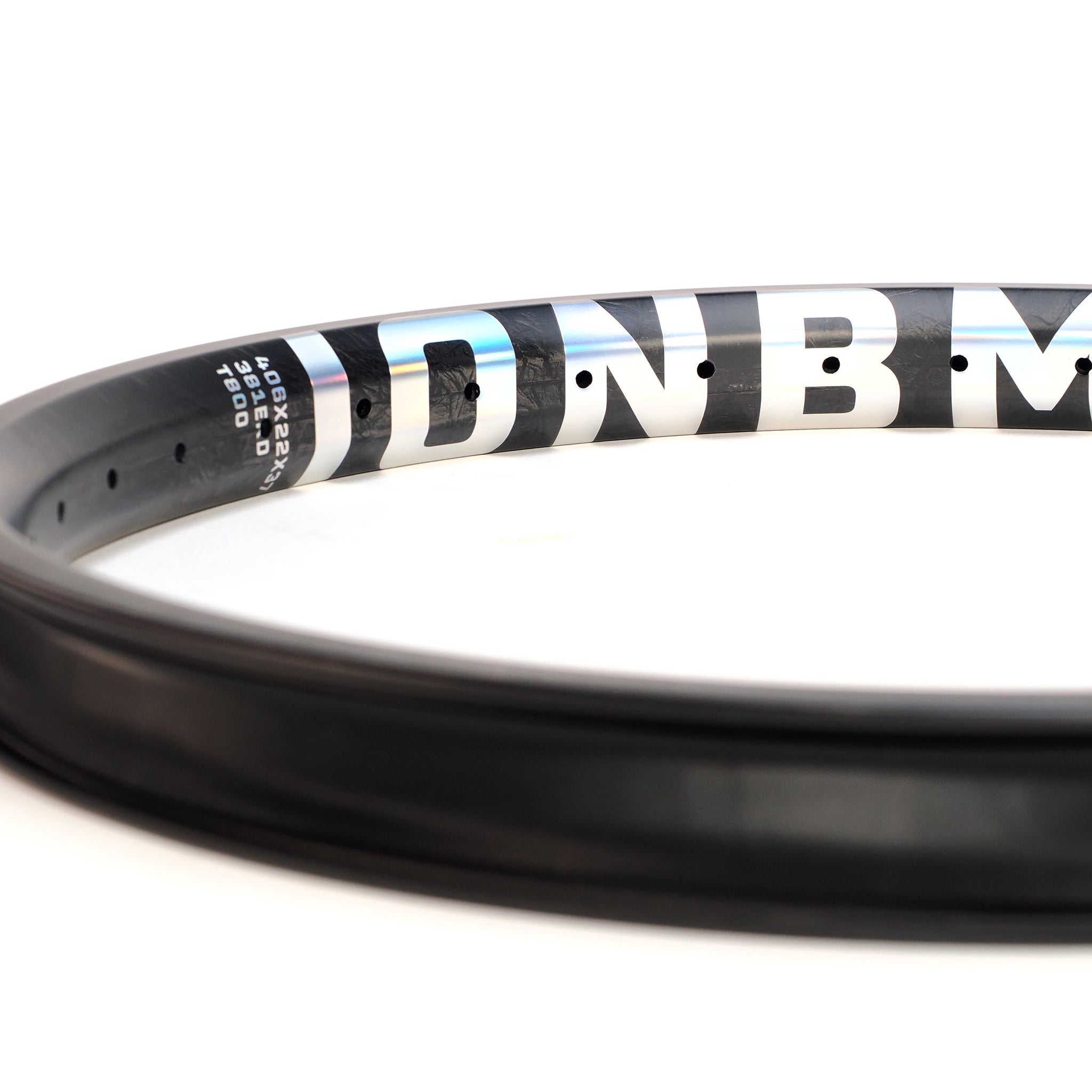

Close-up of the ION BMX C20 Carbon Fiber 20 Inch Brakeless Rim, featuring bold white lettering and specs on its durable Toray T800 carbon fiber, shown against a white background.

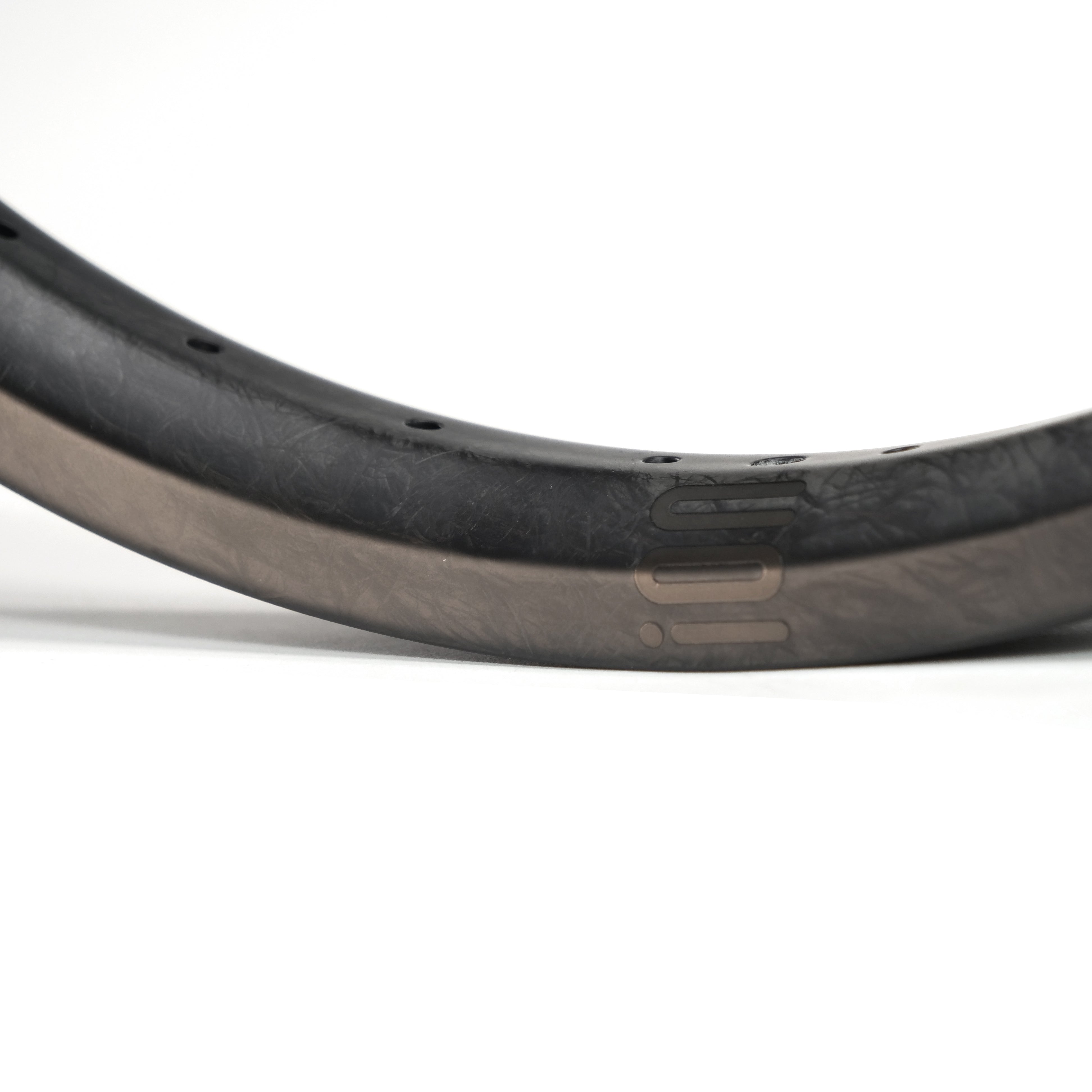

Close-up of the ION BMX C20 Carbon Fiber 20 Inch Brakeless Rim with a matte finish, subtle logo, and evenly spaced spoke holes—ideal for riders seeking high-performance BMX carbon rims.

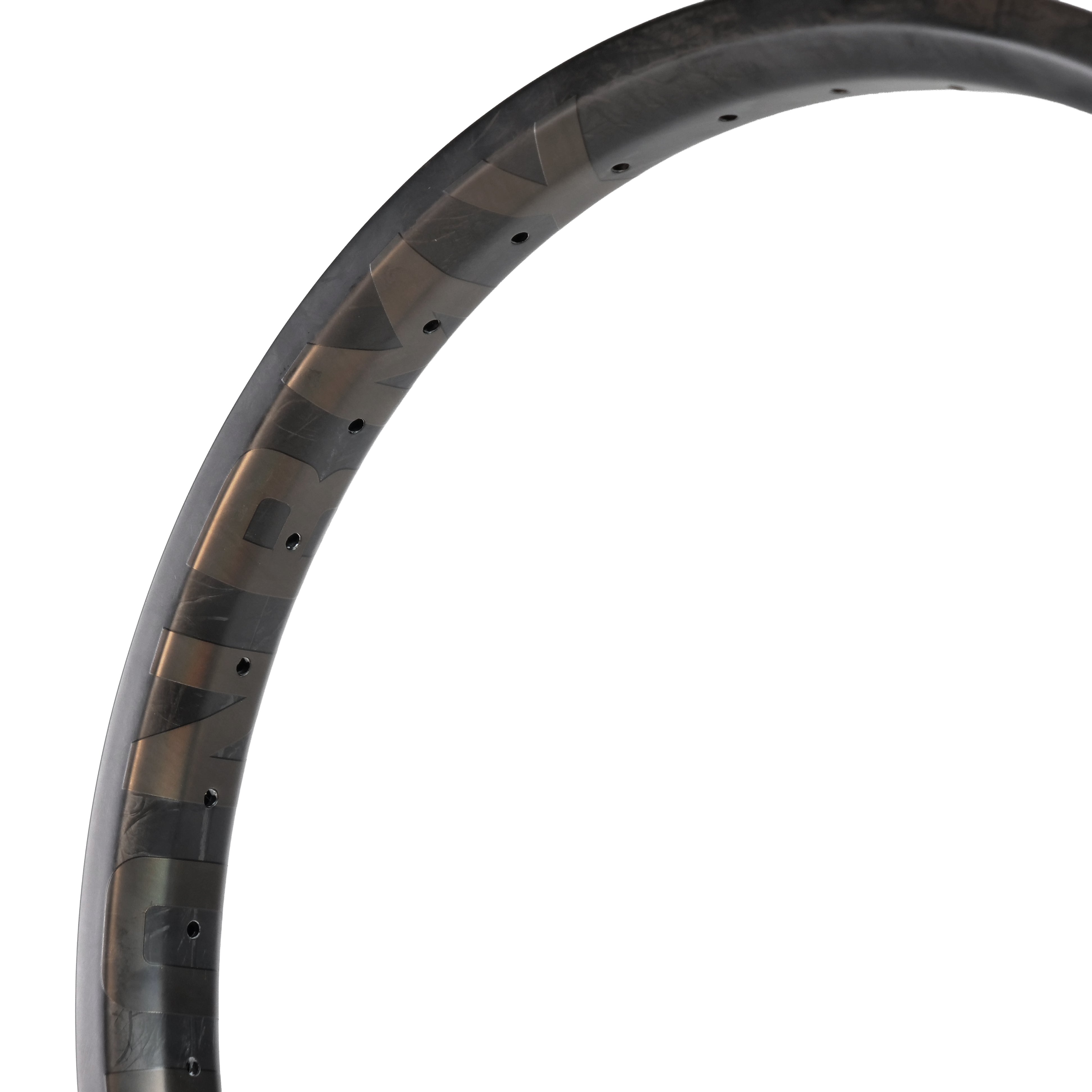

A close-up of the ION BMX C20 Carbon Fiber 20 Inch Brakeless Rim shows spoke holes and a partial logo on its matte surface, highlighting this high-performance BMX wheel component.

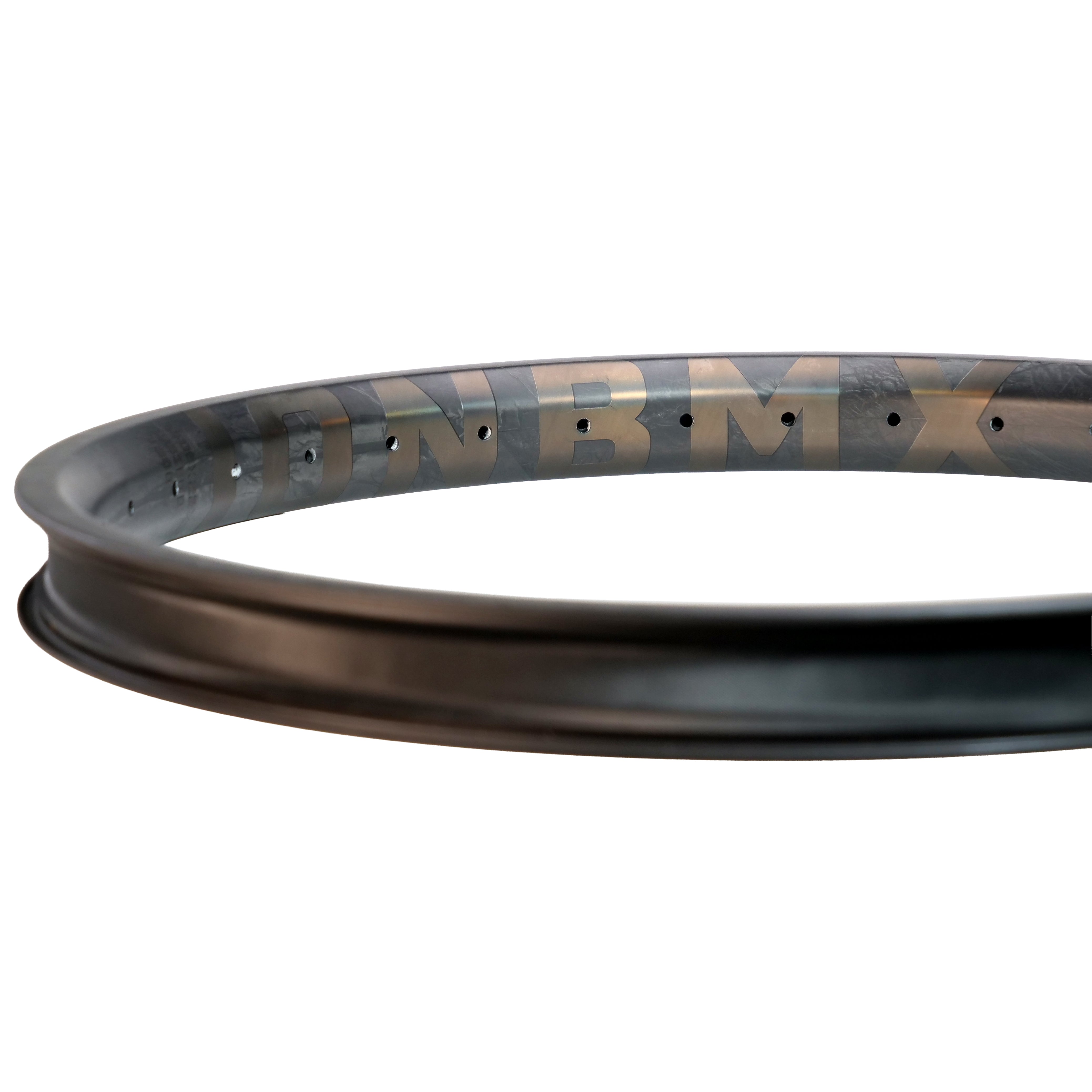

A close-up of the ION BMX C20 Carbon Fiber 20 Inch Brakeless Rim in black, featuring visible spoke holes and subtle inner lettering, highlights the strength and style of this top-tier BMX carbon rim.

Description

The ION BMX Carbon Fiber 20 rims are designed specifically for freestyle BMX riding.
Made from Toray T800 high modulus carbon fiber, they deliver a blend of superior tensile strength and exceptional lightweight durability, creating a rim that stands out in both strength and performance.

Features
  • Toray T800 carbon fibre. High modulus, high tensile strength carbon gives the rim strength without the weight of alloy.
  • 315g on the scales. At 315g plus or minus 15g it takes a solid chunk of rotating weight off the wheel.
  • Brakeless design. There is no brake surface on this rim, so it suits brakeless setups only.
  • 36 hole, 4D drilling. Drilled 36h only with 4D spoke holes, so the spokes line up with the hub flanges.
  • Built for freestyle. Designed specifically for freestyle BMX, 37mm wide and 22mm tall, drilled for a Schrader valve.

Specifications
  • Wheel size: 20", ETRTO 406x30c
  • Material: Toray T800 high modulus carbon fibre
  • Hole count: 36h only
  • Rim width: 37mm
  • Rim depth: 22mm
  • Brake surface: None, brakeless design
  • Valve: Drilled for Schrader (A/V)
  • Weight: 315g +/- 15g
  • Note: ERD 381mm (383mm effective). 4D spoke hole drilling. 2 year warranty against manufacturer defects.

Spoke calculator
Display

Pick the part it is laced to and we will give you the lengths to buy.

This rim

Looking up its measurements.

Check or change its figures

Laced to which hub?

Or type its figures

Flange diameter spoke hole centre to the opposite hole centre. The drive side is the driver side, left or right hand drive alike, and is usually the bigger flange

Flange position

Spoke lengths to buy

Drive side —mm
Non-drive side —mm

Pick the hub and your lengths will appear here.

Open the full spoke calculator for offset rims, other cross patterns and measuring help.

ION BMX C20 Carbon Fiber 20 Inch Brakeless Rim

Brand: ION BMX SKU:

$459.99 AUD

Or 4 payments of $114.99 AUD with

Colour - Hologram Dark

Spoke Holes - 36 Hole

Braking Surface - Non-Braking

ION BMX C20 Carbon Fiber 20 Inch Brakeless Rim - Hologram Dark / 36 Hole / Non-Braking

$459.99 AUD
