Description

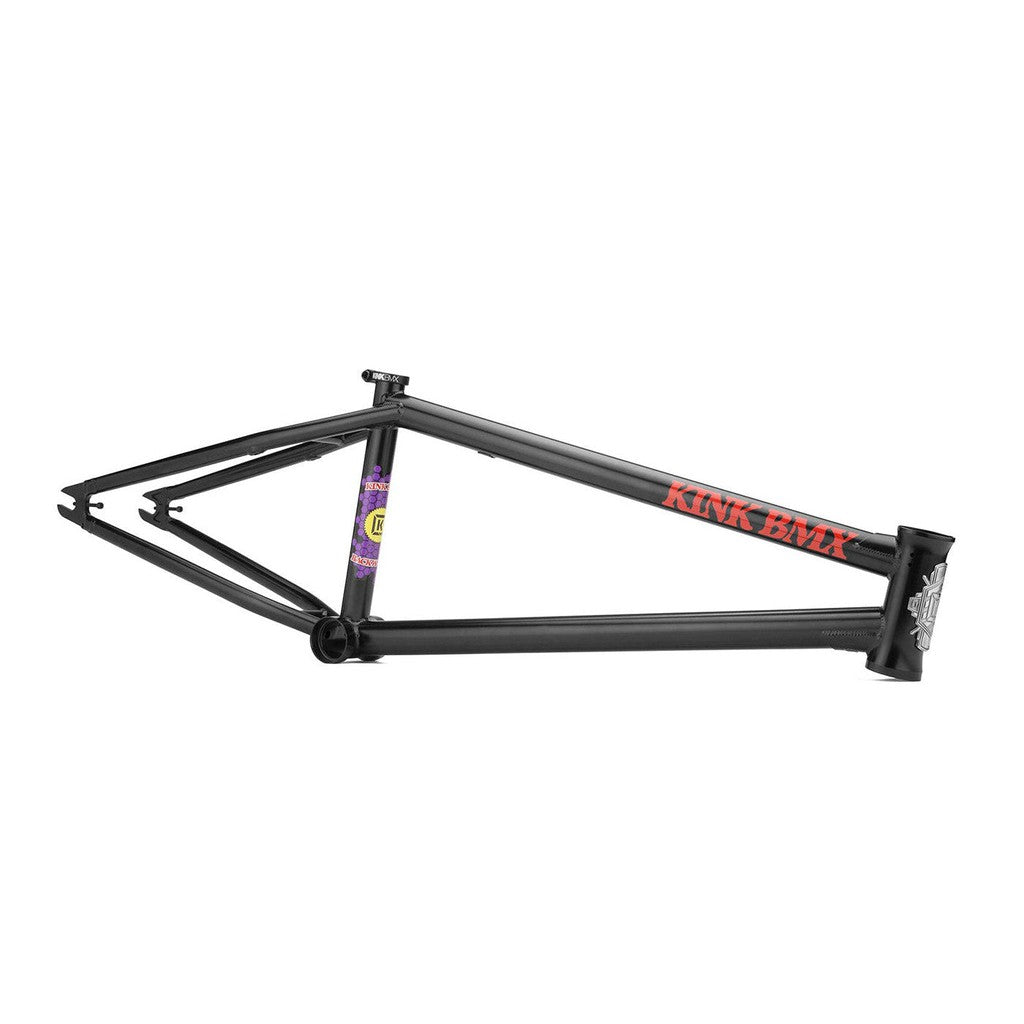

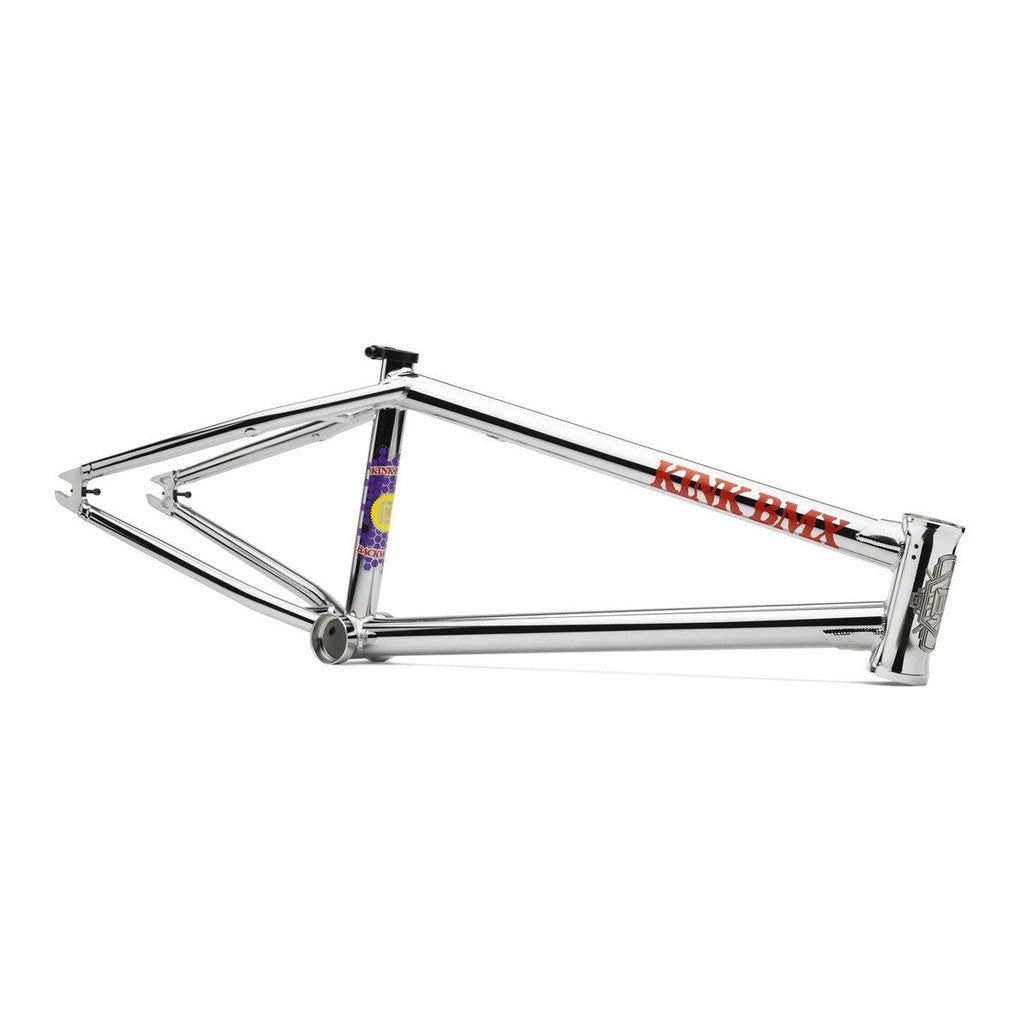

Head down to the backwoods and tear them up into pieces with this epic Kink Backwoods Frame from KINK BMX. This frame features a tapered rear triangle, a narrow toptube & downtube using gussets to increase the strength in the areas that need it whilst also creating a sleek an clean look.

GEOMETRY

Toptube Sizes: 20.75”, 21”, 21.25”, 21.5”
Chainstay Length:13.5" Slammed
Bottom Bracket Height:11.6"
Standover Height: 9"
Headtube Angle: 74.5°
Seattube Angle: 71°

INFO
Classic and timeless design is what the Backwoods frame is all about. Built for the trails, but just as ready to ride at the park or in the streets. The narrow toptube and downtube both feature gussets, so the frame can maintain it’s classic look without compromising on strength. The tapered rear triangle tubing looks sleek but maintains its stiffness where it needs to. Included Kink Master Clamp features a 5mm/6mm combo bolt that makes adjustment super convenient, and the K-Brick headtube badge really finishes off the look. Integrated chain tensioners, removable brake mounts and big tire clearance are just a few of the other features for modern day conveniences and compatibility.

Material:100% Seamless Sanko 4130 Chromoly Tubing
Headtube:Integrated Campy Spec
Dropouts:Investment Cast with Integrated Chain Tensioners
Bottom Bracket:Internally and Externally Machined Mid Size BB
Braking:Removable Through-Bolt Brake Mount System
Particulars:Toptube and Downtube Gussets
Wide Stays for Big Tire Clearance
Includes Kink Master Clamp Seat Clamp
Tapered Seatstay and Chainstay Tubes
Simple Straight Seatstay and Chainstay Bridges
K-Brick Headtube BadgeWeight:4lb 15oz (20.75")

Features

Specifications

Material:100% Seamless Sanko 4130 Chromoly Tubing
Headtube:Integrated Campy Spec
Dropouts:Investment Cast with Integrated Chain Tensioners
Bottom Bracket:Internally and Externally Machined Mid Size BB
Braking:Removable Through-Bolt Brake Mount System
Particulars:Toptube and Downtube Gussets
Wide Stays for Big Tire Clearance
Includes Kink Master Clamp Seat Clamp
Tapered Seatstay and Chainstay Tubes
Simple Straight Seatstay and Chainstay Bridges
K-Brick Headtube BadgeWeight:4lb 15oz (20.75")

Kink Backwoods Frame

Name: Kink Backwoods Frame
Brand: Kink
SKU: KIFRK6011-2075BE
Price: 799.99 AUD
Availability: OutOfStock

Brand: Kink SKU: Click to copy the SKU and show the pick location

$799.99 AUD

Or 4 payments of $199.99 AUD with

Colour - ED Black

Top Tube Length - 20.75

Frames are sized by top tube length. Start with your height, then let riding style decide where in the range you land.

Rider height	Top tube
147 to 157cm	19.75 to 20.25"
157 to 168cm	20 to 20.5"
168 to 175cm	20.25 to 20.75"
175 to 183cm	20.5 to 21"
183 to 190cm and up	20.75 to 21.5"

The height bands overlap on purpose. If you land in two of them, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park. Plenty of riders, pros included, deliberately ride longer than a chart suggests.

How to measure

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the length of the tube you can see. Measure your current frame that way and compare.

Size up for stability through trails and transitions.
Size down if you want the bike quick and twitchy for spins and grinds.
Top tube is fixed once you buy, but chainstay length, stem length, fork offset and bar position all change how the built bike feels.

Not sure? Tell us your height and how you ride, and we will tell you what we would put you on.

Read the full buying guide

Frames are sized by top tube length. Start with your height, then let riding style decide where in the range you land.

Rider height	Top tube
147 to 157cm	19.75 to 20.25"
157 to 168cm	20 to 20.5"
168 to 175cm	20.25 to 20.75"
175 to 183cm	20.5 to 21"
183 to 190cm and up	20.75 to 21.5"

How to measure

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the length of the tube you can see. Measure your current frame that way and compare.

Size up for stability through trails and transitions.
Size down if you want the bike quick and twitchy for spins and grinds.
Top tube is fixed once you buy, but chainstay length, stem length, fork offset and bar position all change how the built bike feels.

Not sure? Tell us your height and how you ride, and we will tell you what we would put you on.

Read the full buying guide
