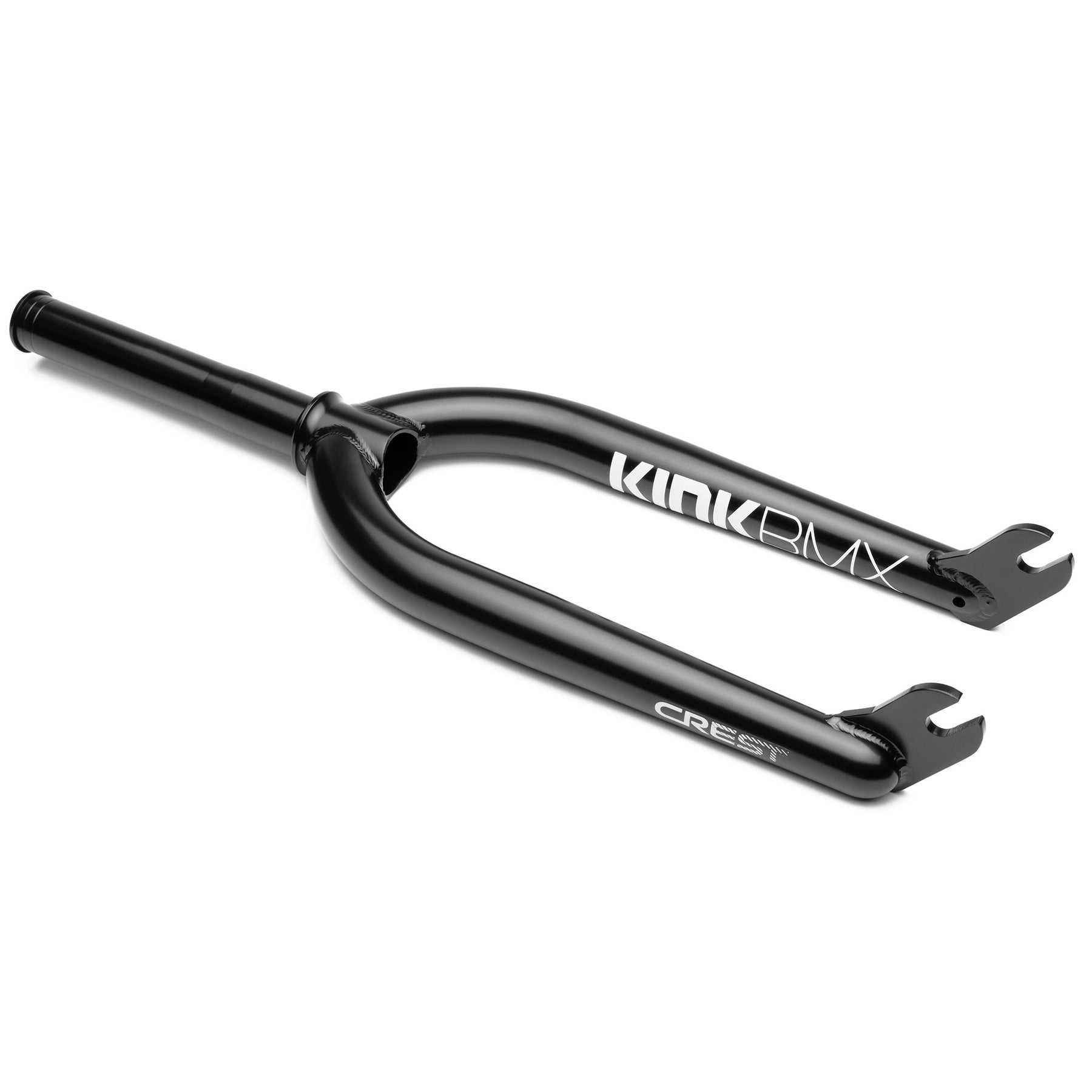

Kink Crest Forks are made from strong 4130 chromoly steel, feature "KINK BMX" and "CREST" branding on the legs, have a 30mm offset, and are shown against a white background.

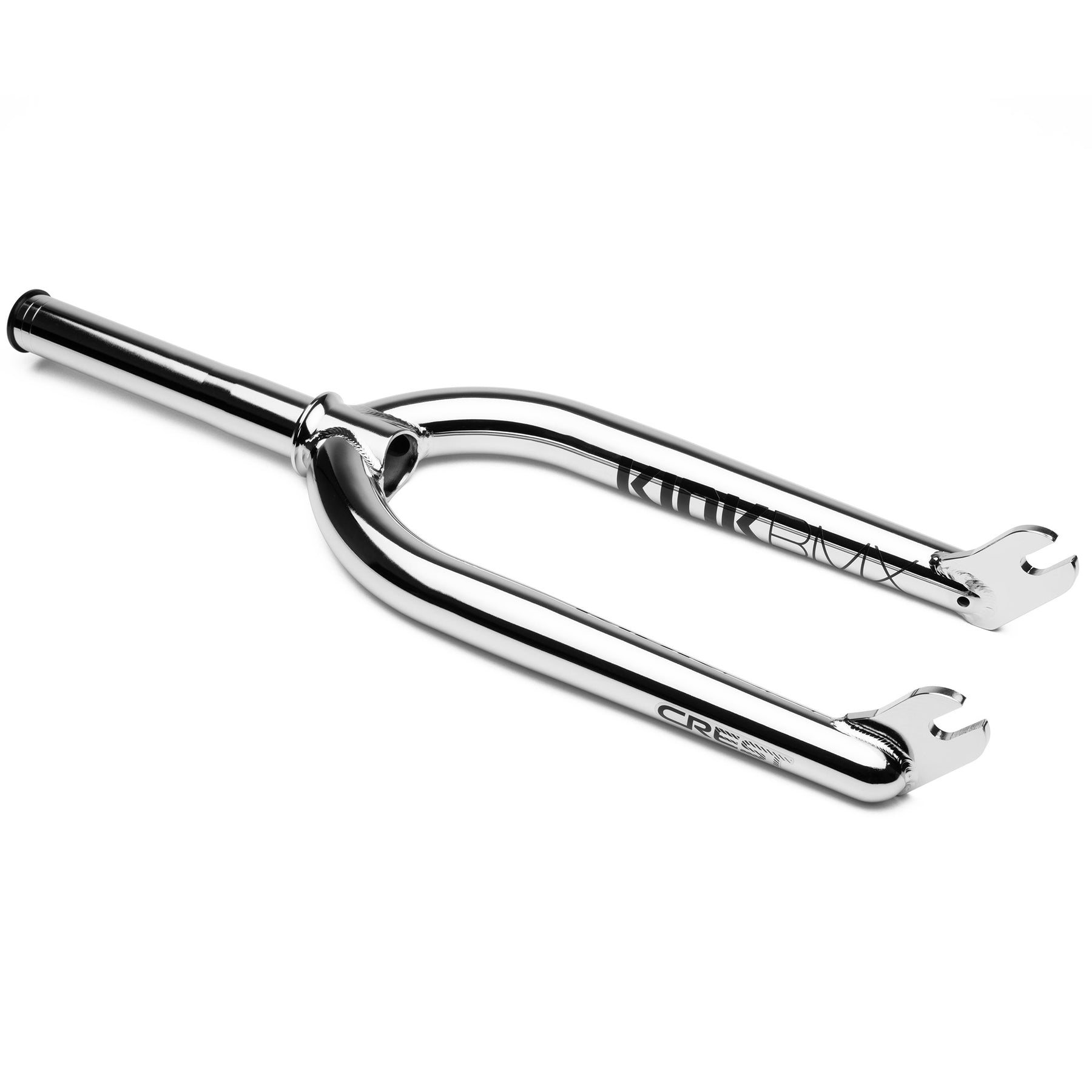

The Kink Crest Forks are made from 4130 chromoly steel with dropouts, a straight steerer tube, 30mm offset, and "CREST" branding on one leg, shown in chrome finish against a white background.

Description

The Kink Crest is a 30mm offset fork built from 100% 4130 chromoly steel. The flared crown design covers the lower headset bearing and meets flush with the head tube for a seamless look at the front end.

Domed end caps are slotted first, so the dropouts plug into the fork legs before welding and add both strength and stiffness. The dropout shape has been refined for peg clearance, the legs are tapered with internal butting, and the whole fork is fully post weld heat treated. Fork height is 316mm with a 165mm steerer, and a 7075-T6 aluminium fork cap bolt is included.

Features

Comfortable 30mm offset. A traditional offset that keeps the front end predictable, with the dropout shape refined around it.
Flared crown, seamless look. The crown covers the lower headset bearing and meets flush with the head tube, so there is no gap showing at the front.
Dropouts plugged into the legs. Domed end caps are slotted first so the dropouts sit inside the fork legs before welding, adding both strength and stiffness.
Dropout shape refined for pegs. The dropouts are shaped for optimal peg clearance, so a front peg sits where you want it.
Chromoly, post weld heat treated. 100% 4130 chromoly with TruTherm heat treatment after welding, tapered internally butted legs and a 7075-T6 aluminium fork cap bolt included.

Specifications

Material: 100% 4130 chromoly steel
Butting: Internal butting through the fork legs
Dropouts: 5mm laser cut, 10mm (3/8") slot
Steerer: 165mm steerer tube length
Fork offset: 30mm
Fork legs: Tapered with domed end caps
Axle size: 10mm (3/8") dropout slot
Peg compatible: Dropout shape refined for optimal peg clearance
Weight: 39.9oz including fork bolt
Note: 316mm fork height, integrated bearing race, M24×1.5mm compression bolt thread, 7075-T6 bolt taking a 3/8" ratchet or 6mm allen key, TruTherm post weld heat treated
