The Kink Crosscut Frame, made of durable 4130 Chromoly Tubing, showcases modern geometry and prominently features "Kink BMX" on its sleek black top tube with a white background.

A close-up of a black Kink Crosscut Frame casts a shadow with geometric modernity on a flat surface.

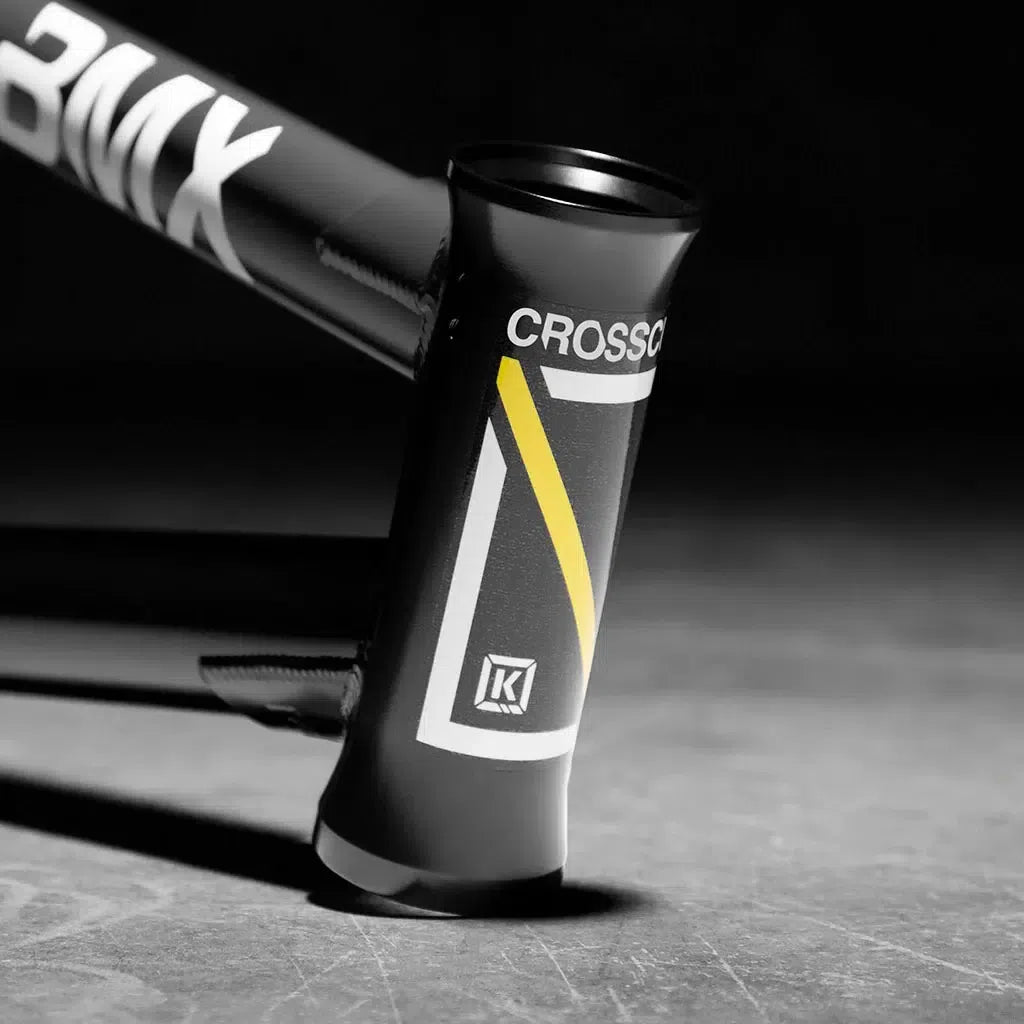

Close-up of the Kink Crosscut Frame BMX featuring a black design with white branding and a yellow stripe against a grey surface, highlighting its modern geometry.

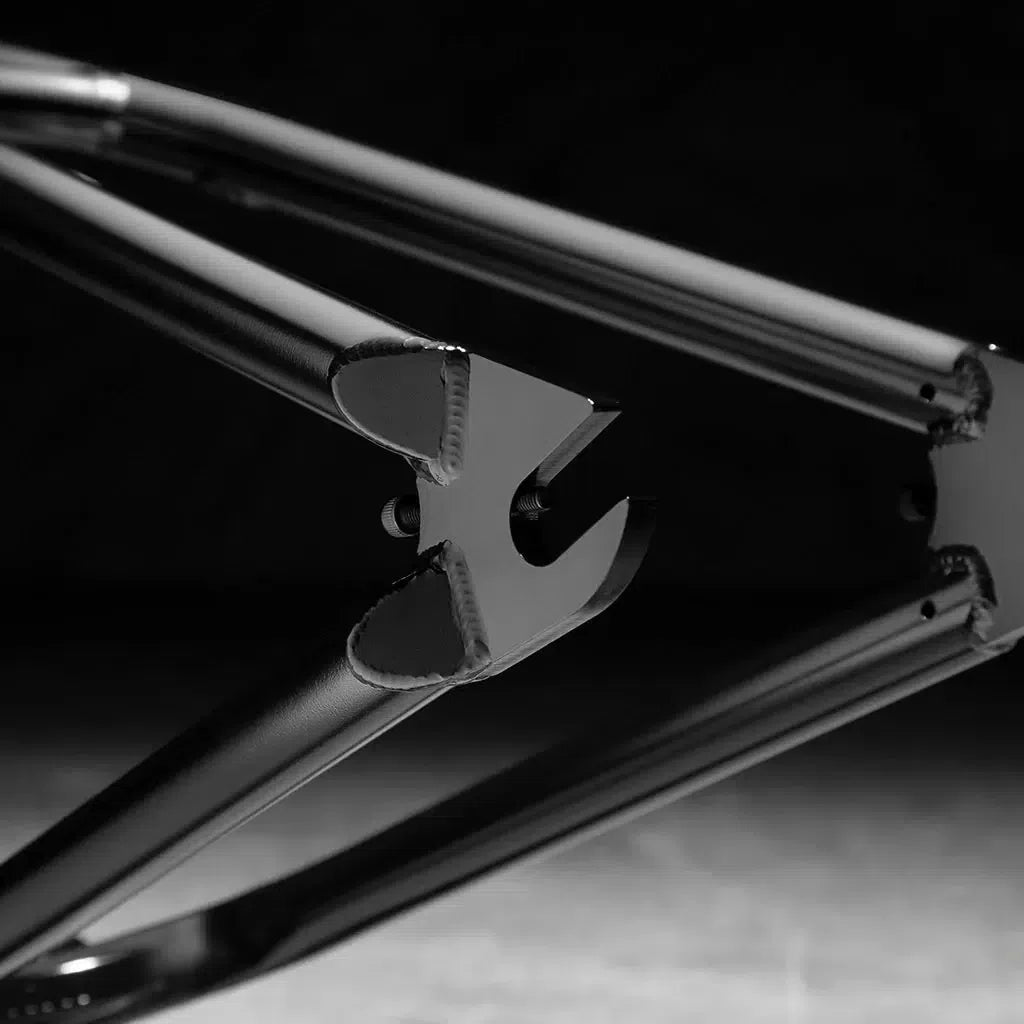

A close-up of the Kink Crosscut Frame dropout in black and white showcases precise metalwork, smooth welds, and modern geometry with integrated chain tensioners, all set against a dark background.

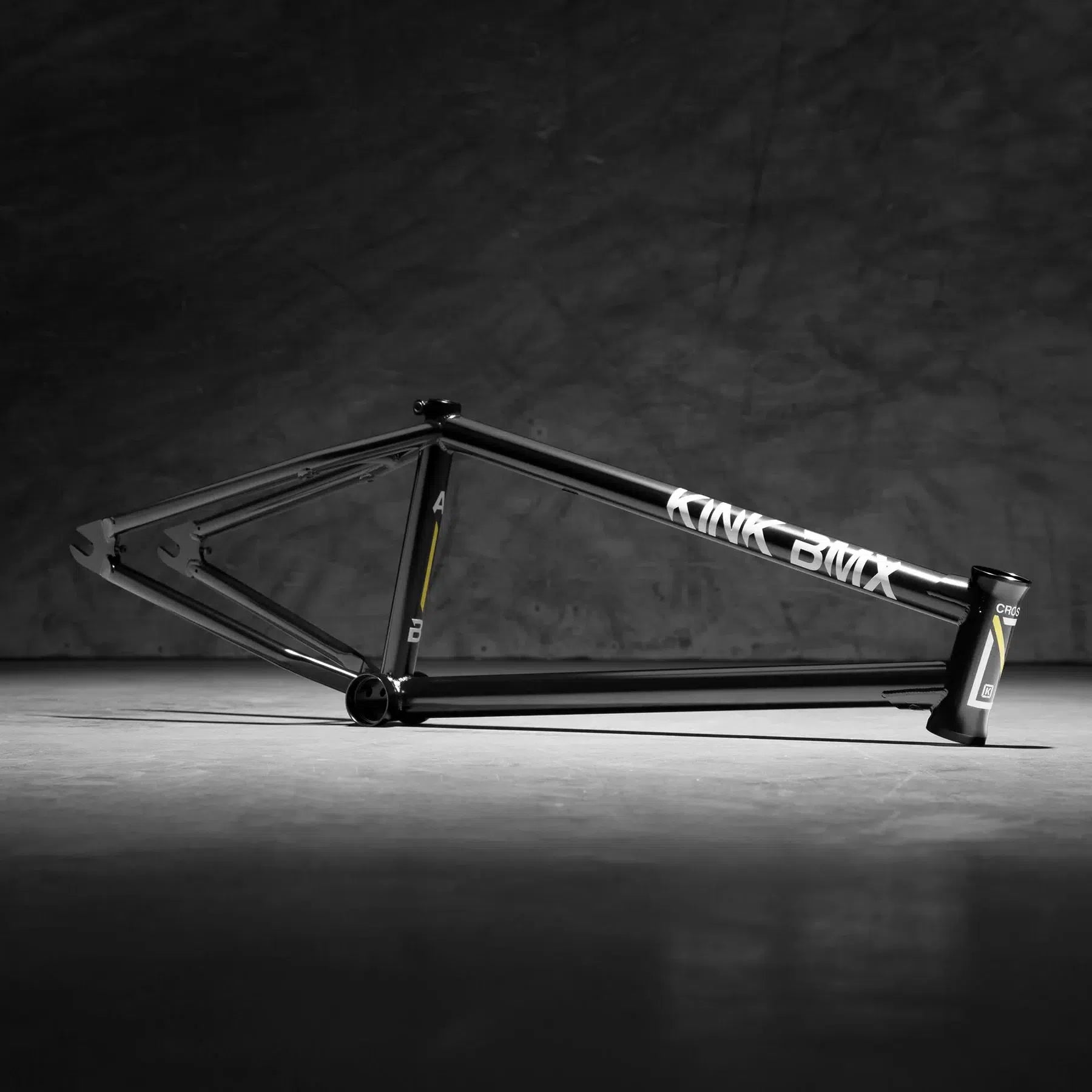

The Kink Crosscut Frame, a sleek black bicycle frame with white branding, rests on a concrete surface. Its modern-day geometry is highlighted against the dark textured background, and it features integrated chain tensioners for optimal performance.

Highlights

Double-butted top tube and down tube
Short 12.5" chainstays
Clears tyres up to 2.55"
Removable through-bolt brake mounts

Description

The Kink Crosscut is a modern-day beast of a frame.

The double-butted toptube and downtube with both upper and lower gussets will stand up to the hardest riding, and the short 12.5” chainstay length and quick 75.5° headtube angle make this frame nice and nimble. The generous 9.25” standover height gives the frame a clean and traditional look, but with the aforementioned modern-day geometry. The all new investment cast chainstay yoke enables you to ride any modern tire size up to 2.55” and run your choice of 25t or 28t sprocket. This frame also comes standard with an integrated seat post clamp, integrated chain tensioners, and removable brake mounts.

This frame is NICE!

Features

Double-butted top tube and down tube. Butted main tubes with both upper and lower gussets, built to stand up to the hardest riding.
Short 12.5" chainstays. Chain stays slammed at 12.5 inches and a quick 75.5° head tube angle make the frame nice and nimble.
Clears tyres up to 2.55". The investment cast chainstay yoke makes room for any modern tyre size up to 2.55 inches and your choice of 25t or 28t sprocket.
Removable through-bolt brake mounts. Run a rear brake or take the mounts off, and the integrated seat clamp holds a 25.4mm post without a separate clamp.
All 4130 chromoly, 2.239kg. 100% 4130 chromoly with laser cut dropouts and integrated chain tensioners, at 4lb 15oz for the 20.5 inch.

Specifications

Chainstay: 12.5" slammed
Head tube angle: 75.5°
Seat tube angle: 71°
Standover: 9.25"
Bottom bracket height: 11.6"
Bottom bracket: Mid, internally and externally machined
Material: 100% 4130 chromoly
Tubing: Top tube and down tube gussets, investment cast chainstay yoke
Butting: Double-butted top tube and down tube
Dropouts: Laser cut with integrated chain tensioners
Brake mounts: Removable through-bolt brake mount system
Head tube: Integrated, Campy spec, 5" height
Seat clamp: Integrated, 25.4mm seat post
Tyre clearance: Up to 2.55"
Weight: 4lb 15oz / 2.239kg (20.5")
Note: Runs a 25t or 28t sprocket.

Kink Crosscut Frame

Name: Kink Crosscut Frame
Brand: Kink
SKU: K6005-2000BED
Price: 599.99 AUD
Availability: OutOfStock
Rating: 5.0 (2 reviews)

Brand: Kink SKU: Click to copy the SKU and show the pick location

$599.99 AUD

Or 4 payments of $149.99 AUD with

Colour - Black

Top Tube Length - 20

Frames are sized by top tube length. Start with your height, then let riding style decide where in the range you land.

Rider height	Top tube
147 to 157cm	19.75 to 20.25"
157 to 168cm	20 to 20.5"
168 to 175cm	20.25 to 20.75"
175 to 183cm	20.5 to 21"
183 to 190cm and up	20.75 to 21.5"

The height bands overlap on purpose. If you land in two of them, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park. Plenty of riders, pros included, deliberately ride longer than a chart suggests.

How to measure

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the length of the tube you can see. Measure your current frame that way and compare.

Size up for stability through trails and transitions.
Size down if you want the bike quick and twitchy for spins and grinds.
Top tube is fixed once you buy, but chainstay length, stem length, fork offset and bar position all change how the built bike feels.

Not sure? Tell us your height and how you ride, and we will tell you what we would put you on.
