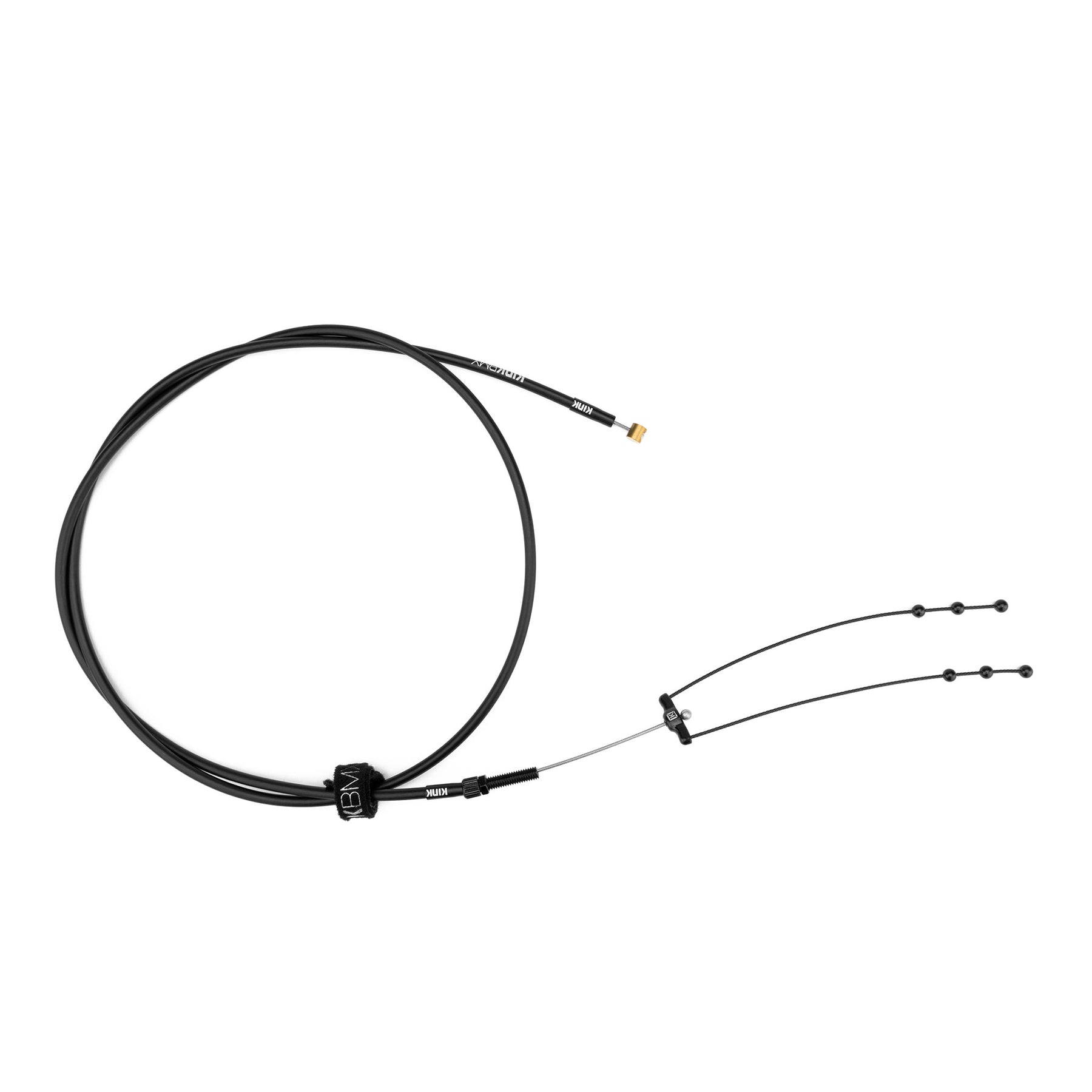

The Kink Linear One Piece Brake Cable, shown in black with housing and two cable ends, is a one-piece BMX brake cable displayed on a white background.

Highlights

One piece, minimal setup
Three preset straddle lengths
Needs a slotted guide and stop
Stiffer feel at the lever

Description

Kink's One Piece Cable runs the brake cable and straddle as a single unit, so there is far less to set up than a standard two piece system. It carries over the coated linear strand housing and 1.5mm pre-stretched slick wire from the DX linear cable.

Three preset straddle lengths cover modern frames and the leftover straddle trims off. It needs a slotted cable guide and cable stop, and works best on frames with a 245mm cable stop to mount distance.

Features

One piece, minimal setup. Cable and straddle come as a single unit, so brake installation is simpler and there is less to maintain later.
Three preset straddle lengths. The presets cover all modern frames and the leftover straddle cable trims off, no guesswork at fitting.
Needs a slotted guide and stop. The one piece design only threads through if your frame has a slotted cable guide and cable stop.
Stiffer feel at the lever. The single unit build increases braking stiffness, so more of your lever pull ends up at the pads.
1.5mm pre-stretched slick wire. Coated linear strand housing over pre-stretched wire, finished with a two piece bind free brass lug.

Specifications

Fits: Frames with 245mm cable stop to mount distance
Length: 50"
Cable: 1.5mm pre-stretched slick wire, coated linear strand housing, two-piece bind free brass lug
Weight: 3.0oz
Note: Requires a slotted cable guide and cable stop.
