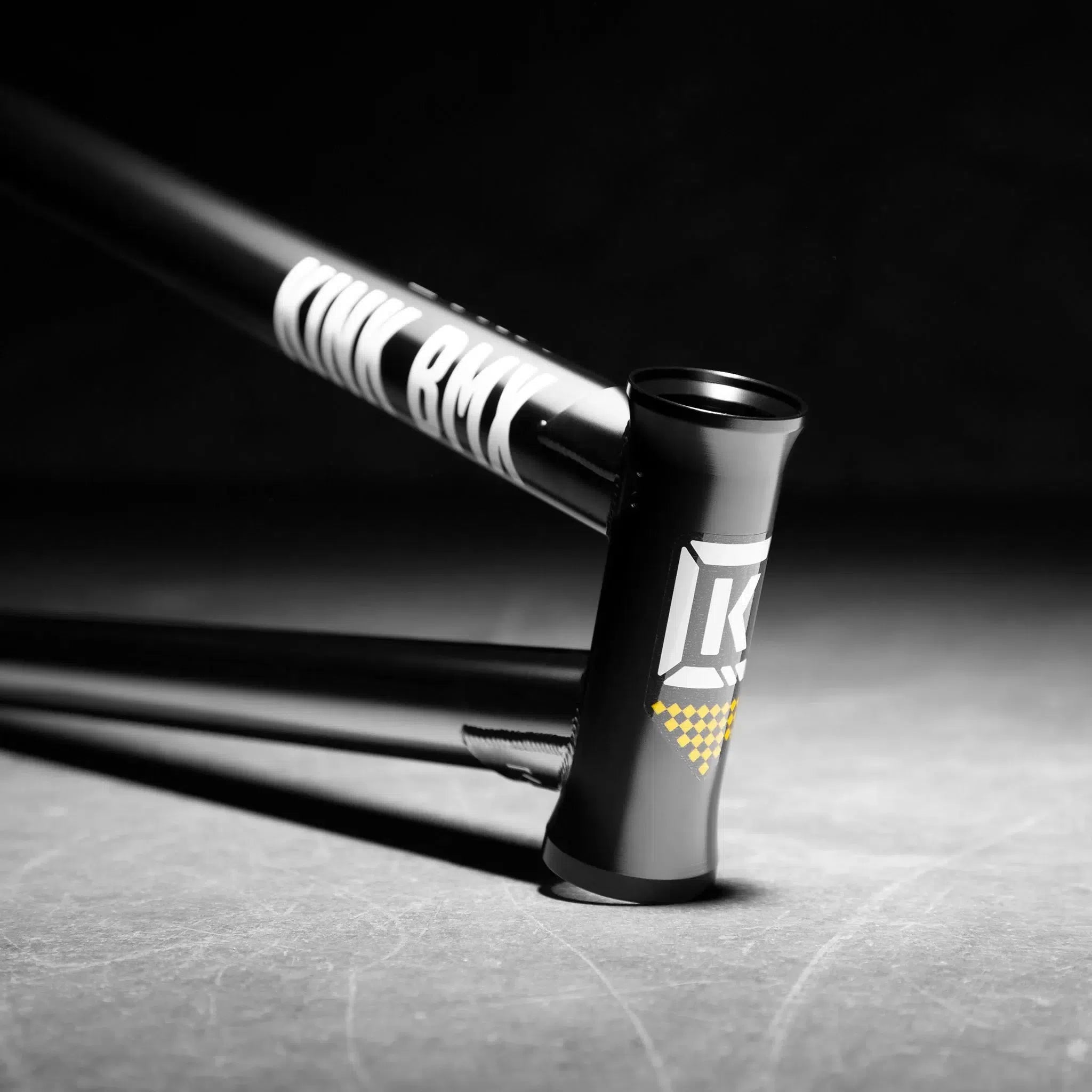

Close-up of a Kink Royale Frame BMX bike in black, featuring branding logos and made from durable chromoly tubing, positioned diagonally on a lit concrete surface—ideal for street and plaza riding.

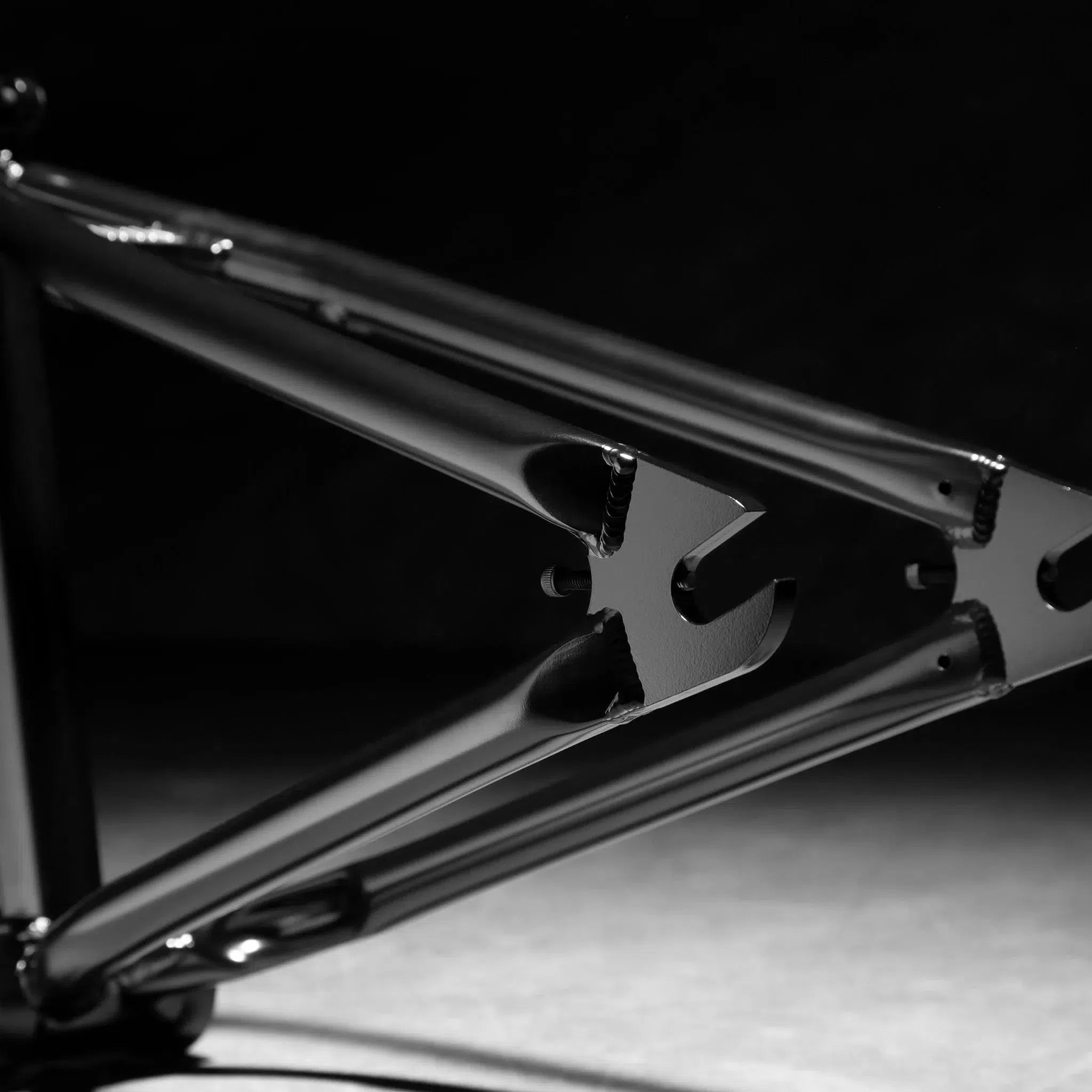

Close-up of a Kink Royale Frame, made from 4130 chromoly tubing, highlights its geometric design and structural details with built-in chain tensioners against a dark background.

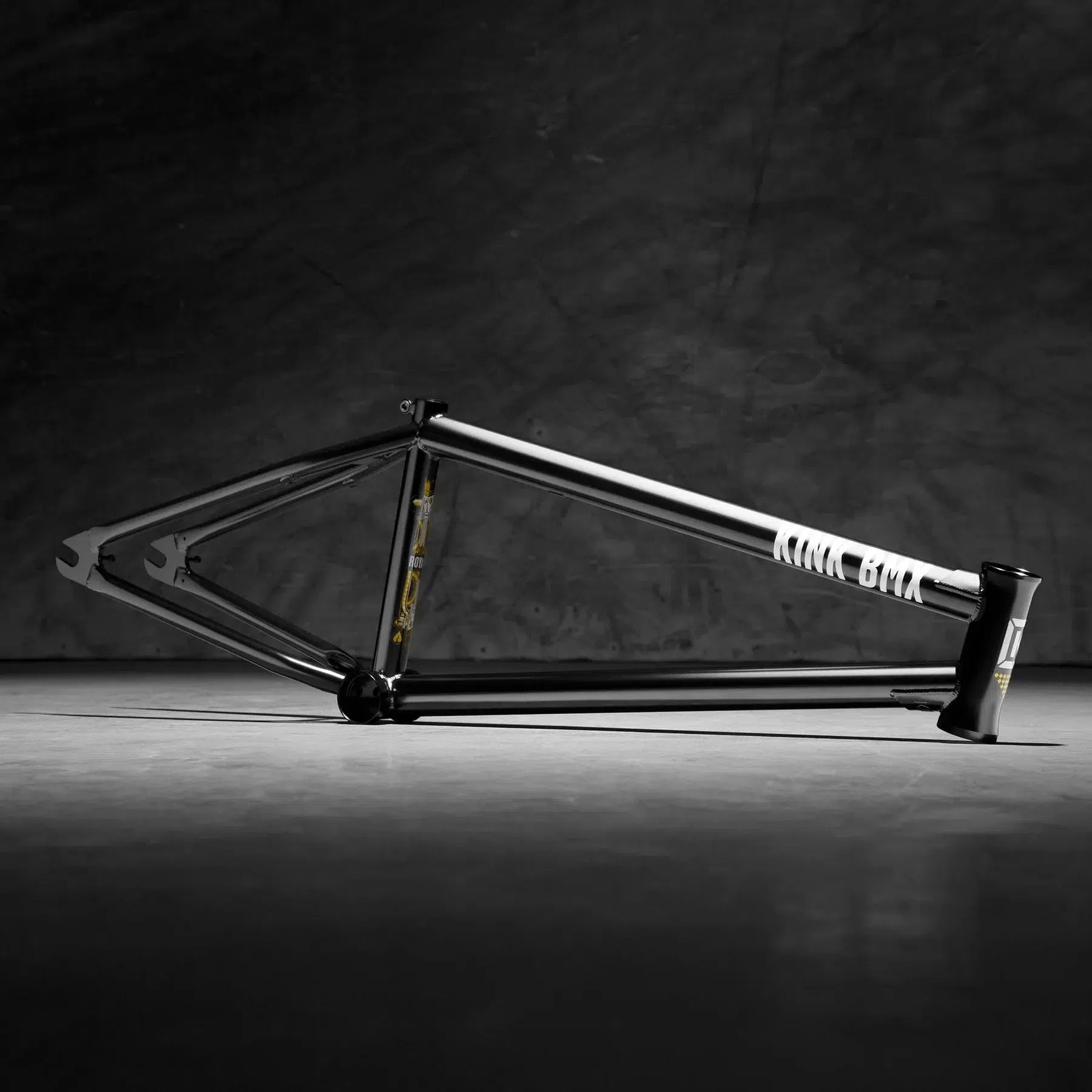

The Kink Royale Frame, made from sturdy 4130 chromoly tubing, rests on a concrete floor against a dark backdrop. Its black and white design features integrated chain tensioners, enhancing both its style and functionality.

Kink Royale Frame / Gloss Gilded Bronze / 20.5TT

Kink Royale Frame / Gloss Imperial Purple / 20.5TT

Highlights

76° head tube, 12.5" chainstays
Gussets at both main tubes
Clears a 2.55" tyre
Integrated clamp and chain tensioners

Description

All street, all day. The Royale frame features progressive geometry throughout the design with premium grade materials and craftsmanship to back them up. A 76-degree headtube angle and 12.5” chainstay length make the Royale frame compact and responsive, ideal for modern day street and plaza riding. 100% 4130 chromoly tubing and both toptube and downtube gussets provide a ton of strength and stiffness. Custom interior chainstay forming provides tire clearance up to 2.55” and the seatstay bridge features a brass badge inlay. This frame comes standard with an integrated seat post clamp, integrated chain tensioners, and removable brake lugs for those looking to install brakes (mount kit sold separately).

Features

76° head tube, 12.5" chainstays. Compact and responsive, cut for modern street and plaza riding where the bike needs to turn on the spot.
Gussets at both main tubes. Top tube and down tube gussets add strength and stiffness where a street frame cops the hardest hits.
Clears a 2.55" tyre. Interior chainstay forming makes room for a fat rear tyre without stretching the back end out longer.
Integrated clamp and chain tensioners. A 25.4mm integrated seat post clamp and built in tensioners keep the frame tidy and quick to set up.
Removable through-bolt brake mounts. Run a rear brake or strip the mounts off for a clean look. Mount hardware is not included.

Specifications

Chainstay: 12.5" slammed
Head tube angle: 76°
Seat tube angle: 71°
Standover: 9"
Bottom bracket height: 11.7"
Bottom bracket: Mid, internally and externally machined
Material: 100% 4130 chromoly tubing
Dropouts: Laser cut with integrated chain tensioners
Brake mounts: Removable through-bolt system, hardware not included
Head tube: Integrated Campy spec, 5" tall
Seat clamp: Integrated, 25.4mm seat post
Tyre clearance: Up to 2.55"
Weight: 5lb 4oz / 2.381kg (20.5")
Note: Top tube and down tube gussets, CNC machined seatstay bridge with Kink badge inlay

Kink Royale Frame

Name: Kink Royale Frame
Brand: Kink
SKU: K6022-2050BED
Price: 579.99 AUD
Availability: OutOfStock

Brand: Kink SKU: Click to copy the SKU and show the pick location

$579.99 AUD

Or 4 payments of $144.99 AUD with

Colour - Black

Top Tube Length - 20.5

Frames are sized by top tube length. Start with your height, then let riding style decide where in the range you land.

Rider height	Top tube
147 to 157cm	19.75 to 20.25"
157 to 168cm	20 to 20.5"
168 to 175cm	20.25 to 20.75"
175 to 183cm	20.5 to 21"
183 to 190cm and up	20.75 to 21.5"

The height bands overlap on purpose. If you land in two of them, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park. Plenty of riders, pros included, deliberately ride longer than a chart suggests.

How to measure

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the length of the tube you can see. Measure your current frame that way and compare.

Size up for stability through trails and transitions.
Size down if you want the bike quick and twitchy for spins and grinds.
Top tube is fixed once you buy, but chainstay length, stem length, fork offset and bar position all change how the built bike feels.

Not sure? Tell us your height and how you ride, and we will tell you what we would put you on.

Read the full buying guide

Frames are sized by top tube length. Start with your height, then let riding style decide where in the range you land.

Rider height	Top tube
147 to 157cm	19.75 to 20.25"
157 to 168cm	20 to 20.5"
168 to 175cm	20.25 to 20.75"
175 to 183cm	20.5 to 21"
183 to 190cm and up	20.75 to 21.5"

How to measure

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the length of the tube you can see. Measure your current frame that way and compare.

Size up for stability through trails and transitions.
Size down if you want the bike quick and twitchy for spins and grinds.
Top tube is fixed once you buy, but chainstay length, stem length, fork offset and bar position all change how the built bike feels.

Not sure? Tell us your height and how you ride, and we will tell you what we would put you on.

Read the full buying guide

Kink Royale Frame - Black / 20.5
