Highlights

Built for strength
39mm wide
Extra thick centre rib
Welded seam

Description

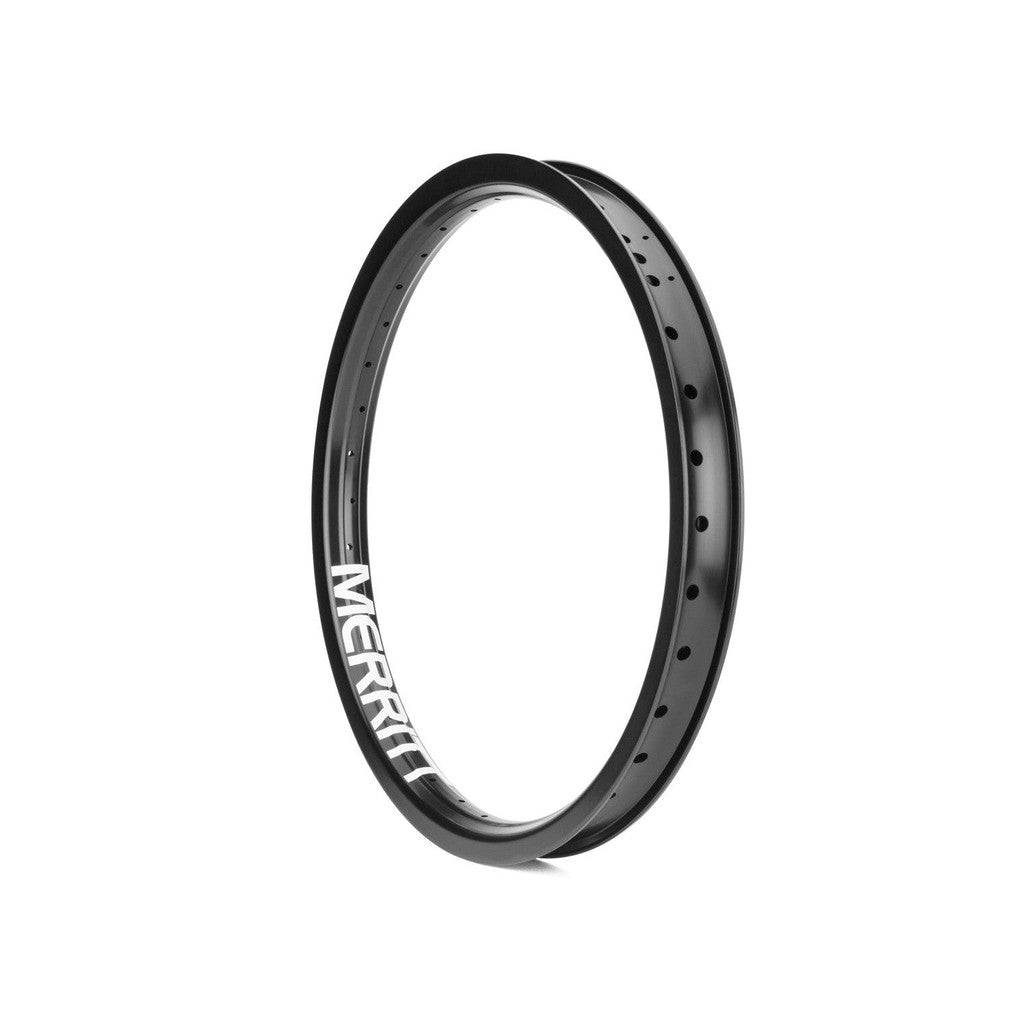

With the Merritt Battle rim strength and durability are it's top priorities. Going against the trend of today's low profile BMX rims, the Battle rim is extruded from 6066 aluminum and uses taller sidewalls, a 39mm width, extra thick center rib to prevent spoke pull through and a welded seam.

Features

Built for strength. Extruded from 6066 aluminium with taller sidewalls, so it stands up better than a low profile rim.
39mm wide. The extra width supports a fatter tyre and gives you a bigger footprint on the ground.
Extra thick centre rib. A thicker centre section stops spokes pulling through the rim when you run the wheel up to tension.
Welded seam. The welded join keeps the hoop round and consistent all the way through the rim.
ERD listed at 379.5mm. A published effective rim diameter takes the guesswork out of ordering spokes for a new build.

Specifications

Material: 6066 extruded aluminium
Rim width: 39mm
Note: ERD 379.5mm. Welded seam, taller sidewalls, extra thick centre rib.

Spoke calculator

Display

Pick the part it is laced to and we will give you the lengths to buy.

This rim

Looking up its measurements.

Check or change its figures

ERD effective rim diameter, from the spec sheet mm

Laced to which hub?

Find your hub

Or type its figures

Hub spacing locknut to locknut, 100 front or 110 rear on most BMX mm Same both sides front hubs, or matching flanges

Flange diameter/PCD (pitch circle diameter) spoke hole centre to the opposite hole centre. The drive side is the driver side, left or right hand drive alike, and is usually the bigger flange

Drive side mm Non-drive side mm

Flange position

Flange to locknut Centre to flange

Drive side mm Non-drive side mm
