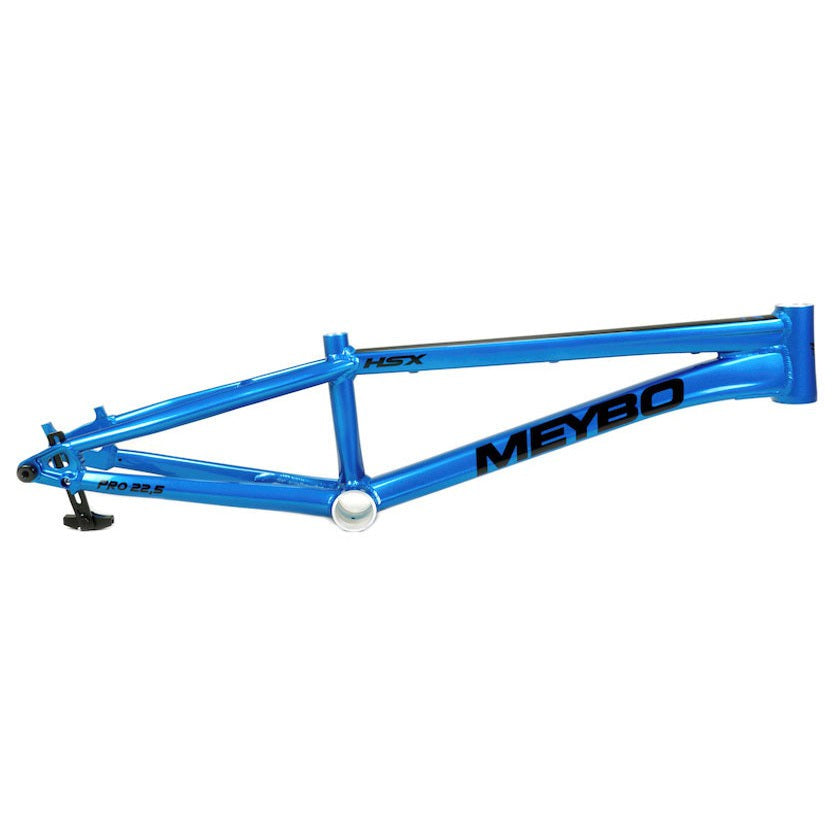

Meybo HSX Frame Expert (2021) / Blue Gloss / 19.7TT

Highlights

  • Holeshot geometry, five years in
  • Fixed rear end with chain tensioners
  • Disc brake only
  • 6061 T-6 multiple butted tubing

Description

The revolutionary Meybo HSX frame is set to become one of the fastest frames at the race track. After 5 years in development, the World Cup winning Holeshot geometry is now available with all new factory features allowing for optimal power transmission and the ideal combination of stiffness and handling. The Dutch National BMX know a thing or two about winning and Meybo has applied the knowledge and feedback from these dominant racers and baked it into the HSX frame.

Look at this thing! Fixed rear end and chain tensioner set up means that those gearing changes happen lightning fast. Unbolt the rear wheel, swap out that 50/18 for something a little lighter for the holeshot in the final and never have to worry about the rear wheel moving in the dropout.

This frame is disc brake only with a dedicated caliper mount that's as clean as we've seen here at LUXBMX. We've already built a few of the special Olympic frames here in the shop and they are hands down some of the best manufactured alloy frames we've bolted together. And light! For such big and beefy race rigs, we've seen a Pro XXXL hit the scales at just 8.6kg fully loaded with fluids and pedals. That's unbelievably light for a 22" alloy race bike.

Manufactured from 6061 T-6 multiple butted hydroformed tubing, the HSX frame includes a unique CNC Alloy / PE1000 Meybo chain tensioner system and comes supplied with a 7005 CNC 15mm rear axle.

Features
  • Holeshot geometry, five years in. The World Cup winning Meybo Holeshot geometry, developed with feedback from the dominant Dutch national team, now with all new factory features.
  • Fixed rear end with chain tensioners. Gearing changes happen fast: unbolt the rear wheel, swap the gear, and never worry about the wheel moving in the dropout.
  • Disc brake only. A dedicated calliper mount that is as clean as we have seen here at LUXBMX, with nothing left over on the stays.
  • 6061 T-6 multiple butted tubing. Hydroformed alloy shaped for optimal power transmission and the right combination of stiffness and handling, without carrying extra weight.
  • Comes with a 7005 CNC rear axle. A 15mm alloy axle and the unique CNC alloy and PE1000 Meybo chain tensioner system are supplied with the frame.

Specifications
  • Sizes: Expert XL, Pro L, Pro XL, Pro XXL, Pro XXXL, Cruiser
  • Top tube: Expert XL 20.7", Pro L 21", Pro XL 21.5", Pro XXL 22", Pro XXXL 22.5", Cruiser 22.25"
  • Material: 6061 T-6 alloy
  • Tubing: Hydroformed
  • Butting: Multiple butted
  • Dropouts: Fixed rear end with CNC alloy and PE1000 Meybo chain tensioner system
  • Brake mounts: Disc only, dedicated calliper mount
  • Axle: 7005 CNC rear axle supplied
  • Axle size: 15mm

Meybo HSX Frame Expert (2021)

Brand: Meybo SKU:

From

$699.99 AUD

 $1,599.99 AUD

Or 4 payments of $174.99 AUD with

Colour - Blue Gloss

Top Tube Length - 19.7

BMX race bike sizing

Race frames are sized by class, and the class you ride is set by rider height rather than age.

SizeRider heightTop tube
Micro (18" wheels)Under 110cm16.25"
Mini (20" wheels)110 to 125cm17 to 18"
Junior120 to 140cm18.25 to 18.75"
Expert135 to 155cm19.5 to 19.75"
Expert XL150 to 165cm20 to 20.75"
Pro160 to 170cm20.25 to 20.75"
Pro XL165 to 175cm21 to 21.25"
Pro XXL170 to 185cm and up21.5 to 21.85"
Pro XXXL175 to 185cm and up22"
Pro XXXXL185cm and up22.5"
Cruiser (24" wheels)175cm and up21.5" and up

Heights overlap between bike sizes on purpose. If you fall in two size categories, a growing rider new to racing is usually better suited to the larger bike, a experienced rider who wants the bike to more responsive should err on the smaller size. Some brands label the Pro size Pro L, with the same fit.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark. Just don't guess their height either, you know how fast they can grow!

Here are some tips

  • Between two sizes and still growing? Take the larger size, but make sure you check the top tube length of the bike. The length of top tube for a given size (Expert XL as an example) can vary up to a half inch or more across brands. Most Expert XL frames are 20", but we've seen them as long as 20.7"
  • Experienced racer and wanting the bike to be more responsive? Take the smaller size. You want the bike to be "under you", not a stretch to the bars and cranks.
  • Top tube is the number that actually changes the fit, so compare it against the bike they ride now.

Still not sure? We're the experts and size bikes for riders every day of the week. Our team has decades of experience between them and will help you decide which bike is the right fit based on rider height and racing experience.

Read the full buying guide

BMX race bike sizing

Race frames are sized by class, and the class you ride is set by rider height rather than age.

SizeRider heightTop tube
Micro (18" wheels)Under 110cm16.25"
Mini (20" wheels)110 to 125cm17 to 18"
Junior120 to 140cm18.25 to 18.75"
Expert135 to 155cm19.5 to 19.75"
Expert XL150 to 165cm20 to 20.75"
Pro160 to 170cm20.25 to 20.75"
Pro XL165 to 175cm21 to 21.25"
Pro XXL170 to 185cm and up21.5 to 21.85"
Pro XXXL175 to 185cm and up22"
Pro XXXXL185cm and up22.5"
Cruiser (24" wheels)175cm and up21.5" and up

Heights overlap between bike sizes on purpose. If you fall in two size categories, a growing rider new to racing is usually better suited to the larger bike, a experienced rider who wants the bike to more responsive should err on the smaller size. Some brands label the Pro size Pro L, with the same fit.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark. Just don't guess their height either, you know how fast they can grow!

Here are some tips

  • Between two sizes and still growing? Take the larger size, but make sure you check the top tube length of the bike. The length of top tube for a given size (Expert XL as an example) can vary up to a half inch or more across brands. Most Expert XL frames are 20", but we've seen them as long as 20.7"
  • Experienced racer and wanting the bike to be more responsive? Take the smaller size. You want the bike to be "under you", not a stretch to the bars and cranks.
  • Top tube is the number that actually changes the fit, so compare it against the bike they ride now.

Still not sure? We're the experts and size bikes for riders every day of the week. Our team has decades of experience between them and will help you decide which bike is the right fit based on rider height and racing experience.

Read the full buying guide
