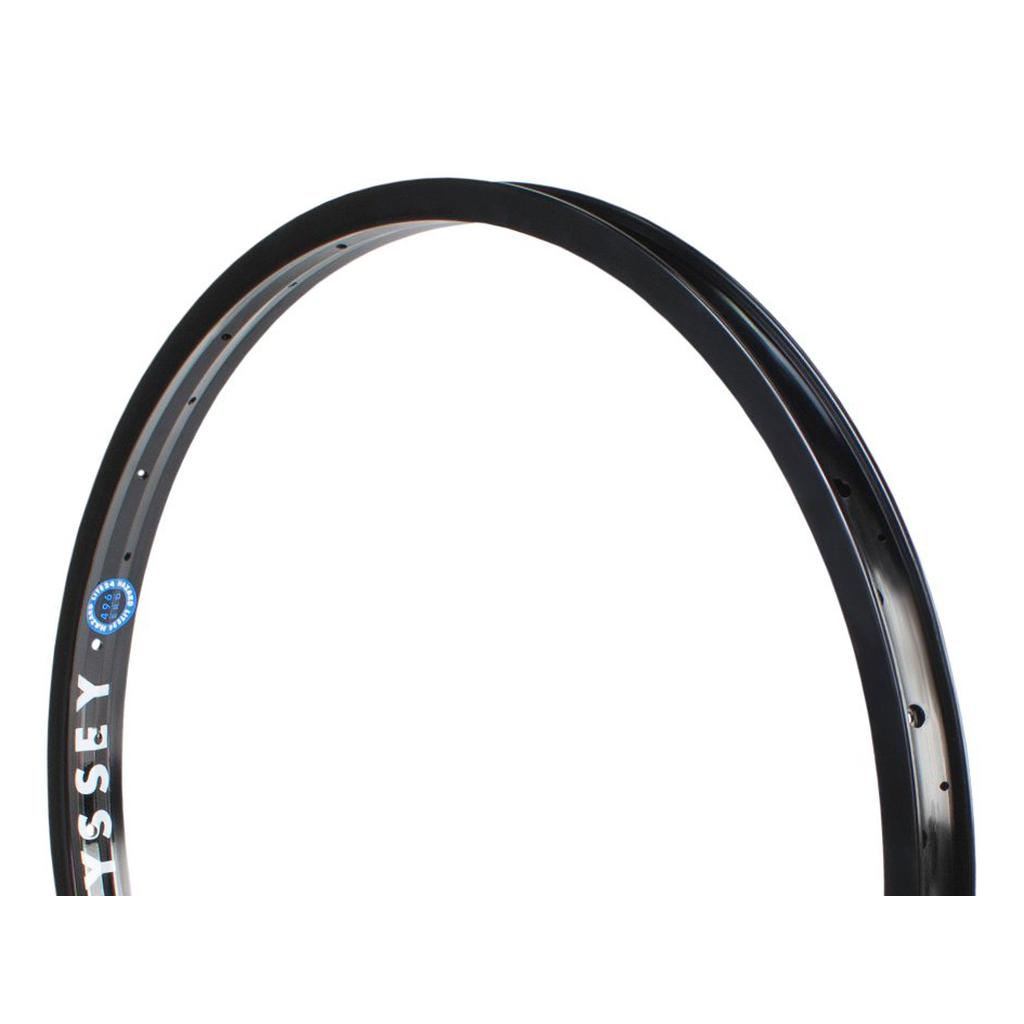

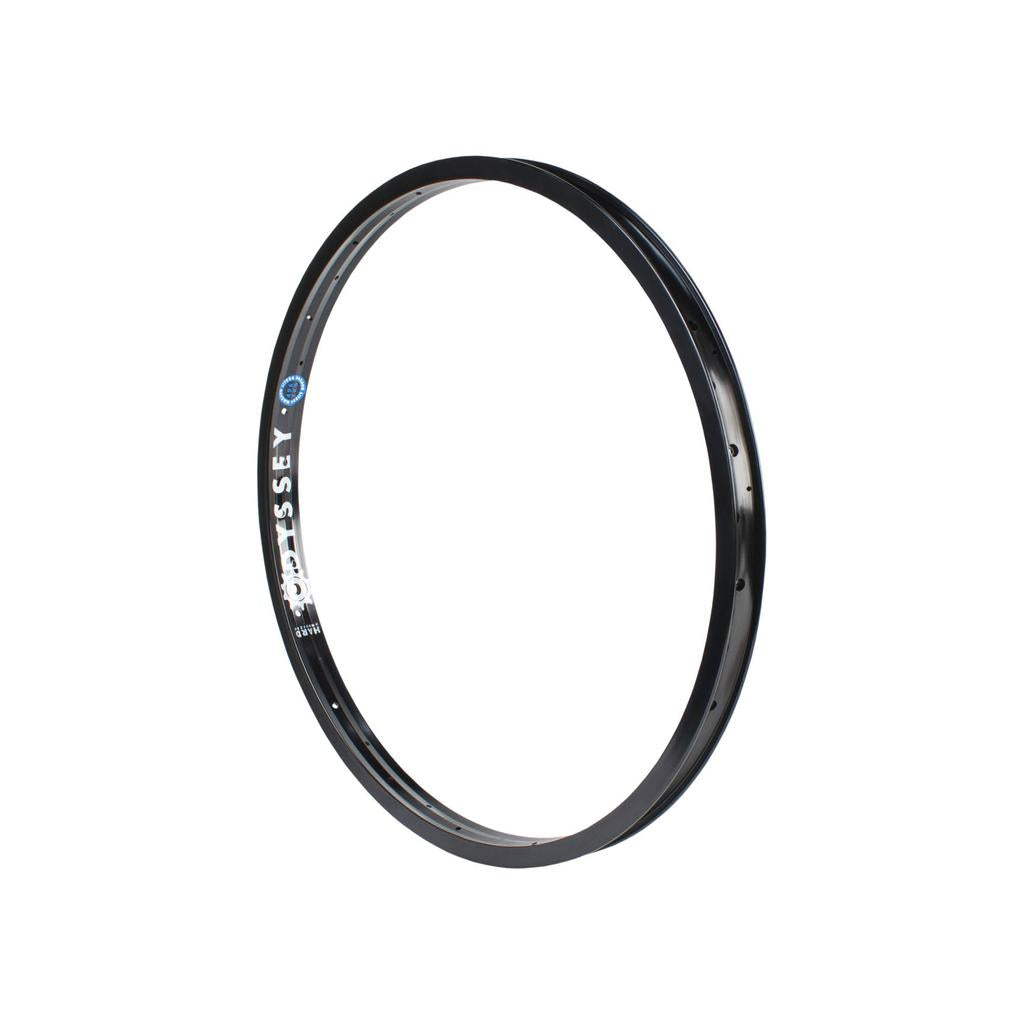

Lightweight black 24-inch Odyssey Hazard Lite 24 Inch Rim (36H) with 36 spoke holes.

Lightweight black Odyssey Hazard Lite 24 Inch Rim (36H) with spoke holes.

Highlights

Fully welded joint
Directional spoke hole drilling
Trademarked cross-section design
24 inch, 36 hole

Description

The Hazard Lite is a true BMX classic, respected for its strength, reliability and light weight. It is often imitated but never matched in quality or durability, and it is the rim of choice for some of the world's best riders. This is the 24 inch version.

It is built from 6061-T6 aluminium with a fully welded joint, directional spoke hole drilling and Odyssey's trademarked cross-section design. Drilled 36 hole, 32mm wide and 17mm tall, with an ERD of 496mm.

About the Brand

Odyssey BMX is dedicated to quality and innovation. Odyssey has been a major player in the BMX industry for a long time now and has produced some of the most iconic and groundbreaking parts in the sport's history.

Features

Fully welded joint. The rim joint is welded rather than left as a plain seam, which is a big part of the Hazard Lite's reputation for strength.
Directional spoke hole drilling. Each hole is drilled to suit the direction its spoke pulls, so the spoke sits in line with the rim.

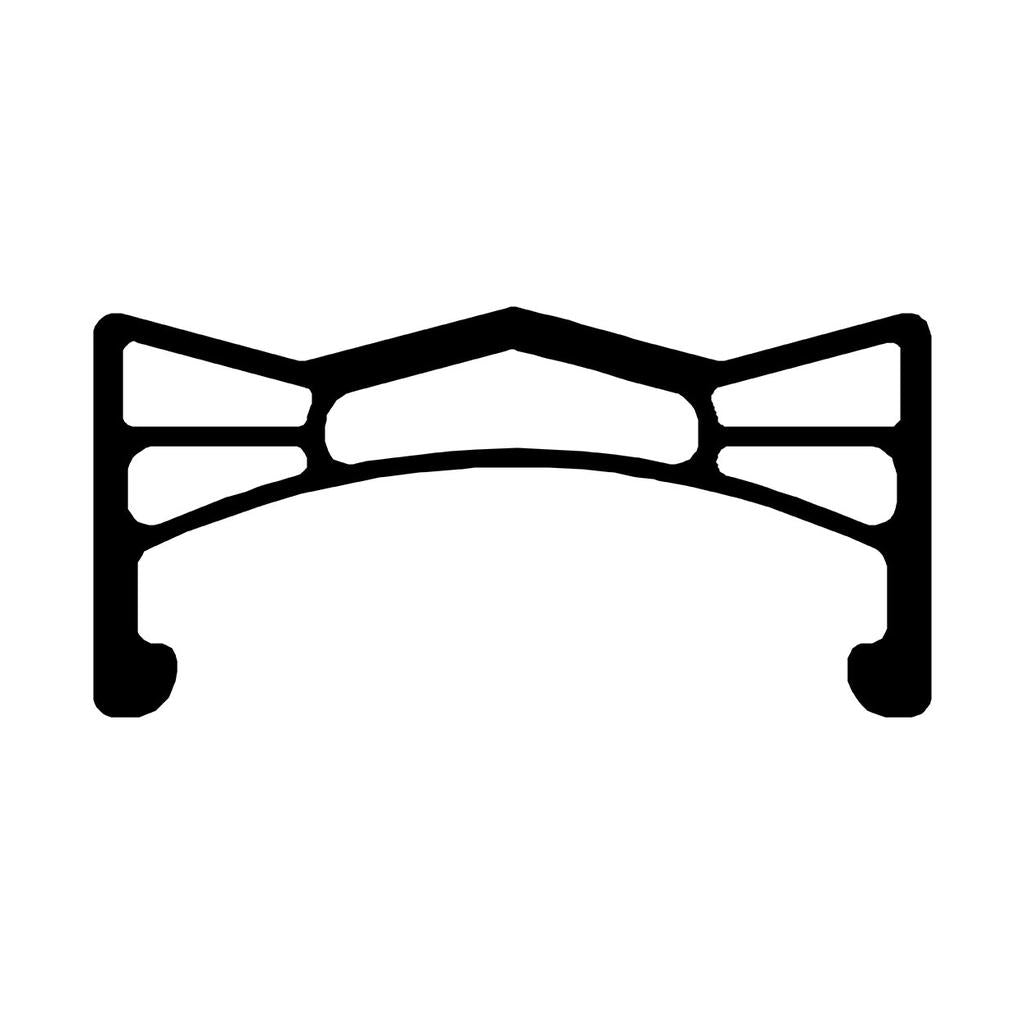

Trademarked cross-section design. Odyssey's own rim profile is the shape that has been copied for years and still holds up.
24 inch, 36 hole. Drilled 36 hole for a 24 inch wheel, with an ERD of 496mm to work out your spoke lengths.
32mm wide, 17mm tall. A wide 6061-T6 extrusion that keeps the weight down while staying burly enough to trust.

Specifications

Wheel size: 24"
Material: 6061-T6 aluminium
Hole count: 36 hole
Rim width: 32mm
Rim depth: 17mm
Note: ERD 496mm.

Spoke calculator

Display

Pick the part it is laced to and we will give you the lengths to buy.

This rim

Looking up its measurements.

Check or change its figures

ERD effective rim diameter, from the spec sheet mm

Laced to which hub?

Find your hub

Or type its figures

Hub spacing locknut to locknut, 100 front or 110 rear on most BMX mm Same both sides front hubs, or matching flanges

Flange diameter/PCD (pitch circle diameter) spoke hole centre to the opposite hole centre. The drive side is the driver side, left or right hand drive alike, and is usually the bigger flange

Drive side mm Non-drive side mm

Flange position

Flange to locknut Centre to flange

Drive side mm Non-drive side mm
