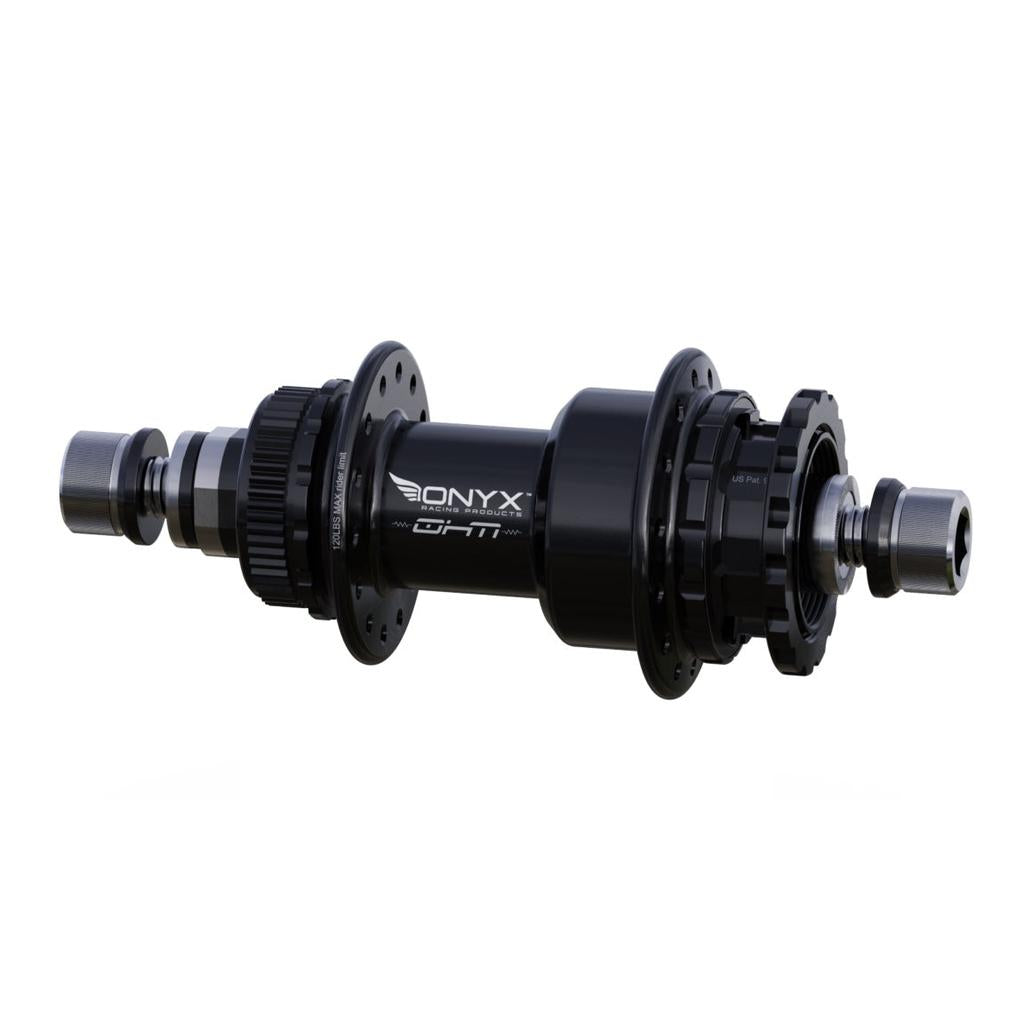

The Onyx BMX OHM CL HG-110/10mm Bolt-on Rear Hub, in black, is shown on a white background. Designed for BMX racing, it features multiple flanges and axles plus Sprag Clutch engagement for instant power transfer.

Description

Finally, a disc version Onyx Hub dedicated to the little speedsters of BMX!

These 28 hole Onyx OHM Race hubs deliver all the benefits of the Sprag Clutch engagement system found in higher end Onyx hubs, at a lighter and more affordable rate for the new generation of riders. Onyx 2025 OHM Race hubs feature EZO bearings and titanium bolts.

Since the OHM hubs came onto the BMX race scene a few years ago these have dominated the top end of hubs for custom bike builds here at LUX. Frankly, we just don't spec any other hub if you're after the very best in performance. Light weight and with all the trademark precision of Onyx manufacturing, pair these with a set of carbon rims and your young racer is set all the way until they move up to a more heavy duty 36 hole set up.

Features
  • Sprag clutch engagement. The same engagement system found in higher end Onyx hubs, so there is no dead spot when you jump on the pedals.
  • Built for 28 hole race wheels. Drilled 28 hole for lighter race builds, which suits younger racers until they move up to a heavier duty 36 hole setup.
  • Centre Lock disc compatible. Takes a centre lock rotor, though the centre lock hardware is not included, so order that separately.
  • 10mm bolt-on, titanium bolts. Bolts into 10mm dropouts on M10 titanium axle bolts, keeping weight off the back of the bike.
  • 335g on the scales. EZO cartridge bearings and a light shell bring it to 335g, with a 120 lb (54.4 kg) rider weight limit.

Specifications
  • Bearings: EZO cartridge
  • Engagement: Sprag Clutch
  • Driver: HG (Shimano) compatible, internal and external lock ring capability
  • Hole count: 28
  • Axle: 10mm bolt-on with M10 titanium axle bolts
  • Mount: Centre Lock (CL) disc
  • Weight: 11.8 oz / 335 g
  • Note: 120 lb (54.4 kg) rider weight limit. Centre lock hardware is not included. Tightening the axle bolts past 15NM will void the warranty.

Spoke calculator
Display

Pick the part it is laced to and we will give you the lengths to buy.

This hub

Looking up its measurements.

Check or change its figures

Flange diameter spoke hole centre to the opposite hole centre. The drive side is the driver side, left or right hand drive alike, and is usually the bigger flange

Flange position

Laced to which rim?

Or type its figures

Spoke lengths to buy

Drive side —mm
Non-drive side —mm

Pick the rim and your lengths will appear here.

Open the full spoke calculator for offset rims, other cross patterns and measuring help.

Onyx BMX OHM CL HG-110/10mm Bolt-on Rear Hub

Brand: Onyx SKU:

$749.99 AUD

Or 4 payments of $187.49 AUD with

Colour - Black

Spoke Holes - 28 Hole

Drive Side - Right Hand Drive

Onyx BMX OHM CL HG-110/10mm Bolt-on Rear Hub - Black / 28 Hole / Right Hand Drive

$749.99 AUD
