Highlights

  • 110mm rear, 15mm thru-bolt
  • Converts to other axle standards
  • Ceramic hybrid bearings
  • Silent instant engagement

Description

The Onyx ULTRA SS hub is the big boy of the formidable Onyx hub line up and is regarded in the circles of elite BMX racing as the only hub to run, bar none! The Ultra SS's versatility is one of its strongest features as it allows for multiple axle configurations from a 10mm bolt up spec, to 15 and 20mm thru-bolt versions. This means that you can swap frame brands without having to change your wheelsets, potentially saving you plenty of headache and dollars as we have the components at LUXBMX to re-configure Onyx hubs (front and rear). The highlights here are the ceramic hybrid bearings giving you virtually zero drag and the bigger patented sprag clutch mechanism.

Onyx's reputation has been forged in the cauldron of international UCI SX racing, with their hubs dominating gates in the 2020 Tokyo Olympics, withstanding the power output levels of the best racers in the world of BMX. There is absolutely one component you do not want failing on an 8m hill, and that's your rear hub. In addition to this bomb proof strength, the rear hub design featuring infinite engagement points means that you can place your crank height millimetre perfect on the gate. Maximising the drive of your first pedal, with the confidence that you can crank at full noise down any hill without the worry of hub failure.

LUXBMX has invested heavily in this brand and in addition to carrying the full BMX race range of hubs, has been approved by Onyx Racing Products USA as the Australian service centre for Onyx hubs and as such, carries a comprehensive range of spare parts for replacement, warranty work, and servicing of Onyx hubs. Offered uniquely under the Spectre brand in matte black, this is possibly the last rear hub you will ever have to buy.

Features

  • 110mm rear, 15mm thru-bolt. This one is the OX-110 hub in 15mm thru-bolt form, and thru-bolt axles are sold separately.
  • Converts to other axle standards. The 20mm axle hub can be converted to 3/8 inch bolt on, 12mm and 15mm thru axles, so you can change frames and keep the wheel.
  • Ceramic hybrid bearings. Ceramic hybrid bearings with adjustable preload keep rolling resistance extremely low, and sideload is adjustable too.
  • Silent instant engagement. The patented sprag clutch gives infinite engagement points, so you can set crank height millimetre perfect on the gate.
  • Runs OX compatible cogs. The hardened stainless driver takes OX compatible cogs, not included, and has an integrated labyrinth seal to keep dirt out.

Specifications

  • Fits: 110mm rear dropout spacing, set up as 15mm thru-bolt
  • Width: 110mm
  • Material: 7075 aluminium hub shell
  • Bearings: Ceramic hybrid, adjustable preload and sideload
  • Engagement: Silent instant engagement, infinite engagement points, patented sprag clutch
  • Driver: Hardened heat treated stainless steel, takes OX compatible cogs
  • Axle: 20mm axle hub, convertible to 3/8 inch bolt on, 12mm and 15mm thru axles
  • Included: Titanium bolts, knurled stainless washers with grippers
  • Colour: Matte black, Spectre branded
  • Note: Thru-bolt axles and cog are sold separately. Tightening axle bolts more than 12NM will void the warranty. 5 year limited warranty.

Spoke calculator

Display

Pick the part it is laced to and we will give you the lengths to buy.

This hub

Looking up its measurements.

Check or change its figures

Flange diameter spoke hole centre to the opposite hole centre. The drive side is the driver side, left or right hand drive alike, and is usually the bigger flange

Flange position

Laced to which rim?

Or type its figures

Spoke lengths to buy

Drive side —mm
Non-drive side —mm

Pick the rim and your lengths will appear here.

Open the full spoke calculator for offset rims, other cross patterns and measuring help.

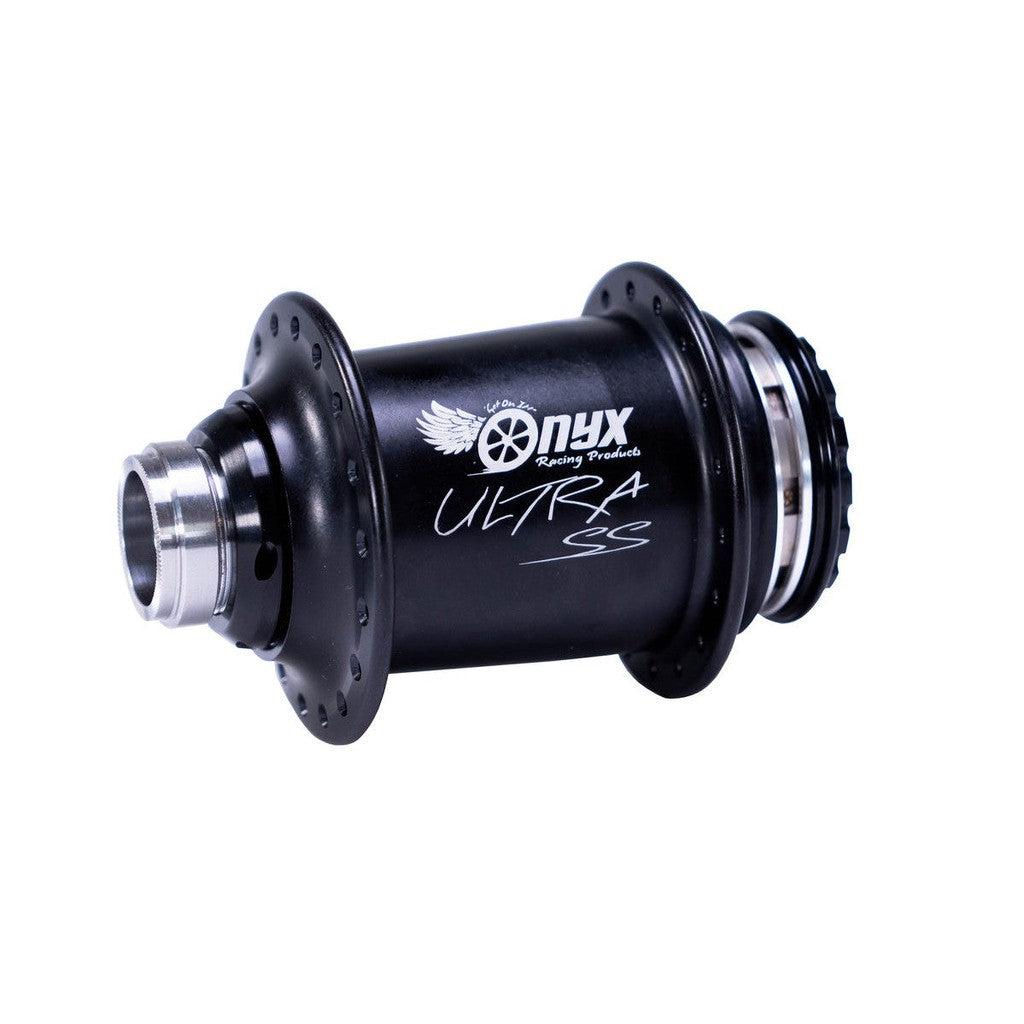

Onyx X Spectre ULTRA SS OX-110/15mm Thru-bolt Rear Hub

Brand: Onyx SKU: Click to copy the SKU and show the pick location

Sale price$864.99 AUD

Or 4 payments of $216.24 AUD with

Colour - Matte Black Ano

Spoke Holes - 36 Hole

Drive Side - Right Hand Drive


Onyx X Spectre ULTRA SS OX-110/15mm Thru-bolt Rear Hub - Matte Black Ano / 36 Hole / Right Hand Drive

$864.99 AUD
