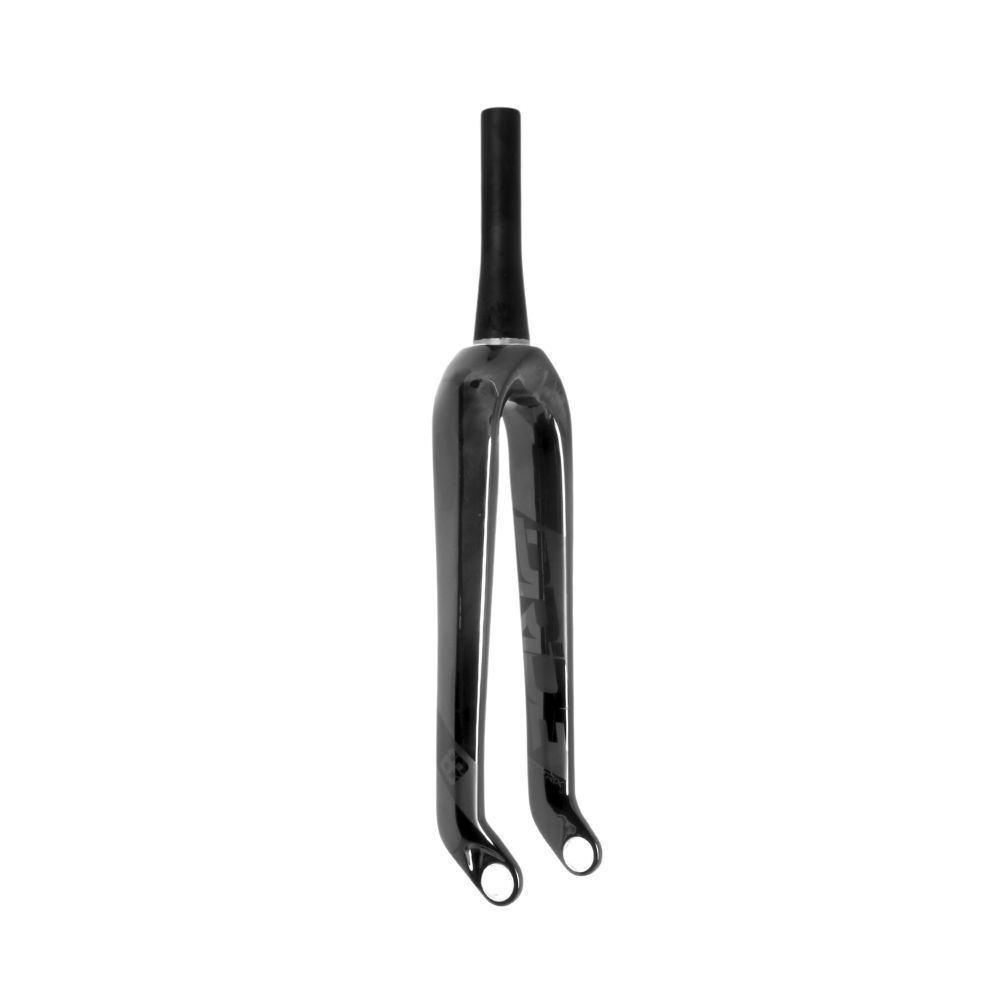

With its glossy/matte finish, the new Pride Matrix fork boasts a sleek and elegant design. It is composed of two distinct parts. The fork legs are made from 100% Torray® HM carbon, combined with an internal PMI polymer structure, which increases overall stiffness and strength. Different types of carbon fibers are used based on their specific properties to best manage various loads in areas where they occur such as lateral loads, torsion, and impacts.
The steerer tube is made from 7075-T6 aluminium, a high-strength alloy known for its durability and resistance. This feature ensures not only strong structural integrity but also enhanced longevity.
Specs
Material : Torray Carbon / 7075 Aluminum
Wheel size : 24"
Axle : 20mm (not included)
Steerer diameter : Tapered 1"-1/8 to 1.5"
Steerer length : 165mm
Fork height : 357mm
Offset : 30mm
Compression bolt : M22x1.5mm
Compression bolt length : 20mm
Weight : 639g (with compression bolt)
Torque Settings
Note : Always use a torque wrench
Compression bolt torque : 8 Nm (Max)
Stem bolt torque : 13 Nm (Max)
Hub axle torque : 8 Nm (Max)
Additional Notes:
This fork is designed and created solely for BMX RACING. It meets the EN and CPSC safety standards and complies with the EN 16054 standard.
It is always the buyer's responsibility to know their own limits and how to maintain a high-end 100% carbon fork. Carbon cannot be designed to withstand major collisions. After a fall or crash, be sure to thoroughly check your fork. If you suspect any damage, it is YOUR responsibility to have a professional assess the integrity of the fork.
Always adhere to the specified torque settings. If possible, use a split bearing ring
