Profile Column 22mm Cranks Bossless / Black / 160mm
Profile Column 22mm Cranks Bossless / 170mm / Black

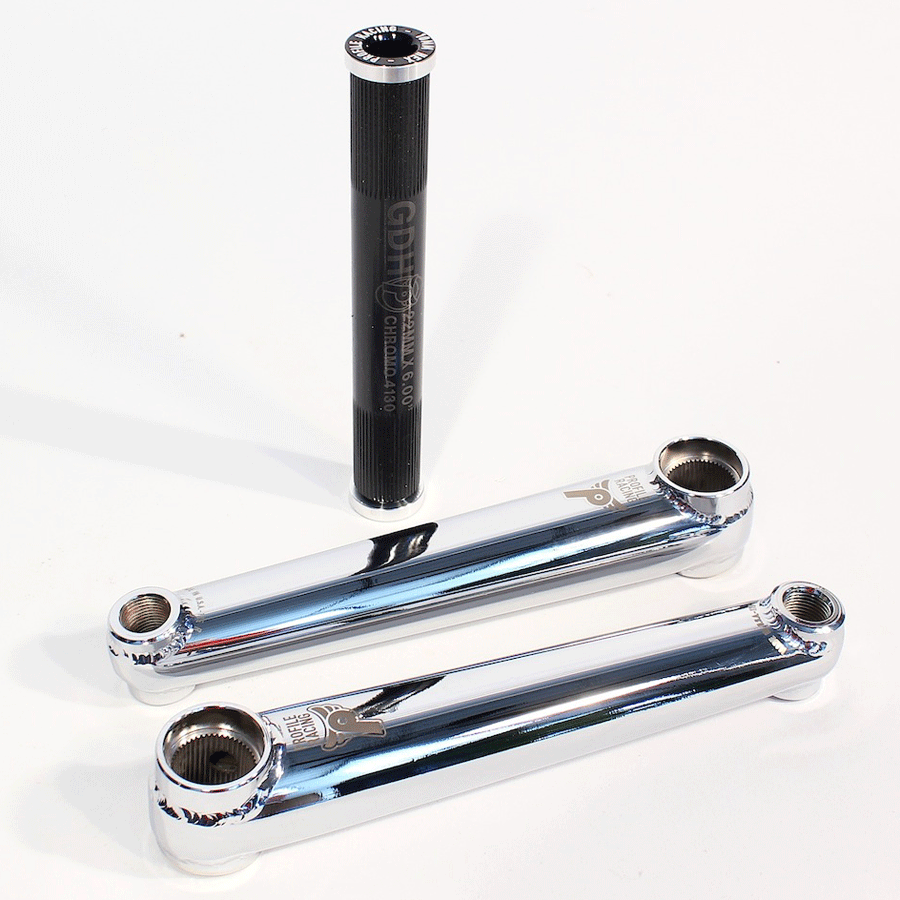

A set of shiny silver PROFILE Column Cranks and a black spindle, placed on a white surface, ensuring durability and performance.

Description

Profile's Column cranks are arguably the burliest cranks on the planet. Used by riders around the world who demand strength and durability from their drivetrain.

The column cranks feature heat treated oversize 4130 Chromoly crank arms with Profile claiming that these are the strongest they've ever produced!

Further strength is gained from the 22mm GDH CrMo axle with 8mm hex aluminum axle bolts. Make them ever even lighter with a titanium axle upgrade.

The cranks are bossless, a spline drive sprocket must be used.

Column Crankset includes LH & RH crank arms, 6" 22mm GDH chromo axle, aluminum axle bolts/washers, and Column Crank Tool.

Lifetime Warranty to original purchaser.

About the Brand
For over 35 years, Profile Racing parts have been the top choice for all types of BMX riding. Profile Racing is the single largest, most capable and most sophisticated manufacturer of high-end BMX bicycle components in the United States.

Features
  • Bossless, needs a spline sprocket. There is no sprocket boss on the arm, so you run a spline drive sprocket on the axle.
  • 22mm GDH chromoly axle. A 6 inch 22mm GDH chromoly axle with 8mm hex aluminium bolts carries the load through the bottom bracket.
  • Heat treated 4130 arms. Oversize heat treated 4130 chromoly arms that Profile call the strongest they have ever produced.
  • Five arm lengths. Choose 160, 165, 170, 175 or 180mm to suit your setup, with arms running from 299g to 325g each.
  • Crank tool in the box. Left and right arms, axle, bolts, washers and the Column crank tool all come in the set.

Specifications
  • Arm length: 160mm, 165mm, 170mm, 175mm, 180mm
  • Spindle: 6" 22mm GDH chromoly
  • Material: Heat treated oversize 4130 chromoly arms
  • Included: Left and right crank arms, 6" 22mm GDH chromoly axle, aluminium axle bolts and washers, Column crank tool
  • Weight: 160mm 299g per arm, 165mm 300g, 170mm 310g, 175mm 315g, 180mm 325g
  • Note: Bossless arms, so a spline drive sprocket must be used. A titanium axle upgrade is available. Lifetime warranty to the original purchaser.

PROFILE Column Cranks

Brand: Profile Racing SKU:

$699.99 AUD

Or 4 payments of $174.99 AUD with

Colour - Black

Crank Length - 160mm

$699.99 AUD

Price match request

PROFILE Column Cranks - Black / 160mm

$12.99 flat-rate shipping Australia-wide

Express from $21.99

Free in-store pickup - Brisbane

Availability

160mm175mm170mm165mm
Black
Chrome

● In stock at LUXBMX ● With supplier ● Preorder ○ Sold out
