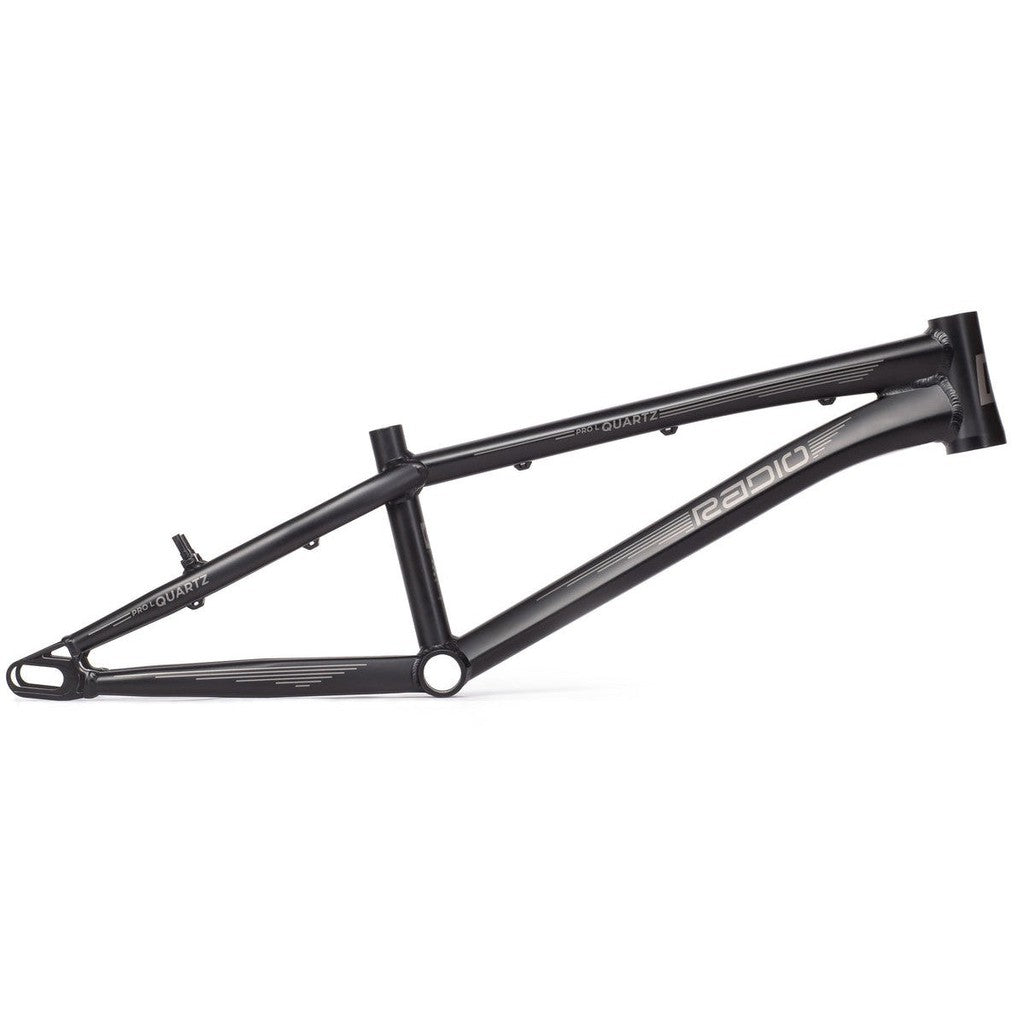

Radio Raceline Quartz Pro L Frame / Black / 20.9TT

Radio Raceline Quartz Pro L Frame

Sale priceFrom

$645.99 AUD

Regular price$1,064.99 AUD

Or 4 payments of $161.49 AUD with

Pay in 4 interest-free payments

Colour

Top Tube Length

Select Option

View All
Radio Raceline Quartz Pro L Frame / Black / 20.9TT

Radio Raceline Quartz Pro L Frame / Black / 21.25TT

Sale price

$645.99 AUD

Regular price

RRP:

$1,064.99 AUD

RAFR103-06-BLK

With Supplier

Description

The Radio Quartz range has proved a race winner since its debut and LUXBMX is stoked to continue to offer this premium aluminium frame, and new for this season, the Quartz frame is available in a brilliant new colour, Metallic Copper. A winning super light alloy race frame, taking the track proven Helium frame as a base, Radio upgraded this frame to use its new “paradigm” 6061-t6 hydroformed superior tubing to shed a considerable amount of weight compared to the Helium frame. the Quartz also uses a new forged dropout design which allows it to be fully disc-brake compatible when used with the Helium disc brake mount. available in 6 sizes and in our super stealthy matt black finish, the Quartz would be a contender to be the lightest and sleekest machine on the track.

Quick Specs:

  • Top Tube Length - 20.9""
  • BB Height - 11.6""
  • Chainstay Length (min.) - 13.9”
  • Dropout Size 20mm (incl. chain tensioner for 10, 15 & 20mm hub axle)
  • Weight - TBA


Material Hydroformed 6061 alloy, Paradigm tubing
Top Tube Length - 20.9” (530mm)
Chainstay Length (min.) 13.9” (353mm)
Dropout Size 20mm (incl. chain tensioner for 10, 15 & 20mm hub axle)
Head Tube Angle 74°
Seat Tube Angle 71°
Head Tube Size (full int.) tapered 1-1/8” – 1.5” (125mm)
Seat Post Size 27.2mm
Seat Tube Length 231mm
Bottom Bracket Type Euro, threaded, BSA 68mm
Bottom Bracket Height 11.6″ (EU)
Wheel Size 20″ x 1.75″
Aditional Features
super lightweight alloy frame
x2 world championship wins
Paradigm superior tubing
Forged and CNC machined dropout
Integrated chain tensioner
Disc brake compatible with Helium Pro disc brake mount
Weight TBA



Specifications

Material Hydroformed 6061 alloy, Paradigm tubing
Top Tube Length - 20.9” (530mm)
Chainstay Length (min.) 13.9” (353mm)
Dropout Size 20mm (incl. chain tensioner for 10, 15 & 20mm hub axle)
Head Tube Angle 74°
Seat Tube Angle 71°
Head Tube Size (full int.) tapered 1-1/8” – 1.5” (125mm)
Seat Post Size 27.2mm
Seat Tube Length 231mm
Bottom Bracket Type Euro, threaded, BSA 68mm
Bottom Bracket Height 11.6″ (EU)
Wheel Size 20″ x 1.75″
Aditional Features
super lightweight alloy frame
x2 world championship wins
Paradigm superior tubing
Forged and CNC machined dropout
Integrated chain tensioner
Disc brake compatible with Helium Pro disc brake mount
Weight TBA
