Highlights

  • One piece carbon monocoque
  • Euro threaded bottom bracket
  • Internal cable routing
  • Pro XL fit, 22.5" top tube

Description

Radio Bikes didn't hold back when they brought out their very first carbon BMX race frame and completely crushed it with the Solar range. Designed and developed in Cologne, Germany, the Solar frame is manufactured from Torayca carbon and is a 100% one piece monocoque construction producing one of the lightest and stiffest BMX race frames on the market. Most race frames on the market use a blended two, or three, piece construction method to save on costs, but not Radio. This company has stepped up and produced what we think is one of the finest carbon race frames available.

Touches like internal cable routing and a Euro bottom bracket add to the value of this frame when analysing performance at this end of the market. The majority of carbon frame manufactures choose the easier route when it comes to the bottom bracket, opting for a BB86 style. A Euro BB is more complex to incorporate in the manufacturing process, though it arguably produces the stiffest result in an area where it's required most, the start of the powertrain.

The Radio Solar Pro XL frame would form the basis for one of the best performing custom race bikes you could build. Hit us up at LUXBMX and we can bring all of the parts together for you to make the race bike of your dreams a reality. Dialled in with the most desirable components available on the market today.



Features

  • One piece carbon monocoque. High performance Torayca carbon in a 100% one piece construction, producing one of the lightest and stiffest race frames going at 1.165kg.
  • Euro threaded bottom bracket. Harder to build into carbon than the usual BB86, but arguably the stiffest result right at the start of the powertrain.
  • Internal cable routing. The brake line runs inside the frame, one of the touches that adds real value at this end of the market.
  • Pro XL fit, 22.5" top tube. An effective 571mm top tube with a 71° seat tube angle and a 27.2mm seat post, on 20" x 1.75" wheels.
  • Designed in Cologne, Germany. Radio's first carbon race frame, designed and developed in house rather than blended from two or three piece construction to save costs.

Specifications

  • Sizes: Pro XL
  • Top tube: 22.5" (571mm) effective
  • Seat tube angle: 71°
  • Bottom bracket: Euro, threaded, BSA 68mm
  • Material: High performance Torayca carbon fibre, 100% one piece monocoque
  • Dropouts: 15mm
  • Cable routing: Internal
  • Seat tube: 27.2mm seat post
  • Wheel size: 20" x 1.75"
  • Weight: 1.165kg
  • Note: Designed and developed in Cologne, Germany

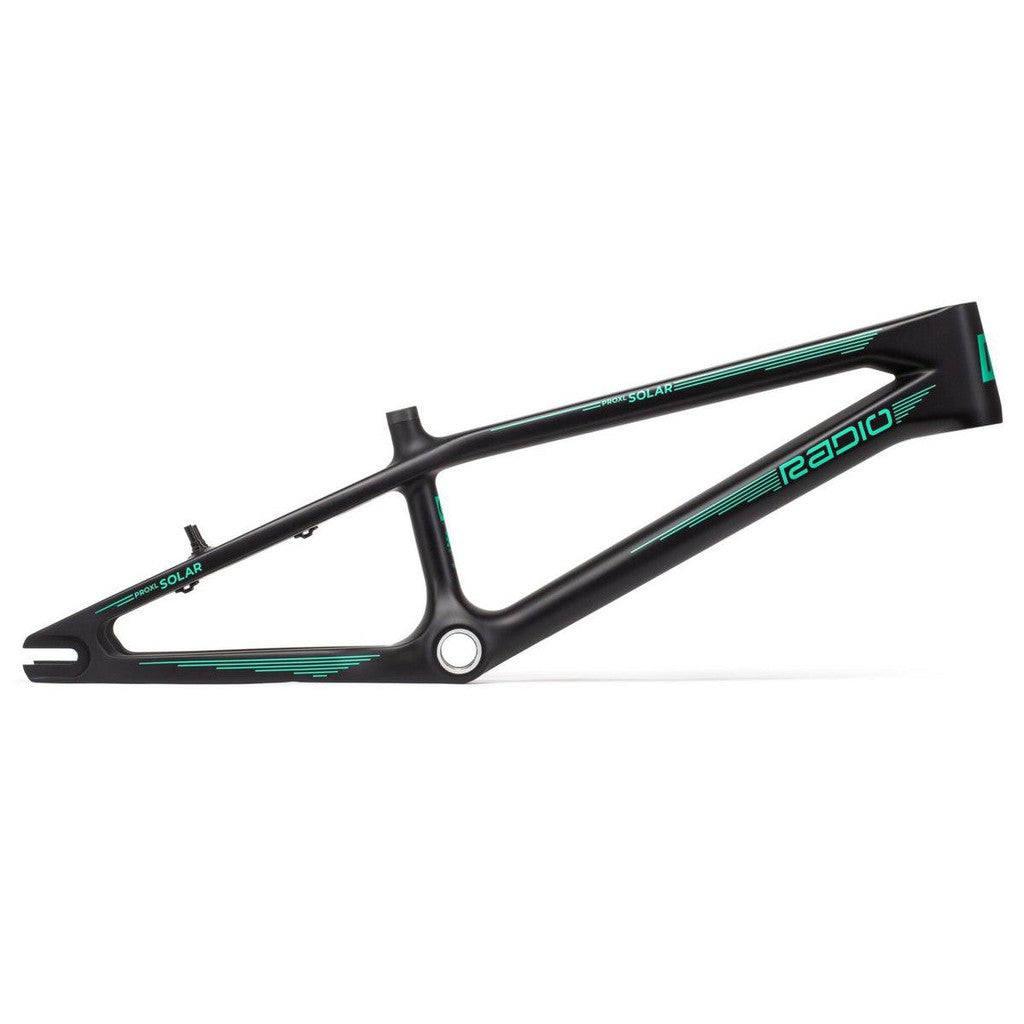

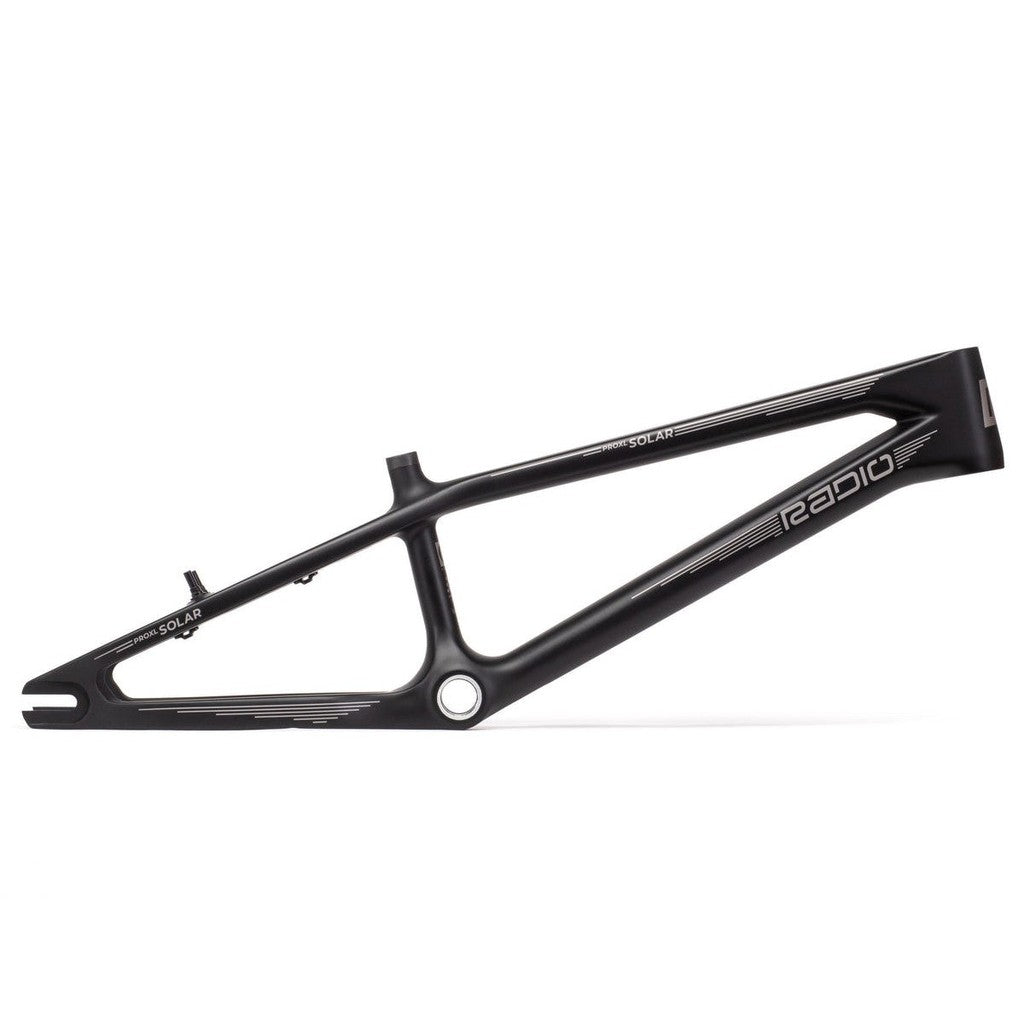

Radio Raceline Solar Carbon Pro XL Frame

Brand: Radio SKU: Click to copy the SKU and show the pick location

Sale priceFrom

$1,634.99 AUD

Regular price$1,999.99 AUD

Or 4 payments of $408.74 AUD with

Colour - Black/Teal

Top Tube Length - 21.25


Radio Raceline Solar Carbon Pro XL Frame - Black/Teal / 21.25

Discount 18%

Instead of $1,999.99

$1,634.99 AUD

Price match request

$12.99 flat-rate shipping Australia-wide

Express from $21.99

Free in-store pickup - Brisbane

Availability

21.25
Black/Teal
Black

● In stock at LUXBMX ● With supplier ● Preorder ○ Sold out
