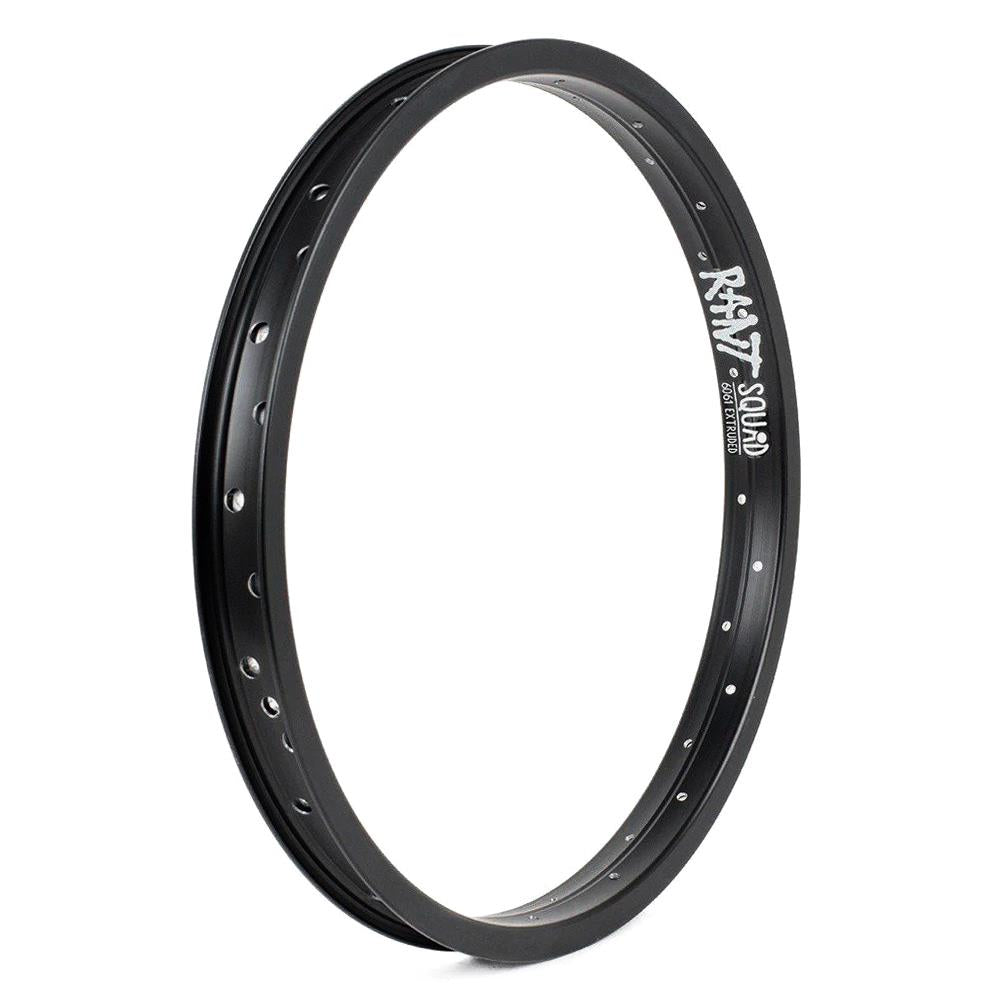

Black Rant Squad 18 Inch Rim (36H) BMX bicycle wheel with 36 spoke holes and a branded decal on the side.

Highlights

Built for 18 inch bikes
Four chamber extrusion
Double wall, pinned
36 hole drilling

Description

The Squad is Rant's 18 inch rim for the little shredders, a 36 hole double wall pinned rim designed with riders on a budget in mind.

The exclusive extrusion uses four separate chambers to increase strength and stiffness while keeping the weight down. It is 16mm tall, 36mm wide, in extruded 6061 T6 alloy, at 16.3 oz.

Features

Built for 18 inch bikes. An 18 inch rim from Rant, aimed at younger riders on a budget.
Four chamber extrusion. The exclusive design runs four separate chambers that increase strength and stiffness while keeping weight down.
Double wall, pinned. It is a double wall pinned rim rather than a single wall.
36 hole drilling. Standard 36 hole drilling to suit a 36 hole 18 inch hub.
6061 T6 alloy. Extruded 6061 T6 alloy, 16mm tall and 36mm wide, at 16.3 oz.

Specifications

Wheel size: 18"
Material: Extruded 6061 T6 alloy, double wall pinned construction
Hole count: 36H
Rim width: 36mm
Rim depth: 16mm tall
Weight: 16.3 oz

Spoke calculator

Display

Pick the part it is laced to and we will give you the lengths to buy.

This rim

Looking up its measurements.

Check or change its figures

ERD effective rim diameter, from the spec sheet mm

Laced to which hub?

Find your hub

Or type its figures

Hub spacing locknut to locknut, 100 front or 110 rear on most BMX mm Same both sides front hubs, or matching flanges

Flange diameter/PCD (pitch circle diameter) spoke hole centre to the opposite hole centre. The drive side is the driver side, left or right hand drive alike, and is usually the bigger flange

Drive side mm Non-drive side mm

Flange position

Flange to locknut Centre to flange

Drive side mm Non-drive side mm
