Highlights

Irek Rizaev's signature park frame
Sanko Japanese butted chromoly tubing
Internal gussets at the head tube
Gusset on the seat stays

Description

The Red BMX Whip V2 frame is Olympian Irek Rizaev's signature frame. Geometry fully developed by Irek and engineers from Russian brand STRESS BMX. The team worked with a focus on strength and using modern technology. The end result is a really comfortable, strong and light frame for park riding.

Features

Irek Rizaev's signature park frame. Geometry developed by Irek with engineers from Russian brand STRESS BMX, with the focus on strength and modern technology.
Sanko Japanese butted chromoly tubing. Thicker where the frame needs it and thinner where it can be, so it stays strong without carrying dead weight.
Internal gussets at the head tube. Inside gussets tie the top and down tubes into the head tube, with an outside gusset on the down tube as well.
Gusset on the seat stays. A high stress area where frames usually crack, because tricks and spins put a really big pressure on that point.
Four sizes, brakes optional. Top tubes run 20.1" to 21", the frame comes with or without brake mounts, and M8 brake hardware and chain adjusters are included.

Specifications

Sizes: 20.1", 20.4", 20.7", 21" top tube
Chainstay: 12.8"
Head tube angle: 75.5
Standover: 7.6
Bottom bracket height: 11.6"
Material: Sanko Japanese butted chromoly tubing
Tubing: Tapered top and down tubes, chain stays and seat stays
Butting: Butted, thicker where needed and thinner where it can be
Brake mounts: Versions with brake mounts and without, M8 brake hardware included
Head tube: 117.5mm, with engraving
Seat tube: Tapered
Weight: ~2200gr (20.7")
Colour: Black, red raw, blue raw
Note: Inside gussets on the top and down tubes at the head tube, outside gusset on the down tube, gusset on the seat stays. Chain adjusters included.

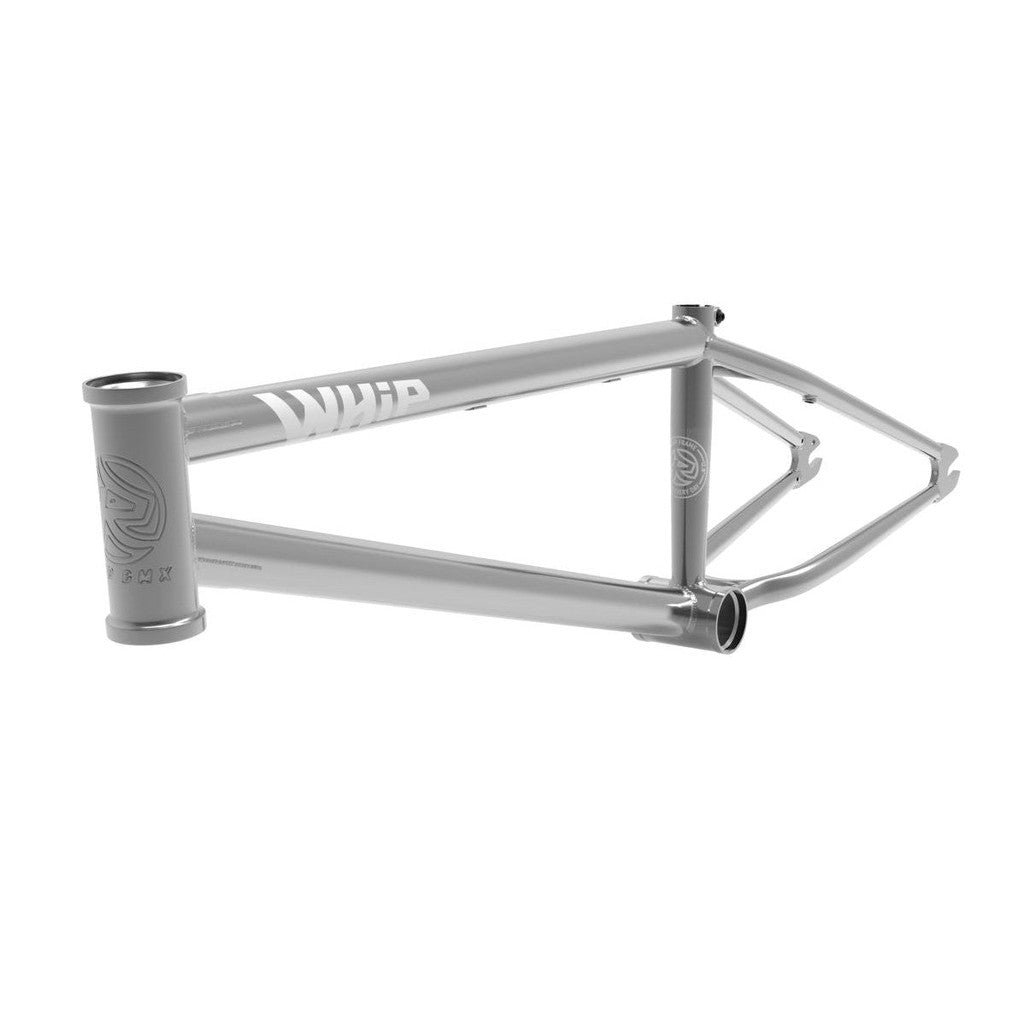

RED BMX Whip V2 Frame

Name: RED BMX Whip V2 Frame
Brand: RED
SKU: F08-210056
Price: 599.99 AUD
Availability: OutOfStock

Brand: RED SKU: Click to copy the SKU and show the pick location

$599.99 AUD

Or 4 payments of $149.99 AUD with

Colour - Chrome

Top Tube Length - 20.4

Frames are sized by top tube length. Start with your height, then let riding style decide where in the range you land.

Rider height	Top tube
147 to 157cm	19.75 to 20.25"
157 to 168cm	20 to 20.5"
168 to 175cm	20.25 to 20.75"
175 to 183cm	20.5 to 21"
183 to 190cm and up	20.75 to 21.5"

The height bands overlap on purpose. If you land in two of them, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park. Plenty of riders, pros included, deliberately ride longer than a chart suggests.

How to measure

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the length of the tube you can see. Measure your current frame that way and compare.

Size up for stability through trails and transitions.
Size down if you want the bike quick and twitchy for spins and grinds.
Top tube is fixed once you buy, but chainstay length, stem length, fork offset and bar position all change how the built bike feels.

Not sure? Tell us your height and how you ride, and we will tell you what we would put you on.
