Description

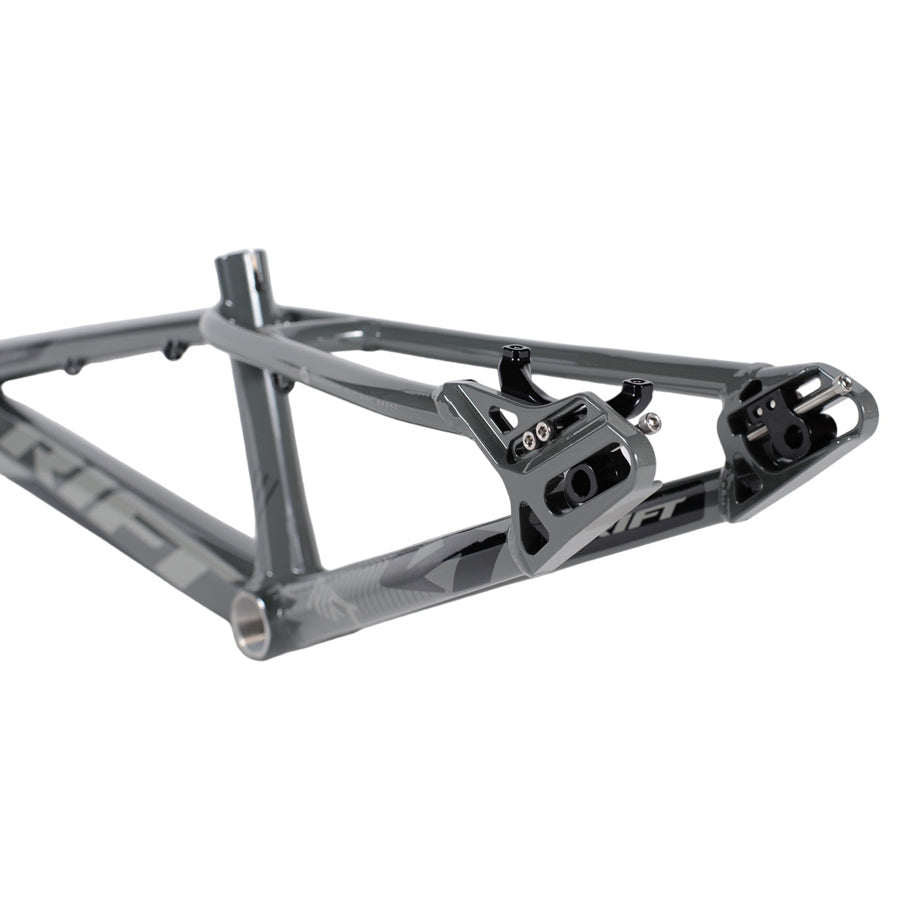

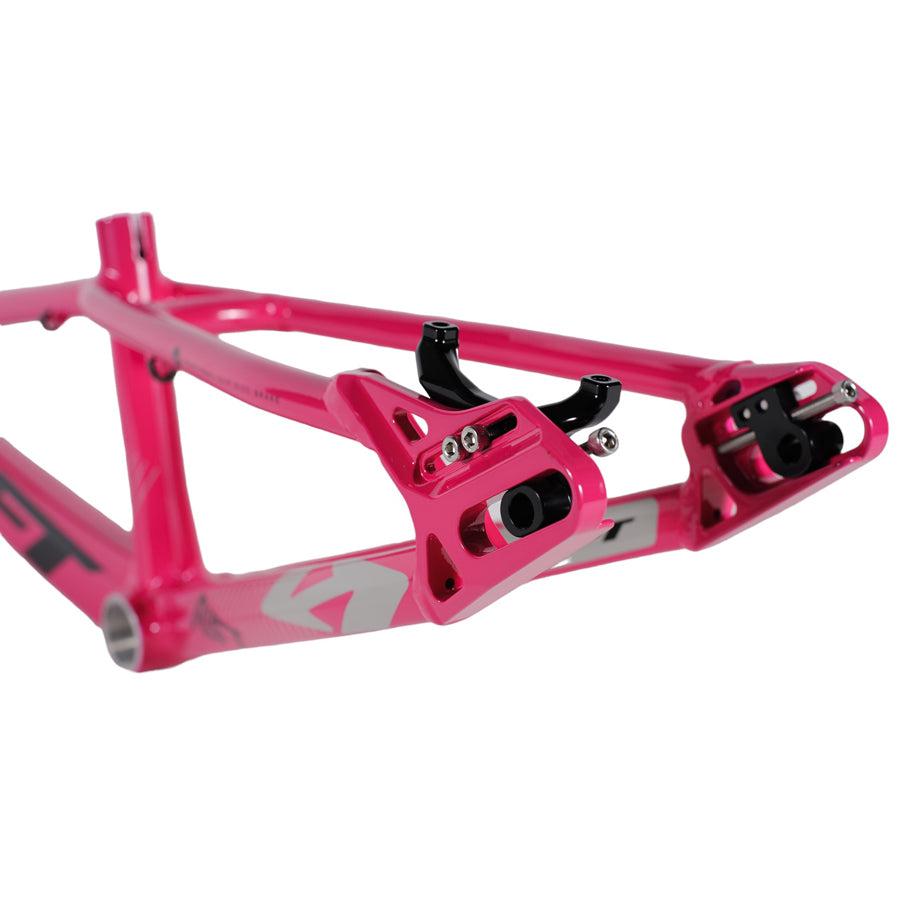

The Rift ES20D Pro L frame is here in all new colours for the 2023/24 race season. From classic grey charcoal with black decals, to hot pink, with a few colours in between, all of the frames are finished in a gloss clear coat covering the decals and adding an extra layer of protection.

The D in ES20D stands for disc only, with every pro frame dropping the V-brake mounts if favour of a post mount caliper bracket. We've built these up and our workshop crew stated that the Rift set up is one of the nicest on the market in terms of ease of installation of the caliper.

Manufactured from 7005 Double Heat Treated Alloy, all of the main tubing is hydro-form making for a unique appearance. The CNC'd 3D dropouts are both beautiful and functional, with every part working in sync to make installing the wheel, and centring it, a breeze.

A Euro bottom bracket means the crank install is also a quick and easy process. No messy silicon and multiple cable guides keeps your build looking sleek.

Rift frames are popular for good reason and the attention to detail on these has us excited to be offering them to you guys through LUX.

Note: The maroon and green frames here are the youth frames and are showing V-brake mounts. These images are simply to display the colour options.

Features

  • Hydro-formed 7005 alloy throughout. Double heat treated 7005 alloy with hydro-formed top tube, down tube and chain stays, and the decals sealed under a gloss clear coat.
  • Disc only, post mount calliper. The D in ES20D means no V-brake mounts, and our workshop crew rate the Rift calliper setup as one of the easiest to install.

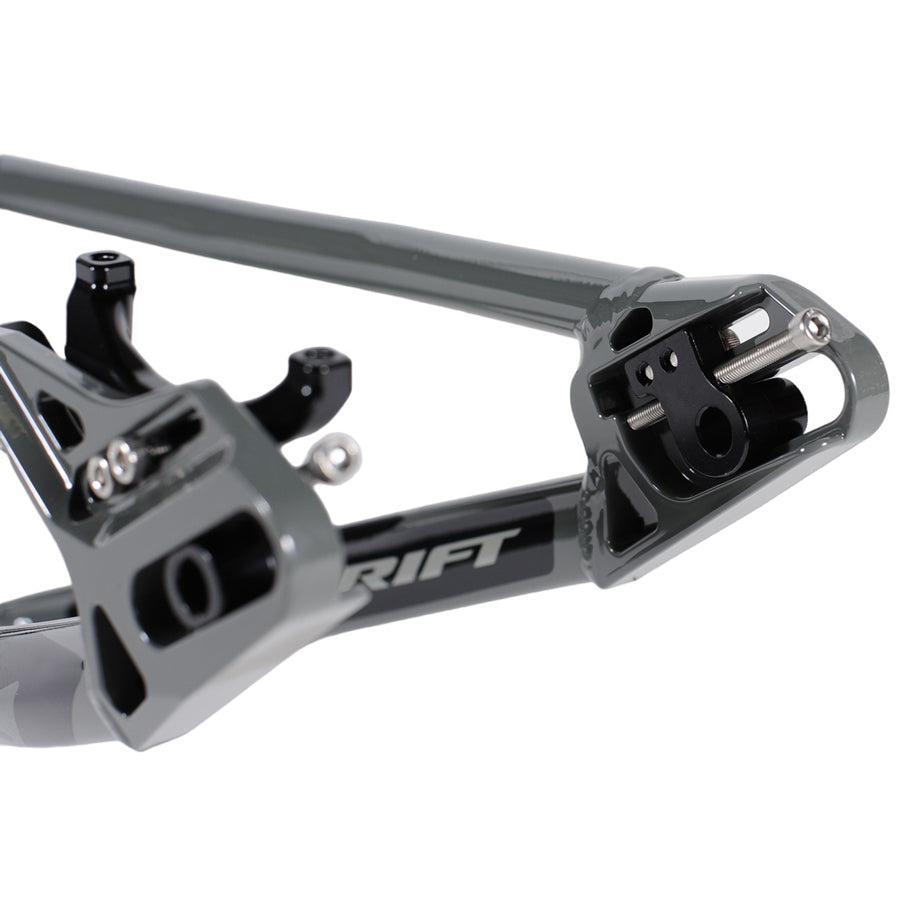

  • CNC 3D dropouts. The 10mm slotted dropouts are machined to sit dead straight, so the wheel drops in and centres without a fight.
  • Euro bottom bracket shell. Cranks go in quickly, and the multiple cable guides keep your lines tidy without any messy silicon.
  • Pro L race geometry. 20.5" top tube, 14.6" chainstay, 74° head angle and an 11.25" bottom bracket height, all up at 1389g.

Specifications

  • Top tube: 20.5"
  • Chainstay: 14.6"
  • Head tube angle: 74°
  • Seat tube angle: 72°
  • Bottom bracket height: 11.25"
  • Bottom bracket: Euro
  • Material: 7005 double heat treated alloy
  • Tubing: Hydro-form top tube, down tube and chain stays, bulge seat tube, CNC chain stay yoke
  • Dropouts: CNC 3D, 10mm slotted
  • Brake mounts: Disc only, post mount calliper
  • Cable routing: Multiple cable guides
  • Head tube: Tapered 1-1/8" to 1.5", CNC integrated
  • Seat tube: 27.2mm
  • Seat clamp: 31.8mm
  • Wheel size: 20" (406mm)
  • Weight: 1389g

Rift ES20D Frame Pro L

Brand: Rift SKU: Click to copy the SKU and show the pick location

Sale price$1,249.99 AUD

Or 4 payments of $312.49 AUD with

Colour - Gloss Maroon

Top Tube Length - 20.5


$1,249.99 AUD

Price match request

Rift ES20D Frame Pro L - Gloss Maroon / 20.5

$12.99 flat-rate shipping Australia-wide

Express from $21.99

Free in-store pickup - Brisbane

Availability

20.5
Charcoal
Blue Gloss
Gloss Maroon
Gloss Green
Hot Pink

In stock at LUXBMX With supplier Preorder Sold out
