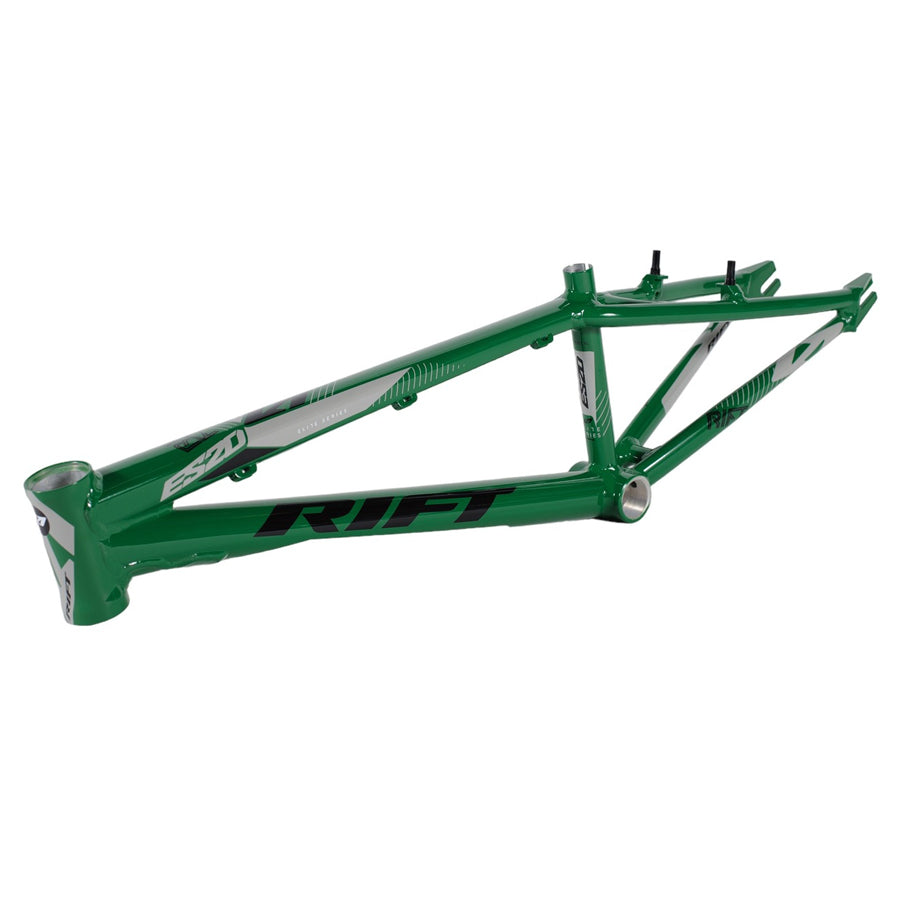

A green bike frame on a white background, featuring the Rift ES20D Frame Pro XXXL.

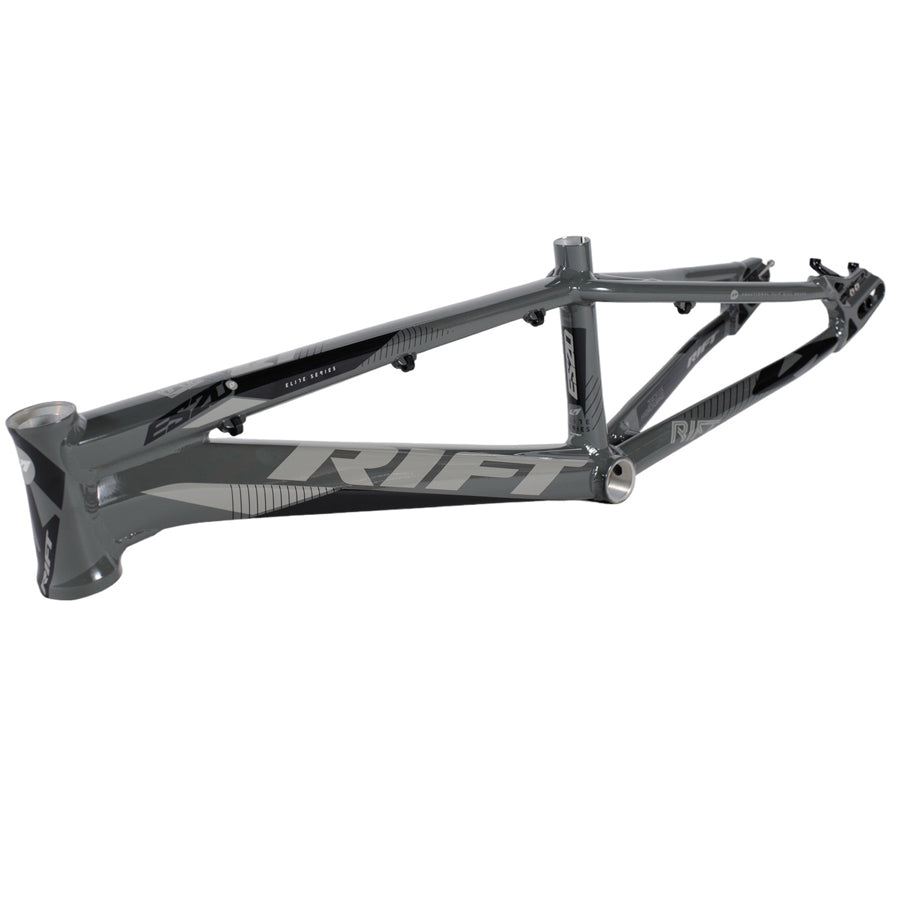

A race-ready Rift ES20D Frame Pro XXXL, disc-only, with the word "rift" prominently displayed on it.

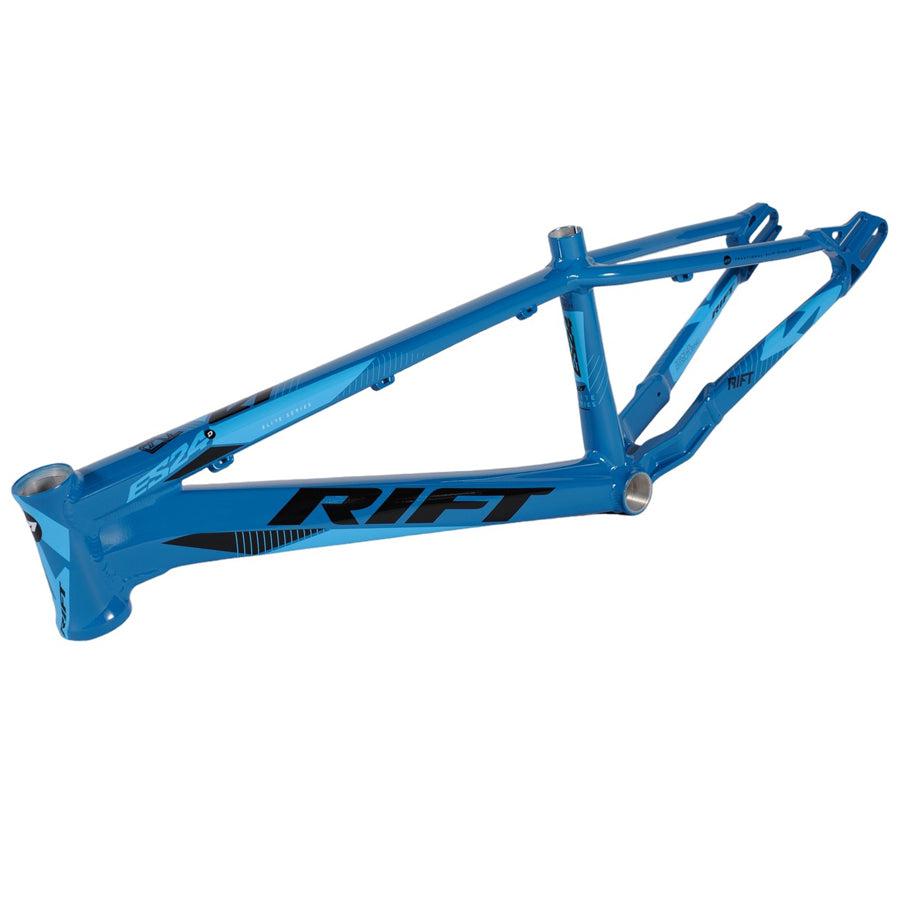

A blue Rift ES20D Frame Pro XXXL bike frame featuring the word "rift" and designed for the race season with disc-only compatibility.

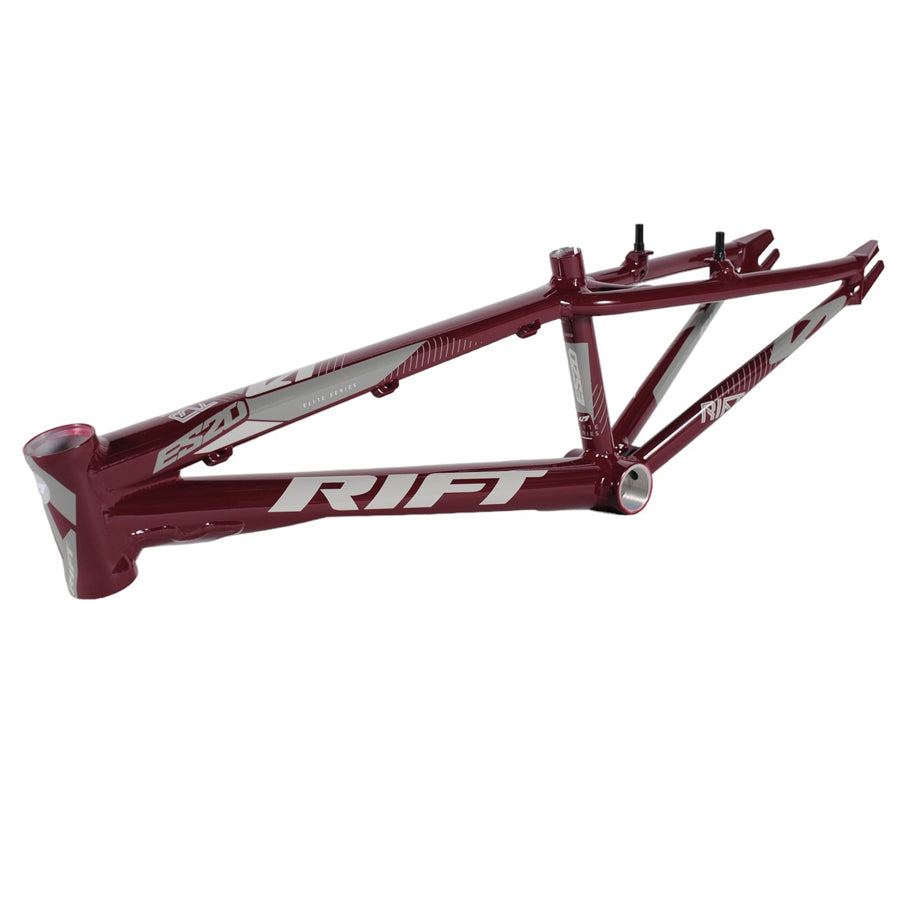

A Rift ES20D Pro XXXL bike frame, the Rift ES20D Frame Pro XXXL frame is designed for optimal performance. Featuring a stylish design with the word "rift" embossed on it, this

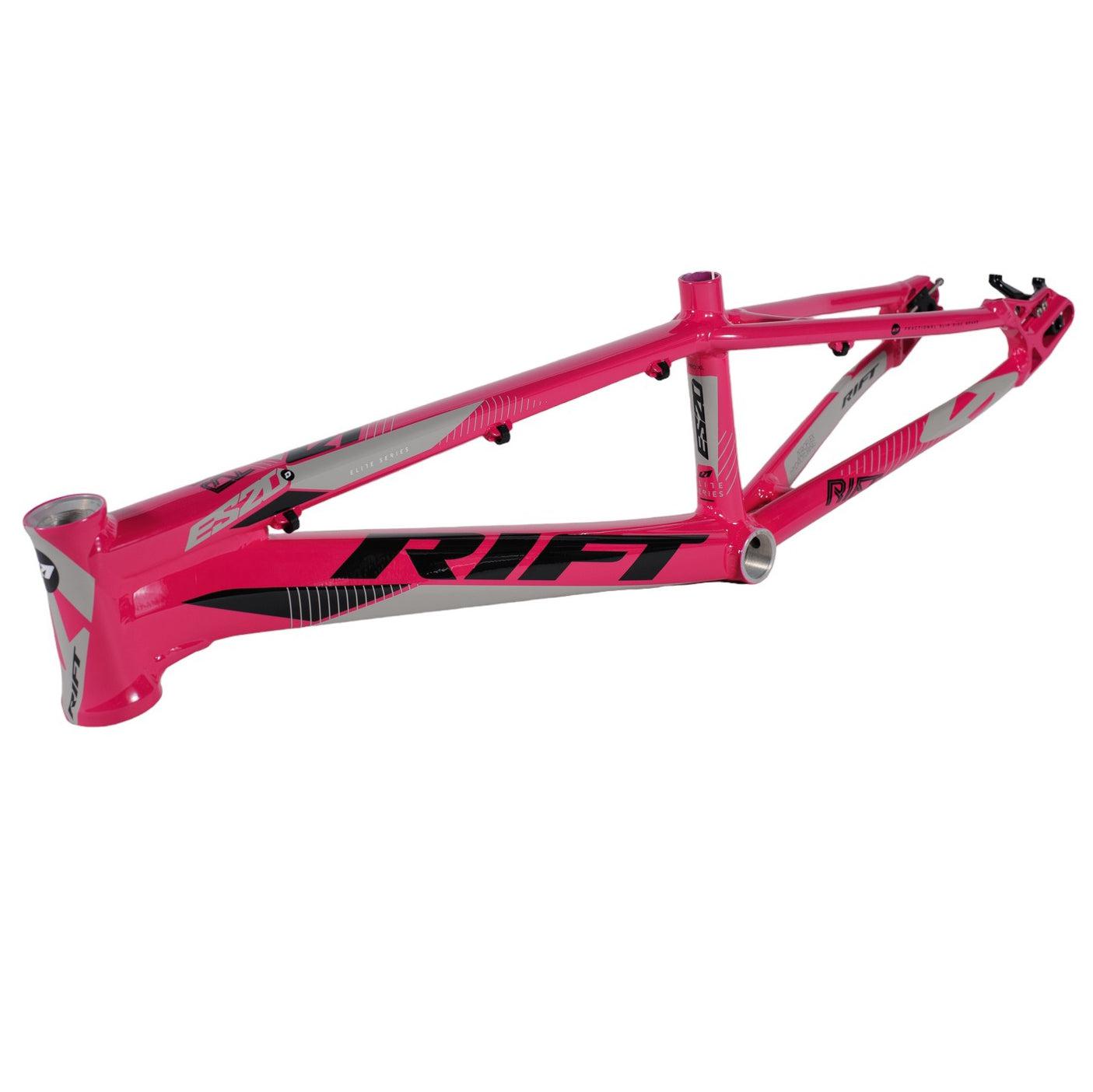

A Rift ES20D Frame Pro XXXL bike frame on a white background, designed for race season with disc only.

Highlights

Disc only pro frame
Easy calliper setup
7005 double heat treated alloy
CNC 3D dropouts and yoke

Description

The Rift ES20D Pro XXXL frame is here in all new colours for the 2023/24 race season. From classic grey charcoal with black decals, to hot pink, with a few colours in between, all of the frames are finished in a gloss clear coat covering the decals and adding an extra layer of protection.

The D in ES20D stands for disc only, with every pro frame dropping the V-brake mounts if favour of a post mount caliper bracket. We've built these up and our workshop crew stated that the Rift set up is one of the nicest on the market in terms of ease of installation of the caliper.

Manufactured from 7005 Double Heat Treated Alloy, all of the main tubing is hydro-form making for a unique appearance. The CNC'd 3D dropouts are both beautiful and functional, with every part working in sync to make installing the wheel, and centring it, a breeze.

A Euro bottom bracket means the crank install is also a quick and easy process. No messy silicon and multiple cable guides keeps your build looking sleek.

Rift frames are popular for good reason and the attention to detail on these has us excited to be offering them to you guys through LUX.

Note: The maroon and green frames here are the youth frames and are showing V-brake mounts. These images are simply to display the colour options.

Features

Disc only pro frame. The D in ES20D stands for disc: every pro frame drops the V-brake mounts in favour of a post mount calliper bracket.
Easy calliper setup. Our workshop crew rate the Rift arrangement as one of the nicest on the market for installing a calliper.
7005 double heat treated alloy. Hydro-formed top tube, down tube and chainstays give the frame its shape and its strength, at 1673g.
CNC 3D dropouts and yoke. Machined dropouts and a CNC chainstay yoke make dropping the wheel in and centring it a breeze, with maximum wheel clearance.
Euro bottom bracket, clean cable runs. Cranks go in quickly with a Euro shell, and multiple cable guides plus decals under clear coat keep the build looking sleek.

Specifications

Top tube: 22.0 Inch
Chainstay: 15.5 Inch
Head tube angle: 74 Degrees
Seat tube angle: 72 Degrees
Bottom bracket height: 11.38 Inch
Bottom bracket: Euro
Material: 7005 double heat treated alloy, hydro-formed tubing
Dropouts: 10mm slotted, CNC 3D
Brake mounts: Disc, post mount calliper
Head tube: Tapered 1-1/8th to 1.5 Inch, CNC integrated
Seat tube: 27.2mm
Seat clamp: 31.8mm
Wheel size: 20 Inch (406mm)
Weight: 1673g

Rift ES20D Frame Pro XXXL

Name: Rift ES20D Frame Pro XXXL
Brand: Rift
SKU: 95167_178664
Price: 1249.99 AUD
Availability: OutOfStock

Brand: Rift SKU: Click to copy the SKU and show the pick location

$1,249.99 AUD

Or 4 payments of $312.49 AUD with

Colour - Charcoal

Top Tube Length - 22

Race frames are sized by class, and the class you ride is set by rider height rather than age.

Size	Rider height	Top tube
Micro (18" wheels)	Under 120cm	16.25"
Mini (20" wheels)	110 to 140cm	17 to 18"
Junior	120 to 150cm	18.25 to 18.75"
Expert	130 to 170cm	19.5 to 19.75"
Expert XL	145 to 170cm	20 to 20.75"
Pro	150 to 175cm	20.25 to 20.75"
Pro XL	165 to 180cm	21 to 21.25"
Pro XXL	170 to 185cm and up	21.5 to 21.85"
Pro XXXL	175cm and up	22"
Pro XXXXL	180cm and up	22.5"
Cruiser (24" wheels)	175cm and up	21.5" and up

Heights overlap between classes on purpose. Where you land in two, a growing rider is usually better on the larger, and a rider who wants the bike to turn faster on the smaller. Some brands label the Pro size Pro L, with the same fit.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

Between two sizes and still growing? Take the larger size.
Racing gates and wanting the bike to turn faster? Take the smaller size.
Top tube is the number that actually changes the fit, so compare it against the bike they ride now.

Not sure? Send us their height and we will tell you what we would put them on.
