Description

Spice up your life with one of these sweet 26 Inch frames from S&M bikes! Featuring a 22.5 Inch Top tube, 71 degree head tube, Mid BB and 3/8th Dropouts.

Specifications

- 22.5” TT
- 17” RE
- 14” SO
- 11.7” BB
- 71° HT
- 71° ST
- 5.15” Tall Integrated HT
- Mid BB
- V Brakes w/ 3 Cable Guides
- 3/8” Dropout Slots (Covid Wheelsets)
- NO Integrated Seat Clamp

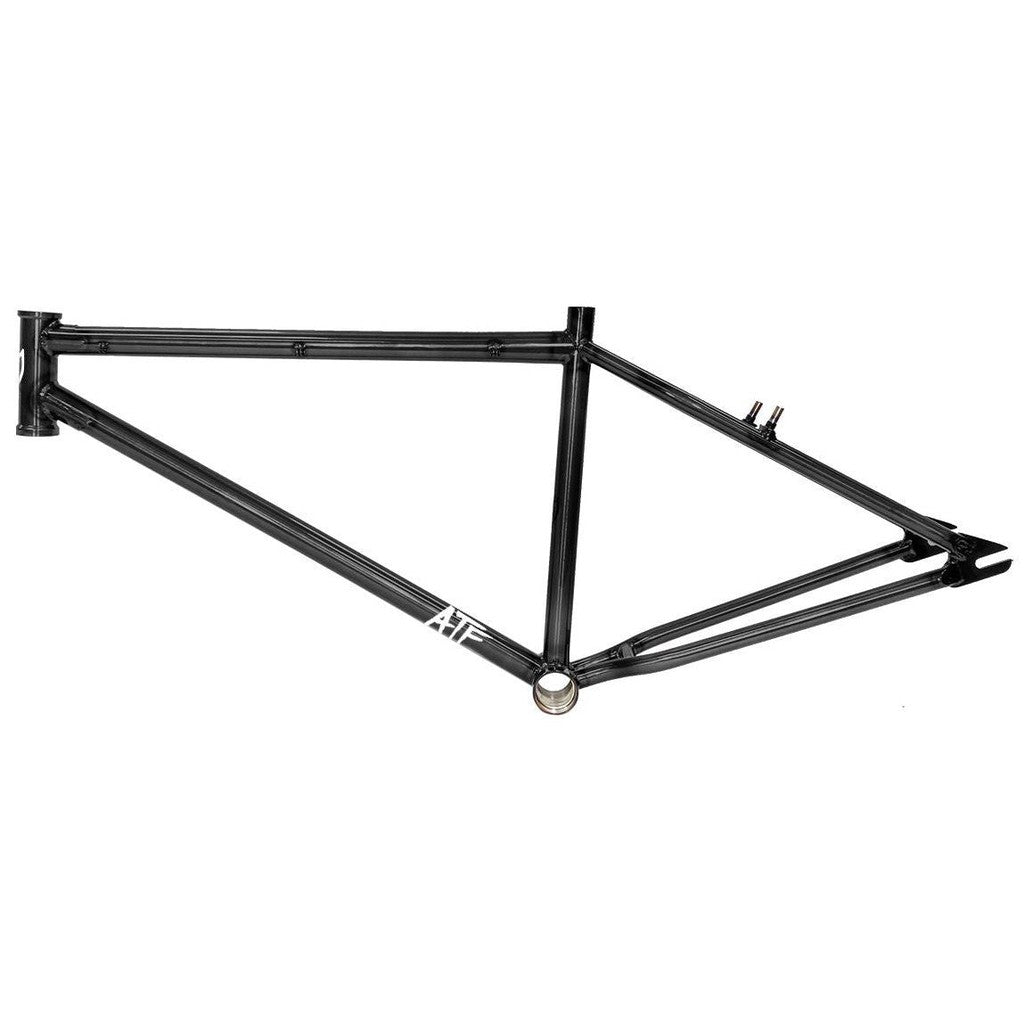

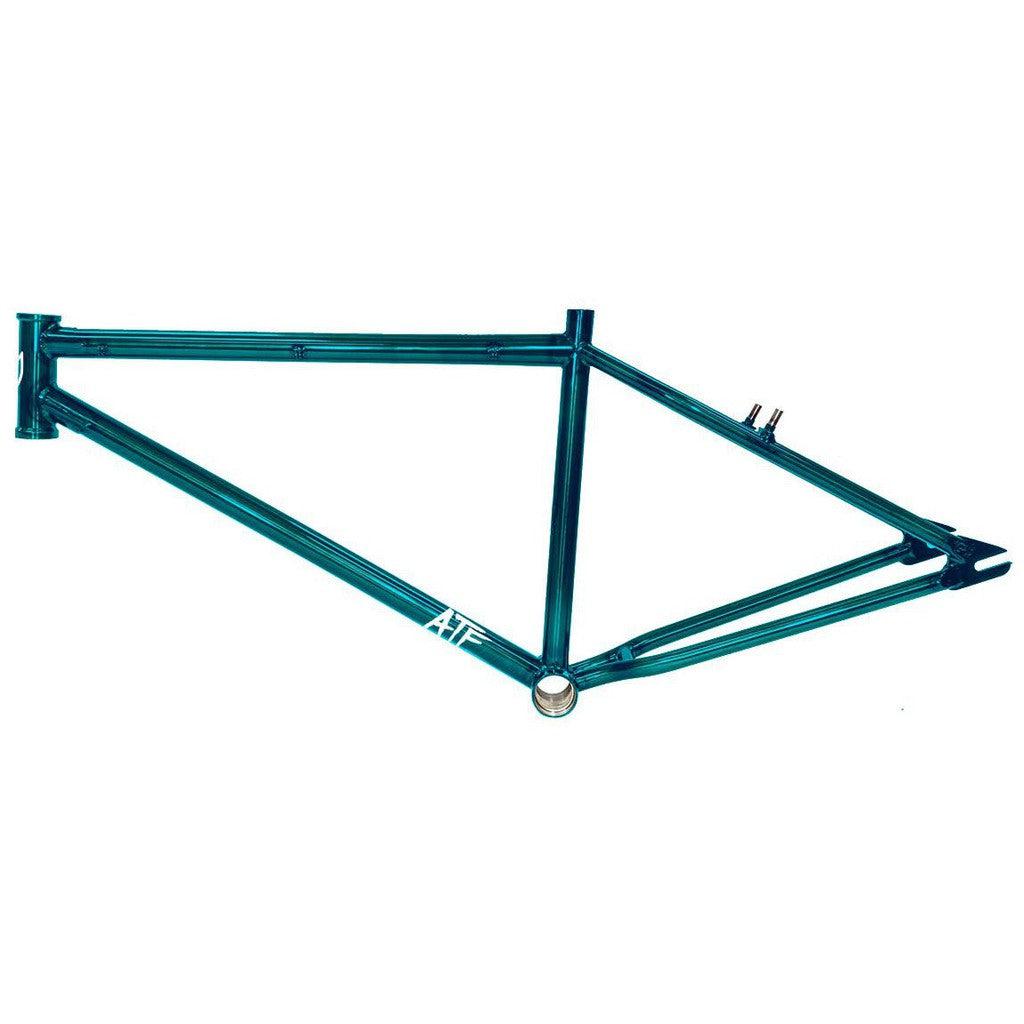

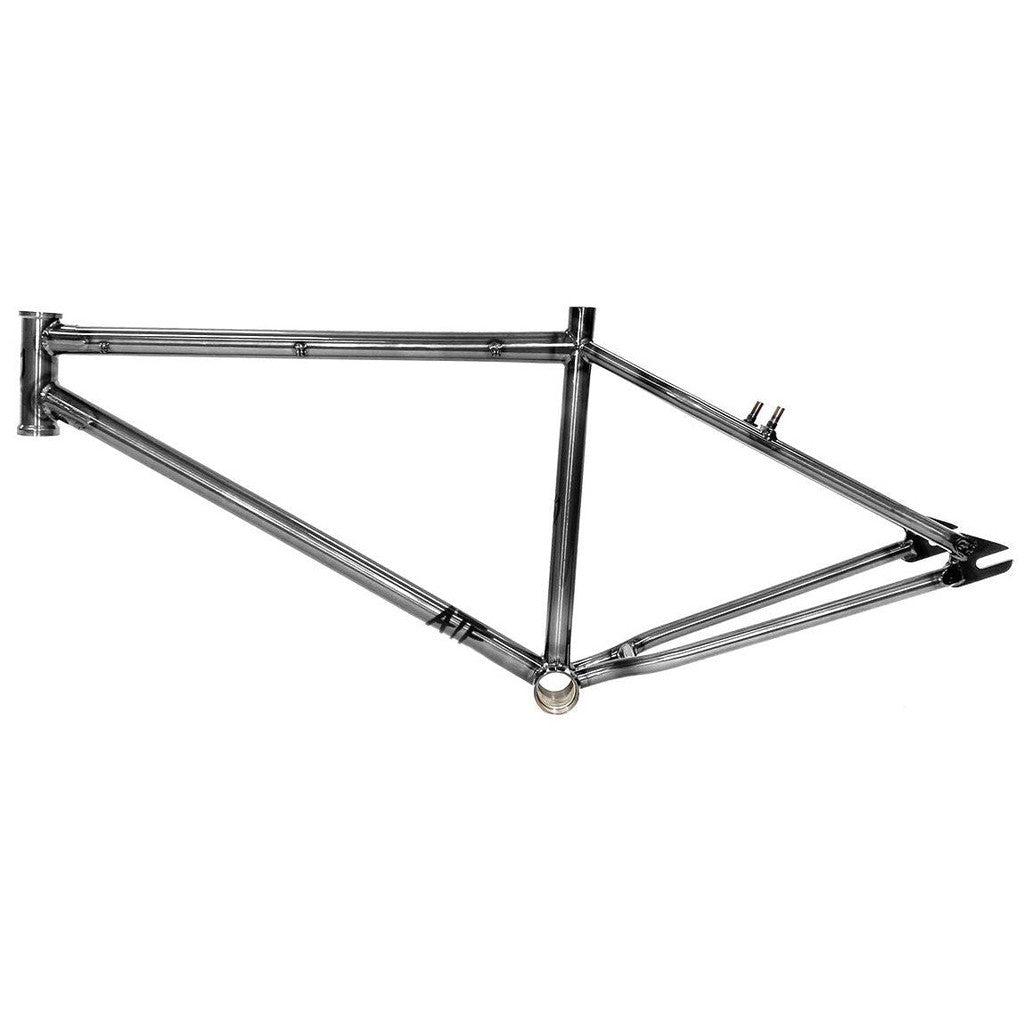

S&M ATF 26 Frame

Name: S&M ATF 26 Frame
Brand: S&M
SKU: SMFR096-02-BKG
Price: 1299.99 AUD
Availability: InStock

Brand: S&M SKU: Click to copy the SKU and show the pick location

$1,299.99 AUD

Or 4 payments of $324.99 AUD with

Colour - Gloss Black

Top Tube Length - 22.5

Frames are sized by top tube length. Start with your height, then let riding style decide where in the range you land.

Rider height	Top tube
147 to 157cm	19.75 to 20.25"
157 to 168cm	20 to 20.5"
168 to 175cm	20.25 to 20.75"
175 to 183cm	20.5 to 21"
183 to 190cm and up	20.75 to 21.5"

The height bands overlap on purpose. If you land in two of them, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park. Plenty of riders, pros included, deliberately ride longer than a chart suggests.

How to measure

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the length of the tube you can see. Measure your current frame that way and compare.

Size up for stability through trails and transitions.
Size down if you want the bike quick and twitchy for spins and grinds.
Top tube is fixed once you buy, but chainstay length, stem length, fork offset and bar position all change how the built bike feels.

Not sure? Tell us your height and how you ride, and we will tell you what we would put you on.

Read the full buying guide
