S&M ATF XL Frame / Trans Black / 21.25TT

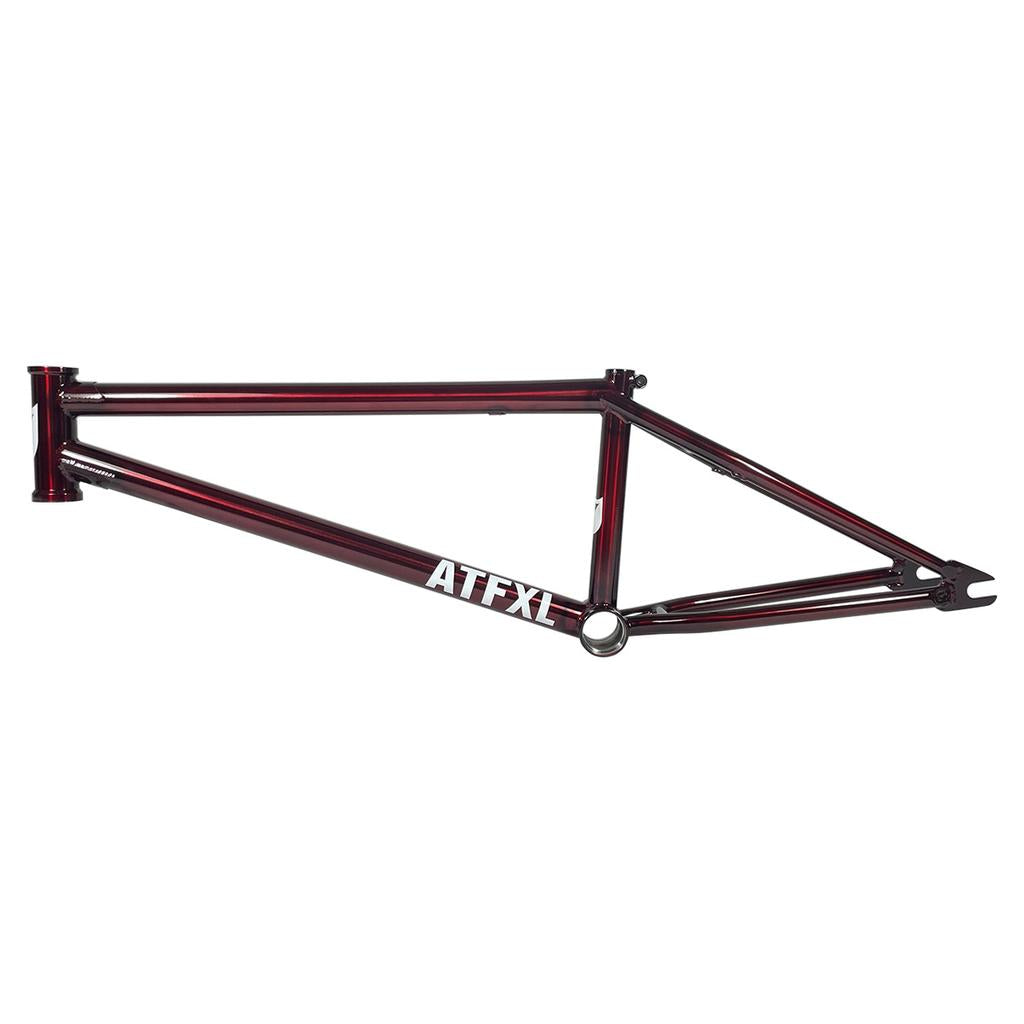

A maroon S&M ATF XL Frame all terrain BMX frame displayed on a white background.

Description

The ATF is the perfect frame for all rounder riders. Maybe you want to take it to the trails one day and the park the next- the ATF has you covered!

21 & up. The ATF XL takes the tried & true ATF frame to the next level. With a taller 5″ head tube, 9″ standover and extended top tube sizes up to 22″, it’s built for the tall team. The perfect blend of responsiveness and stability, ready for action on all terrains.

Specifications

Top tube lengths - 21″, 21.25″,21.5″,22″
Rear end length - 13.4″
Head tube angle - 75°
Head tube style - Integrated (45°/45°, 41.8mm)
Seat tube angle - 71°
Seat clamp - Integrated
Seat post size - 1″ (25.4mm)
Bb height - 11.7″
Bb style- Mid
Standover height - 9″
Brake mounts - Thread-on 990 (mounts sold separately)
Dropouts - 14mm slot, 4q-baked
Gyro tabs - none
Weight - 2.15 kg
Tubeset - Butted Thermal-X Tubing

S&M ATF XL Frame

Name: S&M ATF XL Frame
Brand: S&M
SKU: SMFR002-26-BKT
Price: 1299.99 AUD
Availability: OutOfStock

Brand: S&M SKU: Click to copy the SKU and show the pick location

$1,299.99 AUD

Or 4 payments of $324.99 AUD with

Colour - Trans Black

Top Tube Length - 21.25

Frames are sized by top tube length. Start with your height, then let riding style decide where in the range you land.

Rider height	Top tube
147 to 157cm	19.75 to 20.25"
157 to 168cm	20 to 20.5"
168 to 175cm	20.25 to 20.75"
175 to 183cm	20.5 to 21"
183 to 190cm and up	20.75 to 21.5"

The height bands overlap on purpose. If you land in two of them, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park. Plenty of riders, pros included, deliberately ride longer than a chart suggests.

How to measure

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the length of the tube you can see. Measure your current frame that way and compare.

Size up for stability through trails and transitions.
Size down if you want the bike quick and twitchy for spins and grinds.
Top tube is fixed once you buy, but chainstay length, stem length, fork offset and bar position all change how the built bike feels.

Not sure? Tell us your height and how you ride, and we will tell you what we would put you on.
