S&M BTM XL Frame (Mike Hoder) / Gloss Clear / 21

Description

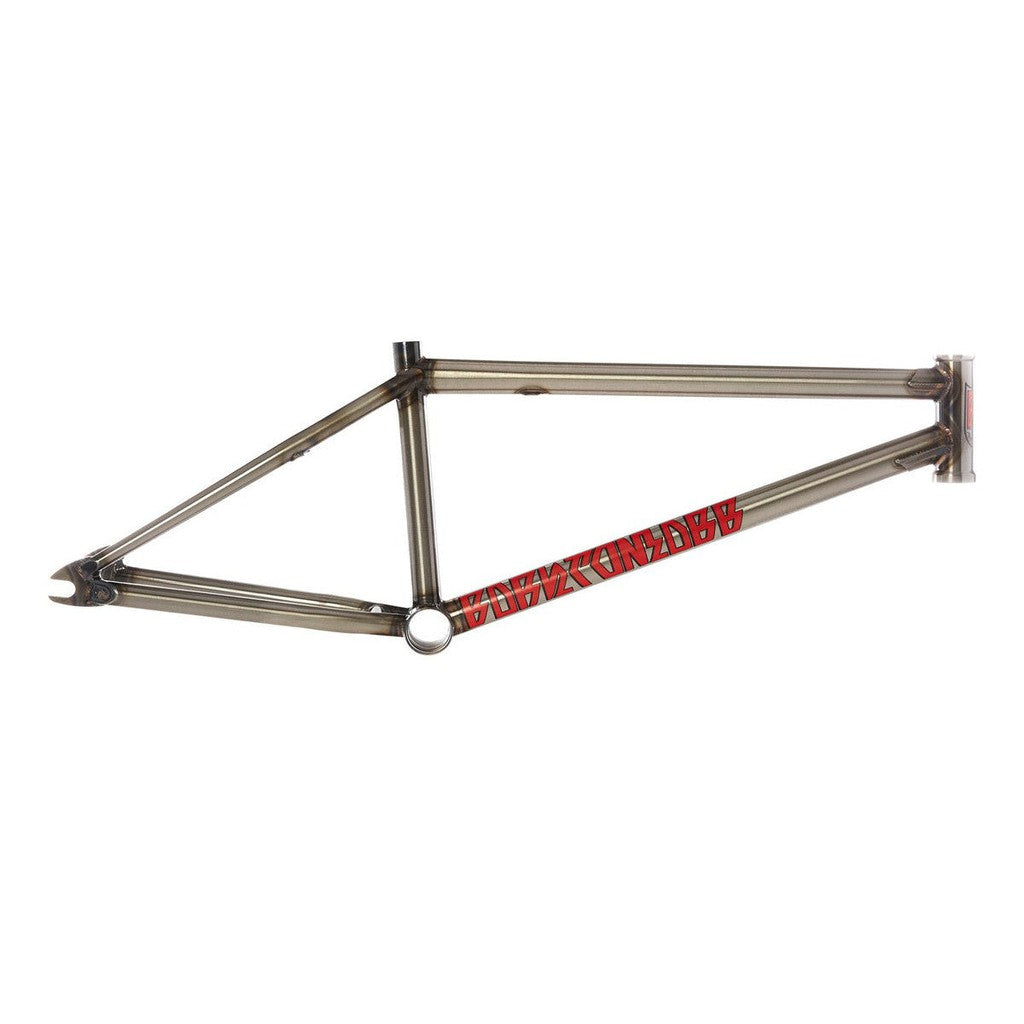

S&M BTM XL Frame (Mike Hoder)

This new revised BTM frame is OG killer Mike Hoder's signature frame with a few key differences. They made it bigger. USA! USA! USA! A Taller standover, A taller Head Tube and new graphics make this machine unbeatable! Available in a range of Top Tubes so you get the right sized rig for you.

Taller stand over, taller HT, ready for QR clamp and new graphics!

REAR END LENGTH 13.05-13.50″
HEAD TUBE ANGLE 75°
HEAD TUBE STYLE 5″ Integrated (45°/45°, 41.8mm)
SEAT TUBE ANGLE 71°
SEAT CLAMP Integrated
SEAT POST SIZE 1″ (25.4mm)
BB HEIGHT 11.5″
BB STYLE Mid
STANDOVER HEIGHT 9.50″
BRAKE MOUNTS Thread-On 990 Mounts (sold separately)
DROPOUTS 14mm Slot, 4Q-Baked
GYRO TABS None
WEIGHT 5.4 lb (2.45 kg)
TUBESET Butted Thermal-X

Specifications

REAR END LENGTH 13.05-13.50″
HEAD TUBE ANGLE 75°
HEAD TUBE STYLE 5″ Integrated (45°/45°, 41.8mm)
SEAT TUBE ANGLE 71°
SEAT CLAMP Integrated
SEAT POST SIZE 1″ (25.4mm)
BB HEIGHT 11.5″
BB STYLE Mid
STANDOVER HEIGHT 9.50″
BRAKE MOUNTS Thread-On 990 Mounts (sold separately)
DROPOUTS 14mm Slot, 4Q-Baked
GYRO TABS None
WEIGHT 5.4 lb (2.45 kg)
TUBESET Butted Thermal-X

S&M BTM XL Frame (Mike Hoder)

Name: S&M BTM XL Frame (Mike Hoder)
Brand: S&M
SKU: SMFR008-13-CLR
Price: 1299.99 AUD
Availability: OutOfStock

Brand: S&M SKU: Click to copy the SKU and show the pick location

$1,299.99 AUD

Or 4 payments of $324.99 AUD with

Colour - Gloss Clear

Top Tube Length - 21

Frames are sized by top tube length. Start with your height, then let riding style decide where in the range you land.

Rider height	Top tube
147 to 157cm	19.75 to 20.25"
157 to 168cm	20 to 20.5"
168 to 175cm	20.25 to 20.75"
175 to 183cm	20.5 to 21"
183 to 190cm and up	20.75 to 21.5"

The height bands overlap on purpose. If you land in two of them, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park. Plenty of riders, pros included, deliberately ride longer than a chart suggests.

How to measure

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the length of the tube you can see. Measure your current frame that way and compare.

Size up for stability through trails and transitions.
Size down if you want the bike quick and twitchy for spins and grinds.
Top tube is fixed once you buy, but chainstay length, stem length, fork offset and bar position all change how the built bike feels.

Not sure? Tell us your height and how you ride, and we will tell you what we would put you on.

Read the full buying guide

Frames are sized by top tube length. Start with your height, then let riding style decide where in the range you land.

Rider height	Top tube
147 to 157cm	19.75 to 20.25"
157 to 168cm	20 to 20.5"
168 to 175cm	20.25 to 20.75"
175 to 183cm	20.5 to 21"
183 to 190cm and up	20.75 to 21.5"

How to measure

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the length of the tube you can see. Measure your current frame that way and compare.

Size up for stability through trails and transitions.
Size down if you want the bike quick and twitchy for spins and grinds.
Top tube is fixed once you buy, but chainstay length, stem length, fork offset and bar position all change how the built bike feels.

Not sure? Tell us your height and how you ride, and we will tell you what we would put you on.

Read the full buying guide

S&M BTM XL Frame (Mike Hoder) - Gloss Clear / 21
